How to Attach Metal to Wood: Screws, Epoxy & Brackets Compared

Screws or bolts through pilot-drilled holes make the strongest metal-to-wood joint, and construction adhesive or epoxy adds grip and stops rattling. The catch is that the right fastener changes with the metal: thin sheet needs washers and a different screw than a steel bracket, and outdoor pressure-treated lumber eats zinc-plated screws. This guide covers each method, the pilot-hole sizes, and the corrosion traps.

How to Attach Metal to Wood: Which Method Fits Your Job

Pick the method from what the joint has to survive, not from what is in your toolbox. A shelf bracket carrying books is a shear and pull-out problem. A strip of decorative steel on a tabletop is mostly a wood-movement problem. A flashing on a deck ledger is a corrosion problem. The table below matches common jobs to the method that handles them.

Method	Best for	Main limit
Wood screws or lag screws through a clearance hole in the metal	Brackets, angle iron, plates, hinges, anything load-bearing	Needs a pilot hole in the wood and a hole in the metal; wrong finish corrodes outdoors
Through-bolts with washers and nut	Heavy loads, thick timber, steel straps, post bases	Needs access to both faces and a drilled hole all the way through
Self-drilling (Tek) screws	Driving into thin steel, then into wood behind it	Meant for steel; the drill point does not help in the wood itself
Two-part epoxy	Small flat parts and hidden joints where no fastener can show	Rigid and brittle; peels if the wood moves a lot
Polyurethane construction adhesive	Flat metal plates, trim and laminates, used with screws or clamps	Slow cure and not rated as a stand-alone structural joint
Blind rivets with large washers	Light sheet metal when you can reach both sides	Small washers let the rivet pull through wood; poor choice in solid timber

Attaching Steel to Wood With Screws and Bolts

For a bracket, plate or strap, drill the metal first with a bit sized slightly larger than the screw so the screw passes freely through it. Then clamp the metal where it belongs, mark the wood through the hole, and drill the pilot hole in the wood. A screw that threads into the metal and the wood at the same time cannot pull the two together.

Pilot-hole size is the part most guides skip. Match the bit to the screw core, not the thread crest: the bit should hide the solid shank but leave the threads visible. As a rule, use roughly 60 to 70 percent of the root diameter in softwood and 75 to 90 percent in hardwood. Wet lumber that will shrink needs a hole a little larger, about 1/32 inch.

Do You Need Pilot Holes When Attaching Metal to Wood?

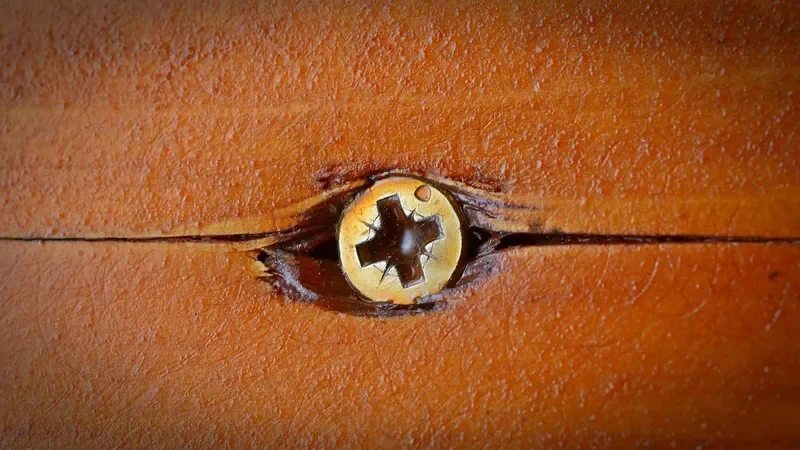

Yes, in almost every case. Without one, hardwood and the ends of boards split, and the screw can snap. Predrill, countersink if the screw head should sit flush, and drive by hand or with the clutch set low. Driving a screw past the point where the head seats strips the wood and removes the holding power you drilled for.

Which Screw to Use

• Wood screws: the default for brackets and plates screwed into wood through a pre-drilled hole in the metal.
• Lag screws: for heavy brackets and ledger-type loads into solid framing; predrill a lead hole and add a washer.
• Self-drilling screws: they cut their own hole through thin steel, which makes them handy for steel fixed to a wooden backer. They do not replace a pilot hole in dense hardwood.
• Nails: acceptable only for light trim. They pull out under vibration, so use screws for anything that carries weight or gets bumped.

The sheet metal screw question comes up constantly. They can work in wood for light jobs, but their thread is designed for thin metal, not for gripping wood fibre. We cover when that is acceptable in can sheet metal screws be used in wood.

Through-Bolts and Threaded Inserts

When the joint takes real load, a through-bolt with a washer under both the head and the nut beats any screw because it clamps the parts instead of relying on thread grip in wood. If you can only reach one side but still need a machine-screw thread, press or screw a threaded insert or T-nut into the wood and run a machine screw into it. That is also the answer to the common question of how to put a metal thread into wood so a screw can lock in.

How to Attach Thin Metal to Wood

Thin sheet metal such as flashing, a kick plate or a decorative panel dimples and tears when over-tightened, so spread the load. Drill the metal with a sharp bit (a step bit gives the cleanest hole), set a washer under each screw head, and stop turning as soon as the washer sits flat. For outdoor sheet, roofing screws with a rubber washer seal the hole against water.

1. Mark the screw positions and drill clearance holes in the metal, deburring the edges so they do not cut the wood.
2. Hold the sheet flat and mark the wood through each hole.
3. Drill pilot holes in the wood, sized per the percentages above.
4. Fasten with washered screws, working from the centre outward so the sheet does not buckle.
5. For a flat decorative panel, add a thin bead of construction adhesive between the screws to stop drumming.

Rivets get recommended a lot for thin metal, but blind rivets grip a metal backing, not wood. In wood they pull through unless a large washer sits behind the rivet, so we use screws for sheet-to-wood joints. For the aluminum-specific problems, our guide to attaching aluminum to wood goes deeper.

Attaching Metal to Wood Without Screws

Adhesive is the only real alternative when no fastener may show. Two-part epoxy bonds metal well and fills gaps, but it cures rigid. Polyurethane construction adhesive stays slightly flexible, so it tolerates the small movement wood makes through the seasons. Either way, the bond is only as good as the surface: sand the wood, scuff the metal with abrasive and wipe it with a solvent so oil and mill scale do not sit between the parts.

• Roughen the metal with 80 to 120 grit abrasive until it is dull, then wipe with a solvent such as isopropyl alcohol or acetone.
• Sand bare wood and remove dust; do not bond over old finish.
• Spread adhesive on the wood, press the metal on, and clamp or weight it for the full cure the label gives.
• Treat the adhesive as a helper: where weight is involved, add at least a few screws.

Claims that a hardware-store epoxy alone gives a structural bond to wood are optimistic. The wood fibres at the surface fail first, which is why screws plus adhesive outperform either one alone. For the full list of glue-only and clip-on options, see how to attach wood to metal without screws.

Mounting Metal to Wood With Brackets and Angle Iron

Angle brackets, mending plates and corner braces turn two loose pieces into a rigid joint, and they are how most metal frames, legs and shelf supports are really attached to timber. Choose a bracket thicker than the load seems to need and use every hole, because a bracket carries load through its screws, not its metal. Put at least two screws on each leg of an angle bracket so it cannot pivot.

For a metal frame under a wooden tabletop, do not screw down tightly across the grain. Wood swells and shrinks across its width with humidity while steel barely moves, so use slotted holes, figure-8 fasteners or Z-clips and let the top move. The same logic applies to a long steel strip set into a board. For connecting a wooden piece to a round steel post, see attaching wood to a metal pole.

Choosing Fasteners for Outdoor and Pressure-Treated Wood

Modern copper-based preservatives in treated lumber (ACQ) attack bare steel, and galvanic corrosion appears whenever two different metals touch in damp conditions. Zinc-plated screws, aluminum and copper are not compatible with preservative-treated lumber. Use hot-dip galvanized fasteners made to ASTM A153, or stainless steel. Per guidance from the American Galvanizers Association, 304 stainless suits inland, drier sites while 316 is the choice near salt water, and fasteners should match the metal of the connector they hold.

Situation	Fastener finish	Avoid
Indoors, dry	Zinc-plated or bright steel is fine	Nothing special
Outdoors, untreated wood	Hot-dip galvanized or stainless 304	Bare steel and thin zinc plating
Pressure-treated (ACQ) lumber	Hot-dip galvanized (ASTM A153) or stainless	Zinc-plated screws, aluminum or copper in contact
Coastal or salt-air	Stainless 316	Plain galvanized in constant salt spray

Fixing a Loose Metal-to-Wood Connection

A screw that spins freely has stripped its hole. Remove it, glue a hardwood dowel or a few toothpicks soaked in wood glue into the hole, let it set, and redrill a fresh pilot hole. For a bracket that has loosened, move to a longer screw or a bolt, add a washer, and fill the old hole before refastening. If the wood itself has split, glue and clamp the crack first, then refasten in new positions at least an inch away.

Keep reading

• How to Join Metal to Wood: Screws, Epoxy, or Welding?
• Best Way to Fasten Wood to Concrete: Screws vs Anchors
• How to Attach a Metal Rod to Wood: 4 Methods That Hold

Frequently Asked Questions About Attaching Metal to Wood

What is the best way to attach metal to wood?

Screws or bolts through pre-drilled holes are the strongest everyday method. Drill a clearance hole in the metal and a pilot hole in the wood, add washers, and add construction adhesive when you also want to stop rattling. For heavy loads, use a through-bolt.

How do you attach thin metal to wood?

Drill the metal with a sharp bit, use screws with washers so the sheet does not dimple, and tighten only until the washer sits flat. Outdoors, use roofing screws with rubber washers. A thin bead of adhesive between screws stops the sheet from drumming.

Can you attach metal to wood without screws?

Yes, with two-part epoxy or polyurethane construction adhesive on clean, roughened surfaces, clamped until cured. This works for light flat parts. For anything carrying weight or exposed to movement or moisture, add screws or a bracket.

Do you need pilot holes when attaching metal to wood?

Yes. Pilot holes prevent splitting and snapped screws, especially in hardwood and near board ends. Use about 60 to 70 percent of the screw root diameter in softwood and 75 to 90 percent in hardwood.

What screws should I use to attach metal to wood outdoors?

Use hot-dip galvanized or stainless steel screws. In pressure-treated lumber, avoid zinc-plated screws and keep aluminum and copper away from the wood. Choose 304 stainless inland and 316 near the coast.

Will construction adhesive bond wood to metal?

Yes. Polyurethane construction adhesive such as Loctite PL Premium bonds wood to clean, scuffed metal and fills small gaps. It cures slowly and is best used with screws or clamps rather than as the only structural fastener.

Conclusion

Screws through pilot holes handle most jobs, bolts take heavy loads, adhesive fills the gaps where screws cannot go, and the fastener finish decides whether the joint lasts outdoors. Decide on load, moisture and wood movement first, then pick the method from the table above.
