Is Bamboo Wood Strong? Sourced Data vs Oak, Pine and Steel

Bamboo is strong, but the popular claim that it beats steel only holds pound for pound. Bamboo is technically a giant grass, not wood, yet whole culms reach roughly 115-309 MPa in tension, and its crushing strength and stiffness beat red oak, Douglas fir and white pine. Its bending strength overlaps with oak rather than clearly beating it, and mild structural steel is still stronger in absolute tension (400-550 MPa for A36). This guide lays out the sourced numbers side by side and shows where each popular claim holds up and where it breaks down.

Bamboo Strength: The Real Numbers

Most pages on this topic repeat a single tensile figure with no source. The table below uses published property data for timber bamboos from the Wood Database, set beside three common woods from the same database. Bamboo values cover the range across species, culm positions and processing.

Material	Janka hardness (lbf)	Bending strength, MOR (MPa)	Stiffness, MOE (GPa)	Crushing strength (MPa)
Bamboo (timber species)	1,410-1,610	76.0-168.6	18.0-20.0	62.0-93.0
Northern red oak	1,220	99.2	12.14	46.8
Douglas fir	620	86.2	12.17	47.9
Eastern white pine	380	59.3	8.55	33.1

Three things stand out. First, bamboo’s stiffness (18-20 GPa) and crushing strength (62-93 MPa) beat all three woods across the entire range, so a bamboo culm resists squashing and sagging better than oak does. Second, bending strength is where the common claim needs correcting: bamboo’s range of 76-169 MPa straddles red oak’s 99 MPa, so a weak culm can lose to oak while a good one wins by a wide margin. Third, the width of those ranges is itself the story. Bamboo is a natural material with hundreds of species, and the Wood Database lists inconsistency as its main limitation.

Where the “Stronger Than Steel” Claim Comes From

The claim rests on tensile strength per unit of weight. Mild structural steel (ASTM A36) yields at 250 MPa, fails in tension at 400-550 MPa, and has a density of about 7,850 kg/m3. Whole bamboo culms are reported at roughly 115-309 MPa in tension with densities of 500-850 kg/m3. Dividing strength by density shows why the claim persists:

Material	Tensile strength (MPa)	Density (kg/m3)	Strength per density (MPa per g/cm3)
ASTM A36 steel	400-550	about 7,850	51-70
Bamboo, weakest culm paired with heaviest density	115	850	135
Bamboo, strongest culm paired with lightest density	309	500	618

The strength-per-density figures are our own arithmetic from the ranges above, with the worst case for bamboo shown first. Even then bamboo comes out about twice as efficient as steel, and the frequently quoted 3-4x advantage sits comfortably inside that range. But a scaffold pole is not loaded in pure tension. It buckles in compression, splits along the grain at connections, and fails at nodes, so the weight advantage does not translate one-for-one into a stronger structure.

Why One Bamboo Pole Can Be Three Times Stronger Than Another

Bamboo’s fibers are packed densely in the outer skin and sparsely in the inner wall. Published tests on moso bamboo (Phyllostachys pubescens) report strips from the outer layer testing around 294 MPa in tension against roughly 102 MPa for strips from the inner layer. That is why products built from the outer layers, such as thick-walled poles and split strips, test far stronger than ones dominated by the soft inner pith. It also explains why a thin-walled garden stake and a thick-walled structural culm should never be treated as the same material.

Bamboo vs. Wood: What Is Actually Different

Raw Bamboo vs. Strand-Woven Bamboo

Most “is bamboo strong” confusion comes from two different products sharing one name. Raw bamboo (poles, laminated strips, standard flooring) is the plant itself, and its Janka hardness of 1,410-1,610 lbf is only modestly above red oak’s 1,220 lbf. Strand-woven bamboo is shredded fiber compressed with resin under heat and pressure into dense blocks, and manufacturers market it at roughly 3,000 lbf or higher. That hardness comes from the manufacturing process rather than the plant, and the figure is a manufacturer claim that varies by brand, so check a product’s own test report. If you are shopping for floors specifically, our guide to bamboo flooring problems covers what to watch for.

Silica: Why Bamboo Dulls Your Blades

The Wood Database reports silica content of 0.5-4.0 percent in bamboo, found almost entirely in the outermost layers of the stem. Silica is abrasive, which is why carbide-tipped saw blades and router bits hold an edge better than plain steel ones on bamboo, and why the hard outer skin is the part that wears tools. Plan on sharpening or swapping blades sooner than you would for oak. For a direct comparison with another popular hard alternative, see acacia vs bamboo.

Moisture, Treatment and Insects

Untreated bamboo contains sugars and starch that attract powderpost beetles and termites, and it moves with humidity like any plant material. Commercial poles and lumber are usually treated (typically with a borate solution or heat) before sale, which is worth confirming with the seller before an outdoor project. Keep bamboo off wet ground and sealed against standing moisture, as you would with softwood.

Where Bamboo Strength Actually Matters

Construction and Scaffolding

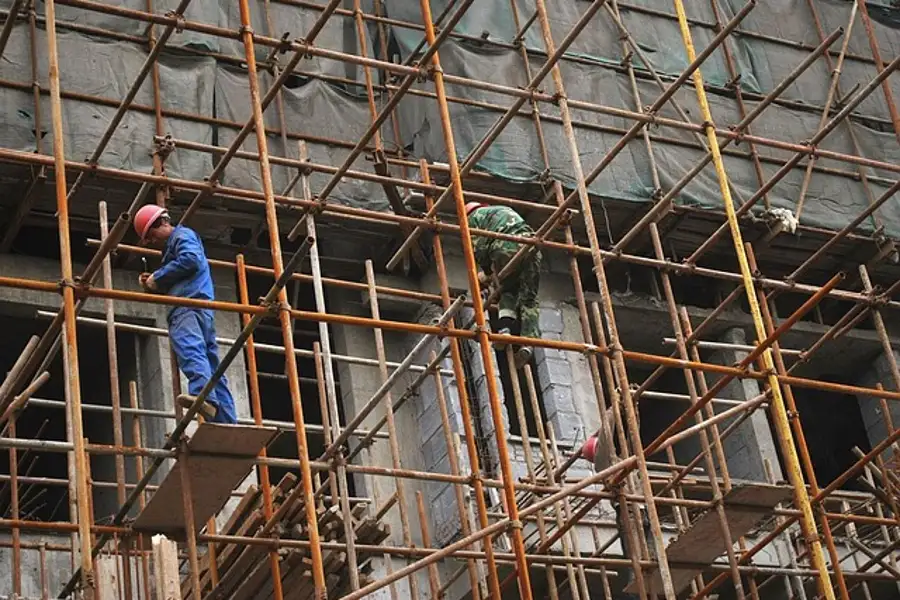

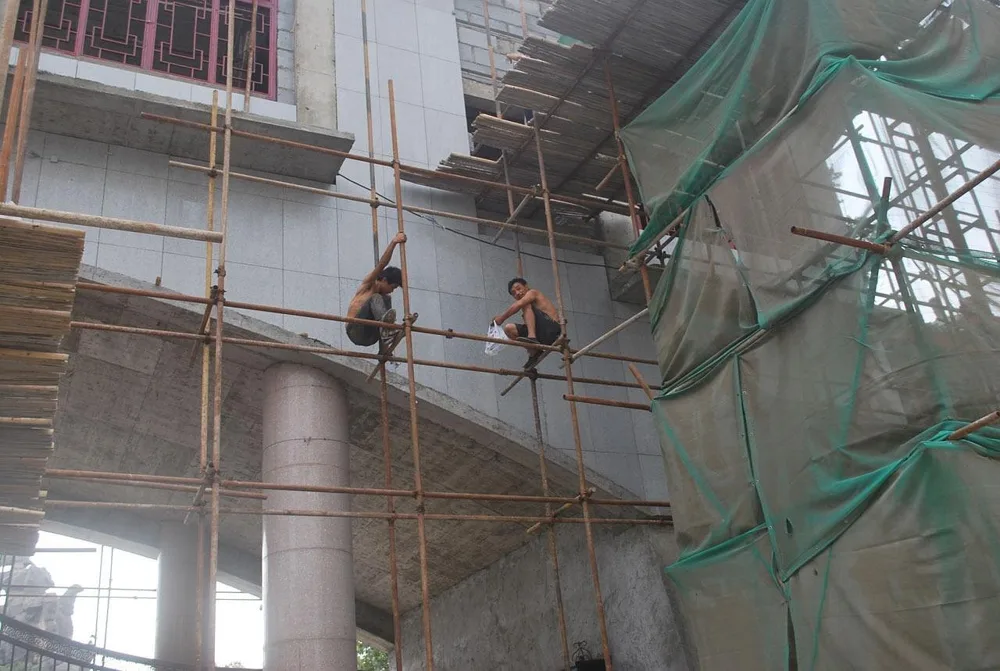

Bamboo scaffolding is still used on building sites in parts of China, Hong Kong and Southeast Asia, where its light weight lets crews erect and dismantle it quickly. Engineered products such as laminated bamboo beams and panels are being developed as renewable substitutes for dimensional lumber. Structural design with round culms follows its own engineering standard (ISO 22156), and graded, tested material is essential: a garden stake and a structural culm are not interchangeable.

Cutting Boards, Flooring and Furniture

In the shop and kitchen, bamboo’s crushing strength and surface hardness are what matter, and that is where strand-woven and laminated products shine. Our wood types guide explains how to compare species, and how to make wood stronger at home covers hardening options for softer boards. For floors, the hardest hardwood flooring list shows how bamboo sits against the real heavyweights.

Sustainability: A Faster Crop, Not a Stronger One

Bamboo culms are typically harvested after roughly three to six years, versus decades for most construction hardwoods, and the plant regrows from its own root system. That renewal speed is the strongest environmental argument for bamboo, and it is separate from the strength question.

Frequently Asked Questions

Is bamboo stronger than steel?

Not in absolute terms. ASTM A36 structural steel yields at 250 MPa and breaks at 400-550 MPa in tension, while whole bamboo culms are reported at roughly 115-309 MPa. Per unit of weight, though, bamboo can come out ahead, because it is about 10 times lighter than steel.

Is bamboo stronger than oak?

In crushing strength and stiffness, yes. The Wood Database lists bamboo at 62-93 MPa crushing strength and 18-20 GPa stiffness versus 46.8 MPa and 12.1 GPa for red oak. In bending strength the two overlap, since bamboo ranges from 76 to 169 MPa against red oak’s 99.2 MPa, so it depends on the culm or product.

Is bamboo harder than oak?

Natural bamboo is slightly harder: 1,410-1,610 lbf on the Janka scale versus 1,220 lbf for northern red oak. Strand-woven bamboo made by hot-pressing shredded fibers with resin is marketed at roughly 3,000 lbf or more, but that figure comes from manufacturers, not independent testing.

Is bamboo actually wood?

No. Bamboo is a giant grass in the Poaceae family. It is sold and worked like wood, which is why it appears in wood property databases, but it grows hollow culms with nodes rather than solid trunks with growth rings. For the botany behind that answer, see is bamboo a type of wood.

How much weight can bamboo hold?

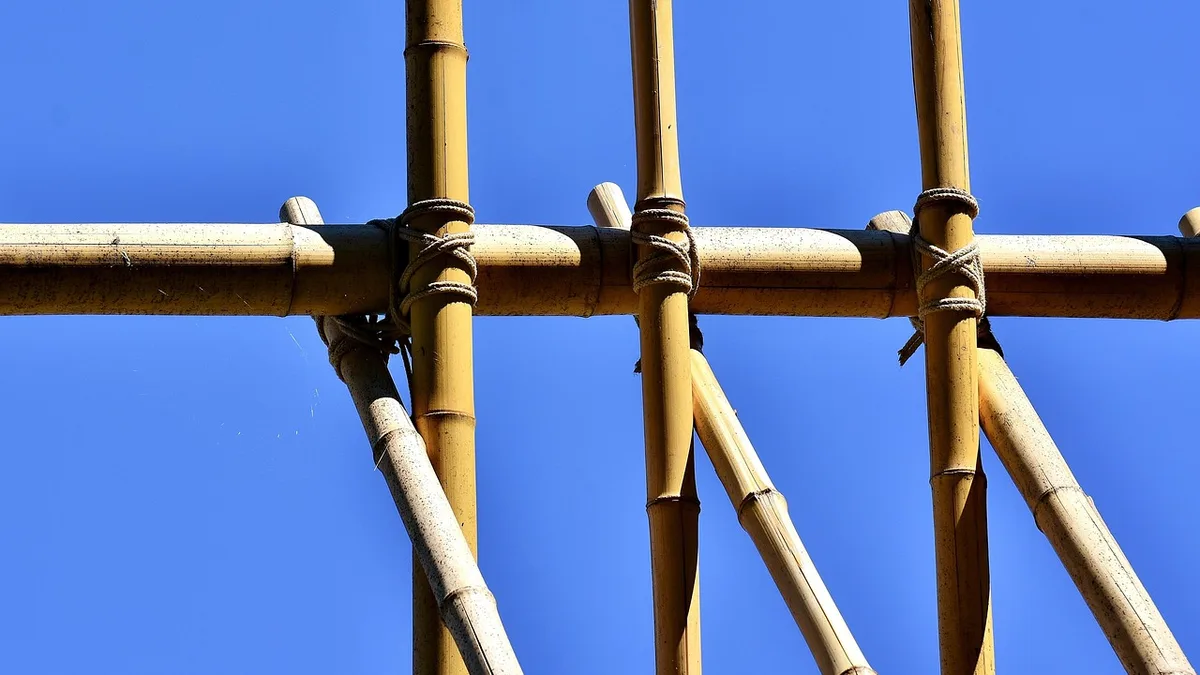

There is no single honest number. Capacity depends on whether the load pulls, bends or crushes the culm, on wall thickness, on node spacing, on moisture, and above all on the connections, which usually fail first. For anything that carries people, use graded bamboo and an engineered design rather than garden-grade poles.

Does bamboo dull saw blades faster than hardwood?

Usually yes. The Wood Database notes that bamboo contains 0.5-4.0 percent silica, concentrated in the outermost layers of the stem, which is abrasive on cutting edges. Carbide-tipped blades are the practical choice, and fresh blades help on strand-woven stock.

Conclusion

Bamboo earns its reputation. It is stiffer than oak, stronger in compression than oak, fir or pine, and far lighter than steel for the tension it carries. What it does not do is beat steel outright, and it does not reliably beat oak in bending. The honest summary is that bamboo is a strong, light, variable material, and the exact number depends on the species, the part of the culm and whether you are holding a raw pole or a pressed strand-woven plank. Pick the product type first, then trust the numbers for that product.

Sources

Property data: The Wood Database, Bamboo, Red Oak, Douglas Fir and Eastern White Pine. Steel reference: ASTM A36 steel. Moso bamboo background: USDA Forest Service, Selected physical and mechanical properties of moso bamboo.
