M12 vs M18: Which Milwaukee System to Buy (Real Specs)

Choose M18 if you want one Milwaukee platform to run a drill, a saw and a router. Choose M12 if you mostly need a light drill or driver for cabinets, trim and tight spaces. Many woodworkers end up with M18 as the main system and, sometimes, an M12 drill on the side.

Most comparisons stop at “M18 is stronger, M12 is smaller.” The more useful question is what each system can actually run. Below are the rated numbers from Milwaukee and Amazon listings, the woodworking tools on each platform that we could confirm, and a simple way to decide. We have not bench-tested these tools, so every figure is a manufacturer or listing spec.

M12 vs M18 at a Glance

Milwaukee sells M12 as its compact system and M18 as its full-size system. The two use different batteries, so they are two separate tool families. If you need the battery details, see our guide on using M18 batteries on M12 tools.

Spec	M12 FUEL 1/2 in. drill/driver kit (3403-22)	M18 FUEL 1/2 in. drill/driver kit (2903-22)
Rated torque	400 in-lbs	1400 in-lbs
Length	5.9 in.	6.9 in.
Weight on Milwaukee page	2.5 lbs	Not listed on the page
Chuck	1/2 in. all-metal	1/2 in. all-metal with carbide teeth

Source: the Milwaukee Tool product pages for the two kits, read on 2026-09-30.

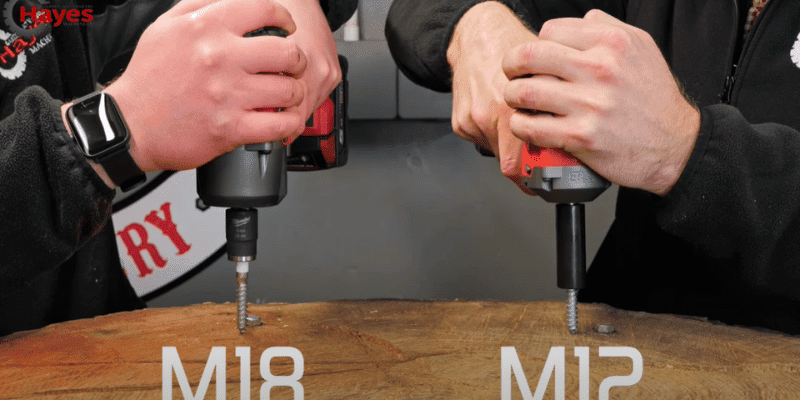

The Torque Myth: 18 Volts Is Not 50% More Power

It is easy to assume that 18 volts is 1.5 times the power of 12 volts. Milwaukee’s own ratings say otherwise. Its M18 FUEL drill kit is rated at 1400 in-lbs and its M12 FUEL kit at 400 in-lbs, so the M18 tool has roughly 3.5 times the rated torque (1400 divided by 400). The voltage gap is the smaller part of the story; the motor, gearing and battery size do the rest.

There is a second surprise inside M18 itself. The 2897-22 combo kit in our box above lists 1200 in. lbs for its hammer drill, while the 2903 drill/driver is rated 1400 in-lbs. So “M18” does not mean one fixed level of power, and it is worth comparing the exact model rather than the platform name.

Peak torque is a spec-sheet number. It tells you how hard a tool can twist at the limit, not how it feels drilling a 3/4-inch hole in oak. Use it to compare tools against each other, not to predict a result. For the difference between drill types, see drill vs drill driver.

Woodworking Tools Available on Each Platform

The battery system matters more than the drill because you will keep buying into it. These are the woodworking-relevant Milwaukee tools we could confirm on Milwaukee’s site or a retailer listing:

Tool	Platform	Listed spec
FUEL 8-1/4 in. table saw with One-Key	M18	24-1/2 in. rip capacity, 8-1/4 in. blade; Milwaukee says it generates the power of a 15A corded saw
FUEL compact router	M18	31,000 RPM; Milwaukee says it matches corded 1.25 HP trim routers
FUEL oscillating multi-tool	M12	10,000 to 20,000 OPM, 3.9 degree oscillation angle
FUEL installation drill/driver	M12	Compact drill built for tight spaces
FUEL 1/2 in. drill/driver	M12 and M18	400 in-lbs and 1400 in-lbs respectively

In our search we did not find a Milwaukee table saw or compact router on M12. That is a finding from what we searched, not a promise that none exists, so check the current catalog before you buy. The practical point stands: the tools that need real power are where M18 pays for itself.

Which Platform Fits Which Job

These are general shop-practice guidelines rather than test results.

Job	Better fit	Why
Pilot holes, cabinet hardware, small screws	M12	Light and compact; 400 in-lbs is a workable rating for small fasteners.
Installing shelves or trim in a tight space	M12	Shorter body and lower weight when your arm is extended.
Long screws and large-diameter holes	M18	Higher torque rating leaves more margin under load.
Cordless table saw or router work	M18	The tools we found are on M18.
Carrying one small tool bag to a site	M12	Smaller tools and smaller batteries.

If your main job is cutting rather than drilling, the saw matters more than the platform. Our guides to the best circular saw and the brushless cordless circular saw explain what to look for.

Size and Weight: Where M12 Wins

Milwaukee lists its M12 FUEL drill kit at 2.5 lbs and 5.9 inches long. The M18 FUEL drill kit is listed at 6.9 inches, one inch longer, though the page does not give a weight. If you work overhead, inside cabinets, or on assembly all day, that extra length is noticeable, which is why many M18 owners keep a small M12 drill for finish work.

What It Costs to Commit

Prices below are Amazon listing prices seen on 2026-09-30 through the Amazon product API, and they change often. Kit contents differ, so treat this as a rough sense of scale, not a like-for-like price test.

Kit	Platform	Listed price
Milwaukee 3403-22 M12 FUEL 1/2 in. drill/driver kit	M12	$164.75
Milwaukee M12 FUEL 2-tool combo kit	M12	$219.00
Milwaukee 2804-22 M18 FUEL hammer drill kit	M18	$295.00
Milwaukee 2897-22 M18 FUEL 2-tool combo kit	M18	$406.00

The bigger cost is what comes after: batteries, chargers and bare tools are all tied to the platform. Buy bare tools once you have batteries, and compare street prices with our Milwaukee drill price guide and Milwaukee reciprocating saw price guide.

Amp-Hours Are Not Comparable Across Platforms

Battery labels invite a false comparison. Milwaukee sells an M12 REDLITHIUM XC 4.0 (4.0Ah) and an M18 REDLITHIUM XC5.0 (5.0Ah), which looks like a small gap. But amp-hours only compare like with like. Energy is amp-hours multiplied by voltage, so a 5.0Ah pack at 18 volts holds more energy than a 4.0Ah pack at 12 volts. Using the labeled 12 and 18 volt figures as a rough guide, that is about 48 versus 90 watt-hours. Milwaukee labels its systems by maximum voltage, so the real nominal figures are lower, but the ratio is what matters.

The takeaway is to compare battery runtime inside one platform, and to compare tools by their rated output rather than by the Ah number on the pack.

Three Mistakes When Choosing Between M12 and M18

• Buying by voltage alone. As shown above, torque ratings differ by much more than the voltage ratio, and models within one platform differ too.
• Skipping the multi-voltage charger. The 2897-22 listing includes an M12-M18 multi-voltage charger, so one charger can serve both systems if you end up owning both.
• Ignoring what you already own. A shop with a drawer of batteries in one system will save money staying in it, even if the other system has a slightly better drill.

How to Decide in Three Steps

1. List the tools you expect to own in two years. If a table saw or router is on it, start on M18.
2. Note where you use a drill most. Tight, overhead or cabinet work points to M12; general shop work points to M18.
3. Check whether you already own batteries. Buying into the same system is the cheapest upgrade path.

Frequently Asked Questions

Is M18 always better than M12?

No. M18 has far more rated torque, but M12 is smaller and lighter. Milwaukee lists its M12 FUEL drill kit at 2.5 lbs and 5.9 inches long, against 6.9 inches for the M18 FUEL drill kit, so M12 is often the better tool for cabinet work and tight spaces.

Can I use M12 batteries on M18 tools?

No. The two systems use different batteries and are not interchangeable, although a multi-voltage M12-M18 charger, like the one listed with the 2897-22 kit, can charge both.

Should a beginner woodworker buy M12 or M18?

For a first cordless kit that also has to power a saw or router later, M18 is the safer base because the woodworking tools we found from Milwaukee, a table saw and a compact router, are on M18. If you only need a drill and driver for small projects, M12 is cheaper and lighter.

How much stronger is M18 than M12?

On Milwaukee’s own FUEL drill/driver pages, the M18 kit is rated at 1400 in-lbs and the M12 kit at 400 in-lbs, about 3.5 times as much. That is a peak spec, not a measure of everyday drilling, and we did not test either tool.

Conclusion

M18 is the safer platform for a woodworker who will add a saw or router, and its rated torque is about 3.5 times higher than M12 on Milwaukee’s FUEL drill pages. M12 is the better pick for light, small and precise work. Decide by the tools you plan to own, and think of the two systems as complements rather than rivals.
