DeWalt PowerStack Battery Specs (1.7 to 5.0Ah Compared)

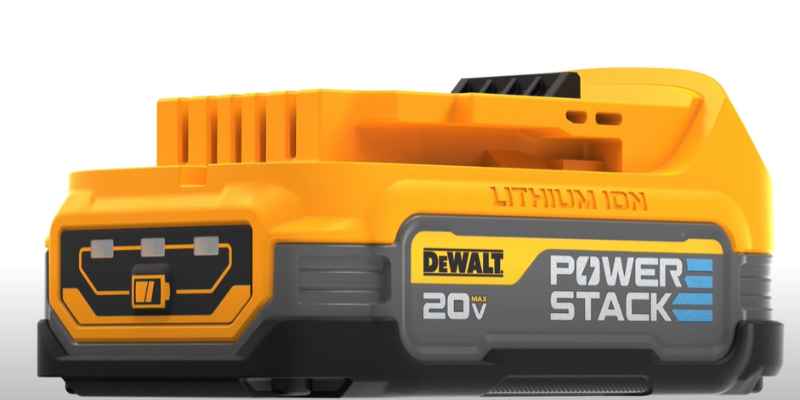

The DeWalt PowerStack battery is a 20V MAX battery line (1.7Ah, 3.5Ah, and 5.0Ah models) built with stacked pouch cells inside a single case — the name refers to that internal cell stack, not separate packs you snap together. Assuming otherwise leads people to expect a modular battery that does not exist. This guide covers real specs for each PowerStack model, how it differs from a standard XR battery, and which DeWalt tools and chargers it works with.

DeWalt PowerStack Battery Specs by Model

DeWalt sells three PowerStack capacities for the 20V MAX line. Each uses the same pouch-cell stack design; only the number of cells and the case size change.

Model	Capacity	Charge Time	Best For
DCBP034 (Compact)	1.7Ah	~35 minutes	Drills, drivers, light-duty tools where a low-profile pack matters
PowerStack 3.5Ah	3.5Ah	Under 1 hour	Mid-duty tools needing more runtime than the compact pack
DCBP520 (5.0Ah)	5.0Ah	Under 1.5 hours	Circular saws, miter saws, and other high-draw tools

DeWalt’s own spec sheet lists the DCBP034 compact pack at 1.7Ah with a roughly 35-minute charge time on a matching charger, and the DCBP520 5.0Ah pack as part of the DCBP520C starter kit that ships with a dedicated charger.

What “Stack” Actually Means (It Is Not External Stacking)

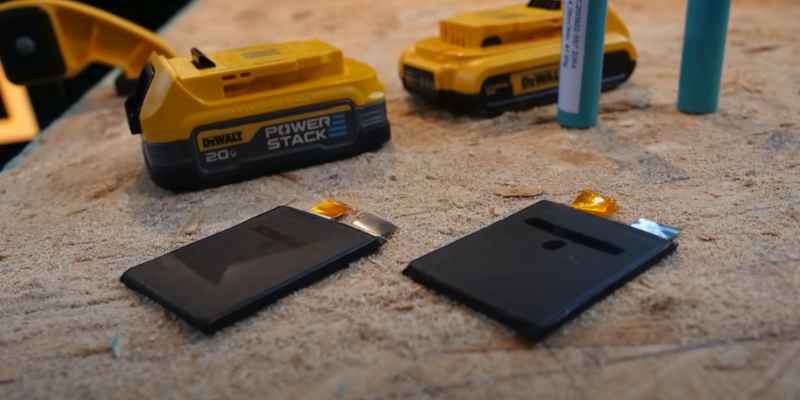

PowerStack is a battery construction method that stacks flat pouch cells directly on top of each other inside one sealed case, replacing the round cylindrical cells used in a standard 20V MAX or XR battery. It is not a system of separate battery modules you physically snap together, and there is no accessory that lets you combine two PowerStack packs into one larger unit.

That distinction matters because the name invites the wrong mental model. Buyers sometimes expect to start with a small pack and add modules later the way you might add RAM sticks to a computer. PowerStack does not work that way — each pack (1.7Ah, 3.5Ah, or 5.0Ah) is a single, fixed unit. The “stack” is internal cell geometry, and it is the reason the pouch-cell pack can be shorter and lighter than a cylindrical-cell battery of the same capacity while still fitting the same tool footprint.

📊 DeWalt rates the PowerStack line at 50% more power and roughly 2x the lifespan of a comparable-capacity XR battery. — Source: DeWalt.com, POWERSTACK 5Ah Battery product page

PowerStack vs. Standard XR Battery: What Actually Changes

Comparing a PowerStack pack to a standard XR lithium-ion battery of the same rated capacity shows the real difference is cell construction and physical size, not voltage or tool compatibility.

Factor	PowerStack	Standard XR Battery
Cell type	Stacked pouch cells	Cylindrical cells
Pack height (same Ah)	Lower profile	Taller
DeWalt’s rated power/lifespan claim	50% more power, ~2x lifespan vs. comparable XR pack	Baseline
Tool & charger compatibility	Any 20V MAX tool/charger	Any 20V MAX tool/charger
Typical price premium	Higher per Ah	Lower per Ah

Because both battery types run on the same 20V MAX platform, the choice between them is about pack size and runtime per charge, not compatibility — covered next.

Is PowerStack Compatible With Your DeWalt Tools and Chargers?

Yes — PowerStack batteries work in every 20V MAX DeWalt tool ever made, and every 20V MAX DeWalt charger will charge a PowerStack pack, including chargers sold years before PowerStack existed. DeWalt’s entire 20V MAX line shares one battery platform, so nothing about the pouch-cell construction changes the electrical interface.

If you already own older 20V MAX or XR batteries and chargers, you can mix and match freely — charge a PowerStack pack on an old charger, or charge a standard battery on a newer PowerStack-branded charger. For a full breakdown of how DeWalt’s 20V, 60V, and POWERSTACK lines cross over (and where FLEXVOLT fits in), see our guide on which DeWalt batteries are interchangeable.

Where a PowerStack Battery Actually Gets Used

PowerStack packs run on the same 20V MAX platform as every other DeWalt battery, so the real-world use case comes down to pack size versus tool draw, not the tool category. For more cordless-tool battery breakdowns like this one, see our full tools and batteries guide hub.

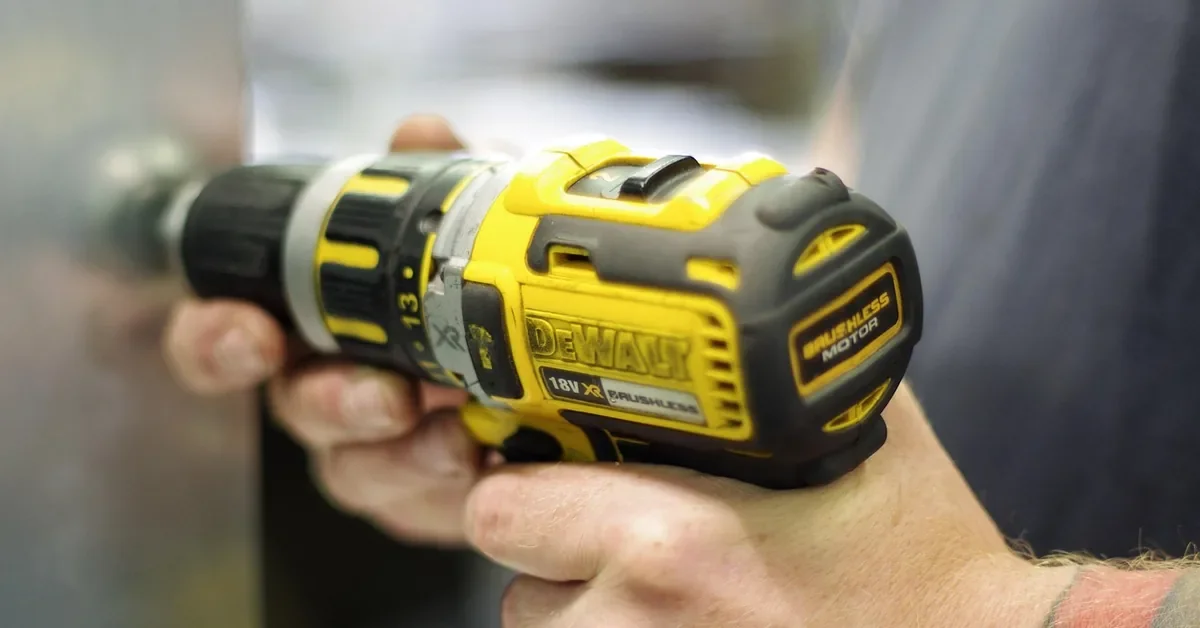

• Drills, impact drivers, and other light/mid-draw tools run well on the 1.7Ah or 3.5Ah compact packs, which stay lighter on the wrist during overhead or repetitive work.
• Circular saws, miter saws, and rotary hammers pull more current per cut, so the 5.0Ah DCBP520 pack holds a charge through more work before a swap.
• Job sites that already run a mix of 20V MAX tools can add one or two PowerStack packs into rotation without buying a separate charger, since compatibility runs both directions.

Common Mistakes When Choosing a PowerStack Battery

Most PowerStack complaints trace back to a mismatch between pack size and tool, not a defect in the battery itself.

• Buying the 1.7Ah compact pack for a high-draw tool. The compact pack is built for drills and drivers, not miter saws or rotary hammers — on a high-draw tool it will run out of charge far faster than its size suggests, because current draw (not just capacity) determines runtime.
• Expecting a PowerStack-branded charger to charge faster than a standard charger. Charge speed depends on the charger’s amperage rating, not the PowerStack name — a standard 20V MAX charger you already own charges a PowerStack pack at the same rate it always has.
• Assuming a higher price means more voltage. Every 20V MAX PowerStack pack runs at the same 20V MAX platform voltage; the price difference between models reflects amp-hour capacity and cell count, not a different voltage class.
• Storing a pack fully depleted for months. Like any lithium-ion battery, a PowerStack pack left at 0% charge for an extended period loses capacity faster than one stored at a partial charge — top it off before long-term storage.

FAQ

Is DeWalt PowerStack worth the extra cost over a standard battery?

Yes, if pack size or charge speed matters for your tool. PowerStack costs more per amp-hour than a standard 20V MAX battery, but DeWalt rates it at 50% more power and about double the lifespan in the same capacity class, which offsets the price over years of use on a high-draw tool.

Can I use a PowerStack battery in an older DeWalt tool?

Yes. PowerStack packs work in any 20V MAX DeWalt tool regardless of when the tool was made, because PowerStack is a cell-construction change inside the same 20V MAX electrical platform, not a new tool system.

Does a PowerStack battery work with a FLEXVOLT charger?

Yes. DeWalt’s FLEXVOLT and standard 20V MAX chargers are built to charge any battery on the shared platform, including PowerStack packs, so no dedicated PowerStack charger is required to keep one charged.

How long does a PowerStack 5.0Ah battery take to charge?

DeWalt’s DCBP520C starter kit pairs the 5.0Ah pack with a charger rated to bring it to a full charge in under 1.5 hours, faster than many standard chargers take with an equivalent-capacity XR battery.

Is PowerStack the same as FLEXVOLT?

No. FLEXVOLT is DeWalt’s battery platform that switches between 20V and 60V depending on the tool, while PowerStack is a pouch-cell construction method used within the 20V MAX line. They solve different problems — FLEXVOLT adds voltage flexibility, PowerStack shrinks pack size and adds power density at 20V.

Can I mix a PowerStack pack with older 20V MAX batteries on the same job?

Yes. Because every PowerStack pack shares the same 20V MAX interface as older batteries, you can rotate a PowerStack pack alongside standard XR batteries on the same tools and chargers without any adapter or workaround.

PowerStack is DeWalt’s pouch-cell battery construction, not a modular pack system — pick the 1.7Ah, 3.5Ah, or 5.0Ah size based on how hard your tool draws current, and it will charge and run on every 20V MAX charger and tool you already own.
