Are All DeWalt 20V Batteries Interchangeable?

All DeWalt 20V MAX batteries are interchangeable with every DeWalt 20V MAX tool — including XR, ATOMIC, and standard models — because they share the same physical connector and voltage platform. The only variation between battery models is amp-hour capacity, which affects runtime, not which tools the battery will fit.

One important note: 18V XRP and 12V MAX batteries use different connectors and will NOT fit 20V MAX tools. But within the 20V MAX family, any battery fits any tool — a 1.5Ah compact battery works in the same drill or impact driver as a 6.0Ah XR pack.

This guide covers the full DeWalt 20V MAX battery compatibility chart, every DCB battery model from 1.5Ah to 6.0Ah, how XR and ATOMIC actually differ, and whether FLEXVOLT batteries work in 20V tools.

DeWalt 20V Battery Compatibility Chart

Every major DeWalt 20V MAX battery model listed below uses the same physical connector. The differences are amp-hour capacity (how long the battery lasts) and physical size — not which tools the battery fits. All models are compatible with all 20V MAX tools.

Battery Model	Capacity	Weight	Best For	Compatible Tools
DCB201	1.5Ah	~0.7 lb	Light tasks, tight overhead spaces	All 20V MAX tools
DCB203	2.0Ah	~0.8 lb	Everyday DIY, light jobsite use	All 20V MAX tools
DCB204	4.0Ah	~1.4 lb	Extended DIY, medium-duty work	All 20V MAX tools
DCB205	5.0Ah	~1.4 lb	Heavy-duty work, long sessions	All 20V MAX tools
DCB206	6.0Ah	~1.6 lb	Contractors, maximum runtime	All 20V MAX tools
FLEXVOLT DCB609	9.0Ah (at 20V)	~2.8 lb	Power-hungry 20V tools, all-day use	All 20V MAX + 60V tools

Understanding Interchangeability

Compatibility Among Dewalt 20v Batteries

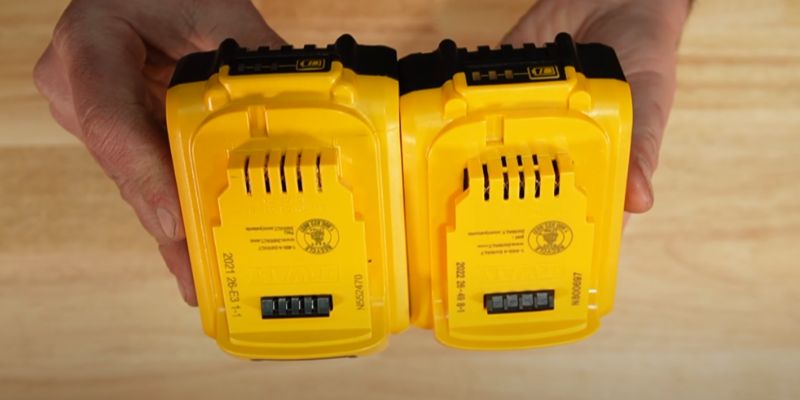

DeWalt 20V MAX is a single, unified battery platform. XR (eXtended Runtime) and ATOMIC are tool-line labels — not separate battery systems. Every 20V MAX battery, regardless of whether it carries an XR or ATOMIC label, uses the same physical connector and works in every 20V MAX tool without restriction. You can put a 5.0Ah XR pack in an ATOMIC compact drill, or a 2.0Ah standard pack in an XR brushless circular saw — both combinations work.

The practical consideration: ATOMIC tools are designed around compact batteries (1.5Ah or 2.0Ah) for the lightest possible weight. Plugging a heavy 6.0Ah XR pack into a compact ATOMIC drill does not cause damage, but the tool becomes front-heavy and loses the ergonomic advantage that defines the ATOMIC line. For best results, pair compact ATOMIC tools with 1.5Ah–2.0Ah batteries and full-size XR tools with 4.0Ah–6.0Ah packs.

Factors Affecting Interchangeability

Within the 20V MAX platform, there are only two practical factors to consider when swapping batteries between tools:

1. Amp-hour capacity: Higher Ah ratings deliver longer runtime per charge. A 5.0Ah battery lasts roughly 2.5x longer than a 2.0Ah in the same tool. Both fit identically.
2. Physical size and weight: Higher-capacity batteries are physically larger and heavier. Some compact ATOMIC tools have tight battery wells that make a large 6.0Ah pack awkward, though still functional.

Note: FLEXVOLT batteries are also fully backward-compatible. The DCB609 (9.0Ah) automatically downshifts from 60V to 20V when inserted into a 20V MAX tool, delivering extended runtime equivalent to roughly 4.5x a standard 2.0Ah pack. The tradeoff is weight — FLEXVOLT packs range from 2 to 3 lbs versus the 0.7–1.6 lb range of standard 20V MAX batteries.

Exploring Dewalt Battery Models

Comparison Of Dewalt 20v Battery Models

All six core DeWalt 20V MAX battery models use the same connector and are compatible across the entire platform. The table below shows runtime differences relative to the 2.0Ah DCB203 as a baseline, using the standard DCB115 charger charge times.

Model	Capacity	Charge Time	Runtime vs DCB203	Best Use Case
DCB201	1.5Ah	~30 min	0.75x	Overhead drilling, compact ATOMIC tools
DCB203	2.0Ah	~45 min	Baseline	Light DIY, tight spaces
DCB204	4.0Ah	~90 min	2x	Home improvement projects
DCB205	5.0Ah	~105 min	2.5x	Best all-around pick for most users
DCB206	6.0Ah	~120 min	3x	Contractors, circular saws, grinders
DCB609 (FLEXVOLT)	9.0Ah	~150 min	4.5x	Maximum runtime, any 20V or 60V tool

Features And Specifications

All DeWalt 20V MAX batteries share these core specifications: lithium-ion chemistry (no NiCd in the 20V MAX line), a 3-LED fuel gauge built into the side of the pack, and compatibility with every DCB1xx series charger (DCB115, DCB105, DCB112, DCB118). The batteries also communicate directly with the tool’s electronics to deliver consistent power as the charge drops, rather than fading gradually like older battery technologies.

Tips For Effective Battery Usage

Getting the most from your DeWalt 20V MAX batteries requires only a few consistent habits. Unlike older NiCd batteries, lithium-ion cells have no memory effect — you can partial-charge and top off without harming long-term capacity. The main threats to battery life are heat, deep-discharge storage, and using incompatible chargers.

Maximizing Performance

• Store batteries at room temperature — avoid unheated garages in winter or hot vehicles in summer, both of which permanently reduce lithium-ion cell capacity over time.
• Use only DeWalt 20V MAX chargers (DCB115, DCB105, DCB112, or DCB118). These chargers communicate with the battery’s cell-monitoring system to prevent overcharging. Third-party chargers skip this communication and can reduce cell life.
• Charge before long-term storage and aim to store at 50–70% charge rather than fully depleted or fully charged for extended periods.
• The 3-LED fuel gauge on DCB batteries lets you check remaining charge without inserting the battery into a tool — press the button on the pack’s side.

Maintenance And Safety Considerations

• Clean battery contacts with a dry cloth monthly if you use tools outdoors — sawdust and debris accumulate in the contact pins and can cause intermittent power interruptions.
• DeWalt 20V MAX batteries are rated for outdoor use in most XR tools but avoid leaving them submerged or exposed to heavy rain for extended periods.
• Never disassemble a lithium-ion battery pack. The internal cells operate at high current and any short circuit can cause fire or rupture.
• Recycle dead batteries at Home Depot, Lowe’s, or Best Buy — all three accept used lithium-ion packs through the Call2Recycle program at no charge.

📊 DeWalt’s 20V MAX platform includes more than 200 compatible tools and accessories — from compact drills and impact drivers to outdoor equipment like blowers and lawn mowers. Every single one runs on the same DCB battery connector. Source: DeWalt 20V MAX tool catalog (dewalt.com)

“All DEWALT 20V MAX batteries are compatible with all DEWALT 20V MAX tools.”

Frequently Asked Questions On Do All Dewalt 20v Batteries Interchangeable

Can I Use A Dewalt 20v Max In Xr?

Yes. DeWalt 20V MAX batteries (standard models like the DCB203 or DCB204) are fully compatible with DeWalt XR tools. XR refers to the tool line, not a separate battery platform. Any 20V MAX battery powers any 20V MAX XR tool without restriction — the connector and voltage are identical.

Are Dewalt Xr And Atomic Batteries Interchangeable?

Yes — DeWalt XR and ATOMIC batteries are fully interchangeable. XR and ATOMIC are tool-line names within the same DeWalt 20V MAX platform, not separate battery systems. All 20V MAX batteries (DCB201 through DCB206) use the same physical connector and work in both XR and ATOMIC tools. According to DeWalt’s official support documentation, “All DEWALT 20V MAX batteries are compatible with all DEWALT 20V MAX tools.” The only practical consideration is size: a large 6.0Ah pack in a compact ATOMIC tool works electrically but creates an ergonomic imbalance.

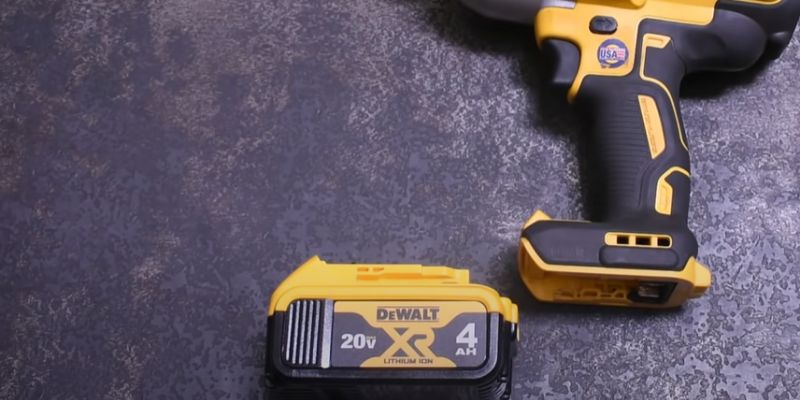

What Is The Difference Between Dewalt 20v Max And 20v Max Xr Batteries?

The connector and voltage are identical — both use the standard 20V MAX connector. The XR label on some batteries (like the DCB205 XR) indicates higher cell count for extended runtime, not a different battery standard. A DCB205 XR delivers 2.5x the runtime of a DCB203 standard battery in the same tool, but both fit identically in the same battery well. Choose by runtime need, not label.

Do All 20v Dewalt Batteries Use The Same Charger?

Yes. All DeWalt 20V MAX batteries use the same charger interface (DCB1xx series chargers). The DCB115, DCB105, DCB112, and DCB118 chargers all accept every 20V MAX battery from the DCB201 through the DCB206. FLEXVOLT batteries also charge on these same chargers. The exceptions are 12V MAX batteries (which use the DCB101 or DCB107 charger) and the old 18V XRP NiCd chargers.

Which Dewalt Batteries Are Not Compatible With 20v Max Tools?

Two DeWalt battery families will not fit 20V MAX tools: the 12V MAX batteries (DCB127, DCB120) use a smaller slide connector designed for the 12V platform, and the legacy 18V XRP batteries (DC9096, DC9098) use an older slide-pack connector from before the 20V MAX era launched. Additionally, despite matching voltage labels, Black+Decker, Craftsman, and Porter-Cable 20V batteries are not interchangeable with DeWalt 20V MAX tools — they use different contact arrangements and lack DeWalt’s cell-communication protocol.

Conclusion

Every DeWalt 20V MAX battery — from the 1.5Ah DCB201 to the 6.0Ah DCB206 — fits every 20V MAX tool in the platform, including XR and ATOMIC models. FLEXVOLT batteries work in 20V MAX tools as well. The only batteries that won’t fit are the 12V MAX and 18V XRP packs, which use entirely different connectors. When choosing a battery, focus on how long you need to run the tool and how much weight you can comfortably handle — the compatibility question is already settled for the entire 20V MAX lineup.
