How Many Watts Does a Circular Saw Use? (Real Amps by Size)
A corded circular saw draws 1,200 to 2,500 running watts – most 7-1/4 inch models pull 12 to 15 amps on a 120V circuit, working out to 1,440 to 1,800 watts. A cordless saw has no wattage rating at all, only volts and amps. Undersize a generator, inverter, or extension cord for that draw and the saw bogs down mid-cut or trips the breaker. This guide covers watts by saw size, the NEC 80% circuit rule, cord gauge, and cordless watt-equivalents.
Affiliate disclosure: this post contains Amazon affiliate links. As an Amazon Associate we earn from qualifying purchases at no extra cost to you.
How Many Watts Does a Circular Saw Use, by Size?
Wattage scales with blade size and motor duty rating. A compact trim saw sips power; a worm-drive framing saw can spike well past 2,000 watts under load. The table below reflects typical running watts under normal cutting load, not the momentary startup surge (covered next).
| Saw Type | Blade Size | Typical Running Watts | Typical Amps (120V) |
|---|---|---|---|
| Compact/trim saw | 4-1/2 to 5-3/8 in | 800 – 1,200W | 7 – 10A |
| Standard corded saw | 6-1/2 to 7-1/4 in | 1,400 – 1,800W | 12 – 15A |
| Worm drive / heavy duty | 7-1/4 to 8-1/4 in | 1,800 – 2,500W | 15A (max on most circuits) |
| Cordless (18V-60V) | 6-1/2 to 7-1/4 in | No watt rating – see cordless section below | Battery amp draw varies |
Most 7-1/4 inch corded saws, the size sold for general framing and sheet goods, land in the 1,400 to 1,800 watt range. Check the nameplate stamped on the saw’s motor housing for the exact amp draw; it is more reliable than any general chart, including this one.
Running Watts vs. Starting Watts
A circular saw’s motor pulls far more current for a fraction of a second at startup than it does once the blade is spinning freely. This locked-rotor surge can hit 2,400 to 2,500 watts, even on a saw rated at 1,500 running watts, because the motor has to overcome the blade’s full resistance from a dead stop.
That gap matters most when sizing a generator or inverter: a unit rated for exactly the saw’s running watts will stall or trip the moment you pull the trigger. Size for the starting watts, not the running watts, and you will have headroom to spare once the blade is up to speed.

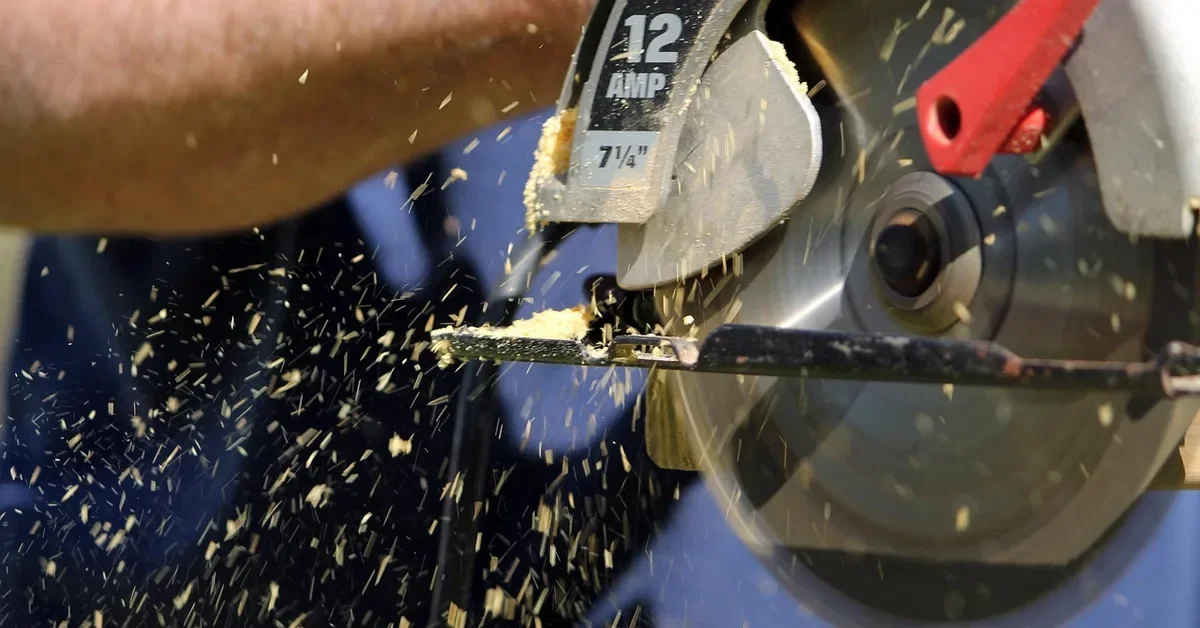

How Many Amps Does a Circular Saw Use?
Watts equal volts multiplied by amps (W = V x A). On a standard 120V household circuit, a circular saw’s amp draw is what actually trips breakers and blows fuses, so it is the number to watch. Most corded circular saws draw 10 to 15 amps; a 15A tool at 120V works out to 1,800 watts at full draw.
- 10 amps at 120V = 1,200 watts
- 12 amps at 120V = 1,440 watts
- 13 amps at 120V = 1,560 watts
- 15 amps at 120V = 1,800 watts
A dull or damaged saw blade makes the motor work harder to force its way through the material, which raises real-world amp draw above the nameplate figure. Keeping the blade sharp is a cheap way to keep the saw’s actual draw closer to its rated number.
Can You Run a Circular Saw on a 15-Amp Household Circuit?
Usually, yes, for normal intermittent cutting. But there is a code-based limit worth knowing before you run a saw alongside a shop vac or compressor on the same circuit.
A circular saw is almost never a true 3-hour continuous load since you are cutting in short bursts, so a 15A circuit is fine for occasional framing or trim work. Add a shop vac, a compressor, and a work light to that same 15A circuit at once, though, and you can exceed 12 continuous amps fast. A dedicated 20A circuit is the safer choice for a dedicated shop or job-site panel where a saw runs alongside other tools for extended stretches.
What Size Extension Cord Do You Need for a Circular Saw?
Cord gauge matters as much as circuit amperage. A cord that is too thin or too long for the saw’s amp draw causes voltage drop, which makes the motor pull even more current to compensate, the opposite of what you want.
| Cord Length | Recommended Gauge for a 12-15A Saw |
|---|---|
| Up to 25 ft | 14 AWG |
| 25 – 50 ft | 12 AWG |
| 50 – 100 ft | 10 AWG |
Lower AWG numbers mean thicker copper and less resistance, so a 12-gauge cord handles a 50-foot run to a saw pulling 12 to 15 amps without meaningful voltage drop. Also inspect the saw’s own power cord for cracked insulation or exposed wire; a damaged built-in cord causes the same voltage-drop problem as an undersized extension cord, and it is a shock hazard on top of it.
Best Extension Cord Pick
 |
POWGRN 50 ft 12-Gauge Heavy Duty Extension Cord – $43.99 A 12-gauge, 1,875-watt-rated cord matches the 50-foot / 12 AWG pairing this guide recommends for a 12-15 amp circular saw, so you avoid the voltage drop that makes the motor pull extra current.
|

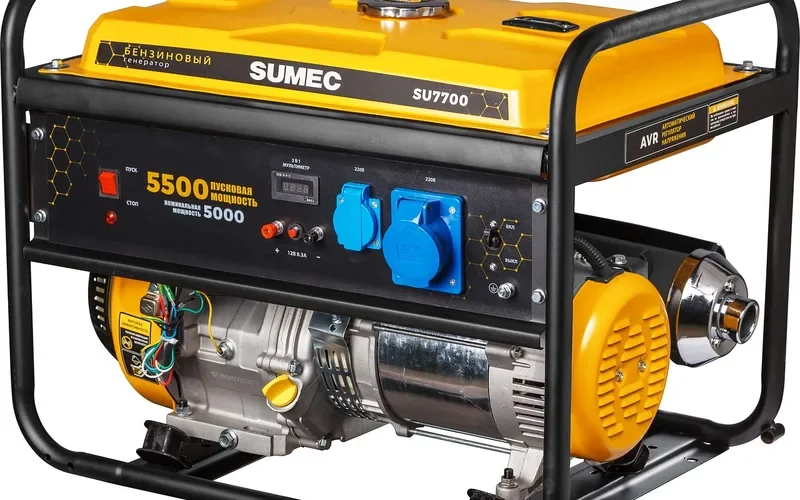

What Size Generator or Inverter Does a Circular Saw Need?
Size the generator or inverter to the saw’s starting watts, with headroom, not its running watts.
- Generator: a 2,000 to 3,000 watt portable generator covers the 2,400-2,500W startup surge of most 7-1/4 inch saws, with enough surplus to also run a shop light or charger. Check the generator’s own surge/peak watt rating, not just its running watt rating, against the saw’s starting watts.
- Inverter: pick an inverter with a continuous rating above the saw’s running watts and a peak/surge rating above its starting watts, roughly 2,500W peak for a standard 7-1/4 inch saw. A pure sine wave inverter is worth the extra cost for a universal-motor tool like a circular saw.
If you are shopping for a new saw with power efficiency in mind rather than just working around an existing one, our circular saw buying guide compares amp draw and cutting capacity across today’s top corded and cordless models.
Cordless Circular Saws: How to Calculate the Watt Equivalent
A cordless circular saw is not rated in watts anywhere on the tool or in its manual. It is rated in volts (18V, 20V MAX, 40V, 60V MAX) and the battery pack is rated in amp-hours (Ah), a measure of capacity over time, not instantaneous power. To get a wattage figure you can compare against a corded saw, you need the tool’s actual amp draw under load, not the battery’s amp-hour rating.
The formula is the same one used for corded tools: watts = volts x amps. An 18V cordless saw drawing 10A under load is pulling about 180W at that instant; the same saw at a harder bite into thick hardwood might spike to 20A or more, or roughly 360W. A 60V MAX (dual-voltage 120V-equivalent battery system) saw drawing a similar 10A is pulling closer to 600W, which is why the higher-voltage cordless platforms can match a corded saw’s cutting power without a cord. Our 20V cordless circular saw breakdown covers real-world amp draw and runtime for a common compact model.
“I’ve popped a 15-amp breaker more than once running a corded saw and a shop vac off the same outlet during a deck build. Once you know a saw’s actual amp draw off the nameplate instead of guessing from the blade size, sizing the circuit, cord, or generator stops being a guessing game.”
Frequently Asked Questions
How many amps does a circular saw use?
Most corded circular saws use 10 to 15 amps on a 120V circuit. Compact 4-1/2 to 5-3/8 inch saws typically draw 7 to 10 amps, while standard 6-1/2 to 7-1/4 inch saws draw 12 to 15 amps. Check the nameplate on the saw’s motor housing for the exact figure.
How big of a generator do I need for a circular saw?
A 2,000 to 3,000 watt portable generator covers most circular saws, including the 2,400 to 2,500 watt startup surge of a standard 7-1/4 inch model. Check the generator’s surge (peak) watt rating against the saw’s starting watts, not just its running watts.
What size inverter do I need to run a circular saw?
Choose an inverter with a continuous rating above the saw’s running watts and a peak or surge rating above its starting watts, roughly 1,800W continuous and 2,500W peak for a standard corded 7-1/4 inch saw. A pure sine wave inverter runs a universal-motor saw more smoothly than a modified sine wave unit.
Can I run a circular saw on a 15-amp circuit?
Yes, for normal intermittent cutting. The National Electrical Code limits a true continuous load (3 or more hours straight) on a 15-amp circuit to 12 amps, or 1,440 watts, but short bursts of sawing are not a continuous load. Avoid running a shop vac or compressor on the same 15A circuit at the same time as the saw.
Do cordless circular saws have a wattage rating?
No. Cordless saws are rated in volts and the battery pack in amp-hours, not watts. To estimate an equivalent wattage, multiply the battery voltage by the tool’s actual amp draw under load; an 18V saw drawing 10A is pulling roughly 180 watts at that instant.
Conclusion
Most corded circular saws draw 1,200 to 2,500 running watts depending on size, with a startup surge that can briefly hit 2,500 watts even on a smaller saw. Check the amp rating on the motor housing, size any generator, inverter, or extension cord to the starting watts rather than the running watts, and keep the blade sharp so the motor is not working harder than it needs to.
