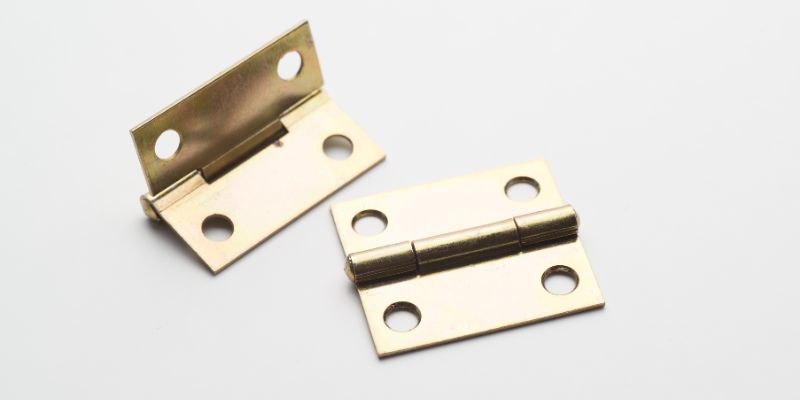

To measure hinges, use a measuring tool like a tape measure or ruler to determine the dimensions accurately. When measuring, ensure the hinge is in the fully open position and measure the length, width, and thickness of the hinge plates or leaves.
Also, measure the diameter of any hinge pin if applicable. Consider measuring the hinge barrel length and the overall height of the hinge. Finally, take note of the number and location of screw holes. By following these steps, you can obtain precise measurements of hinges for various purposes such as replacement or installation.
Importance Of Accurate Hinge Measurements
Accurate hinge measurements are crucial when replacing or installing hinges, as they ensure a proper fit and functionality. Measuring hinges accurately can save you time, effort, and even money, by preventing the need for adjustments or purchasing the wrong replacement. In this section, we will explore the importance of accurate hinge measurements and provide you with tips to ensure a proper fit and choose the right replacement.
Ensuring Proper Fit
When measuring hinges, ensuring a proper fit is essential. Incorrect measurements can result in a hinge that doesn’t align properly, causing issues with the door or cabinet functionality. To ensure a proper fit:
- Measure the width and height of the existing hinge to determine its size.
- Check the radius of the hinge, as it varies between square and rounded corners.
- Measure the thickness of the hinge to ensure it matches the door or cabinet thickness.
- Consider the weight and load-bearing capacity of the hinge to ensure it can support the door or cabinet.
By taking accurate measurements, you can find the right hinge that fits perfectly, eliminating the need for adjustments or modifications.
Choosing The Right Replacement
When it comes to replacing hinges, choosing the right replacement is crucial for optimal functionality. Here are some factors to consider when selecting a replacement hinge:
- Ensure the replacement hinge matches the same size and dimensions as the original hinge.
- Consider the hinge material, such as brass, steel, or stainless steel, based on your specific needs.
- Take into account the type of hinge, whether it’s a butt hinge, continuous hinge, or pivot hinge, depending on the application.
- Check the finish of the hinge to match the overall aesthetics of the door or cabinet.
By choosing the right replacement hinge based on accurate measurements, you can ensure a seamless installation and long-lasting performance.
Understanding Different Types Of Hinges
When measuring hinges, it is essential to understand the different types available. To accurately measure hinges, start by determining the size of the door and frame, ensuring a perfect fit for your specific installation needs.
Hinges serve an essential function in our daily lives, providing stability and smooth movement to doors, cabinets, and various other objects. When it comes to measuring hinges, it’s crucial to have a good grasp of the different types available. In this section, we will dive into the three main types of hinges: overlay hinges, inset hinges, and offset hinges. Understanding these types will not only help you measure your hinges accurately but also select the right ones for your specific needs.
Overlay Hinges
Overlay hinges are commonly used for cabinet doors that overlap the face frame. They are designed to cover the opening of a cabinet completely. Measuring overlay hinges requires determining the overlay size, which refers to the amount by which the cabinet door overlaps the face frame. To measure overlay hinges accurately, follow these simple steps:
1. Close the cabinet door and measure the width of the door.
2. Measure the width of the face frame.
3. Subtract the width of the face frame from the width of the door.
4. Divide the result by 2 to get the overlay size.
If you’re unsure about the overlay size required for your cabinet, consider consulting a professional or referring to the manufacturer’s guidelines. Choosing the right overlay hinge ensures that the door closes properly and aligns perfectly with the cabinet.
Inset Hinges
Inset hinges are commonly used for cabinet doors that fit flush inside the face frame, creating a sleek and seamless appearance. Measuring inset hinges involves determining the size and position of the hinge within the cabinet. Here’s how you can measure inset hinges accurately:
1. Measure the width and height of the cabinet opening.
2. Subtract the width and height of the door from the width and height of the cabinet opening, respectively.
3. Divide the remaining measurements by 2 to get the inset size.
It’s essential to note that inset hinges require precise measurements to ensure a proper fit and smooth operation. Taking accurate measurements will help you select the right hinges that align perfectly with your cabinet doors.
Offset Hinges
Offset hinges are commonly used for doors or cabinets that require additional clearance or space between the door and the frame. These hinges are often used in situations where the door needs to swing out or away from an obstacle. Measuring offset hinges involves determining the desired offset distance. Here’s how you can measure offset hinges accurately:
1. Measure the width of the cabinet door.
2. Measure the width of the frame or the obstacle.
3. Subtract the width of the frame or obstacle from the width of the door.
4. Divide the result by 2 to get the desired offset distance.
By accurately measuring and selecting the appropriate offset hinges, you can ensure smooth door operation and prevent any obstruction-related issues.
Understanding the different types of hinges, including overlay hinges, inset hinges, and offset hinges, is crucial for accurate measurement and proper selection. Whether you’re working on cabinet doors or other objects requiring hinges, knowing how to measure each type accurately will ultimately help you achieve the desired functionality, stability, and aesthetic appeal.
Measuring Hinges For Replacement
When it comes to replacing hinges, proper measurements are crucial to ensure a seamless fit. Measuring hinges for replacement requires attention to detail, as inaccuracies can lead to misaligned doors and other functionality issues. Read on to learn how to measure hinges accurately for a replacement.
Overall Size Measurement
When measuring hinges for replacement, the overall size of the hinge is an important factor to consider. Measure the length and width of the hinge, ensuring that you account for any decorative flourishes or protrusions. This information will help you select a replacement hinge that matches the size of the original, preventing gaps or misalignment.
Screw Hole Spacing Measurement
The screw hole spacing is another critical measurement to take into account when replacing hinges. Use a measuring tape to determine the distance between the screw holes, both horizontally and vertically. This measurement is essential for ensuring that the replacement hinge aligns perfectly with the existing screw holes, avoiding the need for additional drilling or adjustments. Note down the measurements for accurate replacement.
Credit: cabinetdoorsnmore.com
Tools And Techniques For Precise Measurements
Accurate measurements are crucial when it comes to installing and aligning hinges. The right tools and techniques not only ensure a proper fit but also save you time and frustration. In this section, we will explore two essential tools for measuring hinges with precision: a Measuring Tape or Ruler and a Digital Caliper.

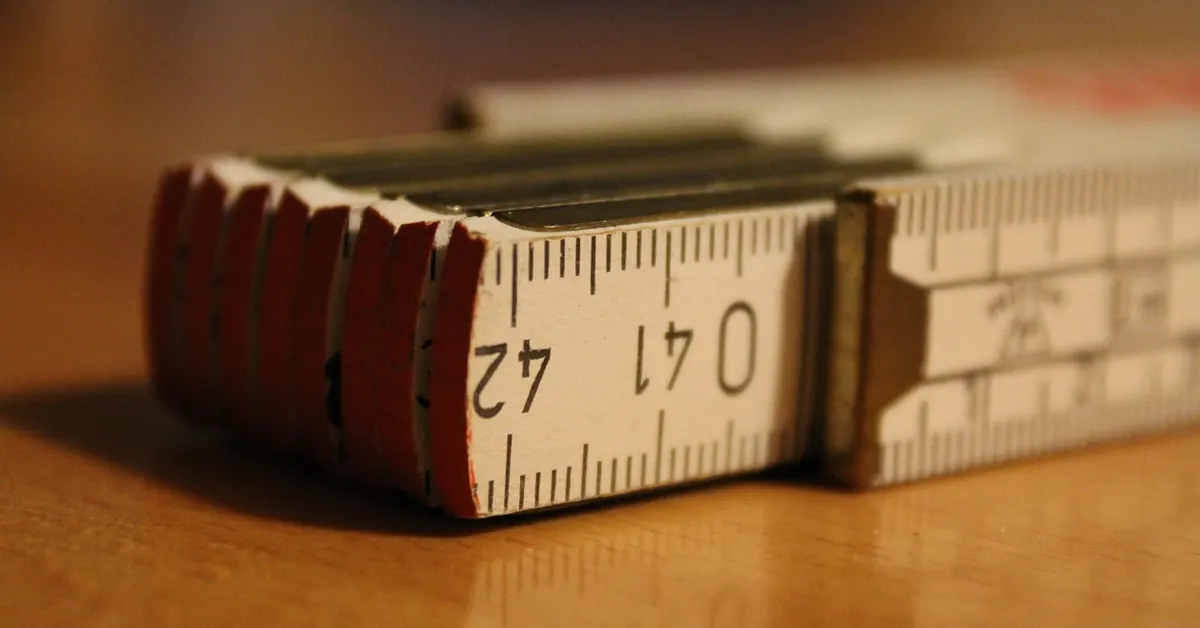

Measuring Tape Or Ruler
When it comes to basic measurements, a measuring tape or ruler is a handy tool that can be found in nearly every toolbox. To measure hinges using a tape measure or ruler, follow these steps:
- First, open the hinge to a 90-degree angle.
- Then, stretch out your measuring tape or place your ruler against the hinge leaf.
- Measure the length of the hinge leaf from one end to the other, making sure to align the measuring tool with the edge of the hinge.
- Write down the measurements for reference when choosing hinges or installing them.
A measuring tape or ruler is a quick and easy solution for determining the overall length of a hinge. However, keep in mind that it may not provide the accuracy needed for more precise measurements.

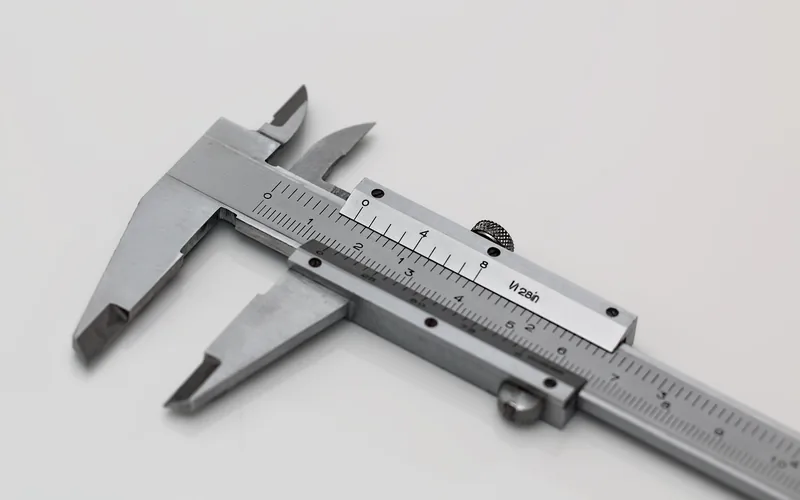

Digital Caliper
If you require more precise measurements, a digital caliper is an excellent tool to have. Digital calipers offer both accuracy and ease of use, making them ideal for measuring hinges. Here’s how to use a digital caliper for hinge measurements:
- Begin by zeroing the digital caliper to ensure accurate measurements.
- Gently open the hinge to a 90-degree angle.
- Place the caliper’s jaws on opposite sides of the hinge leaf and firmly close them until the caliper reads the width.
- Record the measurement, taking note of any additional decimals for precise sizing purposes.
A digital caliper greatly simplifies the process of measuring hinges by providing accurate readings down to the decimal point. This level of precision ensures a proper fit and eliminates any guesswork during the hinge installation process.
Tips For Accurate Measuring
Learn how to accurately measure hinges with these helpful tips. Ensure precise measurements by following these guidelines and avoid common measuring mistakes.
Double-check Measurements
Accurate measurements are crucial when it comes to hinges. Even the slightest error can lead to ill-fitting doors or cabinets, compromising the functionality and security of your furniture. To ensure precision, double-check your measurements before proceeding with hinge installation.
The first step in measuring hinges is to determine the size of the door or cabinet. Measure the width, height, and thickness of the door accurately using a reliable measuring tape. Round off the measurements to the nearest inch to make it easier when selecting the right hinge size.
Once you have the measurements for the door or cabinet, it’s time to measure the hinge itself. Start by closing the door or cabinet and measuring the height and width of the door leaf (the part attached to the hinge). These measurements will help you determine the appropriate size and type of hinge to use.
After measuring the door leaf, take note of the hinge gap. The hinge gap refers to the space between the edge of the door leaf and the adjacent surface, such as the door frame or cabinet frame. This gap is important for proper door functioning and allows room for expansion and contraction due to temperature and humidity changes.
In addition to measuring the hinge gap, pay attention to the backset measurement. The backset is the distance between the edge of the door and the center of the hinge. This measurement ensures that the hinge aligns correctly with the door, maintaining a smooth swinging motion.
| Measurement | Description |
|---|---|
| Door Width | Measure the width of the door, rounding to the nearest inch. |
| Door Height | Measure the height of the door, rounding to the nearest inch. |
| Door Thickness | Measure the thickness of the door, rounding to the nearest inch. |
| Door Leaf Height | Measure the height of the door leaf (the part attached to the hinge). |
| Door Leaf Width | Measure the width of the door leaf (the part attached to the hinge). |
| Hinge Gap | Measure the space between the door leaf and the adjacent surface. |
| Backset | Measure the distance between the edge of the door and the center of the hinge. |
Seek Professional Assistance If Unsure
If you are unsure about measuring hinges or find the process overwhelming, it’s always a wise choice to seek professional assistance. A skilled carpenter or hardware specialist can help you get accurate measurements and recommend the right type and size of hinge for your specific needs.
Note that improperly measured hinges can lead to various issues, such as door misalignment, difficulty in opening and closing, or even damage to the door or cabinet. By relying on the expertise of professionals, you can prevent these problems and ensure a seamless hinge installation.
Frequently Asked Questions On How To Measure Hinges
How Do I Know What Size My Hinge Is?
To determine the size of your hinge, measure the width and length of the hinge using a ruler or tape measure. Make sure to measure the entire length and width, including any decorative parts. Compare your measurements to standard hinge sizes available in the market to find the closest match.
Are Hinges Measured Open Or Closed?
Hinges are measured from end to end when completely open. This ensures accurate sizing for installation.
How Do You Read Hinge Measurements?
To read hinge measurements, measure the width of the hinge leaf and the length of the hinge knuckle. The width is the distance between the top and bottom edges of the leaf, while the knuckle length is the distance from the base of the knuckle to the tip.
Are Door Hinges Standard Size?
Door hinges do come in standard sizes. They are available in various sizes to fit different door types and weights.
Conclusion
Measuring hinges is a simple process that requires attention to detail and precision. By following the steps outlined in this guide, you can ensure that you accurately measure your hinges for replacement or installation. By understanding the importance of correct measurements, you can save time and avoid potential headaches down the line.
Happy measuring!
