Sandblaster for Metal: PSI, Media & Rust Removal Guide
A useful sandblaster for metal must match three things: the compressor’s delivered CFM, the nozzle size, and an abrasive suited to the coating or rust you need to remove. PSI alone does not size the system. Start on scrap or an inconspicuous area, use the lowest effective pressure, and never exceed any component’s rating.
For general steel restoration, garnet, crushed glass, or aluminum oxide is usually more effective than soda. Glass bead is better for cleaning or producing a softer satin texture than for stripping heavy scale. Avoid ordinary silica sand as a casual DIY abrasive because blasting dust can cause severe respiratory exposure.
Quick Setup: PSI, CFM, Nozzle, and Media
Set the pressure only after confirming the nozzle’s air demand. A compressor may show a high tank PSI yet fail to supply enough CFM continuously, causing the blast stream to fade and the machine to cycle. Compare the nozzle chart with the compressor’s delivered CFM at the intended working pressure, not its displacement or peak marketing number.
Sandblasters for Metal: Three Available Options

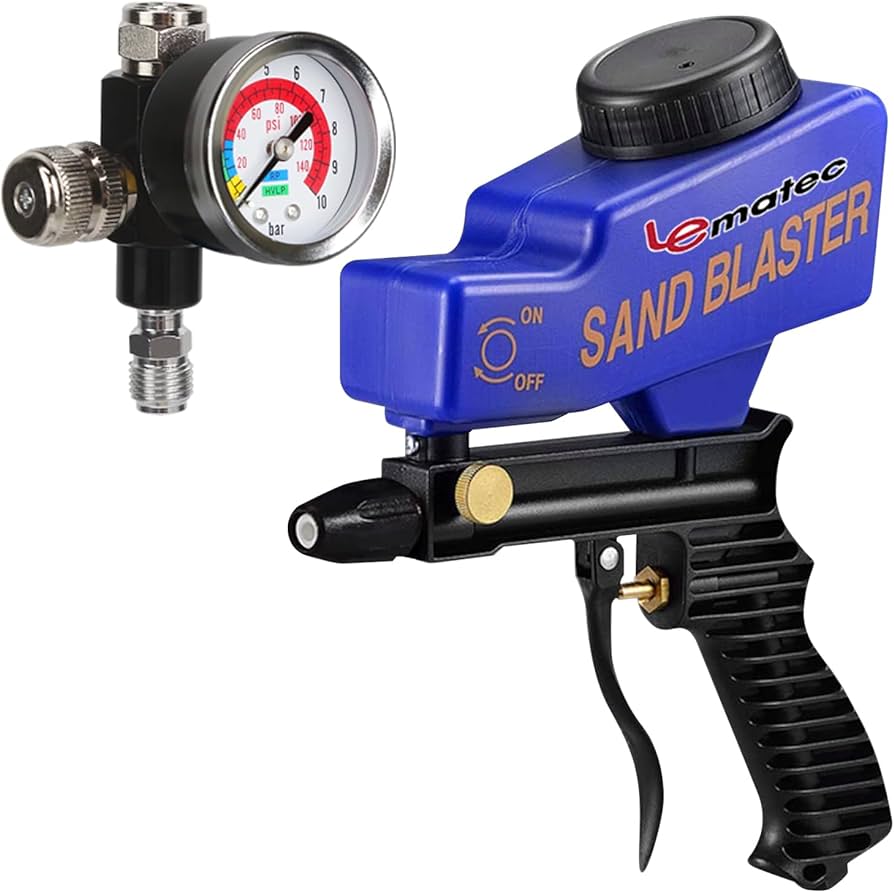

Why it fits: Amazon lists a 4 CFM at 90 PSI minimum, dual feed modes, a ceramic nozzle, and a 1/4-inch NPT connector—useful specifications to compare against a compressor.
Main drawback: Not suitable for small 1–3 gallon compressors; dry air and the stated CFM are essential.
| Job | Conservative starting point | Media direction | Watch for |
|---|---|---|---|
| Thin sheet or delicate parts | About 30–50 PSI, then test | Fine glass bead or gentle media | Heat, warping, edge erosion |
| Light rust or paint on steel | About 50–70 PSI | Garnet or fine crushed glass | Profile deeper than the new coating allows |
| Heavier rust on robust steel | About 70–90 PSI | Aluminum oxide, garnet, or suitable steel media in a cabinet | Excessive metal removal and dust |
| Satin cleaning finish | Lowest pressure that cleans | Glass bead | Bead peening rather than coating-removal profile |
These are test-start ranges, not universal settings. The equipment manual, abrasive data, metal thickness, old coating, and new coating’s required surface profile control the final setup.
Choose the Abrasive by the Finish You Need
Aluminum oxide
Aluminum oxide cuts quickly and is useful for stubborn rust and coatings on robust parts. It can leave a sharp profile for coatings, but it is aggressive; start fine and low on thin or precision surfaces.
Garnet or crushed glass
Garnet is a practical general-purpose option for paint and corrosion removal. Crushed glass is angular and effective but still requires full dust control and PPE. Product composition matters, so read the SDS rather than assuming a non-silica name makes the dust safe.
Glass bead, steel media, and soda
Glass bead cleans and produces a smoother satin appearance. Steel shot or grit is generally used in contained, reclaiming equipment and can be too aggressive for thin parts. Sodium bicarbonate is gentler and useful for some coatings or contamination, but OSHA notes that it is less efficient on paint, rust, and mill scale than harder abrasives.
A Safe Metal-Blasting Workflow
- Identify the base metal and old coating. Stop if lead, chromate, or another hazardous coating may be present until an appropriate exposure-control plan is in place.
- Degrease before blasting. Abrasive impact can drive oil or silicone contamination into the surface instead of removing it.
- Install the correct nozzle, inspect the hose and fittings, add dry media, and drain compressor moisture.
- Blast a test patch at low pressure. Keep the nozzle moving and use a consistent angle and distance.
- Compare the cleaned profile with the primer or coating data sheet. More texture is not automatically better.
- Remove dust with the coating maker’s approved method and prime before contamination or flash rust returns.
Safety Is Part of Equipment Selection
Abrasive blasting can generate high noise, rebounding particles, static, and airborne dust from both the abrasive and the removed coating. OSHA requires engineering controls, dust collection, and suitable respiratory protection in covered work. Open blasting should not be improvised beside vehicles, homes, people, or unprotected property.
Read OSHA’s abrasive-blasting hazard fact sheet and the applicable ventilation requirements. For related restoration work, see how to remove rust from metal tools.
Troubleshooting Weak Results
| Symptom | Likely cause | Next check |
|---|---|---|
| Pressure drops quickly | Compressor CFM below nozzle demand | Nozzle chart, hose ID, fittings, duty cycle |
| Media clumps | Moisture or contaminated abrasive | Dryer, separator, storage, pickup tube |
| Metal warps | Too much heat or dwell | Lower pressure, finer media, wider passes |
| Coating later peels | Wrong profile or contamination | Coating TDS, cleanliness, primer window |
Bottom Line
Choose the abrasive and nozzle first, verify the compressor can deliver the required CFM, then tune PSI on a test area. For most DIY steel work, a contained cabinet or pressure pot with dry air, suitable non-silica media, and proper dust control is safer and more consistent than an open, improvised setup.
Frequently Asked Questions
What PSI should I use to sandblast metal?
Start with the blasting-equipment maker’s range and the lowest pressure that cleans the test area. Thin sheet may need roughly 30–50 PSI, while many small rust-removal jobs run around 60–90 PSI. Never exceed the gun, pot, hose, nozzle, or compressor rating.
What abrasive removes rust from steel?
Garnet, crushed glass, and aluminum oxide are common rust-removal choices. Match the abrasive size and aggressiveness to the rust, metal thickness, desired coating profile, and whether the cabinet can reclaim the media.
Can I use ordinary silica sand?
Do not treat ordinary silica sand as a harmless default. Abrasive blasting can create respirable crystalline-silica and coating dust hazards. Follow OSHA requirements, the abrasive SDS, containment rules, and an appropriate respiratory-protection program.
Why does my sandblaster pulse or clog?
Common causes include wet media, restricted air supply, an undersized hose or fitting, a worn nozzle, poor pickup-tube position, and a compressor that cannot maintain the required CFM at working pressure.
How soon should blasted metal be primed?
Prime within the coating manufacturer’s allowed window and before flash rust or contamination appears. Keep the surface dry and avoid touching it with bare hands after cleaning.
