What DeWalt Batteries Are Interchangeable? (20V, 60V, POWERSTACK)

DeWalt 20V MAX batteries interchange across the entire 20V MAX lineup — XR, Atomic, Compact, and POWERSTACK all share the same slide-mount interface, regardless of amp-hour rating. The one exception most guides get wrong: FlexVolt 60V MAX batteries also run 20V MAX tools (they auto-switch voltage), but a standard 20V battery cannot power a 60V-only tool. This guide covers every DeWalt battery platform, corrects the FlexVolt compatibility myth, and shows which charger to use for each.

DeWalt 20V MAX Batteries: The Core Interchangeable Platform

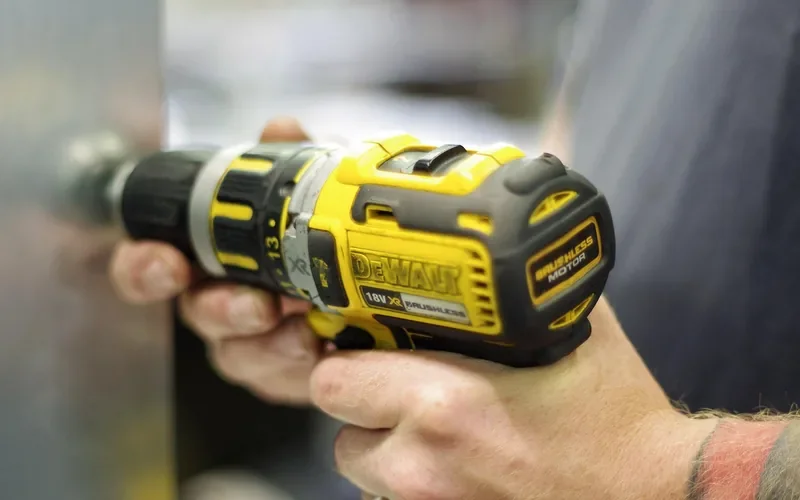

DeWalt 20V MAX batteries are interchangeable with every DeWalt 20V MAX tool ever made, because the battery mount and communication contacts haven’t changed since the platform launched in 2011. That means a drill from 2012 and a drill bought this year both accept the same battery.

XR, Atomic, Compact, and POWERSTACK — All Interchangeable

“20V MAX” is a voltage rating, not a single product line — DeWalt sells the same voltage in several physical formats, and all of them fit every 20V MAX tool:

• Standard 20V MAX (DCB205, DCB206, etc.) — the original cylindrical-cell design, 3Ah–9Ah.

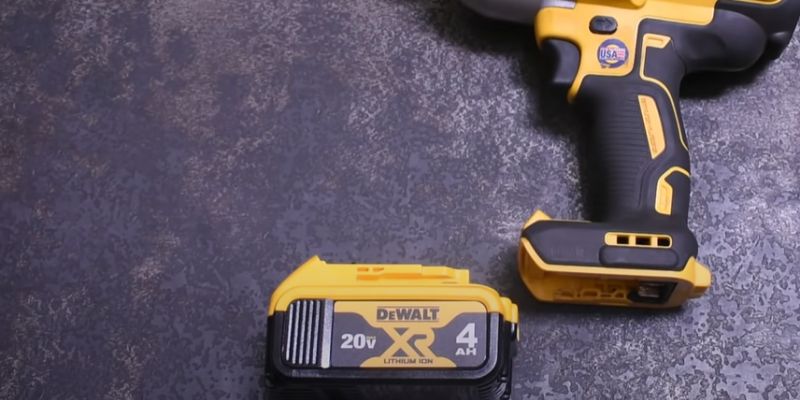

• XR — DeWalt’s badge for higher-capacity 20V MAX batteries (4Ah and up); XR is a capacity tier, not a separate mount.
• Atomic — a compact tool line, not a battery line; Atomic tools ship with standard or POWERSTACK 20V MAX batteries.
• POWERSTACK — DeWalt’s newer pouch-cell battery (launched 2023), physically smaller and lighter than a cylindrical-cell battery of the same capacity, but it fits and communicates with the exact same 20V MAX tools.

This is why a single 5Ah battery can power a drill, an impact driver, a circular saw, and a shop vac in sequence — the tool reads the battery’s onboard chip and adjusts current draw, so there’s no manual voltage-matching step for the user.

DeWalt FlexVolt 60V MAX Batteries (and the 20V Compatibility Myth)

FlexVolt is a separate battery, but it isn’t a one-way street. A common claim — including an older version of this article — is that 60V batteries “aren’t compatible” with 20V tools. That’s only half true. FlexVolt batteries automatically detect which tool they’re in and switch their own output: 20V for a standard 20V MAX tool, 60V (or 120V with two batteries) for a FlexVolt or dual-voltage tool. So a FlexVolt battery works in both platforms — it’s a standard 20V MAX battery that cannot be used the other direction, in a FlexVolt-only tool.

Versatility Across Tools

Because of that auto-switching, a FlexVolt battery is the closer-to-universal option if you own a mix of 20V and 60V DeWalt tools — one battery pool covers a cordless drill, a circular saw, a reciprocating saw, or a full-size 60V MAX chainsaw. The tradeoff is cost and weight: a FlexVolt battery runs roughly double the price of a same-capacity standard 20V MAX battery, and its larger cell stack makes it noticeably heavier in a handheld tool.

Battery Platform	Fits 20V MAX Tools?	Fits 60V/120V MAX Tools?	Typical Use Case
Standard 20V MAX / XR / Atomic	Yes	No	Drills, impact drivers, most handheld tools
20V MAX POWERSTACK	Yes	No	Same tools, lighter/more compact pack
FlexVolt 60V MAX	Yes (auto-switches)	Yes	Mixed 20V/60V tool households, chainsaws, mowers
12V MAX	No	No	Compact drivers, inspection tools, flashlights

📊 FlexVolt batteries automatically switch voltage output depending on the tool they’re inserted into — DeWalt’s own FlexVolt system page confirms the batteries are backward-compatible with every 20V MAX tool and charger. Source: DEWALT FlexVolt Battery System, 2026

DeWalt 12V MAX Batteries: A Separate, Non-Interchangeable Platform

DeWalt 12V MAX batteries are not interchangeable with either the 20V MAX or FlexVolt platforms — the mount, voltage, and communication contacts are all different by design. 12V MAX exists for compact, lightweight tools where a full-size 20V MAX battery would make the tool too heavy or bulky for one-handed use: inspection cameras, small screwdrivers, and worklights are the typical fit.

If most of your tools are 20V MAX, a 12V MAX tool means carrying a second charger and battery pool — worth it only if the compact size is the actual reason you’re buying that specific tool.

POWERSTACK: DeWalt’s Newer 20V MAX Battery Format

POWERSTACK is DeWalt’s pouch-cell 20V MAX battery line, introduced to replace the older cylindrical 18650-style cells with a flatter, denser stack. A POWERSTACK 5Ah battery weighs noticeably less than a standard cylindrical-cell 5Ah battery and sits lower on the tool, which matters most on top-heavy tools like a reciprocating saw held overhead.

POWERSTACK batteries are fully interchangeable with the rest of the 20V MAX lineup — they charge on the same charger and power the same tools as standard and XR batteries. The only functional difference is the compact starter size (1.7Ah) is designed for lighter-duty tasks and charges faster than a full-size pack, while the 5Ah POWERSTACK targets the same duty cycle as a standard 5Ah battery in less bulk.

Charging Solutions for DeWalt’s Interchangeable Batteries

Because 20V MAX, XR, Atomic, and POWERSTACK batteries all share the same platform, a single DeWalt 20V charger handles all of them — the charger reads the battery’s amp-hour rating and adjusts charge current automatically. FlexVolt batteries also charge on a standard 20V charger (at the 20V charge rate) or on a dedicated FlexVolt charger for faster full-capacity charging.

• Multi-port chargers charge two or more batteries at once, useful if you’re rotating batteries through a full day of use.
• LED state-of-charge indicators on the battery itself let you check remaining runtime without a charger, so you can swap before a battery dies mid-task.
• 12V MAX batteries need their own charger — a 20V MAX charger will not charge a 12V MAX battery, since the contacts and voltage sensing are different.

Tips for Getting the Most From an Interchangeable Battery Pool

A shared battery pool only pays off if the batteries themselves last. A few habits make a real difference over a battery’s lifespan:

1. Don’t store batteries fully drained. Lithium-ion cells degrade fastest when left at 0% for extended periods — recharge before long-term storage.
2. Keep batteries at moderate temperature. A battery left in a hot truck bed in summer loses capacity faster than one stored indoors.
3. Rotate through your battery pool evenly rather than always grabbing the same one, so wear spreads across the fleet instead of retiring one battery early.
4. Wipe the contacts periodically. Sawdust buildup on the contacts (a real risk on a woodworking bench) causes intermittent power loss that looks like a dying battery but is actually just a dirty connection.
5. Match battery capacity to the tool’s draw. A high-draw tool like a circular saw or a 60V chainsaw will drain a smaller battery fast — pair it with a 5Ah-or-larger pack rather than a compact 1.7–2Ah battery meant for light-duty tools.

In our shop, sawdust-fouled contacts have been the single most common cause of a “dead” battery that turned out to be fine once wiped down with a dry cloth — worth checking before assuming a battery needs replacing.

Frequently Asked Questions About DeWalt Battery Interchangeability

Are DeWalt 20V and 20V MAX batteries interchangeable?

Yes. “20V” and “20V MAX” refer to the same platform — DeWalt uses “MAX” in official naming to reflect peak voltage, but there’s no separate “20V-only” battery or tool line to worry about.

Can I use a 60V FlexVolt battery on a 20V tool?

Yes. FlexVolt batteries automatically switch to 20V output when inserted into a standard 20V MAX tool. The compatibility only fails in the other direction: a standard 20V MAX battery cannot power a FlexVolt-only 60V tool.

Are DeWalt Atomic and XR batteries interchangeable?

Yes. Atomic is a compact tool line, not a separate battery line, so Atomic tools run on the same standard, XR, or POWERSTACK 20V MAX batteries as the rest of the lineup.

Is a POWERSTACK battery interchangeable with older DeWalt tools?

Yes. POWERSTACK batteries use the same 20V MAX mount and communication contacts as every other battery in the platform, so they work in tools purchased years before POWERSTACK existed.

Will a DeWalt 12V MAX battery work in a 20V MAX tool?

No. 12V MAX batteries use a different mount and voltage than 20V MAX, so they physically do not fit and cannot power 20V MAX tools.

Conclusion

Every DeWalt 20V MAX battery format — standard, XR, Atomic-compatible, and POWERSTACK — shares one interchangeable platform, and FlexVolt 60V batteries extend that compatibility down into 20V MAX tools too, not just up into 60V ones. The only real incompatibility is 12V MAX, which is a separate system by design. Match your battery capacity to how hard the tool draws, and one DeWalt battery pool can realistically cover most of a woodworking shop.
