How to Replace Wheelbarrow Wood Handles (Sizes, Bolts & Cost)
Wheelbarrow wood handles typically run 54 to 60 inches long and bolt on with 5/16-inch-18 carriage bolts, but mismatched hole spacing is the most common reason a replacement will not fit. Using the wrong bolt size or an unsealed softwood handle can crack under a loaded tray within one season. This guide covers how to measure your old handle correctly, which wood species actually holds up under heavy loads, and what a full replacement should cost in 2026.
Quick Answer
Measure your old handle first — length (usually 54–60″) and bolt-hole spacing rarely match between brands. Buy replacement handles in ash, oak, or hickory (hickory lasts longest but weighs more), attach with 5/16″-18 carriage bolts, and expect to pay $35–$55 for a hardwood pair including hardware.
How to Measure Your Wheelbarrow Handle Before Buying a Replacement
Measure the old handle before you order a new one — replacement handles are sold by length and hole spacing, and neither is truly universal across brands. Skipping this step is the single biggest reason a new handle arrives and does not line up with the existing bolt holes in the wheelbarrow’s legs.
- Measure overall length: Run a tape measure from the very back of the handle to the front edge where it meets the tray. Most wheelbarrow handles fall between 54 and 60 inches, with 60 inches being the most common size sold by major brands.
- Measure hole-to-hole spacing: Mark the center of each existing bolt hole and measure the distance between them. This number, not the overall length, is what actually determines whether a new handle bolts straight in without redrilling.
- Measure width and thickness: Wheelbarrow handles are commonly cut close to 1-3/8 by 1-3/4 inches near the tray end, tapering slightly toward the grip. Note this if you are shaping a handle from raw stock rather than buying a pre-cut replacement.
Wheelbarrow Handle Bolt and Hardware Size
Wheelbarrow handles attach to the frame with 5/16-inch-18 carriage bolts on the overwhelming majority of consumer wheelbarrows — this is the size sold in nearly every dedicated wheelbarrow hardware kit, and it is worth confirming against your old bolts before ordering new handles, since a handle that fits length-wise is useless if the bolt holes are drilled for a different diameter.
📊 5/16″-18 carriage bolts, in lengths of 2″ to 5″ depending on frame thickness, are the standard hardware for attaching wheelbarrow handles — Source: aggregated from current wheelbarrow-specific hardware kit listings (Amazon, Walmart, eBay), 2026.
Carriage bolts are the right choice here, not standard hex bolts — their smooth, rounded head sits flush against the outside of the handle where your palm rests, so there is no exposed bolt head to blister your hand during a long haul. Always pair the bolt with a wide washer against the wood; a bare nut against wood grain will slowly crush the hole oval over a season of use.
Best Wood for Wheelbarrow Handles: Oak vs Ash vs Hickory vs Hemlock
Hickory is the strongest common wood used for wheelbarrow handles, a category that also includes white oak, white ash, and occasionally hemlock on lower-cost models — the same species that show up across most wood-focused projects on this site. Strength is not the only factor — hickory’s extra weight makes a loaded wheelbarrow noticeably harder to balance over a full shift of use, which is why ash remains the more common factory choice despite being roughly 25% weaker in bending strength.
| Wood Species | Bending Strength (MOR, psi) | Relative Weight | Best For |
|---|---|---|---|
| Hickory | 20,200 psi | Heaviest | Contractors, rocky or construction-site loads |
| White Ash | 15,000 psi | Medium-heavy | Most factory replacements — the standard balance of strength and weight |
| White Oak | 14,830 psi | Medium-heavy | Moisture-prone storage areas — naturally rot-resistant heartwood |
| Eastern Hemlock | 8,900 psi | Lightest | Light-duty, occasional garden use only |
Bending strength (modulus of rupture) values from The Wood Database, tested at 12% moisture content per USDA Forest Products Laboratory methodology.
Eastern hemlock’s 8,900 psi rating is roughly 40–60% of the bending strength of the three hardwoods above it — it shows up on some budget wheelbarrows because it is cheap and light, not because it holds up as well under a heavy, repeated load. If your current handle is hemlock and keeps cracking, upgrading to ash or hickory on the replacement solves the problem permanently rather than repeating the same repair next season. For a deeper look at how these species compare across other projects, see our full wood species guide.
Best Wheelbarrow Wood Handle Pick
Seymour 60-Inch Wheelbarrow Handle – $42.38
A dedicated 60-inch replacement handle — the length this guide covers as the most common factory spec, so it drops into most standard-frame wheelbarrows without cutting.
- Best for: Standard single-wheel wheelbarrows needing a direct 60″ replacement
- Why we picked it: Matches the exact standard length this guide’s measuring section walks through
- Main drawback: Sold as a single handle — you’ll need two for a full pair replacement
Compare more wheelbarrow handle options
 Option 1 Simply Dump It Pivoting Handles – $34.95
|
 Option 2 5/16″-18 Carriage Bolt & Nut Set – $13.99
|
 Option 3 Helko Werk Handle Oil – $12.00
|
As an Amazon Associate we earn from qualifying purchases.
Wheelbarrow Wood Handle Replacement Cost (2026 Price Guide)
A single wood wheelbarrow handle typically costs $16 to $22, while a full hardwood pair with pre-drilled holes runs $35 to $56 depending on species and brand. Premium hickory pairs top out around $55 to $60 — there is no legitimate reason to pay more than that for wood handles alone, since anything higher usually bundles in an entire replacement wheelbarrow rather than just the handles.
📊 Wood handle pricing: $16–$22 for a single handle, $35–$56 for a hardwood pair with hardware, up to $55–$60 for premium hickory — Source: current 2026 retail listings, Lowe’s, Home Depot, and Amazon.
Add the carriage bolt set separately if it is not included in the kit — expect another $10 to $16 for a full set of 5/16″-18 bolts, nuts, and washers if your old hardware is rusted beyond reuse.
Step-by-Step: Replacing Wheelbarrow Wood Handles
Once you have the correct length, hole spacing, and bolt size confirmed, the replacement itself is a straightforward afternoon project.
- Remove the old bolts: Loosen and remove the carriage bolts holding the old handles to the wheelbarrow’s legs and axle assembly, keeping the hardware if it is still in good condition.
- Use the old handle as a template: Lay the new handle alongside the old one and transfer the exact hole locations rather than re-measuring from scratch — this is the most reliable way to avoid a misaligned hole.

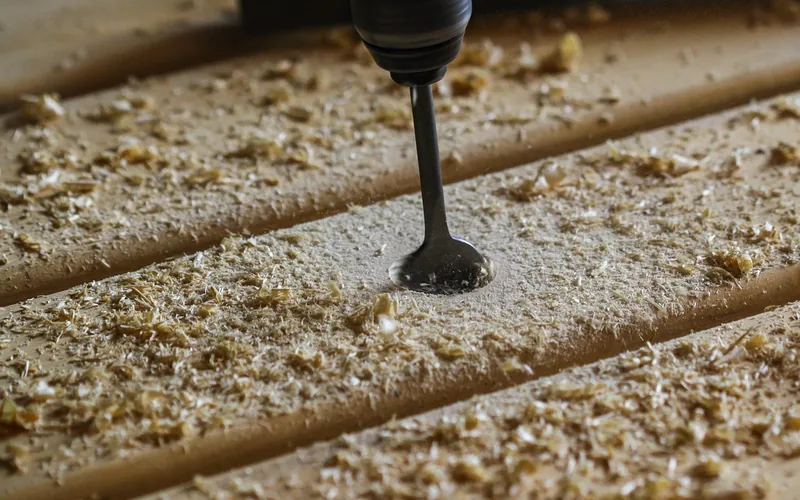

- Drill the new holes: Drill straight through at each marked location. A drill press keeps the hole perfectly perpendicular; if you are using a handheld drill, go slowly and check the angle from two sides as you go.
- Sand the handle smooth: Round over the edges and sand the grip section to at least 150 grit before installing — a factory-cut handle is rarely finish-ready straight out of the package.
- Bolt the new handles on: Insert the 5/16″-18 carriage bolts through the handle and frame with a washer against the wood on both sides, then thread the nuts on but leave them slightly loose.
- Reassemble and tighten last: Reconnect the legs, axle, and wheel guard in their original order, check that everything sits square, then tighten every bolt fully as the final step.
“I always dry-fit a new handle with the old bolts before I tighten anything down. Factory pre-drilled holes are sometimes off by an eighth of an inch from what you’d expect, and it’s much easier to redrill while the wheel and legs are still loose than after everything is cinched down tight.”
If a crack in your current handle is minor and the length still works, wood glue and clamps can repair it well enough to buy another season before a full replacement is necessary.
Maintaining and Sealing New Wood Handles for Longevity
A new handle left unfinished will absorb moisture at the end grain first, which is exactly where it is most exposed at the tray and grip ends. Seal it before the first heavy use, not after the first crack appears.
Clean the handle with mild soap and water if it gets muddy, and let it dry fully in a covered area rather than in direct sun, which can cause surface checking. For the sealant itself, boiled linseed oil is the traditional choice for tool handles because it soaks into the grain rather than sitting on top like a film finish, and it is easy to reapply once a season without stripping anything first. For a full comparison of oils, sealers, and film finishes, see our wood finishing guide and our breakdown of the best wood sealers for outdoor tools.
Wood vs Steel or Poly Wheelbarrow Handles: Which Should You Choose?
Wood remains the most common wheelbarrow handle material because it is comfortable to grip, absorbs shock from uneven ground, and stays cool in direct sun — metal handles can get uncomfortably hot, and both metal and poly transmit far more vibration to your hands over a full day of hauling. Wood’s real tradeoff is maintenance: it needs periodic sealing and will eventually crack or splinter with age, where steel and reinforced poly need essentially none.
- Choose wood if grip comfort, repairability, and low upfront cost matter most, and you don’t mind reapplying a finish once a year.
- Choose steel or reinforced poly if you want a handle that never needs sealing and rarely cracks, and you’re comfortable with a colder, harder grip in cold weather.
Wheelbarrow Wood Handles: Frequently Asked Questions
Are steel or wood wheelbarrow handles better?
Neither is universally better — steel and reinforced poly need less maintenance and rarely crack, while wood grips more comfortably, absorbs shock better, and stays cooler in direct sun. Most residential and garden wheelbarrows still ship with wood handles for exactly that comfort tradeoff.
Can you replace wheelbarrow handles yourself?
Yes. Measure your old handle’s length and bolt-hole spacing, buy a matching wood replacement, and swap it using the old handle as a drilling template. Most replacements take under an hour with a drill, a wrench, and the correct 5/16″-18 carriage bolts.
What size are wheelbarrow handles?
Most wheelbarrow handles measure 54 to 60 inches long, with 60 inches being the most common factory length, and taper from about 1-3/4 inches near the tray to roughly 1-3/8 inches at the grip.
What is the best wood for wheelbarrow handles?
White ash is the most common factory choice because it balances strength (15,000 psi bending strength) with manageable weight. Hickory is stronger at roughly 20,200 psi but noticeably heavier, making it a better fit for contractor or job-site use than everyday garden hauling.
Can you use pine for a wheelbarrow handle?
You can, but pine is a softwood with far lower bending strength than ash, oak, or hickory, so it is only suitable for light-duty or occasional use. For anything hauling regular heavy loads, a hardwood replacement will last considerably longer before cracking.
Conclusion
Replacing wheelbarrow wood handles comes down to three numbers: the length and hole spacing of your old handle, and the 5/16″-18 bolt size that attaches nearly every wheelbarrow on the market. Ash offers the best everyday balance of strength and weight, hickory is worth the extra cost for heavy job-site use, and a $35–$56 hardwood pair with proper sealing should easily outlast a full season of hard use.
