Will Polyurethane Keep Wood From Cracking?
Polyurethane keeps wood from cracking by sealing the surface and slowing moisture exchange — not because the coating itself is flexible, as many guides claim. Skip sealing a fresh-cut end grain and it can lose moisture 10 to 12 times faster than the face grain, splitting within days. This guide covers how the moisture barrier actually works, how many coats to apply, oil- versus water-based performance outdoors, and how to fill a crack that has already formed.
Disclosure: As an Amazon Associate we earn from qualifying purchases made through links on this page, at no extra cost to you.
How Polyurethane Actually Prevents Cracks (It’s Not About Flexibility)
Wood cracks — woodworkers call it checking — when the surface loses moisture and tries to shrink faster than the still-damp interior. That mismatch puts the outer fibers under tension, and once the stress exceeds the wood’s strength across the grain, it splits. Polyurethane doesn’t stop this by flexing along with the wood; it works by forming a film that slows how fast moisture can enter or leave the surface in the first place, so the inside and outside dry closer to the same rate.

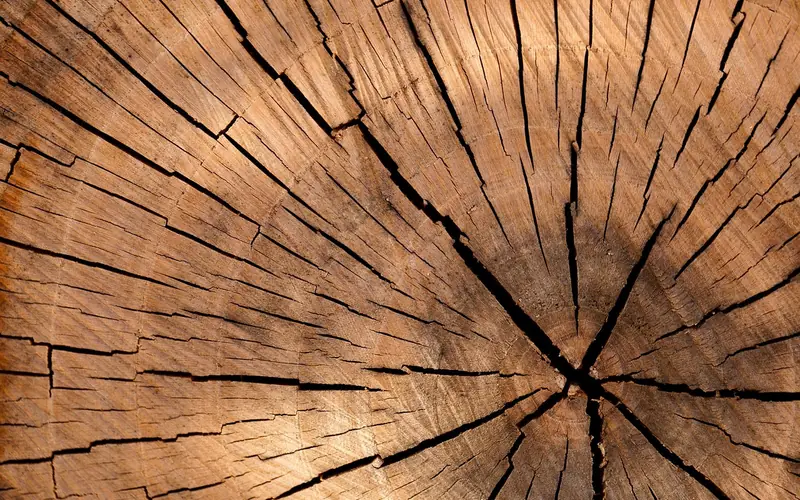

End grain is the part that needs this protection most. Because wood fibers act like a bundle of straws, moisture escapes through the cut ends of a board or log 10 to 12 times faster than through the face or edge grain. Left bare, the ends dry and shrink long before the core does, and the resulting stress is exactly what opens the radial checks shown above. Sealing the end grain with polyurethane as soon as possible after cutting closes that gap.
📊 Unsealed end grain loses moisture roughly 10–12 times faster than face or edge grain — the imbalance is what drives most end-grain checking. Source: U.S. Forest Products Laboratory wood-drying stress research.
Because it’s a barrier, not a stretchable membrane, polyurethane has real limits. It works well on kiln-dried lumber and furniture-grade boards where the moisture content is already low and stable. It’s not a substitute for a stabilizer on green, freshly felled wood — the moisture trapped inside a wet log still needs somewhere to go, and a film on the outside alone can trap enough internal stress to crack the wood anyway.
“In the shop, the boards that split are almost always the ones where I got busy and let a fresh-cut end sit bare overnight. One coat of polyurethane brushed on within the hour has saved boards for me that would have split by morning — it buys time, it doesn’t replace proper drying.”
— Md Meraj, woodworker, 12+ years in the shop
Oil-Based vs. Water-Based Polyurethane: Which Prevents Cracking Better Outdoors?
Indoors, either type works about the same for slowing moisture exchange. Outdoors, the choice matters more: water-based polyurethane softens and micro-cracks faster under UV and heat, which reopens the exact moisture pathway you’re trying to seal. Oil-based (and dedicated spar/marine) formulas hold up longer against sun and temperature swings, at the cost of a longer cure time and stronger odor while wet.
| Type | UV / Heat Resistance | Dry Time (Recoat) | Best For |
|---|---|---|---|
| Water-based poly | Lower — degrades faster in direct sun | 2–4 hours | Indoor furniture, fast turnaround |
| Oil-based poly | Better — more UV/heat stable | 6–8 hours | Doors, outdoor furniture, high-wear surfaces |
| Spar/marine urethane | Best — formulated for sun and moisture cycling | 8–24 hours | Fully exposed outdoor wood, boat trim |
For anything left outside year-round, budget to recoat more often than the can suggests — sun exposure is the variable that shortens a polyurethane finish’s working life fastest. See our full breakdown of polyurethane oil vs. water-based for mixing, application, and cleanup differences beyond crack prevention.
How Many Coats of Polyurethane Do You Need to Prevent Cracking?
Two thin coats are the practical minimum for a moisture barrier that actually holds. High-risk pieces — fresh end grain, outdoor furniture, anything that will see humidity swings — do better with three to four coats.
- Sand the surface: Start at 150–180 grit, finishing at 220 grit so the first coat has enough texture to bite into.

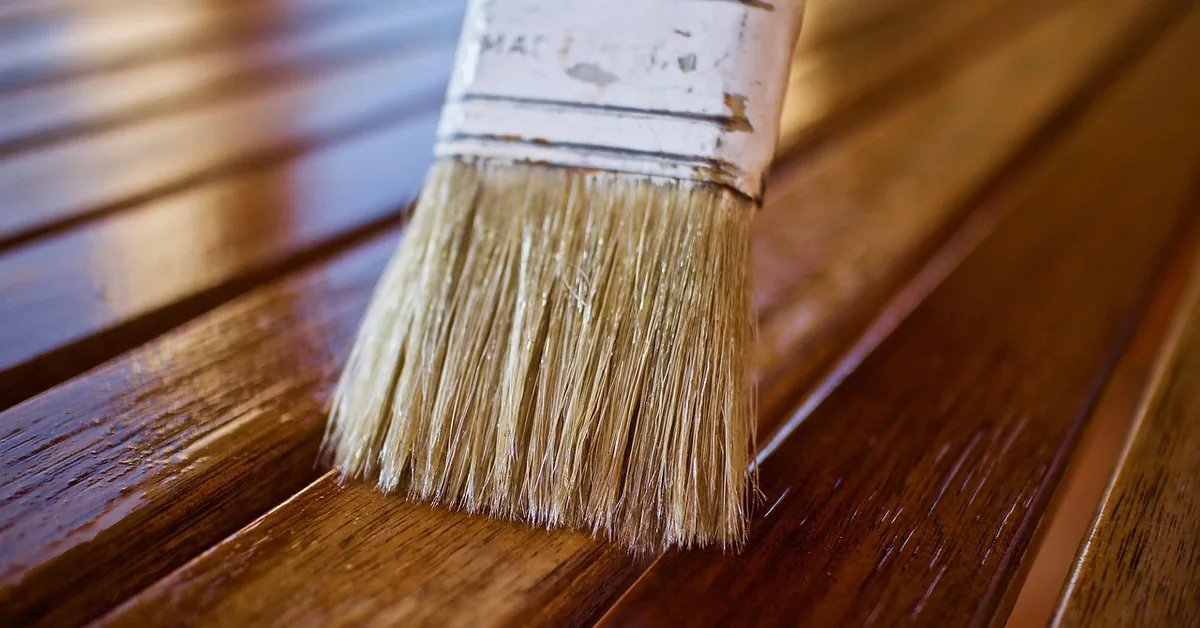

- Apply the first coat thin: Brush or wipe with the grain; a heavy first coat is the most common cause of bubbling and uneven cure.
- Sand between coats: Once fully dry, knock down raised grain with 220-grit sandpaper or #0000 steel wool before the next coat.
- Repeat for 2–4 total coats: Two for stable indoor furniture, three to four for end grain, tabletops, or anything headed outdoors.
- Let the final coat cure fully: Dry-to-touch isn’t cured — give it several days before hard use, longer for oil-based formulas.
Our guide to how long polyurethane takes to dry covers coat-to-coat timing in more detail, and how many coats hardwood floors need if you’re finishing a larger surface than a single board.
Best Crack-Prevention Polyurethane Pick
Minwax Fast Drying Polyurethane, Warm Satin, 1 Quart
Oil-based, general-purpose formula that builds a solid moisture barrier on furniture, trim, and end grain alike.
- Best for: furniture, doors, and end-grain sealing where durability matters more than dry time
- Why we picked it: oil-based formulas hold up better against the UV/heat swings that crack water-based coatings early
- Main drawback: 6–8 hour recoat window and stronger odor while curing than water-based options
Compare more polyurethane options
 Option 1 Varathane Water-Based Ultimate Gloss Polyurethane
|
 Option 2 Varathane Triple Thick Polyurethane Gloss Wood Finish
|
 Option 3 Minwax Fast Drying Polyurethane, Clear Semi-Gloss, 1 Quart
|
As an Amazon Associate we earn from qualifying purchases.
How to Fill Cracks With Polyurethane
Before filling a crack, sand the surrounding area smooth so the repair sits flush once it dries. Mix polyurethane with fine sawdust from the same board to make a color-matched paste for hairline or fine cracks — press it in slightly proud of the surface, let it cure fully, then sand level. This works for cracks up to roughly 1/16 inch; anything wider needs wood filler, epoxy, or a mechanical fix like a butterfly key before you topcoat with polyurethane.
A clear coat finish alone won’t seal an existing crack — it protects the surface around it, but it doesn’t fill the gap. For a crack that’s already open, the sawdust-paste method above (or a dedicated filler for larger splits) has to happen first; polyurethane is the topcoat, not the repair.
Sealing the Ends of Fresh-Cut Logs and Boards

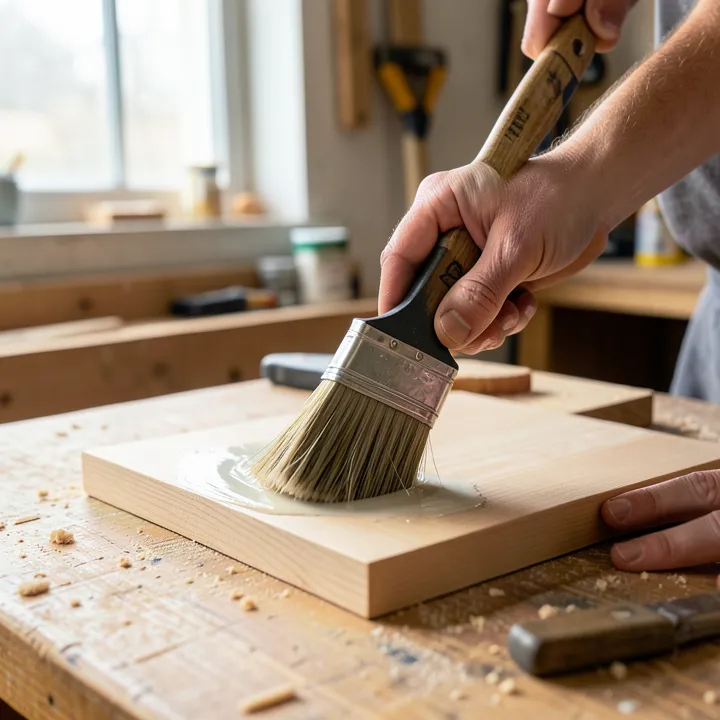

Freshly cut wood loses moisture fastest through the end grain, so seal it within a few minutes to a few hours of cutting — not the next day. Clean the end grain, then brush on several coats of polyurethane with a natural-bristle brush, letting each coat dry before the next. Apply it generously so it penetrates rather than just sitting on the surface.
For logs or slabs headed for the shop rather than immediate use, follow the polyurethane with a coat of dedicated anchor sealant (a wax-based end-grain sealer, sold under names like Anchorseal). It forms a thicker barrier than polyurethane alone and is the standard choice among sawyers for slowing down outdoor wood storage checking over months rather than days.
Other Products That Help Prevent Wood From Cracking
Polyurethane covers most crack-prevention needs, but a few other products solve problems it can’t:
- Pentacryl: A water-soluble stabilizer for green, freshly turned wood. It replaces some of the water in the cell structure so the wood dries more evenly, which polyurethane’s surface film can’t do on its own.
- Anchorseal (wax-based end sealer): The sawyer-standard choice for log ends and thick slabs left to air-dry for months — thicker and longer-lasting outdoors than a polyurethane coat alone.
- OB Shine Juice: A woodturner’s finish mixed from equal parts boiled linseed oil, dewaxed shellac, and denatured alcohol, applied on the lathe. It seals and shines small turned pieces in one step.
- Paste finishing wax: A light topcoat over an already-sealed piece for extra moisture resistance and shine — not a substitute for polyurethane or Pentacryl on its own, since wax alone forms a much thinner, more easily scuffed barrier.
A wood stain by itself, including premium stain products, adds color but not a real moisture barrier — it still needs a polyurethane or similar topcoat to actually slow cracking, not just look finished.
Frequently Asked Questions About Polyurethane and Wood Cracking
Will Polyurethane Prevent Cracking?
Yes, within limits. Polyurethane forms a moisture-barrier film that slows how fast wood gains or loses humidity, which is what actually causes checking — not flexibility in the coating itself. It works well on kiln-dried lumber and furniture-grade boards. Green, unseasoned wood still needs a dedicated stabilizer like Pentacryl, because polyurethane alone can’t stop moisture already trapped inside a wet log from forcing its way out.
How Do You Stop Wood From Cracking?
Seal the end grain within hours of cutting, since it loses moisture 10–12 times faster than the face grain. Apply 2–3 thin coats of polyurethane, sanding lightly with 220-grit between coats. For green or freshly felled wood, use a stabilizer such as Pentacryl or anchor sealant instead, and store finished projects away from high-humidity rooms like bathrooms and basements.
Will Polyurethane Fill Cracks in Wood?
Polyurethane alone won’t fill an existing crack — it’s a surface film, not a gap filler. Mix it with fine sawdust from the same board to make a color-matched paste for hairline cracks under about 1/16 inch. Wider splits need wood filler, epoxy, or a butterfly key first; apply the polyurethane topcoat only after that repair has fully cured.
Will Polyurethane Keep Wood From Rotting?
No, not reliably. Polyurethane blocks surface moisture but isn’t a fungicide, and any gap, crack, or worn spot in the film lets moisture back in — which is exactly where rot starts. For outdoor wood at real rot risk, use a borate-based wood preservative before finishing, then top-coat with an exterior-rated polyurethane or spar urethane.
How Long Does Polyurethane Last Before It Needs Reapplying?
Indoors on furniture, a quality oil-based polyurethane finish typically holds up for several years before it needs a fresh coat; water-based versions wear faster under regular use. Outdoors, UV exposure breaks the film down much sooner — plan on recoating exterior polyurethane every 1–2 years, sooner in direct sun, to keep the moisture barrier intact.
Conclusion
Polyurethane keeps wood from cracking by slowing moisture exchange at the surface, most critically on end grain where drying happens fastest. Two to four thin coats, sanded between applications, cover most furniture and board projects; green wood and long-term outdoor storage need a dedicated stabilizer or wax-based sealer alongside it.
Seal end grain within hours of cutting, match the formula (oil-based or spar urethane) to the exposure, and recoat outdoor pieces on a schedule rather than waiting for visible failure.
