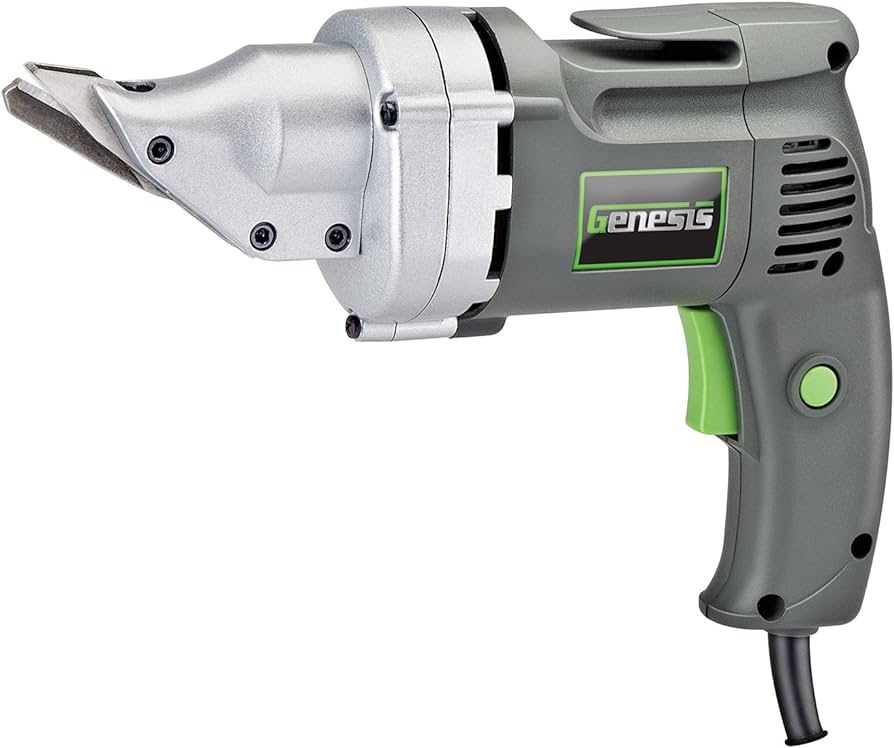

Electric Metal Shear Cutters: How They Work and When to Use One
An electric metal shear cutter is a power tool that uses motor-driven blades to slice through sheet metal, aluminum, copper, and stainless steel quickly and cleanly. Unlike angle grinders or jigsaws, shears produce straight, burr-free cuts without heat distortion — making them the preferred tool for HVAC work, automotive bodywork, and metal fabrication.
Quick Answer
What is an electric metal shear cutter? It is a power tool with motor-driven blades that cut sheet metal up to 18-gauge (or 14-gauge on heavy-duty models). It cuts cleaner than an angle grinder with no sparks, no heat, and no distortion. Most models run at 4–5 amps and accept drill attachments or operate as standalone units.
How an Electric Metal Shear Cutter Works
An electric metal shear cutter uses a reciprocating upper blade driven by an electric motor. The upper blade moves rapidly against a fixed lower blade, shearing through the metal cleanly. The cutting action is similar to scissors — the metal is not melted, ground, or deformed, which means the cut edge stays flat and true with minimal burring.
Increased Efficiency Over Manual Methods
Electric shears cut 3–5 times faster than manual tin snips on long straight runs. A 4-amp variable-speed shear can process 18-gauge steel at up to 10 feet per minute. This speed advantage compounds on large projects — HVAC duct cutting, automotive panel trimming, or roofing work where hundreds of linear feet of metal need to be cut.
Precision Cutting Without Distortion
Unlike angle grinders that generate heat and throw sparks, electric shears produce a cold cut — the metal stays at room temperature throughout. This prevents warping, discoloration, and edge hardening, which matters when cutting painted panels, thin aluminum, or pre-finished sheet metal.
Key Features to Look For
Motor Power (Amps)
Most electric metal shears run between 4–5 amps. A 4-amp motor handles 18-gauge steel comfortably. For 14-gauge steel or thicker aluminum, look for 5 amps or more. Drill attachment shears draw from your drill’s motor — choose a drill with at least 7 amps for consistent results.
Gauge Capacity
The most important spec is maximum cutting gauge. Common ratings:
- 18-gauge — standard for light-duty steel, HVAC ductwork, gutters
- 16-gauge — mid-range; handles most automotive sheet metal
- 14-gauge — heavy-duty; roofing panels, structural sheet metal
Swivel Head Design
A 360-degree swivel head lets you change cut direction without repositioning the workpiece. This is essential for curves, cutouts, and irregular shapes. Fixed-head shears are faster in straight lines but limiting for complex patterns.
Blade Durability
High-carbon or hardened steel blades last significantly longer than standard blades. Look for models where replacement blades are readily available and affordable — blade replacement is routine maintenance, not a sign of a defective tool.
Best Electric Metal Shear Cutters
Based on motor power, gauge capacity, and blade durability, here are the top picks:
Best Electric Metal Shear Cutter
|

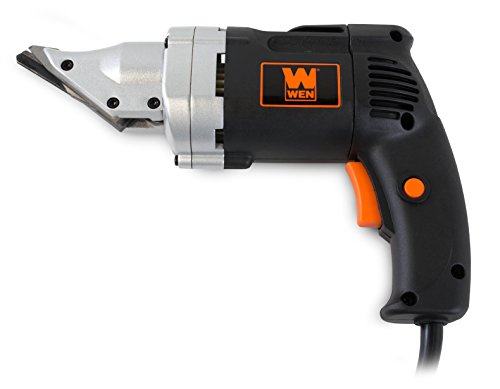

WEN Variable Speed Swivel Head Electric Metal Shear (18-Gauge, 4-Amp) A reliable standalone electric shear with variable speed control and a 360-degree swivel head — the most versatile combination for straight cuts, curves, and tight patterns in 18-gauge steel.
|

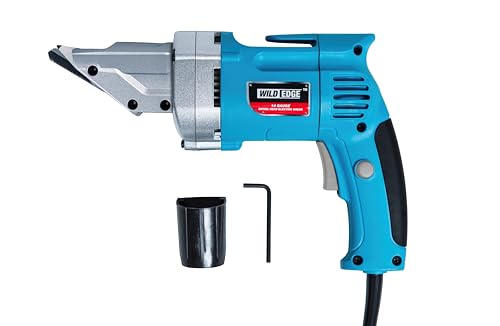

Option 1 Wild Edge Electric Metal Shear, 14 Gauge, 5.0 Amp
|

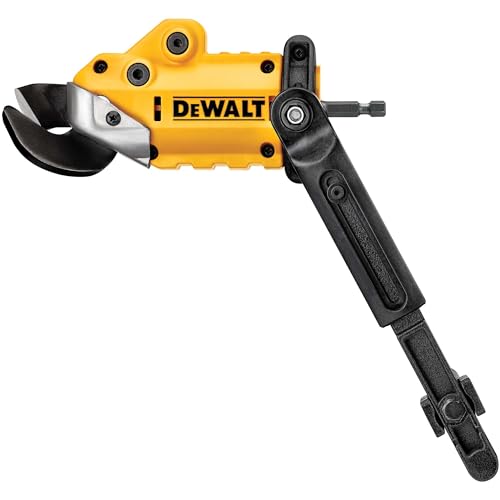

Option 2 DEWALT Metal Shear/Cutter Drill Attachment, Impact Ready
|

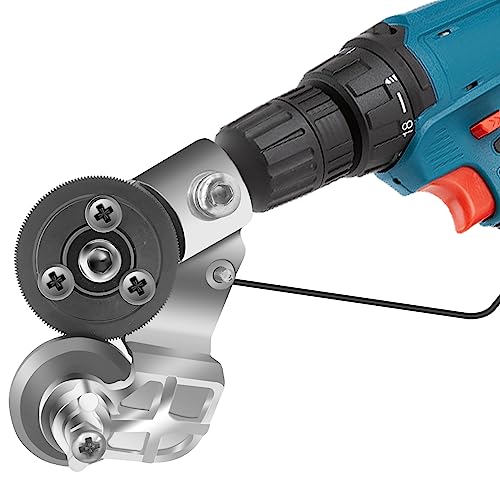

Option 3 CZS Sheet Metal Cutter Drill Attachment, 360° Swivel
|
As an Amazon Associate we earn from qualifying purchases.
Choosing the Right Electric Metal Shear Cutter
Understand Your Cutting Needs
Before buying, assess what you will cut most often. Light HVAC and gutter work needs nothing more than an 18-gauge shear. Automotive body panels and roofing typically require 16-gauge capacity. Structural and industrial sheet metal demands a 14-gauge or higher-rated tool. Buying beyond your needs wastes money; buying under your needs damages blades quickly.
Standalone Tool vs Drill Attachment
Drill attachments are cost-effective if you already own a powerful drill and only cut metal occasionally. Standalone electric shears are worth the investment for frequent use — they are more comfortable to hold, maintain consistent speed under load, and their blades last longer because they run at optimized RPM. For cutting thin metal with a rotary tool, see our Dremel guide for comparison.
Maintenance Tips for Electric Metal Shear Cutters
Blade Care and Sharpening
Inspect blades before each use for nicks, cracks, or excessive wear. A dull blade does not just cut poorly — it puts extra load on the motor and can crack under stress. Most blades can be swapped in minutes; keep a spare set on hand. Never try to sharpen shear blades yourself unless you have precision grinding equipment — inconsistent blade angles cause binding and rough cuts.
Cleaning and Lubrication
After each session, brush metal shavings from the blade gap with a stiff brush. Apply a small drop of machine oil to the blade pivot point weekly if you use the tool frequently. Always unplug or remove the battery before cleaning. Do not use WD-40 as a long-term lubricant — it evaporates quickly and leaves residue. Use a dedicated machine oil or 3-in-1 oil.
Comparing Electric Metal Shear Types
| Type | Best For | Max Gauge | Pros | Cons |
|---|---|---|---|---|
| Standalone Electric Shear | Frequent use, extended cutting runs | 14–18 gauge | Consistent power, ergonomic, long blade life | Higher upfront cost |
| Drill Attachment Shear | Occasional cutting, DIY projects | 16–18 gauge | Affordable, uses existing drill | Speed varies with drill charge |
| Nibbler Attachment | Curved cuts, thin aluminum | 18–20 gauge | Excellent for curves, no distortion | Slower straight-line speed |
Safety Precautions When Using Electric Metal Shear Cutters
- Eye protection: Metal shears throw small chips and shards — always wear safety glasses or a face shield.
- Gloves: Cut metal edges are razor-sharp. Wear cut-resistant gloves when handling cut pieces, not while operating the shear (gloves can catch in blades).
- Ear protection: Electric shears run at 90–95 dB. Use earplugs for sessions longer than 15 minutes.
- Secure the workpiece: Clamp sheet metal firmly before cutting. Unsecured sheets vibrate, cause ragged cuts, and can snap back.
- Never exceed rated gauge: Forcing a shear beyond its capacity strains the motor and can shatter blades.
Frequently Asked Questions About Electric Metal Shear Cutters
How does an electric metal shear cutter work?
It uses a motor-driven reciprocating upper blade that shears against a fixed lower blade — the same action as scissors, but powered and much faster. The metal is cut cold with no heat, sparks, or distortion.
What are the advantages of using an electric metal shear cutter?
Electric shears cut faster than manual snips, produce cleaner edges than angle grinders, and avoid the heat distortion caused by cutting discs. They are safer for thin painted or pre-finished metals where sparks and heat cause damage.
Are electric metal shear cutters safe to use?
Yes, when used correctly. Always wear eye protection and secure the workpiece before cutting. Never exceed the tool’s rated gauge capacity and keep hands clear of the blade path.
Can an electric metal shear cutter be used for different types of metal?
Yes. Electric shears cut sheet metal, aluminum, copper, stainless steel, and galvanized steel. Check the manufacturer’s gauge rating for each material — stainless steel requires a one- to two-gauge reduction from the tool’s rated capacity due to its hardness.
Conclusion
An electric metal shear cutter is one of the most efficient tools for clean, distortion-free metal cuts. Whether you choose a standalone unit like the WEN 4-amp for dedicated work or a drill attachment for occasional jobs, the key is matching the tool’s gauge capacity to your most common materials. Keep blades sharp, lubricated, and within rated gauge, and the tool will deliver clean cuts for years.
