How to Measure a Bandsaw Blade: The Ultimate Guide

How to Measure a Bandsaw Blade

To measure a bandsaw blade, you need to measure the blade length and width using a measuring tape or ruler. Bandsaw blades play a crucial role in woodworking projects, as they are responsible for making precise cuts with minimal wastage.

However, to ensure that your bandsaw is performing optimally, it is important to measure the blade accurately. Knowing the correct length and width of your bandsaw blade will help you select the appropriate replacement or ensure proper alignment. We will guide you on how to measure a bandsaw blade accurately and effortlessly.

By following these steps, you can ensure that your bandsaw is always equipped with the right blade for seamless and efficient cutting. Let’s dive in and learn the proper technique to measure a bandsaw blade.

How to Measure a Bandsaw Blade

Choosing The Right Bandsaw Blade

When it comes to getting accurate cuts with your bandsaw, choosing the right blade is crucial. The blade you use can make a significant difference in the performance and results of your bandsaw. Two essential factors to consider when selecting a bandsaw blade are the blade width and teeth per inch (TPI). Understanding these factors will help you make an informed decision and achieve optimal cutting results.

Understanding Blade Width

Blade width plays a vital role in determining the types of cuts you can make with a bandsaw. The general rule is that narrower blade widths are suitable for intricate and detailed cuts, while wider blade widths are better for straight cuts and resawing thicker stock.

Here is a breakdown of the most commonly used blade widths for bandsaws:

Blade Width (in inches) Recommended Use
1/4 Ideal for tight, curved cuts and intricate designs.
3/8 Great for general-purpose cutting, including gentle curves and straight cuts.
1/2 Versatile blade width that can handle a wide range of cutting tasks, from curves to straight lines.
3/4 Best suited for resawing thick stock or making straight cuts on thicker materials.

Understanding Teeth Per Inch (TPI)

Teeth per inch (TPI) is a measurement that indicates the number of teeth on a bandsaw blade within one inch. The TPI determines the type of cut the blade is suitable for.

Here’s what you should know about choosing the right TPI:

  • Low TPI (3-6): Blades with low TPI are best for cutting thick and softer materials, such as hardwoods, plastics, and non-ferrous metals. They remove more material per tooth, making them ideal for rough cuts and resawing operations.
  • Medium TPI (8-14): Blades with medium TPI strike a balance between speed and finish quality. They are suitable for cutting a variety of materials, including hardwoods, plywood, and some metals, providing smooth cuts with minimal tear-out.
  • High TPI (18+): Blades with high TPI are ideal for cutting thin materials, such as veneers and delicate woods. They produce clean, fine cuts with minimal material waste.

Keep in mind that the appropriate TPI can vary depending on the thickness and hardness of the material you’re cutting.

Measuring Bandsaw Blade Length

Measuring the length of a bandsaw blade is an essential step in maintaining and replacing blades. Knowing the correct length ensures that the blade will fit properly and perform optimally. In this section, we will discuss two methods for measuring the bandsaw blade length: using the bandsaw blade length chart and manually measuring the blade length.

Using The Bandsaw Blade Length Chart

One of the easiest ways to find the correct blade length for your bandsaw is by using a bandsaw blade length chart. These charts contain a list of common bandsaw models and their corresponding blade lengths. Here’s a simple guide to using the bandsaw blade length chart:

  1. Identify the make and model of your bandsaw.
  2. Refer to the bandsaw blade length chart and find the corresponding make and model.
  3. Locate the recommended blade length for your bandsaw.

Once you have determined the correct length, you can purchase the appropriate blade for your bandsaw.

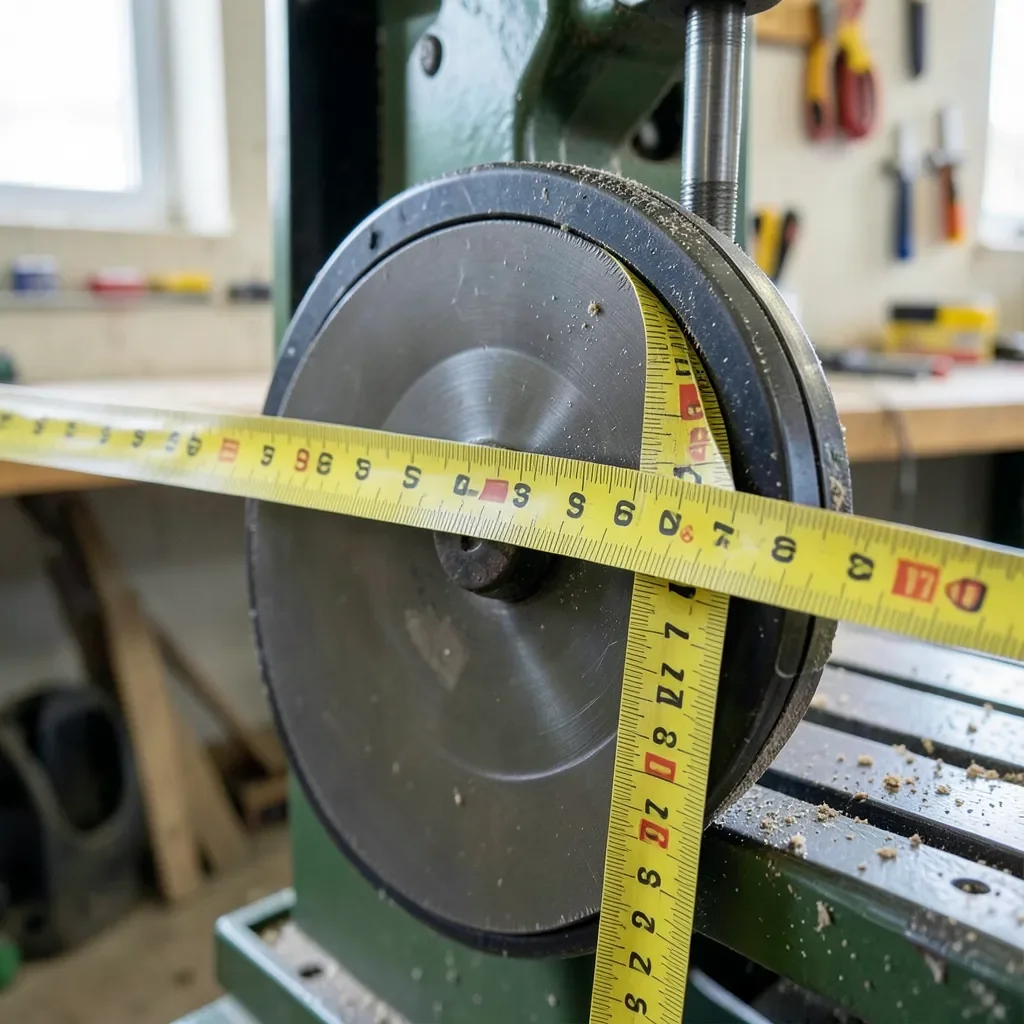

Manually Measuring The Blade Length

If you don’t have access to a bandsaw blade length chart or if your bandsaw model is not listed, you can manually measure the blade length. Here’s how:

  1. Ensure the bandsaw is turned off and unplugged before proceeding.
  2. Open the bandsaw’s upper wheel cover to expose the blade.
  3. Using a tape measure or a length of string, measure the distance from the upper wheel’s outer edge to the lower wheel’s outer edge, following the path of the blade.
  4. Make sure the tape measure or string follows the contour of the blade.
  5. Take note of the measurement.

Depending on the accuracy required, you may want to measure the blade length multiple times to ensure consistency. Once you have obtained the correct measurement, you can purchase a replacement blade of the same length.

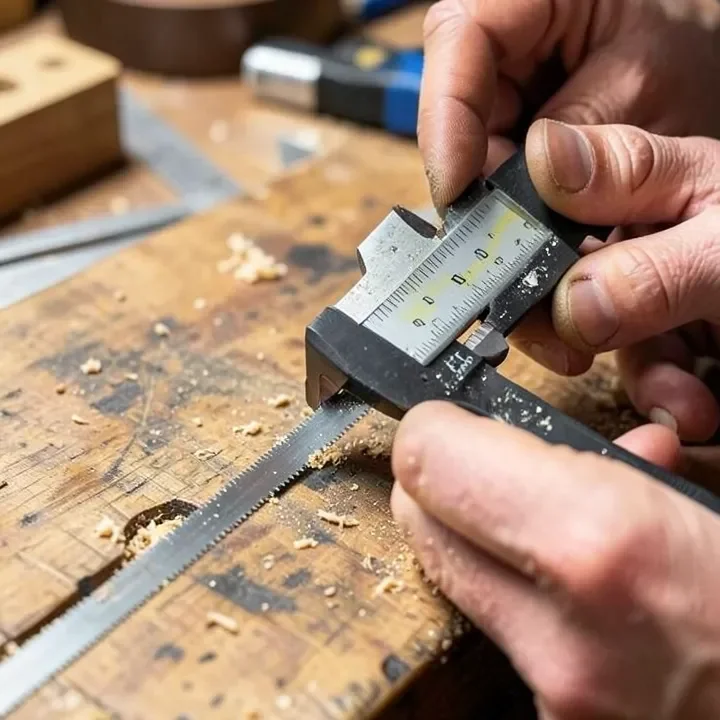

Determining Bandsaw Blade Thickness

When it comes to utilizing a bandsaw blade, determining the blade thickness is crucial for ensuring accurate cuts and optimal performance. Whether you’re replacing an existing blade or selecting a new one, understanding the thickness of the bandsaw blade is essential. Here, we will explore how to measure the blade thickness using a micrometer and by checking the manufacturer’s specifications.

Utilizing A Micrometer

To measure the bandsaw blade thickness accurately, a micrometer is the go-to tool. The process is straightforward.

  1. Secure the blade: Ensure the bandsaw blade is safely clamped or fixed in place before measurement.
  2. Position the micrometer: Place the micrometer jaws at a right angle to the bandsaw blade, ensuring it aligns with the flat portion of the blade.
  3. Take the measurement: Gently close the micrometer until it makes contact with the blade, then read the blade’s thickness displayed on the micrometer’s scale.

Checking The Manufacturer’s Specifications

Manufacturers provide detailed specifications for their bandsaw blades, including the thickness. Here’s how to go about it.

  • Reference the manual: Review the bandsaw manual for the specifications of the blade currently installed or recommended for your bandsaw model.
  • Online resources: If the manual is unavailable, check the manufacturer’s website or other trusted sources for the blade thickness information.
How to Measure a Bandsaw Blade: The Ultimate Guide


Checking Bandsaw Blade Tension

To measure bandsaw blade tension, start by turning off the machine and unplugging it. Next, use a tension measuring tool to check the blade’s tension, ensuring it meets the manufacturer’s specifications. Adjust the tension as needed to achieve the correct settings for optimal performance and safety.

Proper tension is essential for the optimal performance of your bandsaw blade. If the blade is too loose, it can lead to premature wear and poor cutting results. Conversely, if the blade is too tight, it can result in overheating, excessive vibration, and ultimately a shorter blade life. In this section, we will explore two methods for checking bandsaw blade tension: using a tension gauge and assessing blade deflection.

Using A Tension Gauge

One of the most accurate ways to measure bandsaw blade tension is by using a tension gauge. It allows you to measure the blade tension in pounds per square inch (PSI), ensuring that you maintain the manufacturer’s recommended tension for your specific bandsaw. The tension gauge consists of a small spring-loaded probe that you press against the blade in a predetermined location.

To measure the tension, follow these steps:

1. Consult your bandsaw’s manual or the manufacturer’s guidelines to determine the recommended tension range for your blade. This information is crucial as it ensures you achieve the proper tension for efficient cutting.

2. Attach the tension gauge to a flat and even surface, ensuring it is properly secured. This will provide stability during the measurement process.

3. Position the probe of the tension gauge against the side of the blade, making sure it is in contact with the widest part of the blade’s body. Apply light pressure to ensure a secure connection.

4. Read the tension measurement indicated on the gauge. Compare it to the recommended tension range specified by the manufacturer. If the measurement falls within the range, your blade tension is correct. If not, adjustments need to be made.

Assessing Blade Deflection

Another way to check the tension of your bandsaw blade is to assess blade deflection. Blade deflection refers to the amount the blade bends or deflects when pressure is applied during the cutting process. Monitoring blade deflection allows you to make an estimation of the blade tension.

Follow these steps to assess blade deflection:

1. Ensure the bandsaw is turned off and unplugged before proceeding. Safety should always be the top priority.

2. Identify a suitable point on the upper blade wheel where the blade is exposed. This point will help you observe blade deflection.

3. Apply light pressure with your finger or a small wooden dowel to the exposed portion of the blade. Observe how much the blade deflects. If the deflection is minimal, the tension is likely adequate. However, if the deflection is excessive, it indicates a loose blade that requires adjustment.

4. Consult your bandsaw’s manual or manufacturer’s guidelines to learn how to adjust the tension. Each bandsaw may have different methods, so it is essential to follow the specific instructions for your machine.

By regularly checking the tension of your bandsaw blade, you can ensure optimal cutting performance, prolong blade life, and achieve accurate cuts every time. Whether you choose to use a tension gauge or assess blade deflection, maintaining the proper tension is crucial for achieving the best results with your bandsaw.

Maintaining Bandsaw Blade Quality

A bandsaw blade is a key component of a bandsaw machine that plays a crucial role in achieving accurate and clean cuts. To ensure consistent performance and longevity, it is important to maintain the quality of the bandsaw blade. This involves proper blade cleaning and storage as well as adhering to a blade replacement schedule. In this section, we will explore these essential practices in detail.

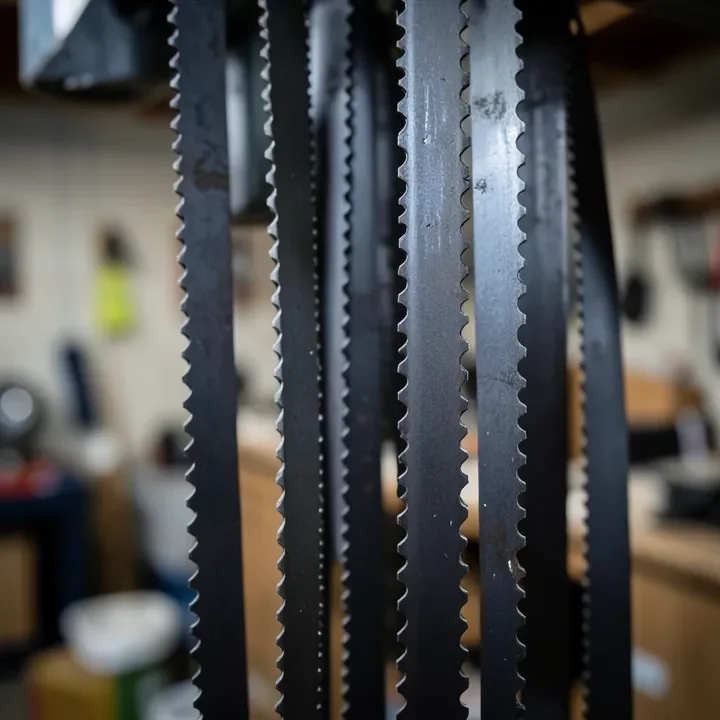

Proper Blade Cleaning And Storage

Keeping your bandsaw blade clean and well-maintained is essential for maximizing its lifespan and performance. By following these steps, you can ensure the longevity and quality of your bandsaw blade:

  1. Remove Residue: After each cutting session, it is important to remove any sawdust, resin, or other debris that may have accumulated on the blade. This can be done by using a stiff brush or a blade-cleaning solution. Make sure to clean both sides of the blade thoroughly to prevent any buildup.
  2. Dry the Blade: It is crucial to dry the blade after cleaning to prevent rust and corrosion. Use a clean cloth or towel to wipe down the blade, ensuring it is completely dry before storage.
  3. Apply Lubricant: Applying a thin coat of lubricant to the blade helps to prevent rust and keep the blade in optimal condition. Be sure to use a lubricant specifically designed for bandsaw blades and apply it sparingly.
  4. Store Properly: When not in use, store the bandsaw blade in a cool, dry place, away from moisture and direct sunlight. Coiling the blade loosely or using a blade storage box can help maintain its shape and prevent damage.

Blade Replacement Schedule

Over time, bandsaw blades can wear out, losing their sharpness and cutting effectiveness. To avoid subpar cuts and potential accidents, it is important to adhere to a blade replacement schedule. Here are some key factors to consider:

  • Metal Thickness and Hardness: Different cutting tasks may require blades of varying thicknesses and hardness. Consult the manufacturer’s guidelines or an expert to determine the appropriate blade for your specific needs.
  • Regular Inspections: Regularly inspect the blade for signs of wear, damage, or fatigue. This includes checking for cracks, missing teeth, or excessive dullness. Replace the blade immediately if any issues are detected.
  • Usage Frequency: A high-frequency bandsaw user may need to replace the blade more frequently. Consider the workload and cutting demands of your projects to determine the appropriate replacement schedule.
  • Budget Allocations: Plan your budget and allocate funds for regular blade replacements. Investing in high-quality blades can result in longer lifespans and reduced downtime.

Frequently Asked Questions Of How To Measure A Bandsaw Blade

What Size Bandsaw Blade Do I Need?

To determine the correct size bandsaw blade, measure the distance between the saw’s guide blocks or the height of the wheels. This measurement will determine the blade length you need. Choose a blade width appropriate for your cutting needs and the saw’s specifications.

How Long Is The Blade On A 12-Inch Band Saw?

The blade on a 12-inch band saw is typically 80 inches long. It is important to choose the right size blade for your specific saw model for optimal performance.

How Long Is A 14 Bandsaw Blade?

A 14-inch bandsaw blade usually measures around 93 to 107 inches in length.

What Size Blade Does A 10-inch Bandsaw Take?

A 10-inch bandsaw uses a blade that measures 70. 5 inches.


Measuring a bandsaw blade is a crucial aspect of maintaining your bandsaw’s performance. By following the steps outlined in this post, you can ensure that your bandsaw blade is the right size for your machine, leading to smoother cuts and prolonged blade life.

Don’t overlook the importance of proper measurement for maximum bandsaw efficiency.
