Using Oxy Acetylene Cutting Torch: Master the Art of Precision Cutting
When using an oxy-acetylene cutting torch, always prioritize safety measures and proper handling techniques. Ensure adequate ventilation and appropriate protective gear for optimal usage.
An oxy-acetylene cutting torch is a versatile and powerful tool used in various industries for cutting and welding applications. From metal fabrication to automotive repairs, this cutting torch offers precision, speed, and efficiency. Understanding how to operate the torch safely and effectively is essential to achieve the desired results.
In this guide, we will explore the key steps and best practices for using an oxy-acetylene cutting torch, including setting up the equipment, adjusting the flame, and performing cuts with precision. By following these guidelines, you can enhance your cutting capabilities and ensure a seamless cutting process.
Understanding The Equipment
Best Flashback Arrestor Pick
VAPHY Flashback Arrestor Set (Torch End) – $16.66
If a flame ever travels back into the hose, this is what stops it before it reaches the regulator or cylinder — cheap insurance for the one failure mode that actually matters.
- Best for: Installing at the torch handle end of both hoses
- Why we picked it: Color-coded oxygen/acetylene set, standard thread fitting
- Main drawback: Torch-end only — doesn’t protect the regulator side by itself
Compare more cutting torch safety gear
 Option 1 Western FA-30 (Regulator End) – $55.00
|
 Option 2 KwikSafety Shade 5 Goggles – $23.83
|
 Option 3 RAPICCA Leather Gloves – $18.99
|
As an Amazon Associate we earn from qualifying purchases.
Components Of Oxy Acetylene Cutting Torch
The oxy acetylene cutting torch consists of the following components:
- Cutting Torch Handle
- Oxygen Regulator
- Acetylene Regulator
- Cutting Tip

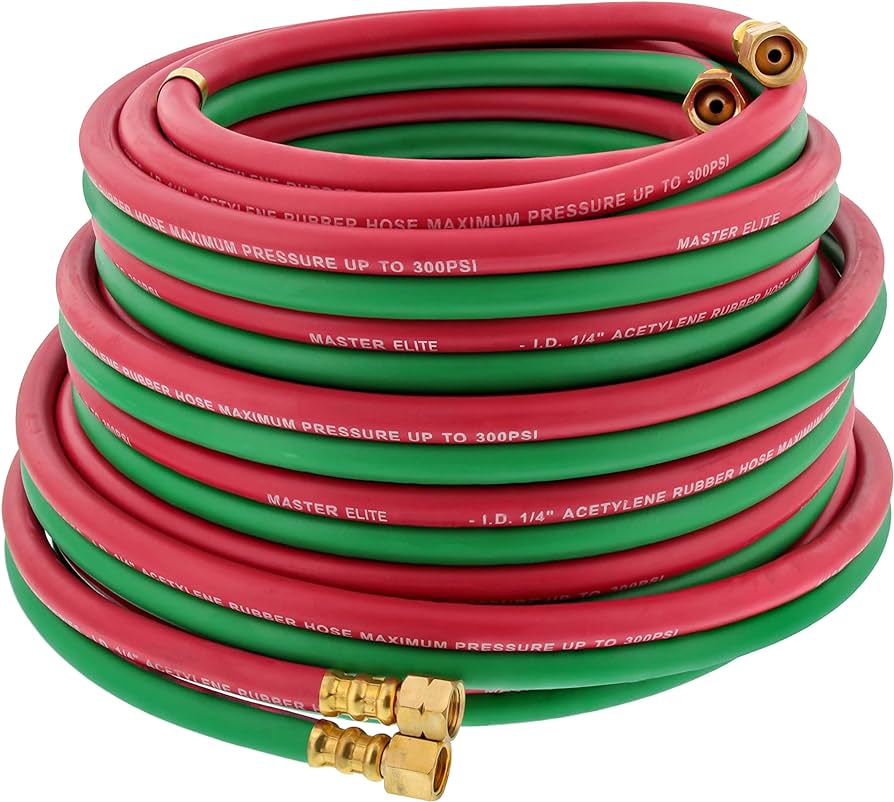

- Gas Hoses
- Flashback Arrestors
Safety Gear And Precautions
When using an oxy acetylene cutting torch, remember to always wear the following safety gear:
- Protective Goggles
- Leather Gloves
- Fire-Resistant Clothing
Ensure proper ventilation and be mindful of the following precautions:
- Avoid Working Near Flammable Materials
- Check for Gas Leaks Regularly

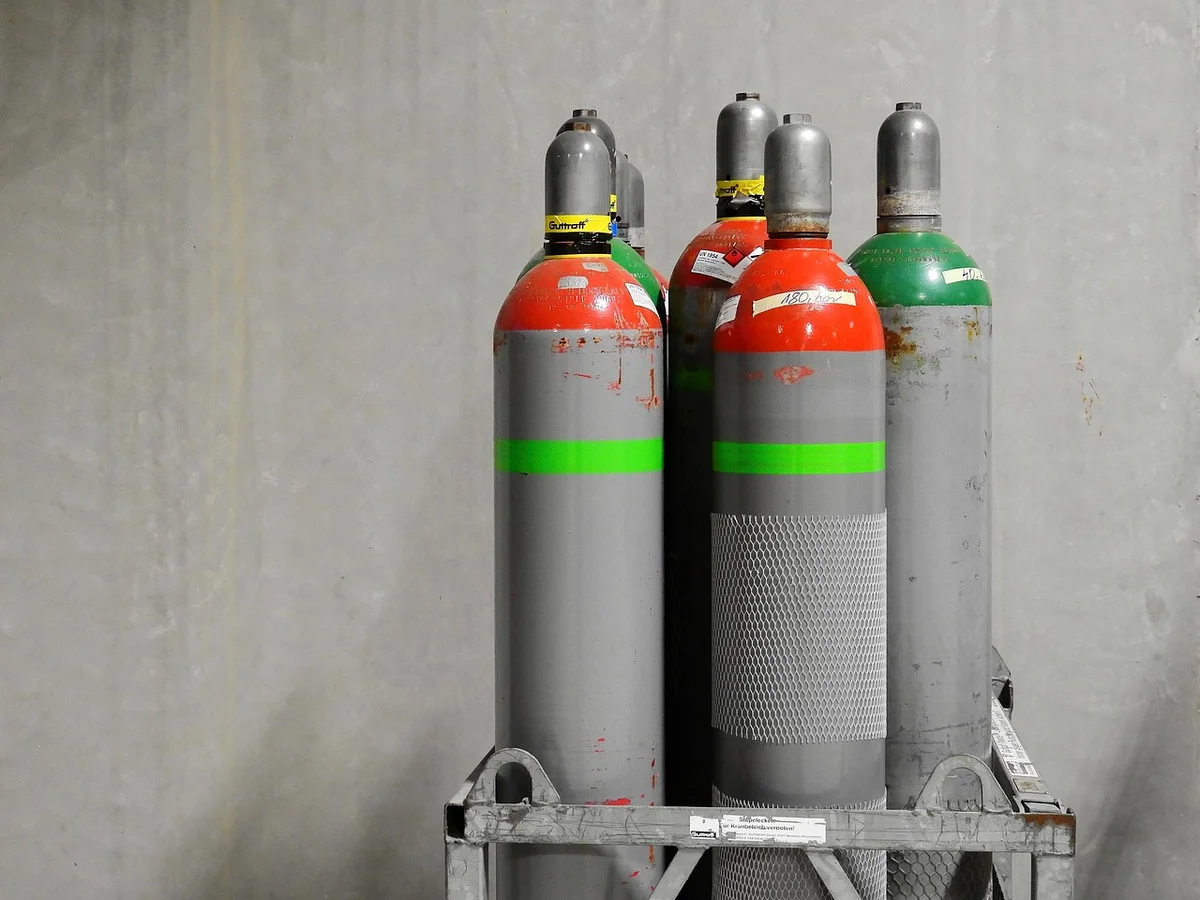

- Secure Gas Cylinders Upright
Setting Up The Oxy Acetylene Cutting Torch
Securing The Workpiece
Before starting, ensure the workpiece is securely clamped in place. This prevents any movement during cutting.
Adjusting Gas Pressures
Check and adjust gas pressures to ensure a steady and efficient flame for cutting. One number matters more than any other here: acetylene regulator pressure should never exceed 15 PSI. Above that, acetylene becomes chemically unstable and can decompose explosively even without oxygen present — this isn’t a performance recommendation, it’s a hard safety limit. Oxygen pressure varies by tip size and metal thickness instead; see our oxy-acetylene PSI and tip size chart for the exact settings by material thickness.
Mastering Precision Cutting Techniques
Learn how to master precision cutting techniques using an oxy-acetylene cutting torch for flawless results. Enhance your skills in achieving clean and accurate cuts with this powerful and versatile tool.
Understanding Heat Zones
When using an oxy acetylene cutting torch, understanding the heat zones is crucial for achieving precise cuts. The heat affected zone (HAZ) is the area around the cut that experiences a change in metallurgical properties due to the heat. It’s essential to grasp how different materials respond to heat, as this affects the quality of the cut. Controlling the heat input ensures the HAZ remains within acceptable limits, preventing damage to the surrounding material.
Controlling the Cutting Speed
The cutting speed plays a vital role in achieving precision cuts. Maintaining consistent cutting speed is crucial to preventing irregularities and burrs. Adhering to recommended cutting speeds for different materials is essential to ensure the desired precision. Adjusting the cutting speed based on material thickness and type is key to achieving high-quality cuts.
In summary, mastering precision cutting techniques with an oxy acetylene cutting torch involves understanding heat zones and controlling the cutting speed. By being attentive to these aspects, proficient operators can consistently produce precise cuts.
Troubleshooting And Maintenance
Properly maintaining and troubleshooting your oxy acetylene cutting torch is crucial to ensure its optimal performance and longevity. By addressing common cutting issues and following routine torch maintenance, you can maximize the efficiency and lifespan of your equipment. Let’s take a closer look at these important aspects.
Common Cutting Issues
When using an oxy acetylene cutting torch, you may encounter some common cutting issues that can hinder your productivity. Below are some of these issues along with their possible causes and solutions:
| Issue | Cause | Solution |
|---|---|---|
| Excessive slag formation | Inadequate preheating or excessive speed | Ensure proper preheating and adjust cutting speed accordingly |
| Poor quality cut | Dull or worn cutting tip | Replace the cutting tip |
| Uneven cut | Incorrect torch angle or improper manipulation | Adjust torch angle and practice proper manipulation techniques |
| Backfire or flashback | Insufficient oxygen flow or improper gas mix | Verify the gas mix and ensure proper oxygen flow |
Routine Torch Maintenance
To keep your oxy acetylene cutting torch in top shape, it is essential to perform regular maintenance. Here are some routine maintenance steps you should follow:
- Clean the torch handle and tips after each use using a soft brush and compressed air.
- Inspect the cutting tip for signs of wear or damage, and replace as necessary.
- Check the hoses for any cracks or leaks, and replace if needed.
- Ensure the oxygen and acetylene cylinders are properly secured and free from damage.
- Regularly test the regulators to ensure they are functioning correctly.
- Keep the torch and cylinders in a clean and dry storage area when not in use.
Frequently Asked Questions For Using Oxy Acetylene Cutting Torch
How Does An Oxy Acetylene Cutting Torch Work?
An oxy acetylene cutting torch works by combining oxygen and acetylene gases in specific ratios. The torch generates intense heat, allowing the operator to cut through various metals. The oxygen provides an oxidizing reaction, while the acetylene provides the fuel for combustion, resulting in a high-temperature flame that melts and cuts through the metal.
What Are The Safety Precautions When Using An Oxy Acetylene Cutting Torch?
When using an oxy acetylene cutting torch, it is important to follow safety precautions. Wear appropriate protective gear, such as gloves and goggles, to protect against sparks and harmful rays. Ensure proper ventilation in the workspace to prevent the accumulation of gases.
Also, check for leaks, secure gas cylinders, and never use the torch near flammable materials.
What Metals Can Be Cut Using An Oxy Acetylene Cutting Torch?
An oxy acetylene cutting torch can cut through various metals, including steel, stainless steel, cast iron, brass, and copper. It is a versatile tool commonly used in metalworking, fabrication, and automotive industries. However, the thickness of the metal being cut may affect the efficiency and speed of the cutting process.
How Do I Set Up An Oxy Acetylene Cutting Torch?
To set up an oxy acetylene cutting torch, first ensure that both the oxygen and acetylene cylinders are securely fastened upright, then connect the hoses and attach the torch handle. The lighting order matters for safety: open the acetylene valve slightly and light it with a striker first, before touching the oxygen valve. Once the acetylene flame stops smoking, slowly open the oxygen valve to bring the flame to neutral. Never open both valves before lighting.
Fine-tune the flame to the desired cutting conditions, keeping acetylene pressure at or under 15 PSI at all times.
Conclusion
Mastering the oxy-acetylene cutting torch is a valuable skill for metal workers. Safety, proper equipment setup, and consistent practice are essential for successful use. As you become more experienced, you’ll develop precision and efficiency in your cutting techniques. Stay safe, keep learning, and enjoy your oxy-acetylene cutting adventures!
