How to Square Up Plywood: Diagonals, 3-4-5 and Saw Guide Cuts

To square up plywood, check the sheet with matching diagonals (or a 3-4-5 triangle), then cut a fresh edge with a saw riding a clamped straightedge, measured square to your reference edge. Even a new 4×8 sheet is allowed to be slightly out of square, so trusting the factory corners can cost you 1/8 inch across a cabinet. This guide covers the checks, the cutting method, and how to square a finished plywood box.

What You Need to Square Plywood

The list is short: a tape measure, a sharp pencil, a framing or speed square, two or more clamps, a circular saw with a fine-tooth plywood blade, and a straightedge or guide rail long enough to span the cut. A clamped scrap board works as a straightedge, but a rail with its own clamp stays put under saw pressure, which is why it sits at the top of this guide.

Is Your Sheet Actually Square?

Check before you cut. A plywood panel is square when all four corners are true 90-degree angles and opposite sides are the same length. Two quick checks tell you where you stand, and neither needs a specialty tool.

Measure Both Diagonals

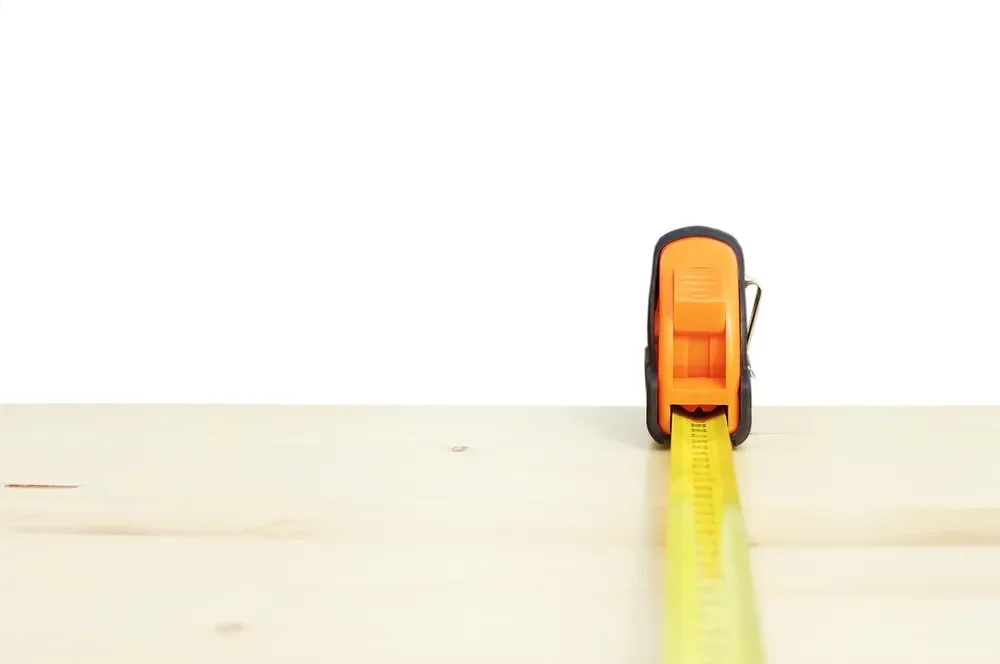

Hook the tape on one corner and read the distance to the opposite corner, then repeat on the other diagonal. Equal readings mean square corners. A difference means the sheet is skewed toward the longer diagonal. Also measure the two long sides and the two short sides: equal diagonals alone can hide a panel whose ends are slanted, so opposite sides need to match too.

How much error does a diagonal difference hide? On a 4×8 sheet, the amount one edge has slid sideways relative to the opposite edge is about 0.56 times the diagonal difference. The table below works that out for a sheet 48 inches wide and 96 inches long.

Diagonal difference	Sideways shift across the 48 in. edge	Corner angle error
1/32 in.	about 0.018 in.	0.02 degrees
1/16 in.	about 0.035 in.	0.04 degrees
1/8 in.	about 0.070 in.	0.08 degrees
3/16 in.	about 0.105 in.	0.13 degrees
1/4 in.	about 0.140 in.	0.17 degrees

The numbers look tiny, and that is the point: 1/8 inch of diagonal difference is only about 0.07 inch of real skew, yet it is enough to leave a visible gap when two panels meet at a corner. It also lines up with the factory limit. The PS 1 structural plywood standard allows panels to be out of square by 1/64 inch per foot of the longest edge, measured along the diagonals, which works out to 1/8 inch on an 8-foot sheet. It also requires each edge to be straight to within 1/16 inch. A brand-new sheet can be in spec and still be a little off, so measure it instead of assuming.

The 3-4-5 Triangle Check

The 3-4-5 check confirms a single corner. From the corner, mark 36 inches along one edge and 48 inches along the adjacent edge (the full width of a sheet). If the corner is a true right angle, the distance between the marks is exactly 60 inches, because 3 squared plus 4 squared equals 5 squared. A reading longer than 60 means the corner is wider than 90 degrees; shorter means it is tighter. Using 36-48-60 instead of 3-4-5 inches gives the tape a long baseline, so a small error shows up as a readable amount.

Trust Your Square, But Test It

A framing square that got dropped off a truck is a common hidden culprit. Draw a line along the blade against a straight plywood edge, flip the square over, and draw a second line from the same starting point. If the lines do not overlap, the square is off, and every corner you check with it will be off by half of that gap.

Cut a New Square Edge With a Guide Rail

Once you know the sheet is out, pick the straightest edge as the reference. Factory edges are usually the best candidates because they are cut on a panel saw, but sight along each edge first and pick the one with no chips or bow.

1. Measure your saw once: the distance from the blade to the outer edge of its base plate is the offset between your cut line and the rail. Write it on tape on the saw.
2. Mark the cut line, then clamp the rail parallel to it, offset by that distance.
3. Check the rail is square to the reference edge by measuring from the reference edge to the rail at both ends. Matching measurements mean the cut will be perpendicular to that edge.
4. Set the blade depth so the blade just clears the bottom face, and support both sides of the cut on sawhorses or a sheet of rigid foam so the offcut cannot pinch the blade.
5. Keep the base plate pressed against the rail and make the cut in one continuous pass.
6. Measure both diagonals again. If they match, the corner you just cut is square; repeat for the next edge.

Cutting with the good face down and a fine-tooth blade cuts down on tear-out; the full method is in our guide to cutting plywood without splintering. If the edge you need to reference is rough or wavy, see how to get a straight edge on plywood first.

Squaring Plywood on a Table Saw

A table saw can give tighter results than a hand-guided cut, but only with a crosscut sled or a straightedge guide. The rip fence alone keeps a new edge parallel to the opposite one, which is not the same as square to the end. A full sheet is heavy and awkward to feed alone, so many shops break the sheet down with a saw and rail first, then finish smaller panels on the table saw. The sled setup and the 5-cut calibration are covered in how to square plywood on a table saw. For solid lumber rather than sheet goods, see how to square rough lumber.

Squaring an Assembled Plywood Box or Frame

Cutting square panels is half the job; the other half is keeping a glued box square while the glue sets. The same diagonal test works on the assembled carcass.

• Measure across both diagonals of the box opening as soon as the joints are clamped up.
• If the numbers differ, the box is racked toward the longer diagonal. Put a bar clamp across that longer diagonal and tighten it a little at a time.
• Re-measure after each turn of the clamp and stop when the two diagonals match.
• Fasten the back panel while the box is held square. A plywood back with square corners locks the carcass in place.

Wrong-way clamping is the usual trouble: pulling across the shorter diagonal makes the racking worse. If the sheet itself is bowed rather than skewed, flatten it first with the methods in how to flatten plywood or how to straighten warped plywood.

Subfloor and Sheathing: A Square Sheet Is Not a Square Building

A common question is whether laying a framing square on every sheet of subfloor proves the building is square. It does not. Each sheet can be square to itself while the floor frame under it is racked, and the sheets simply follow the framing. To check the building, measure the diagonals of the floor frame (or use 36-48-60 at a corner) before the sheets go down. Because 48 inches divides evenly into both 16 inch and 24 inch framing centers, a first sheet started square to the frame carries its seams onto framing members across the whole floor; a first sheet started crooked pushes every following seam off the framing. Leave a small expansion gap between sheets rather than forcing edges tight; APA guidance is commonly given as about 1/8 inch.

What to Do With a Sheet That Is Out of Square

Do not try to bend it into shape with clamps. Plywood is a stiff layered panel and will spring back. Instead, trim it down: cut the two edges that adjoin your reference edge square to it one at a time, checking the diagonals after each cut. Plan the project around the smaller finished size, for example 47-3/4 by 95-3/4 inches, rather than fighting a full-size sheet that will never sit true. A sheet that is bowed or badly damaged is better cut into smaller panels, where each piece can be squared on its own.

Common Mistakes When Squaring Plywood

• Trusting the factory corners. The standard tolerance allows 1/8 inch of diagonal difference on a full sheet.
• Using one clamp on a long rail. The rail can pivot under saw pressure; use two clamps on any cut past about 3 feet.
• Cutting on the wrong side of the line. The blade removes about 1/8 inch; decide which side of the line is waste before you cut.
• Checking only before the cut. A second diagonal measurement after the cut catches the error while the sheet is still on the sawhorses.
• Using an untested square. Run the flip test before you rely on it.

Frequently Asked Questions

How do you check if a sheet of plywood is square?

Measure both diagonals from corner to corner with a tape measure. If the two numbers match and opposite sides are equal in length, the sheet is square. For a second opinion, mark 36 inches along one edge and 48 inches along the adjacent edge from the same corner; the distance between the marks should be exactly 60 inches.

How far out of square can a new sheet of plywood be?

The PS 1 plywood standard allows a panel to be out of square by 1/64 inch per foot of its longest edge, measured along the diagonals. On an 8-foot edge that is 1/8 inch of difference between the two diagonals, so a brand-new sheet can be slightly off and still be in spec.

What is the easiest way to cut plywood square without a table saw?

Clamp a straightedge or track-saw rail to the sheet, set it square to a reference edge by measuring the distance to that edge at both ends of the cut, and run the saw’s base plate against the rail for the full cut. Support both sides of the cut so the offcut cannot pinch the blade.

Do equal diagonals prove plywood is square?

Not by themselves. A panel with two parallel sides but slanted ends can still have equal diagonals, so also check that opposite sides measure the same, or confirm at least one corner with a square or the 3-4-5 method.

How do you square up a plywood cabinet box?

Measure both diagonals across the assembled box before the glue sets. If they differ, clamp across the longer diagonal and tighten gradually until the two measurements match, then fasten the back panel, which holds the box square once its corners are true.

Conclusion

Measure first, cut second, and measure again. Equal diagonals and equal opposite sides tell you a plywood panel is square, a guide rail lets a hand-held saw cut a new edge that stays square to your reference, and the same diagonal check keeps a glued box true. Treat the factory edge as a good starting point, not a guarantee, and your joints will close on the first try.
