Understanding The Basics Of Thread Inserts
Understanding the basics of thread inserts is crucial for utilizing them effectively. Learn how to properly use thread inserts and enhance the strength and durability of your threaded connections.
Thread inserts are essential components used in various industries, providing enhanced strength and durability to threaded fasteners. Whether you’re a DIY enthusiast or a professional in mechanical engineering, understanding the basics of thread inserts is crucial. In this section, we will explore what thread inserts are, their advantages, and the different types available.
So, let’s dive in!
What Are Thread Inserts?
Thread inserts, also known as threaded bushings or helical inserts, are cylindrical metal inserts that are used to add threads to a hole. These inserts are designed to provide a strong, reliable threaded connection, particularly in materials that may be prone to stripping or wearing out.
Thread inserts are typically made of materials such as stainless steel, brass, or carbon steel, with each material offering its own set of benefits.
Advantages Of Using Thread Inserts:
Using thread inserts offers several advantages over conventional threaded connections. Here are some key benefits:
- Improved thread strength: Thread inserts significantly enhance the strength of threaded connections, preventing thread stripping and increasing load-carrying capacity.
- Wear resistance: Inserts made of high-quality materials provide excellent wear resistance, extending the lifespan of threaded connections in high-impact or vibration-prone applications.
- Repairability: Thread inserts can be easily installed in damaged or worn-out threads, effectively repairing the connection and avoiding the need for costly replacements.
- Corrosion resistance: Inserts made of materials like stainless steel offer excellent corrosion resistance, making them suitable for applications exposed to harsh environments or chemicals.
- Weight reduction: Thread inserts allow for the use of smaller and lighter fasteners, resulting in weight reduction without compromising strength.
Types Of Thread Inserts:
There are various types of thread inserts available, designed to cater to different application requirements. The most common types include:

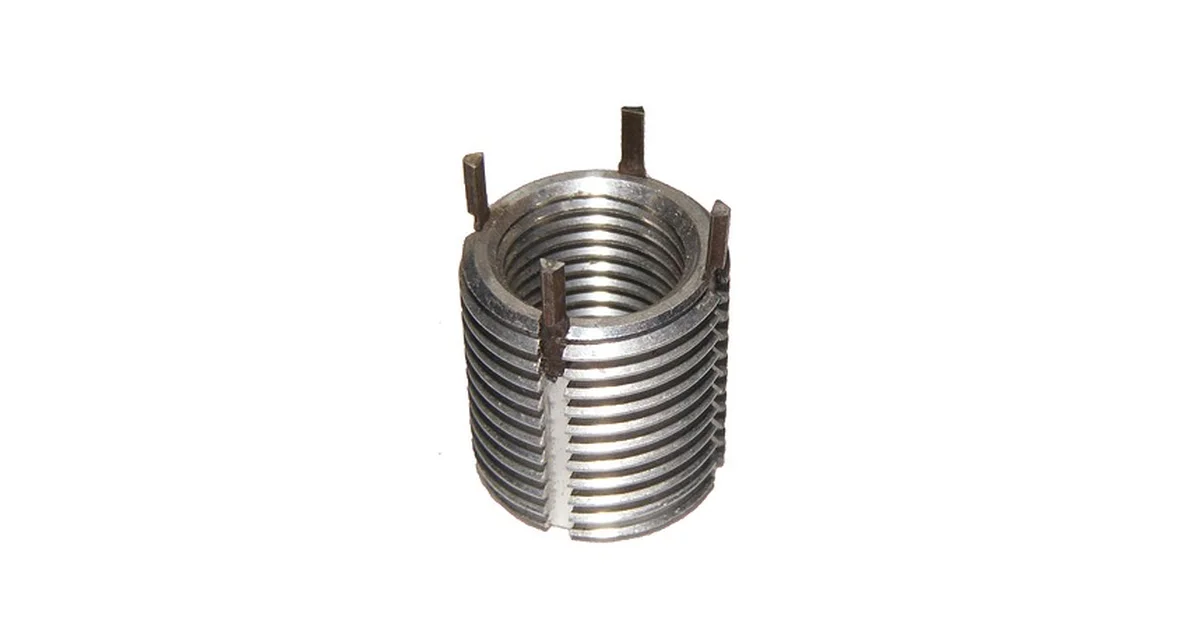

- Helical inserts: These are the most popular thread inserts, consisting of a coiled wire design. Helical inserts provide excellent tensile strength and are suitable for a wide range of applications.
- Keenserts: Keenserts, also known as key-locking inserts, have grooves or keys that lock into the material, eliminating the risk of rotation and ensuring a secure connection.
- Self-tapping inserts: Self-tapping inserts, as the name suggests, have cutting threads that allow them to be screwed directly into pre-drilled holes, eliminating the need for tapping or thread cutting.
- Wire thread inserts: Wire thread inserts, also called wire coils or wire helix inserts, are made by winding a wire into a helical coil shape. They can enhance thread strength and resist vibration and impact.
Understanding these basics about thread inserts will help you make informed decisions when it comes to selecting the right type of insert for your threaded connection needs. By incorporating thread inserts, you can enjoy increased strength, repairability, and improved performance in a wide range of applications.
Selecting The Right Thread Insert For Your Application
Learn how to choose the ideal thread insert for your specific application. Find out the key factors to consider and make sure you get the best results every time.
When it comes to using thread inserts, selecting the right one for your application is crucial to ensure a secure and long-lasting connection. There are various factors to consider when making this decision, including the material of the insert, the thread size and pitch, and the specific requirements of your project.
In this section, we will explore these factors in detail, helping you choose the perfect thread insert for your needs.
Factors To Consider When Choosing Thread Inserts:
- Material compatibility: The first thing to consider is the material compatibility of the thread insert. Depending on the application, you may need inserts made from different materials such as stainless steel, brass, or aluminum. Each material offers its own set of benefits, ranging from corrosion resistance to high strength properties.
- Load-bearing capacity: It is important to determine the load-bearing capacity required for your application. Thread inserts come in different strengths, and selecting the appropriate load-bearing capacity is essential to ensure the longevity and durability of the connection.
- Temperature and environmental conditions: Consider the temperature and environmental conditions your thread insert will be subjected to. Some applications involve high temperatures or exposure to harsh chemicals, so it is crucial to choose an insert material that can withstand these conditions without degradation.
- Installation method: Another important factor is the installation method of the thread insert. Depending on the application and the available tools, you may opt for different installation techniques such as press-fit, heat installation, or self-tapping. Select an insert that is compatible with your preferred installation method.
Different Thread Insert Materials And Their Benefits:
- Stainless steel: Stainless steel thread inserts offer excellent corrosion resistance, making them suitable for applications exposed to moisture or chemicals. They also provide high-strength properties and can withstand high temperatures.
- Brass: Brass inserts are known for their excellent electrical conductivity and resistance to corrosion. They are often used in electronics and electrical applications.
- Aluminum: Aluminum inserts are lightweight and have good thermal conductivity. They are commonly used in applications that require weight reduction without compromising strength.
How To Determine The Correct Thread Size And Pitch:
- Measure the diameter: Start by measuring the outer diameter of the hole or the inner diameter of the bolt. This will give you the thread size, which is usually expressed in inches or millimeters.
- Count the threads per inch: Determine the pitch or the number of threads per inch. Count the number of threads on a one-inch section and match it to the thread pitch standards.
- Confirm the thread type: Identify the thread type, whether it is a coarse thread or a fine thread. This information is crucial in selecting the appropriate thread insert.
By considering these factors and following the proper measurement techniques, you can confidently choose the right thread insert for your application. Remember to consult the manufacturer’s guidelines and specifications to ensure optimal performance and compatibility.
Step-By-Step Guide To Installing Thread Inserts
Learn how to easily install thread inserts with this step-by-step guide. Discover the proper technique and tools required to effectively use thread inserts in your projects.
Preparing The Hole For Installation:
- Begin by selecting the appropriate drill bit size for the thread insert. This is usually stated in the instructions provided by the manufacturer. It’s crucial to use the correct size to ensure a proper fit.
- Secure the material that needs the thread insert in a vice or clamp to prevent any movement during drilling.
- Mark the drill depth on the drill bit using masking tape or a permanent marker. This helps prevent drilling too deep and ensures the insert fits flush with the surface.
- Use a drill at low speed to create a hole in the material. Start slowly and apply consistent pressure to avoid any damage.
- Clean the hole using compressed air or a brush to remove any debris or loose particles.
Insertion Techniques For Different Types Of Thread Inserts:
- Screw-in thread inserts: Align the insert with the hole and start screwing it in using a screwdriver or a special installation tool. Apply firm but controlled pressure until the insert is flush with the surface.
- Press-in thread inserts: Place the insert over the hole and use a threaded mandrel or installation tool to press it into position. Apply steady pressure until the insert is fully seated.
- Heat-set thread inserts: Heat the insert using a soldering iron or another appropriate heat source until the adhesive on the insert melts. Insert it into the hole and allow it to cool, ensuring a secure bond.
Tips For Ensuring Proper Installation And Alignment:
- Use a thread insert installation tool or mandrel specific to the type and size of the insert. This ensures proper alignment and minimizes the risk of damage.
- Apply thread locking adhesive on the outside of the insert for added security and to prevent loosening under vibration or repetitive use.
- Avoid overtightening the insert, as it may cause damage to the material or compromise the insert’s integrity.
- If the hole is too large or damaged, consider using a larger thread insert or repairing the hole before installation.
- Test the thread insert’s strength and stability by applying pressure or force to ensure it can withstand the intended application.
Remember, proper installation of thread inserts is crucial for ensuring thread strength and longevity. Take your time, follow the recommended guidelines, and choose the right type of insert for your specific needs. With the right technique and attention to detail, you can achieve secure and reliable threaded connections.
Common Challenges And Troubleshooting Tips
Learn the common challenges and troubleshooting tips for using thread inserts effectively. Discover how to overcome obstacles and improve your thread insert application process.
Thread inserts are versatile components that provide strong and durable threads in various materials. While they offer many benefits, there can be some challenges during installation and maintenance. This section will address potential issues and provide solutions to common problems, as well as tips for proper maintenance and care of thread inserts.
Potential Issues During Installation:
- Improper alignment: Inaccurate alignment of the thread insert can lead to difficulties during installation. Ensure that the insert is aligned correctly with the hole before attempting to screw it in.
- Difficulty in screwing the insert: If you encounter resistance or difficulty when screwing the insert into the material, it is important not to force it. This can potentially damage the insert or the material. Instead, take a step back and reassess the alignment or consider using a tap to clean and prepare the hole before inserting the thread insert.
- Cross-threading: Cross-threading occurs when the insert and the material’s threads are misaligned, resulting in damaged threads that can affect the overall performance. To prevent cross-threading, make sure the insert and the material’s threads are properly aligned before starting to screw in the insert. Use slow and steady pressure to ensure smooth insertion.
- Insert deformation: Thread inserts can sometimes deform during installation, especially if excessive force is applied. Deformation can affect the performance and integrity of the insert. To avoid this, ensure that the insert is properly sized for the hole and use steady and controlled force during installation.
Solutions To Common Problems:
- Pre-tap the hole: If you encounter difficulties during insertion, try pre-tapping the hole with a tap of the appropriate size. Pre-tapping creates proper threads in the material, making it easier for the thread insert to be screwed in smoothly.
- Use lubrication: Applying a lubricant, such as a thread cutting oil, can help reduce friction and make the insertion process smoother. Lubrication also helps to prevent galling, a condition where the insert threads seize or gall with the material’s threads.
- Consider heat installation: In certain cases, applying heat to the material or the thread insert can aid in installation. Heat expands the material, allowing the insert to be inserted more easily. However, exercise caution and ensure that the material and insert can withstand the heat without being damaged or compromised.
Proper Maintenance And Care For Thread Inserts:
- Regular inspections: Periodically inspect the thread inserts for any signs of wear, damage, or loosening. Detecting and addressing issues early can prevent more significant problems down the line.
- Clean and clear debris: Keep the threaded area clean by removing any debris, such as dirt, dust, or chips, that may accumulate over time. This helps maintain a tight and secure fit between the insert and the material.
- Avoid overloading: Do not exceed the recommended maximum load or torque specifications for the thread insert. Overloading can put excessive stress on the insert and compromise its integrity. Refer to the manufacturer’s guidelines for proper usage and load limits.
- Retighten if necessary: If you notice any loosening or movement of the thread insert over time, it is important to retighten it to ensure a secure fit. Use the appropriate tools and techniques recommended by the manufacturer to avoid damaging the insert or the material.
By addressing potential installation issues, knowing the solutions to common problems, and practicing proper maintenance and care, you can maximize the performance and longevity of thread inserts. Following these troubleshooting tips will help ensure a successful and hassle-free experience with thread inserts.
Applications And Industries That Benefit From Thread Inserts
Thread inserts are incredibly versatile and useful in a wide range of applications and industries. From automotive and aerospace to furniture and electronics, thread inserts provide secure and durable connections for threaded fasteners, ensuring improved strength and longevity. Discover how to effectively use thread inserts in your projects.
Automotive Industry And Thread Inserts:
Thread inserts are widely used in the automotive industry due to their ability to enhance the performance and longevity of threaded components. Here are some applications and benefits:
Engine components: Thread inserts are utilized in engine blocks, cylinder heads, and intake manifolds to provide reliable and durable threads for bolts and screws. This ensures proper assembly and prevents loosening or stripping of the threads under high stress and temperature conditions.
Suspension systems: Thread inserts play a crucial role in the suspension systems of vehicles. They provide the necessary strength and resistance to vibrations, ensuring that components such as shock absorbers, control arms, and tie rods remain securely fastened.
Body panels and trim: In the assembly of body panels and interior trim, thread inserts are used to create reliable and sturdy mounting points for bolts and clips. This helps maintain the structural integrity of the vehicle and ensures a tight fit.
Repair and maintenance: Thread inserts are an ideal solution for repair and maintenance tasks in the automotive industry. When a threaded hole becomes damaged or worn out, a thread insert can be easily installed to restore the integrity of the connection, eliminating the need for costly replacements.
Aerospace Applications That Utilize Thread Inserts:
The aerospace industry demands utmost precision and reliability, and thread inserts are an essential component in various applications. Here are some examples:
Aircraft engine components: Thread inserts are critical in aircraft engines, where high temperatures, vibrations, and extreme forces are common. They provide a secure and long-lasting connection between different engine parts, ensuring optimal performance and safety.
Fuselage and structural components: Thread inserts are used in the assembly of aircraft fuselages and other structural components. They offer high-strength threads that can withstand the stresses imposed during flight, ensuring the integrity of the aircraft’s structure.
Avionics and electronic systems: Thread inserts play a significant role in avionics and electronic systems, where lightweight materials such as aluminum and composite are prevalent. They provide reliable mounting points for equipment and ensure secure connections, even in challenging environments.
Machinery And Equipment Manufacturing And Thread Inserts:
Machinery and equipment manufacturing relies on thread inserts for their versatility and durability. Here are some applications and benefits:
Heavy machinery assembly: Thread inserts are commonly used in heavy machinery assembly, such as construction equipment, agricultural machinery, and industrial machinery. They provide strong and reliable threads that can withstand heavy loads and vibrations, ensuring the longevity and performance of the equipment.
Tooling and fixtures: Thread inserts are invaluable in tooling and fixtures, providing secure connections in jigs, fixtures, and other manufacturing equipment. They enhance the precision and repeatability of machining operations, ensuring consistent quality in the manufacturing process.
Electronic enclosures: Thread inserts are widely used in the manufacturing of electronic enclosures, such as computer chassis, control panels, and communication equipment. They offer durable threads for mounting components, ensuring the longevity and stability of electronic systems.
Repair and maintenance: Thread inserts are commonly used in repair and maintenance tasks in the machinery and equipment manufacturing industry. Whether it’s repairing worn-out threads or reinforcing weak connections, thread inserts provide a cost-effective solution and extend the lifespan of equipment.
Remember, the effective application of thread inserts varies across different industries and use cases. These examples highlight the versatility and benefits thread inserts offer in the automotive, aerospace, and machinery sectors.
Optimizing Thread Inserts For Long-Term Performance
Learn the best practices for optimizing thread inserts to achieve long-term performance. Discover effective techniques for using thread inserts and enhancing their functionality for improved results.
Thread inserts offer numerous advantages for enhancing the efficiency and durability of threaded connections. To maximize their long-term performance, certain considerations must be taken into account. This section will delve into three key areas: thread locking methods for added security, how to prevent thread corrosion and damage, and proper removal techniques for damaged thread inserts.
Thread Locking Methods For Added Security:
- Adhesive compounds: Apply a thread locking adhesive to the external threads of the insert before installation to prevent loosening due to vibrations or external forces.
- Threaded fasteners: Use threaded fasteners with locking features, such as nylon-insert lock nuts or lock washers, to secure the insert in place.
- Mechanical thread locking devices: Utilize mechanical thread locking devices, such as crimp rings or tab washers, to provide additional security against rotational forces.
How To Prevent Thread Corrosion And Damage:
- Choose the appropriate insert material: Opt for inserts made of corrosion-resistant materials like stainless steel or brass to minimize the risk of thread corrosion and damage.
- Lubrication: Apply an appropriate thread lubricant during installation to reduce friction and prevent thread galling, which can lead to thread damage.
- Protect against environmental factors: Shield the inserts from moisture, chemicals, or other corrosive agents that can accelerate thread corrosion. Consider using protective coatings or sealants when necessary.
Proper Removal Techniques For Damaged Thread Inserts:
- Evaluate the situation: Assess the extent of the damage and determine whether the insert is salvageable. If the damage is severe, it may be necessary to remove and replace the entire threaded component.
- Thread extraction tools: Utilize specialized thread extraction tools designed to safely remove damaged inserts without causing further damage to the surrounding threads.
- Heat application: Apply controlled heat to the surrounding metal to expand it slightly, making it easier to remove the damaged insert.
- Reinstallation: After removing the damaged insert, thoroughly clean the threaded hole and prepare it for installation of a new insert, ensuring proper alignment and tightening.
Taking these optimization measures into consideration will help ensure that thread inserts perform optimally over time, providing secure and reliable threaded connections.
Frequently Asked Questions Of How To Use Thread Inserts
How Do You Use Threaded Inserts In Metal?
To use threaded inserts in metal, drill a hole in the metal, insert the threaded insert, and use a tool to secure it firmly.
Should You Glue Threaded Inserts?
Gluing threaded inserts is not recommended for secure and reliable installation.
How Do You Install Thread Locking Inserts?
To install thread locking inserts:
1. Drill a hole in the material using the recommended size and depth.
2. Screw the insert clockwise into the hole until it is flush with the surface.
3. Apply a thread locker adhesive to the insert’s external threads to secure it in place.
4. Allow the adhesive to dry according to the manufacturer’s instructions before using the threaded insert.
Are Threaded Inserts Better Than Screws?
Threaded inserts are often preferred over screws due to their enhanced stability and durability. They provide stronger connections and allow for easy disassembly for future repairs or modifications.
Conclusion
Thread inserts are a valuable tool for enhancing the strength and versatility of threaded connections. By following a few simple steps, you can successfully install and utilize thread inserts in your various projects. Firstly, it is important to understand the different types of thread inserts available and select the one that best suits your specific needs.
Consider factors such as material, size, and thread type to ensure a seamless integration. Secondly, take the time to prepare the hole before inserting the thread insert. This ensures proper alignment and maximizes the holding power of the insert. Once the thread insert is installed, make sure to regularly maintain and inspect it to detect any signs of wear or damage.
This will help maintain the integrity of the threaded connection. Lastly, embrace the numerous benefits of thread inserts, including increased strength, improved wear resistance, and extended thread life. These advantages make thread inserts an essential component in various industries, from automotive to aerospace.
Overall, mastering the use of thread inserts will enhance your proficiency in engineering applications and provide long-lasting, reliable connections for your projects.
