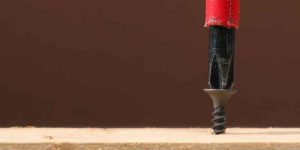

How to Screw Wood Without Splitting It (Pilot Hole Sizes)
Wood splits when a screw’s shank wedges fibers apart faster than they can compress — unless the pilot hole is sized to the screw’s actual gauge, not just “a little smaller than the screw.” Skipping this near a board’s end is the single biggest cause of split trim, deck boards, and cabinet parts. This guide covers exact pilot hole sizes by screw gauge, safe edge distance, and which self-tapping screws need no pilot hole at all.
Quick Answer
Drill a pilot hole sized to the screw’s gauge — about 70% of the screw’s diameter in softwood, closer to 90% in hardwood — then countersink the head and stay at least 3/4 inch from the board’s end. Use fine-thread screws in hardwood and coarse-thread in softwood, and always drive with the wood grain, not against it.
Why Wood Splits When You Screw It
Wood splits under a screw for one of four reasons: no pilot hole, a screw that doesn’t match the pilot hole size, wet or warped lumber, or a screw driven too close to the board’s end. Fix the actual cause and the split stops — no wax or trick substitutes for addressing it directly. MDF behaves differently from solid wood and has its own failure points, covered in our dedicated guide to MDF splitting; everything below is for solid lumber and plywood.
No Pilot Hole
A screw driven with no pilot hole has to displace wood fibers rather than follow a cleared path — that wedging action from the solid shank is what starts the split. Drilling first removes that material so only the screw’s threads bite into the wood.
Wrong Screw for the Wood
A screw with threads deeper than the pilot hole leaves too little wood to grip and pushes fibers outward as it draws the joint tight. Match the screw type to the wood density — see the difference between cabinet and standard wood screws if you’re choosing between the two — and size the pilot hole to the screw, not the other way around.
Wet or Warped Lumber
Wet fibers separate more easily than dry ones, so a board pulled straight off a stack that sat out in the rain splits far more easily than the same board once it’s dried out properly. Let lumber acclimate indoors for a few days at typical room humidity before driving screws into it.
Screwing Too Close to the End
Any screw driven within about half a board’s width of its end is working against a shorter, weaker run of fibers — this is the single most common cause of split trim and deck boards. Real edge-distance numbers are covered further down.
The Right Pilot Hole Size for Every Screw Gauge
Wood screws are sized by gauge, not length — a #8 screw uses the same pilot hole whether it’s 1 inch or 3 inches long, because gauge sets the shank’s actual diameter (roughly: diameter in inches ≈ (gauge × 0.013) + 0.060). If you’re unsure which bit that translates to on your own bit index, our drill bit sizing guide covers the full fraction-to-decimal conversion.
| Screw Gauge | Shank Diameter | Softwood Pilot Hole | Hardwood Pilot Hole |
|---|---|---|---|
| #4 | 0.112″ | 1/16″ | 3/32″ |
| #6 | 0.138″ | 5/64″ | 7/64″ |
| #8 | 0.164″ | 3/32″ | 1/8″ |
| #10 | 0.190″ | 7/64″ | 9/64″ |
| #12 | 0.216″ | 1/8″ | 5/32″ |
A tapered countersink-and-pilot combo bit set (like the one below) covers the common #4–#12 range in one purchase, so you’re not buying individual twist bits every time the screw gauge changes.

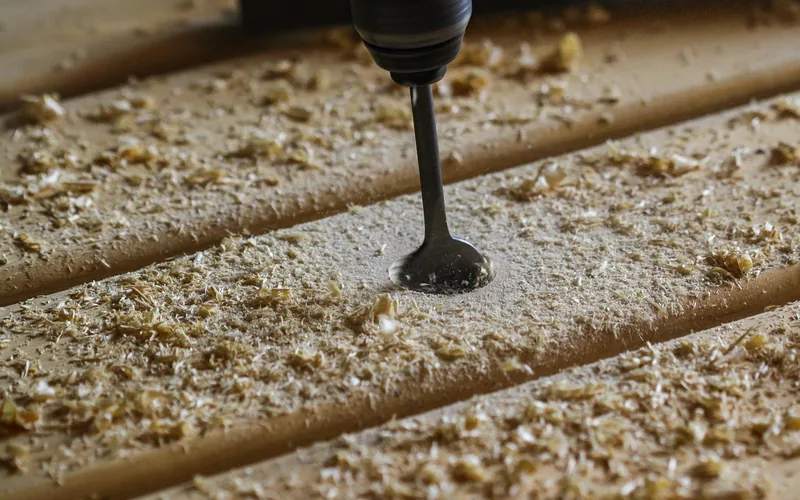

Drilling and Countersinking, Step by Step
- Match the bit to the gauge: Read the screw’s gauge number off the box, then pick the softwood or hardwood pilot hole size from the table above.
- Drill straight through the top piece: Drill the pilot hole through the full thickness of the piece the screw head will sit in, following the joint’s grain direction rather than cutting across it.
- Countersink the top: Switch to a countersink bit (or a combo bit) and cut a shallow cone at the hole’s mouth so the screw head sits flush instead of wedging the surface apart.
- Drive at a slow, steady speed: Use a slower drill speed in hardwood and a faster one in softwood, and stop the moment the head seats — overdriving is its own cause of splitting.
Best Pilot Hole Bit Set Pick
FTG USA Countersink Drill Bit Set 5 Pc Wood #4#6#8#10#12 – $16.99
Covers the exact #4 through #12 gauge range from the pilot hole chart above in one set, with the pilot bit and countersink combined so you’re not swapping bits mid-hole.
- Best for: matching a pilot hole to a specific screw gauge without buying separate bits
- Why we picked it: the 5-piece range covers every gauge in this guide’s chart
- Main drawback: tapered bits like this wear faster in hardwood than solid HSS twist bits
Compare more pilot hole and screw options
 Option 1 DEWALT Countersink Set #6/#8/#10 – $24.97
|
 Option 2 EZARC 15-Pc Set with Plug Cutters – $25.17
|
 Option 3 JEGONFRI 209-Pc Screw Kit, 6 Sizes – $7.96
|
As an Amazon Associate we earn from qualifying purchases.
How Close to the Edge Can You Screw Without Splitting?
For general woodworking — trim, shelving, cabinet parts, even a solid wood exterior door where every screw shows — keep screws at least 3/4 inch from a board’s end and at least 1/2 inch from its edge; thinner or narrower stock needs proportionally more room than that. For load-bearing framing connections, the general fastener-spacing tables referenced by the International Residential Code set a firmer floor: at least 2½ inches from the end of the piece for bolts and lag screws in structural lumber connections. Everyday woodworking screws aren’t held to that code minimum, but it’s a useful upper bound — if you wouldn’t put a structural lag screw that close to an end, don’t put a trim screw there either.
Countersink, Lubricate, and Drive It Straight
A countersink bit cuts a shallow, conical recess at the top of the pilot hole so the screw head can sit flush with (or just below) the surface instead of acting as a wedge once it meets resistance. Dipping the screw’s threads in paste wax before driving reduces friction and torque, which matters most in dense hardwood where the screw has to work harder to seat. Drive the screw perpendicular to the surface and in line with the wood grain of the joint — angling into the grain, rather than with it, concentrates force across fewer fibers and is a common cause of splits that have nothing to do with hole size at all.
Does the Wood Species Matter?
Yes — density is the reason a pilot hole sized correctly for pine can still split oak.
📊 Red oak’s specific gravity (0.70 at 12% moisture content) is nearly double eastern white pine’s (0.40) — denser hardwoods resist the screw’s wedge action better once the hole is sized correctly, but a split runs further once it starts because the fibers have less give. — Source: The Wood Database, species specific gravity data
In practice: treat any hardwood (oak, maple, cherry, walnut) as a “go one gauge tighter on the pilot hole, and step up to fine-thread screws” situation. Softwoods (pine, cedar, fir) tolerate a slightly undersized pilot hole better, but their lower-density fibers tear rather than crack, so give them a little extra edge distance instead of relying on the hole size alone.
Self-Tapping Screws That Skip the Pilot Hole
Not every screw needs a separate pilot hole. Self-tapping wood and deck screws with a Type-17 or auger-style point — a sharp, serrated cutting tip instead of a plain gimlet point — clear their own channel as they drive, which is why most 2½-inch deck screws go straight into pressure-treated pine without splitting it. Look for “Type 17” or “self-drilling” on the packaging. They still benefit from a pilot hole within about 2 inches of a board’s end, or in hardwood, where even a self-tapping point can’t clear material fast enough to keep up with the thread.
“The split I see most often in the shop isn’t from a bad screw — it’s from driving a coarse-thread deck screw straight into a piece of oak trim without stepping down to a fine-thread, pre-drilled hole first. It costs one extra minute and saves the board every time.”
Common Mistakes to Avoid
- Overdriving the screw past flush — the last quarter-turn acts like a wedge even with a good pilot hole
- Using a coarse-thread screw in hardwood without stepping down the pilot hole size
- Driving at a steep angle instead of perpendicular to the surface
- Screwing across the grain near a knot, where the wood is naturally weaker
- Skipping the countersink and letting the screw head do the wedging the countersink was supposed to prevent
Frequently Asked Questions
How do you screw wood without splitting it?
Drill a pilot hole sized to the screw’s gauge, countersink the head, and keep the screw at least 3/4 inch from the board’s end. Dipping the screw in paste wax and driving with — not against — the grain also reduces the risk, especially in hardwood.
What size pilot hole do you need for a wood screw?
Match the bit to the screw’s gauge, not its length — a #8 screw uses a 3/32-inch bit in softwood or a 1/8-inch bit in hardwood, whether the screw is 1 inch or 3 inches long. See the full gauge-by-gauge table above for #4 through #12 screws.
How close to the edge can you screw without splitting the wood?
For general woodworking, stay at least 3/4 inch from a board’s end and 1/2 inch from its edge. Structural fastener-spacing tables referenced by the International Residential Code require at least 2½ inches from the end for load-bearing lag screw and bolt connections in framing lumber.
Do self-tapping screws need a pilot hole?
Usually not in softwood — a Type-17 or auger-point self-tapping screw cuts its own channel as it drives. Still pre-drill within about 2 inches of a board’s end or when working in hardwood, where the point can’t clear material fast enough to prevent splitting.
Does the type of wood affect the risk of splitting?
Yes. Denser hardwoods like oak (specific gravity 0.70) resist a screw’s wedge action better than softer pine (0.40) once the pilot hole is sized correctly, but crack further once a split starts. Softer woods tolerate small pilot-hole errors better but split more easily near an unsupported edge.
Why does wood still split even with a pilot hole?
The most common causes are a pilot hole that’s too small for the screw’s gauge, driving the screw within an inch of the board’s end, overdriving the screw past flush, or skipping the countersink so the screw head itself wedges the surface apart.
Conclusion
Splitting almost always comes down to one of four things: pilot hole size, edge distance, wet lumber, or overdriving the screw. Match the screw and pilot hole to the wood before you drive it, and a split board becomes the exception instead of something to expect on every project.
