Notch cutting is a process of cutting a V-shaped groove into a material to secure two joining surfaces together. It is commonly used in woodworking, metalworking, and construction.
The process involves making precise cuts on the material using various cutting tools such as saws, chisels, and multi-tools. Notching is an important technique that allows for a stronger connection between two pieces of wood, metal, or other materials, creating sturdy joints that withstand stress and pressure.
This article will explore different methods and tools used in notch cutting, as well as common applications and best practices for achieving accurate and precise cuts.
Introduction To Notch Cutting
Notch cutting is a metal-cutting process used on sheet-metal or thin bar-stock, sometime on angle sections or tube. It involves cutting a vertical notch perpendicular to the surface, working from the edge of a workpiece. Circular saws are usually used for larger notches, while hammer and chisel are suitable for intricate notches.
It is important to choose the appropriate cutting tools based on the notching process required.
Notch cutting is a technique in which small pieces of wood or metal are removed from the edge of a material to create a groove or channel for joining it with other pieces. This technique is widely used in various industries such as woodworking, metalworking, construction, and others for joining materials through lap joints, half-lap joints, and others. In this article, we will delve deeper into the concept of notch cutting, its importance, and the tools required for this process.
What is Notch Cutting?
Notch cutting is a process of creating a groove or channel at the edge of the material by removing small pieces from it. This technique is used to join two or more pieces of material through a lap joint, half-lap joint, or other joints. Notch cutting is typically done using table saws, circular saws, jigsaws, or handsaws, depending on the material being cut and the complexity of the notch.
Why is Notch Cutting Important?
Notch cutting is crucial for various industries such as woodworking, metalworking, construction, and others, where the materials need to be joined together. Notch cutting allows for the creation of strong and durable joints between the pieces of material, which increases the overall strength of the structure. These joints also help with alignment and prevent the pieces from slipping. Moreover, notch cutting is a cost-effective and efficient method for joining materials, which makes it a preferred choice for many industries.
Tools Required for Notch Cutting:
The tools required for notch cutting vary depending on the material being cut and the complexity of the notch required. Some of the common tools required for notch cutting are:
1. Circular saws
2. Table saws
3. Jigsaws
4. Handsaws (crosscut, rip, or tenon saws)
5. Chisels
6. Hammers
7. Measuring tools (try square, marking gauge, etc.)
8. Clamps
It is essential to choose the right tool for the job to ensure accurate and efficient notch cutting. Proper safety precautions must be taken while using these tools to avoid accidents and injuries.
In conclusion, notch cutting is a crucial technique for various industries, allowing for the creation of strong, durable, and cost-effective joints between materials. By understanding the concept of notch cutting and the tools required, one can efficiently and accurately perform this process to create high-quality products.
Different Types Of Notches
Notch cutting is a metal or woodworking process used to create a V-shaped indentation or a groove in a material’s surface. Different types of notches are possible, such as wide notches, directional notches, lap joints, and cross-lap joints, and they can be cut with various tools such as circular saws, hand tools, and multi-tools.
Notches are essential in various industries, including woodworking, metalworking, and fabricating. They serve as a joint-making technique for providing strength and stability between two pieces of material. The size and shape of the notch vary with the material and application, but some common types of notches are rectangular, angled, and V-notch. In this section, we will discuss these notches in detail.
Rectangular Notch:
Rectangular notches, also known as square notches, are the most basic type of notches used in many woodworking and metalworking projects. These notches have a rectangular shape, and they are easy to cut using various tools such as a handsaw, circular saw, or chisel. Rectangular notches provide strength and stability to projects and enable them to withstand weight or pressure.
Angled Notch:
Angled notches are another commonly used type of notch, especially in woodworking projects. These notches have an angled shape, commonly in 45 or 60 degrees, and are suitable for making strong joints in applications where stability is critical. Angled notches are also popularly used in making precise joints between two pieces of lumber or wooden planks.
V-Notch:
V-notches are commonly used in sheet metal fabrication, where it is necessary to join two or more sheets of metal in a V-shape. These notches are cut in a triangular shape, with a 90-degree included angle. V-notching is also used in welding processes for the creation of a beveled edge, which promotes welding penetration and adhesion.
Conclusion:
Different types of notches are used in various industries to provide strength and stability to products. Rectangular notches are commonly used in woodworking and metalworking, whereas angled notches are used to make precise joints. V-notches are used in sheet metal fabrication to join metal sheets in a V-shape. Having an understanding of the different types of notches and their uses can help to determine the most appropriate notch for your project.

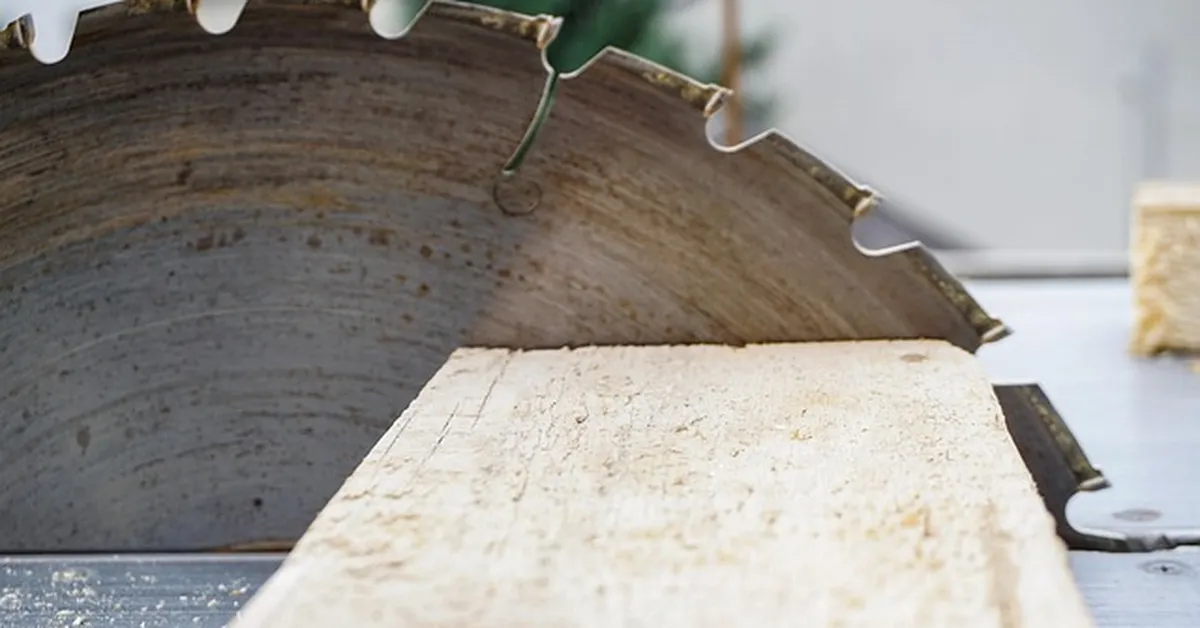

How To Cut A Notch Using A Circular Saw
To cut a notch using a circular saw, first, mark the notch’s location and draw cutting lines. Next, set the saw’s blade depth equal to the notch depth you want to create. After that, start cutting at either end of the notch and continue cutting through the marked lines.
Finally, clean up the notch with a chisel or a handsaw if necessary.
Introduction to Circular Saw Notching
Circular saw notching is an essential woodworking technique used to create joints or cuts in wood. It is an excellent method for those who require precise and accurate cuts in a short time span. In this blog, we’ll take a look at how to cut a notch using a circular saw. We’ll go over the steps involved in creating a jig, cutting the notch and cleaning it up. Let’s dive in!
Making a Jig
Before you start cutting the notch, it’s essential to make a jig. A jig is a tool that helps to guide your saw in a straight line and ensures the accuracy of your cuts. To make a jig, you’ll need a piece of wood that is straight and flat. Cut the wood to the length of the notch you want to create. Then, clamp the wood to your work surface and make a guide cut with your saw, keeping it parallel to the jig’s edge.
Cutting the Notch
Once you’ve created your jig, it’s time to start cutting the notch. First, secure your wood to the work surface, so it doesn’t move around. Then, adjust the saw blade depth to the same depth as the notch you want to cut. Place the jig against the wood and align the saw blade with the guide cut. With a slow but steady motion, push the saw through the wood along the jig’s edge. Move the saw in straight lines until you’ve cut out the entire notch as needed.
Cleaning Up the Notch
Once you’ve cut the notch, it’s time to clean it up. Use a chisel or a saw blade to remove any excess wood that may be stuck in the notch. Ensure that the notch is smooth and straight. You can also use sandpaper to smooth the edges and make the notch look even. Once your notch is clean, you’re ready to use it for its intended purpose.
Conclusion
Cutting a notch using a circular saw can seem daunting, but with a little practice and some patience, you can master the technique. By creating a jig, cutting precisely along it, and cleaning up the notch, you’ll have a perfectly shaped joint in no time. Start practicing today, so you can use this skill for your future woodworking projects.
How To Cut A Notch Using Hand Tools
Learn how to cut a notch in wood using hand tools with these helpful resources. Whether you’re using a circular saw, chisel, or multi-tool, these tutorials and tips will guide you through the process of creating precise notches in your woodworking projects.
If you’re looking to add some decorative flair to your woodworking projects, or want to create a snug fit between two pieces of wood, cutting a notch might be the perfect solution. With a few basic hand tools, you can create a notch that’s precise and professional looking, without having to rely on expensive machinery. In this article, we’ll look at how to cut a notch using hand tools and explore the tools you’ll need, how to mark and cut the notch, and how to refine the finished piece.
Tools Required
Before you start cutting, make sure you have the right tools at hand. Here are the five basic tools you’ll need:
- A handsaw or backsaw
- A chisel
- A marking gauge or pencil
- A mallet
- A square
Additionally, you may want to have a clamp or vice to secure your workpiece, and some sandpaper to smooth out the finished notch.
Marking The Notch
To mark the notch, you’ll need to identify the location and dimensions of the cut. Use your marking gauge or pencil and square to draw a clear line where the notch will be, taking care to measure and mark out the appropriate depth and width. Double-check your measurements before moving on to the next step.
Making The Cut
Once you’ve marked the notch, it’s time to start cutting. Use your handsaw or backsaw to make a series of cuts along the marked line, staying well within the marked boundaries. Then use your chisel and mallet to remove the bulk of the wood, taking care to stay within the marked boundaries and cut slowly and carefully. Work from both sides of the notch until you’re close to the marked depth, and then use the chisel to carefully pare away any remaining wood until you’ve reached the desired depth.
Refining The Notch
Once you’ve made the initial cuts and removed the bulk of the wood, it’s time to refine the notch and give it a clean, finished look. Take your time and use a combination of your chisel and sandpaper to smooth out any rough patches or uneven spots. Test the fit of your finished notch against the other piece of wood, and make any final adjustments as necessary.
In conclusion, cutting a notch using hand tools can be a fun and rewarding project that adds a personal touch to your woodworking. With the right tools and a little bit of patience, you can create a notch that’s both precise and aesthetically pleasing. Happy cutting!
Tips And Tricks For Successful Notching
Learn the techniques and tools for successful notch cutting with these helpful tips. Discover how to cut different types of notches in wood, metal, leather, and more with precision and efficiency. Watch video tutorials and read detailed instructions to improve your notch cutting skills.
Notching is a commonly used technique in woodworking that allows two pieces of wood to fit together seamlessly. However, notching requires a certain level of skill and precision. Knowing some tips and tricks for successful notching can help you produce more accurate and precise notch cuts, saving you time and reducing material waste.
Choosing the Right Saw Blade
One of the most important factors in achieving a successful notch cut is choosing the right saw blade. Not all saw blades are created equal and different blade types are designed for specific cutting purposes. So, it is crucial to select a saw blade that is compatible with the material you are working with. Cutting wood requires a blade with a tooth count between 10 to 14 per inch, whereas cutting metal requires the blade to have a tooth count between 14 to 18 per inch.
Using a Clamp for Stability
Using a clamp to secure the piece of wood that you want to notch can add stability to the cutting process. This ensures that the piece of wood will not move while you are making the cut, which helps you to cut straighter lines accurately. By using a clamp, you will also have a free hand to guide the saw blade through the wood allowing for better-precision when performing this technique.
Maintaining Safety while Notching
Like all woodworking techniques, notching involves some inherent risks. To stay safe while notching, always wear safety equipment like gloves, goggles, and a dust mask. Make sure that the blade is sharp and cuts smoothly, which reduces the chances of kickback occurring. Keep both hands on the saw during the cut, avoid standing directly behind the saw, and disconnect the saw from the power source when adjusting the blade or making blade changes.
Avoiding Common Mistakes
One of the common mistakes people make while notching is improper measuring, resulting in inaccuracy. Another common mistake is making a cut too deep or shallow, which can damage the material and render it unusable. To avoid these common mistakes, always double-check your measurements before making a cut and make incremental changes to the saw blade depth to avoid cutting too deep into the material.
In summary, choosing the right saw blade, using a clamp for stability, practicing safety measures, and avoiding common mistakes will help you to perform successful notch cuts. Incorporating these tips and tricks into your woodworking techniques will help you to produce more accurate and precise notch cuts and reduce material waste.
Troubleshooting Notching Issues
Notching issues can be frustrating, but there are ways to troubleshoot them. When it comes to notch cutting, it’s important to choose the right tool for the job, such as a circular saw for larger notches or a multi-tool for intricate ones.
Refining and sanding the notch can also help create a clean and precise cut.
Notching is an important technique in many fields such as woodworking, metalworking, fabric cutting, and more. However, it is not always an easy task to perform, and many issues can arise during the notching process. These issues can range from inaccurate notches to difficulty in hand saw notching. In this post, we will discuss some common notching issues and how to troubleshoot them.
Circular Saw Not Cutting Deep Enough
One of the most common notching issues is when a circular saw is not cutting deep enough. This can be frustrating and may lead to inaccuracies in your project. To troubleshoot this issue, you can follow these steps:
1. Check the depth adjustment of your circular saw blade and ensure it is set to the correct depth.
2. Check if the blade is dull, and if it is, replace it.
3. Another potential issue could be that the blade is not aligned correctly. To fix this problem, adjust the blade’s alignment.
Difficulty in Hand Saw Notching
Hand saw notching can be a daunting prospect, especially if the saw blade keeps jumping out of the notch or making rough cuts. To troubleshoot this issue, you can follow these steps:
1. Use a square to mark out the notch, ensuring clear lines for the saw blade.
2. Make sure that your saw blade is sharp and clean.
3. Use clamps to hold your workpiece in place, allowing you to use both hands to control the saw blade.
Inaccurate Notches
Creating accurate notches is vital to ensure your project’s quality; slight inaccuracies can accumulate and result in a finished product that is not up to standard. To troubleshoot this issue, you can follow these steps:
1. Use a template or a jig to mark out your notches for repetitive and accurate cuts.
2. Take your time when you make your cut and do not rush.
3. You can use pencils or chalk to mark your lines as a guide for your saw blade.
In conclusion, troubleshooting notching issues can be challenging, but the above tips should help you overcome any common problems you may encounter. With patience, practice, and the right techniques, you can achieve accurate and professional-looking notches for your projects.
Frequently Asked Questions Of Notch Cutting
What Is A Notch Cut?
A notch cut is a cutting process that involves creating a narrow V-shaped indentation or groove on the surface of a material, usually made of metal or wood. This process is commonly used in various applications, such as carpentry, metalworking, and fabric cutting, to create joints or fix materials together.
Several tools are available for cutting notches, including circular saws, chisels, multi-tools, and hand saws.
What Is The Best Tool To Cut Notches With?
Circular saws are the common tool for cutting notches, but they are not suitable for intricate notches. For this, the best tool is a hammer and chisel. Alternatively, a multi-tool can be used for wood notching. Presses are used for metal notching.
What Is The Notching Process?

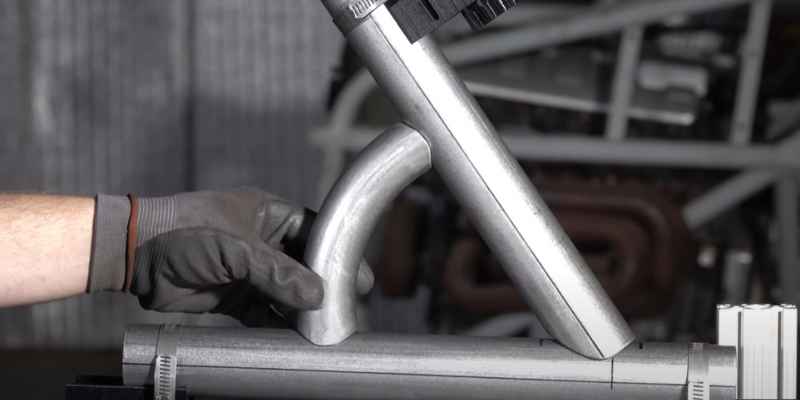

Notching is a metal-cutting process used for sheet-metal or thin bar-stock, sometimes on angle sections or tube. Shearing or punching is used to cut perpendicular to the surface from the edge of a work-piece. It is also used in woodworking to cut precise corners or notch cuts on the edge of wood.
Circular saws or hand tools can be used to cut notches in wood.
How Do You Cut A Notch In Wood?
To cut a notch in wood, you can use a circular saw, hand saw, or a multi-tool. First, mark the joint with a square and a knife. Then, make a series of cuts and refine the notch until desired depth is reached.
Sand the edges for a smooth finish. A jig can be used as a guide for the circular saw. Use appropriate safety gear.
Conclusion
Cutting notches is an essential skill for those involved in woodworking, metalworking, and construction. Through the various techniques and tools we’ve covered in this post, including circular saws, multi-tools, and hand tools like chisels, professionals and DIY enthusiasts can create accurate notches with ease.
Remember to plan out your cuts, take measurements, and prioritize safety when working with tools. By mastering the art of notch cutting, you can enhance your overall craftsmanship and achieve clean and polished results. Happy cutting!
