To adjust a chainsaw carburetor from scratch, first locate the three adjustment screws on the carburetor and turn each one counterclockwise until they are loose. Then, turn the high-speed screw clockwise until the chainsaw starts to sound rough, and slowly turn it counterclockwise until the engine runs smoothly.
Next, adjust the low-speed screw until the chainsaw idles smoothly. Finally, adjust the idle screw until the chain stops moving and the engine remains running. Maintaining a chainsaw is essential for it to perform at its best. A chainsaw carburetor is responsible for regulating the amount of fuel and air that reaches the engine.
If it is not adjusted properly, the chainsaw will not operate efficiently. This guide will walk you through the steps to adjust the carburetor from scratch and ensure your chainsaw is running at its optimal level.
Introduction To Chainsaw Carburetors
Adjusting a chainsaw carburetor from scratch is an essential skill for maintaining optimal performance. This guide provides step-by-step instructions to help you fine-tune your chainsaw carburetor, ensuring efficient fuel mixture and smooth operation. Mastering this process will enhance your chainsaw’s cutting power and prolong its lifespan.
Purpose Of Carburetor In Chainsaw Performance
The carburetor is a vital component of a chainsaw that mixes fuel and air in the right proportion to create combustion. It is responsible for regulating the engine speed and ensuring that the chainsaw runs smoothly. A well-adjusted carburetor ensures that the chainsaw operates efficiently, reducing fuel consumption, and increasing power output.
Signs Of Carburetor Adjustment Needs
It’s crucial to know when to adjust your chainsaw carburetor to optimize its performance. The following signs indicate that your chainsaw carburetor needs adjustment:
- The chainsaw stalls when idling
- The engine runs too lean or too rich
- The chainsaw produces excessive smoke
- The chainsaw does not start easily
- The chainsaw engine speed is too high or too low
If you notice any of these signs, it’s time to adjust your chainsaw carburetor.
Adjusting The Chainsaw Carburetor From Scratch
Adjusting the chainsaw carburetor can seem daunting, but with the right tools and knowledge, it’s a straightforward process. Here are the steps to adjust the chainsaw carburetor from scratch:
- Clean the air filter and spark plug
- Adjust the idle speed
- Adjust the low-speed screw
- Adjust the high-speed screw
- Recheck the idle speed
By following these steps, you can adjust your chainsaw carburetor from scratch and ensure that it’s running at optimal performance. Remember to wear protective gear and work in a well-ventilated area when working on your chainsaw.
Tools And Preparations
Before you begin adjusting the carburetor on your chainsaw, it’s important to gather the necessary tools and take a few safety precautions. This will ensure a smooth and safe process as you fine-tune the carburetor settings to optimize your chainsaw’s performance.
Essential Tools For The Job
To properly adjust the chainsaw carburetor, you’ll need the following tools:
- A small screwdriver set: This will allow you to access and adjust the carburetor’s screws.
- A tachometer: This tool will help you measure the engine’s RPM (revolutions per minute) accurately.
- A chainsaw wrench: This specialized wrench is designed to fit the specific nuts and bolts on your chainsaw, making it easier to access and adjust the carburetor.
- A clean cloth: Keeping a clean cloth handy will help you wipe away any dirt or debris that may accumulate during the adjustment process.
Having these essential tools readily available will make the carburetor adjustment process much more efficient and effective.
Safety Precautions Before Starting
Prior to adjusting the carburetor, it’s crucial to take the following safety precautions:
- Wear protective gear: Always wear safety goggles, gloves, and ear protection to shield yourself from any potential hazards.
- Work in a well-ventilated area: Perform the adjustment outdoors or in a well-ventilated space to avoid inhaling any harmful exhaust fumes.
- Ensure the chainsaw is turned off: Before making any adjustments, make sure the chainsaw is completely turned off and the engine is cool.
- Secure the chainsaw: Rest the chainsaw on a stable surface or use a clamp to hold it securely in place during the adjustment process.
- Follow manufacturer guidelines: Refer to the chainsaw’s user manual for specific instructions on carburetor adjustment and safety precautions.
By adhering to these safety precautions, you’ll minimize the risk of accidents and ensure a safe environment while adjusting your chainsaw’s carburetor.

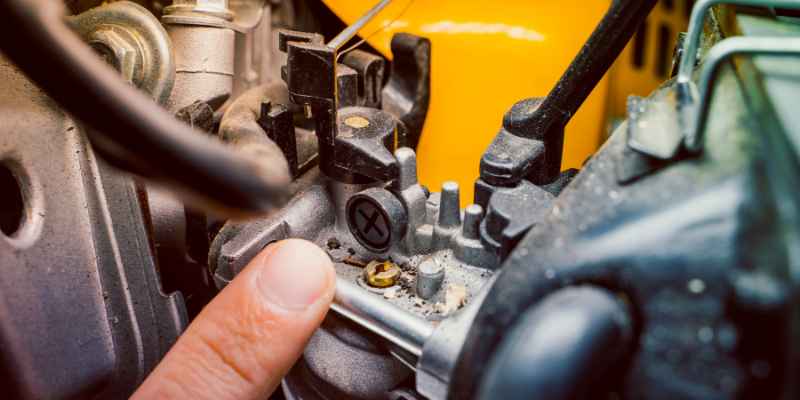

Identifying Chainsaw Carburetor Components
To adjust a chainsaw carburetor from scratch, you need to identify its components first. The key parts include the idle speed screw, low-speed fuel adjustment, high-speed fuel adjustment, and the throttle stop. Understanding these components is crucial for precise carburetor adjustments.
Main Parts Of The Carburetor
When it comes to adjusting a chainsaw carburetor, it’s important to first identify the various components of the carburetor. By understanding the main parts, you can gain a better understanding of how the carburetor works and how to make adjustments effectively.
The carburetor of a chainsaw typically consists of several key components, each playing a crucial role in the overall functioning of the engine. These main parts include:
- Air Filter: The air filter is responsible for trapping dirt, debris, and other particles from entering the carburetor, ensuring clean air supply for the engine.
- Fuel Filter: The fuel filter helps prevent contaminants from entering the carburetor by filtering the fuel before it reaches the engine.
- Primer Bulb: The primer bulb is used to manually pump fuel into the carburetor, aiding in the startup process.
- Throttle Plate: The throttle plate controls the amount of air-fuel mixture entering the engine, regulating the engine’s speed.
- Main Fuel Jet: The main fuel jet is responsible for delivering the correct amount of fuel to the engine based on the throttle position.
- Idle Fuel Jet: The idle fuel jet controls the fuel flow during idle or low-speed operation.
- Needle Valve: The needle valve controls the amount of fuel flowing into the engine, adjusting the air-fuel mixture.
- Hinge Lever: The hinge lever helps control the opening and closing of the throttle plate.
Role Of Each Component
Understanding the role of each component is crucial in adjusting the chainsaw carburetor. Here is a breakdown of the role of each component:
| Component | Role |
|---|---|
| Air Filter | Filters air, preventing debris from entering the carburetor and engine. |
| Fuel Filter | Filters fuel, ensuring clean fuel supply to the carburetor and engine. |
| Primer Bulb | Manually pumps fuel into the carburetor for easier startup. |
| Throttle Plate | Controls the amount of air-fuel mixture entering the engine, regulating engine speed. |
| Main Fuel Jet | Delivers the appropriate amount of fuel to the engine based on throttle position. |
| Idle Fuel Jet | Controls fuel flow during idle or low-speed operation. |
| Needle Valve | Adjusts the air-fuel mixture by controlling the fuel flow into the engine. |
| Hinge Lever | Aids in controlling the opening and closing of the throttle plate. |
By understanding the main parts and their respective roles, you are now equipped with the knowledge needed to adjust the chainsaw carburetor effectively. In the next section, we will dive into the step-by-step process of adjusting the carburetor from scratch.
Initial Carburetor Setup
When it comes to adjusting a chainsaw carburetor from scratch, the initial carburetor setup is crucial for optimal performance. This process involves setting the factory default settings as a starting point and understanding the high and low-speed adjustments.
Factory Settings As A Starting Point
Upon initial assembly, chainsaws are typically equipped with factory default settings for the carburetor. These settings provide a baseline for the initial setup, ensuring the chainsaw runs safely and efficiently.
Understanding The High And Low Speed Adjustments
High and low-speed adjustments are essential components of the carburetor setup. The high-speed adjustment controls the fuel-air mixture during full throttle operation, while the low-speed adjustment affects the mixture at idle and low throttle settings.
Adjusting The Idle Speed
To adjust the idle speed of a chainsaw carburetor from scratch, follow these steps: 1. Locate the idle speed screw and turn it clockwise to increase the speed or counterclockwise to decrease it. 2. Use a tachometer to ensure the idle speed is within the manufacturer’s recommended range.
Adjusting the idle speed properly helps optimize the chainsaw’s performance and prevent stalling or engine damage.
Finding The Ideal Idle Setting
To ensure your chainsaw is running smoothly and efficiently, it’s important to adjust the idle speed correctly. The idle speed refers to the revolutions per minute (RPM) at which the chainsaw’s engine runs when it is not actively cutting. Finding the ideal idle setting will help prevent stalling, improve overall performance, and extend the life of your chainsaw.
Troubleshooting Idle Issues
If you’re experiencing issues with the idle speed of your chainsaw, there are a few troubleshooting steps you can take to identify and resolve the problem. Here are some common idle issues and their possible solutions:
- High Idle Speed: If your chainsaw’s engine is running at a high idle speed, it may be due to a clogged air filter or a carburetor that needs adjustment. Start by cleaning or replacing the air filter and then proceed to adjust the carburetor according to the manufacturer’s instructions.
- Low Idle Speed: On the other hand, if your chainsaw’s engine is running at a low idle speed or stalling, it may indicate a problem with the fuel system. Check the fuel filter and fuel lines for clogs or blockages. Additionally, make sure the spark plug is clean and in good condition. If the issue persists, it might be necessary to adjust the carburetor.
- Inconsistent Idle: If the idle speed of your chainsaw fluctuates or is inconsistent, it could be a sign of a dirty carburetor or a fuel mixture that needs adjustment. Cleaning the carburetor and ensuring the fuel mixture is properly balanced can help resolve this issue.
By following these troubleshooting steps, you can address common idle issues and ensure your chainsaw is running smoothly and efficiently. Remember to always refer to the manufacturer’s instructions for specific guidance on adjusting the idle speed of your particular chainsaw model.
Tuning The High-speed Mixture
Tuning the high-speed mixture of your chainsaw carburetor is crucial for achieving optimal performance at full throttle. This adjustment controls the fuel-to-air ratio during high-speed operation, ensuring the engine runs smoothly and efficiently. It’s essential to understand the effects of altitude and temperature on these adjustments, as they can impact the overall performance of your chainsaw.
Achieving Optimal Performance At Full Throttle
When tuning the high-speed mixture, achieving optimal performance at full throttle is the primary goal. This adjustment directly impacts the engine’s power output and responsiveness during heavy-duty cutting tasks. Proper tuning ensures that the engine operates at its peak capacity, delivering maximum cutting efficiency and performance.
Effects Of Altitude And Temperature On Adjustments
Altitude and temperature greatly influence the adjustments of the high-speed mixture. As altitude increases, the air becomes thinner, requiring a leaner fuel mixture to maintain proper engine performance. Conversely, lower temperatures call for a richer fuel mixture to compensate for the denser air. Understanding these effects is essential for accurately tuning the high-speed mixture to suit varying environmental conditions.
Fine-tuning The Low-speed Mixture
Adjusting a chainsaw carburetor from scratch involves fine-tuning the low-speed mixture. This crucial step ensures optimal performance by carefully adjusting the carburetor for efficient fuel-air mixture at low speeds. By following this process, you can enhance your chainsaw’s performance and extend its lifespan.
Ensuring Smooth Acceleration
Properly adjusting the low-speed mixture is crucial for smooth acceleration.
Balancing Fuel Efficiency With Power
Fine-tuning ensures the right balance between fuel efficiency and power output.
Post-adjustment Checks
Post-adjustment checks are crucial when adjusting a chainsaw carburetor from scratch. After making the adjustments, it is essential to check if the saw is idling correctly, accelerating smoothly and cutting efficiently. These checks ensure that the carburetor is well calibrated and the chainsaw is running correctly.
After making carburetor adjustments, it’s crucial to conduct post-adjustment checks.
Verifying The Adjustments
– Ensure all screws are securely tightened.
– Inspect for any fuel leaks.
– Check throttle response and idle speed.
Test Running And Final Tweaks
– Start the chainsaw and let it run for a few minutes.
– Observe the engine performance carefully.
– Make minor adjustments if necessary.
– Recheck screws and connections after the test.
Maintenance Tips For Chainsaw Carburetors
To properly adjust a chainsaw carburetor from scratch, start by locating the idle speed and low/high adjustment screws. Use a tachometer to set the idle speed, then adjust the low and high screws for optimal performance. Fine-tuning may be needed for the perfect balance.
Regular maintenance ensures a well-functioning chainsaw carburetor.
Regular Cleaning Regime
Regularly clean the carburetor to prevent clogs and ensure smooth operation.
- Use a carburetor cleaner spray for effective cleaning.
- Inspect for dirt, debris, and varnish buildup regularly.
- Follow the manufacturer’s cleaning guidelines for best results.
When To Replace Versus Adjust
Determine whether to replace or adjust the carburetor based on performance.
- Replace the carburetor if cleaning and adjustments do not improve performance.
- Adjust the carburetor if the chainsaw is experiencing issues such as stalling or lack of power.
Common Mistakes To Avoid
In adjusting a chainsaw carburetor, it’s crucial to be aware of common mistakes that can hinder the process. By avoiding these missteps, you can ensure optimal performance and longevity for your chainsaw.
Over-adjusting The Carburetor
Over-adjusting the carburetor can lead to engine damage and poor performance. It’s essential to make gradual adjustments and test the chainsaw between tweaks.
Neglecting Environmental Factors
Ignoring environmental factors such as temperature and altitude can result in an improperly adjusted carburetor. Always consider these variables when fine-tuning your chainsaw.
Professional Help And Resources
When it comes to adjusting a chainsaw carburetor, seeking professional help and utilizing available resources can be essential for ensuring the task is completed accurately and safely. Here are some valuable options to consider when you need assistance with this process.
When To Seek A Professional
If you lack experience or confidence in adjusting a chainsaw carburetor, it may be best to seek the expertise of a professional. A certified technician can provide precise adjustments and ensure the proper functioning of your chainsaw, minimizing the risk of damage or malfunction.
Online Guides And Tutorials
Online guides and tutorials can be valuable resources for learning how to adjust a chainsaw carburetor. Websites, forums, and video tutorials offer step-by-step instructions, useful tips, and visual demonstrations that can help you understand the process and perform the adjustments effectively.
Frequently Asked Questions
How Do You Know If Your Chainsaw Carburetor Needs Adjusting?
To check, observe engine performance. Signs include rough idling, stalling, or high fuel consumption.
What Tools Are Required To Adjust A Chainsaw Carburetor?
You will need a screwdriver, tachometer, and the chainsaw’s manual for proper adjustment.
Can Adjusting The Carburetor Improve Chainsaw Performance?
Yes, adjusting the carburetor can optimize engine performance, leading to smoother operation and fuel efficiency.
Conclusion
Adjusting a chainsaw carburetor is a vital maintenance task for optimal performance. By following the proper steps and being mindful of safety precautions, you can ensure that your chainsaw operates efficiently. Regular carburetor adjustments can enhance the longevity of your tool and contribute to a smoother cutting experience.
