Wood Weight Load Calculator: How Much Weight Can a Board or Shelf Hold
A 2×4 (1.5 x 3.5 in actual) of loblolly southern pine, on edge across a 48 in span, has a clear-wood failure estimate near 3,270 lb under a center load. This calculator’s 5:1 working load is about 650 lb, but design values from the American Wood Council (No. 2 grade) allow closer to 320 lb for strength alone. Enter species, size and span below to see both numbers.
Quick Answer
Ultimate center-point load = 4 x MOR x S / span, where S = width x depth2 / 6. Divide by 5 for this calculator’s working load, then check sag too: past roughly 5 ft a 2×4 on edge is limited by deflection (L/360), not strength. This page is an estimate for clear wood, not engineering advice.
For the plain-English version of what drives these numbers — species, dimensions, span, grade, and orientation, plus the difference between a vertical load and a bending load — see our guide on how much weight wood actually holds.
Wood Weight Load Calculator: How Much Weight Can a Board or Shelf Hold
Enter your values below for an instant result, then see the formula, worked example, and common mistakes.
Enter your board dimensions and species, then click calculate.
Safety note: This is an educational estimate for clear, dry, defect-free wood. It is not engineering advice and not a code check. For anything load-bearing or safety-critical (decks, floors, stairs, lofts, overhead storage), check your local building code and have a licensed engineer or the building department confirm the design.
How to Use This Calculator
|
Best Digital Caliper Pick
As an Amazon Associate we earn from qualifying purchases. |
Different species have very different bending strength (Modulus of Rupture, or MOR) — hardwoods like red oak and black walnut are generally stronger than softwoods like eastern white pine.
This is the unsupported distance between the board’s two support points, in inches — not the board’s total length if it has an intermediate support.

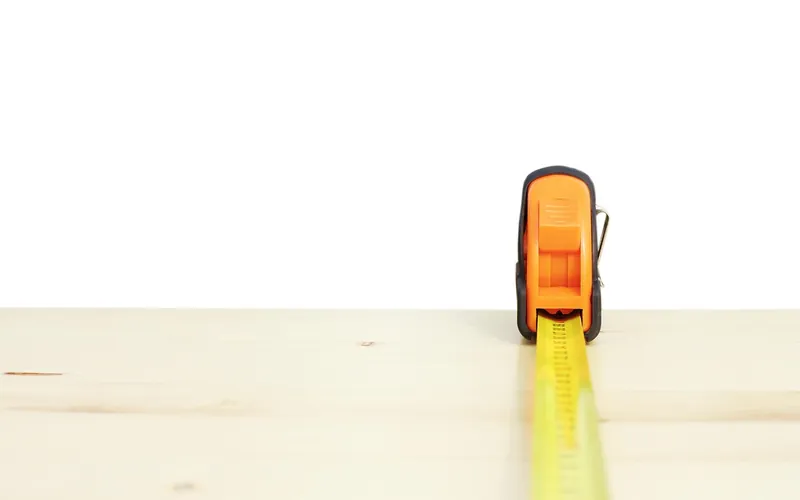

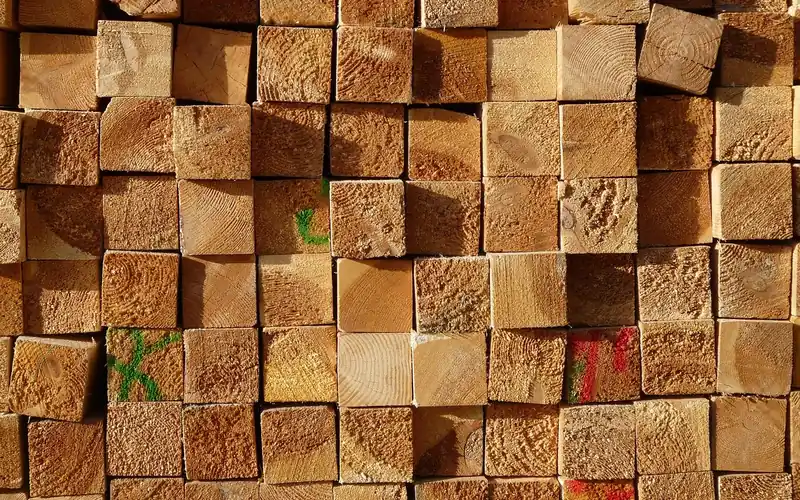

Use the board’s actual measured dimensions — a nominal 2×4 actually measures about 1.5 x 3.5 in after milling and drying, and using nominal sizes will overstate the real capacity. Orientation matters too: on edge, the 3.5 in side faces the load (depth = 3.5); laid flat, depth = 1.5 and capacity drops to 3/7 of the on-edge value.
A center point load (one concentrated weight at the middle of the span) causes more stress than the same total weight spread evenly (uniform distributed load) over the same span.
The ultimate load is the estimated failure point — the safe working load applies a substantial safety margin and is the number to design around.
Formula
Section modulus, S = (b x d2) / 6, where b = board width and d = board thickness (the dimension resisting bending, i.e. the depth in the direction of the load). Maximum bending moment, M = MOR x S. For a center point load: Ultimate Load = (4 x M) / L. For a uniform distributed load: Ultimate Load = (8 x M) / L, where L is the span. A safety factor of roughly 5:1 (using about 20% of the ultimate load as the safe working load) is a commonly applied conservative margin for wood under sustained load.
Reference Table: Modulus of Rupture by Species
Average clear-wood values at 12% moisture content from the USDA Forest Products Laboratory Wood Handbook (FPL-GTR-190, Table 5-3b). These are averages for small, defect-free samples, not guaranteed minimums for a lumber-yard board.
| Species | MOR (psi, 12% MC) | MOE (million psi) |
|---|---|---|
| White Oak | ~15,200 | 1.78 |
| Black Walnut | ~14,600 | 1.68 |
| Northern Red Oak | ~14,300 | 1.82 |
| Red Maple | ~13,400 | 1.64 |
| Southern Pine (loblolly) | ~12,800 | 1.79 |
| Douglas Fir (coast) | ~12,400 | 1.95 |
| Sitka Spruce | ~10,200 | 1.57 |
| Eastern White Pine | ~8,600 | 1.24 |
Why This Calculator’s Safe Load Is Not a Code Number
The calculator uses average clear-wood strength (MOR) and divides by 5. Building codes work from lower, grade-based design values that account for knots, slope of grain, size, and years of sustained load. The American Wood Council’s reference bending design value (Fb) for No. 2 grade 2×4 lumber is only about 10 to 16 percent of the Wood Handbook’s clear-wood MOR for the same species group:
| Species group | Clear-wood MOR, 12% MC (Wood Handbook) | AWC design value Fb, No. 2, 2×4, normal duration | Fb as share of MOR |
|---|---|---|---|
| Southern Pine (loblolly MOR) | 12,800 psi | 1,265 psi | about 10% |
| Douglas Fir-Larch (coast Douglas-fir MOR) | 12,400 psi | 1,555 psi | about 13% |
| Spruce-Pine-Fir (balsam fir, Engelmann and black spruce MOR) | 9,200 to 10,800 psi | 1,510 psi (No. 1 / No. 2) | about 14 to 16% |
At one-fifth of MOR, loblolly pine implies a working stress of 2,560 psi, about double the 1,265 psi design value for No. 2 Southern Pine 2×4. So for ordinary No. 2 lumber, the “safe working load” can be roughly twice what a code-style bending check allows. Treat it as an upper bound for clear, dry wood, not an approved capacity.
Source: American Wood Council, Design Values for Joists and Rafters, 2024 edition, Table W-1 (normal-duration Fb for repetitive members spaced no more than 24 in; AWC’s footnote reduces Fb by 13% for wider spacing, so a lone board is lower still).
Strength Is Only Half the Check: Sag Often Governs
A board can be strong enough and still bounce or sag too much. AWC’s floor-joist tables limit live-load deflection to span divided by 360. For a simply supported board with a center point load, the load that reaches that limit is P = 48 x E x I / L3 x (L/360), with I = b x d3 / 12. The table compares the two limits for a 2×4 on edge (1.5 x 3.5 in):
| Span | Douglas Fir-Larch No. 2: strength / sag limit | Southern Pine No. 2: strength / sag limit |
|---|---|---|
| 24 in | 794 lb / 1,985 lb | 646 lb / 1,737 lb |
| 48 in | 397 lb / 496 lb | 323 lb / 434 lb |
| 72 in | 265 lb / 221 lb | 215 lb / 193 lb |
| 96 in | 198 lb / 124 lb | 161 lb / 109 lb |
The bold figure is the one that governs. Strength limits short spans; around 5 ft (about 60 in for Douglas Fir-Larch, 65 in for Southern Pine) the sag limit takes over. At 96 in this 2×4 can carry only about 110 to 125 lb at midspan before it sags past L/360, while this page’s calculator shows about 330 lb of “safe” load for loblolly pine. Use the wood sag calculator for the deflection side.
How these were calculated: our own arithmetic from AWC Table W-1 values (Douglas Fir-Larch No. 2 2×4: Fb 1,555 psi, E 1,600,000 psi; Southern Pine No. 2 2×4: Fb 1,265 psi, E 1,400,000 psi), strength limit = 4 x Fb x S / L, S = 3.06 in3, I = 5.36 in4. Simple span, center point load; board self-weight, load duration, shear and bearing ignored. Illustration only, not a design.
What a Real Span Table Looks Like
For floors and roofs, builders use published span tables rather than a single-board formula. AWC’s Span Tables for Joists and Rafters (2021 edition), Table F-5, covers floor joists with a 40 psf live load plus 20 psf dead load and a deflection limit of span divided by 360. For a 2×8 at 16 in on center with a modulus of elasticity of 1,600,000 psi, the table allows 12 ft 10 in, but only if the lumber’s bending design value is at least 1,506 psi. At 24 in on center, the same 2×8 may span only 11 ft 3 in and needs Fb of at least 1,724 psi. Douglas Fir-Larch No. 2 in 2×8 lists Fb of 1,240 psi (AWC 2024 design values), below that requirement, so No. 2 grade must be read from the grade-specific table, which gives a shorter span. For code-based joist spans, use the American Wood Council span calculator page and your local code.
Which Calculator Fits Your Question
| Your question | Best page |
|---|---|
| How much can one board of a given species, size and span carry before it fails? | This page |
| Shelf breaking load, plywood load capacity, screws and lumber cost in one tool | Wood Load Capacity Calculator |
| How far will a shelf sag under a load? | Wood Sag Calculator |
| Maximum joist or rafter spans from AWC tables | American Wood Council Span Calculator |
| Plain-English explanation of species, span, grade and orientation | How Much Weight Does Wood Hold? |
| A 4×8 beam in a deck, floor or roof | 4×8 Wood Beam Span Calculator |
Common Mistakes to Avoid
- Using nominal lumber dimensions (like “2×4”) instead of actual milled dimensions (1.5 x 3.5 in) — this overstates the section modulus and therefore overstates load capacity.
- Designing around the ultimate (failure) load instead of a properly safety-factored working load — wood also loses strength under long-term sustained load (creep), so a healthy margin below ultimate is essential.
- Treating a center point load and a uniform distributed load as interchangeable — a concentrated load at midspan creates twice the bending stress of the same total weight spread evenly across the same span.
- Ignoring moisture content and defects — published MOR values assume clear, defect-free wood at 12% moisture content; knots, checks, and wet or green lumber can reduce real-world strength substantially.
- Forgetting that capacity drops fast with span — because span appears in the denominator, doubling the span roughly halves the load capacity for an unchanged board size.
When the Estimate May Be Wrong
This calculator estimates static bending strength using standard clear-wood MOR values and basic beam theory. It does not account for knots, grain defects, moisture content above 12%, dynamic/shock loading, long-term creep under sustained load, or connection/support conditions — for any structural, safety-critical, or code-governed application (decks, floor joists, stairs), consult a structural engineer or local building code span tables rather than relying on this estimate alone. Nothing on this page is engineering advice.
FAQs
What is Modulus of Rupture (MOR)?
MOR is a wood species bending strength, the maximum bending stress the wood can withstand before breaking, measured in psi on clear, defect-free samples at 12% moisture content.
How much weight can a 2×4 hold across a 4 ft span?
For a loblolly pine 2×4 on edge (1.5 x 3.5 in) with a center point load over 48 in, the clear-wood failure estimate is about 3,270 lb and this calculator shows about 650 lb as a working load. On AWC design values for No. 2 Southern Pine, strength alone limits it to about 320 lb and the L/360 sag limit to about 430 lb, so plan around the lower numbers.
Why does doubling the span cut load capacity in half?
Span is in the denominator of the standard beam load formulas, so as span increases, the load capacity at the same bending stress decreases proportionally. Sag limits fall even faster, with span cubed in the deflection formula.
Is a point load or a distributed load worse for a shelf?
A center point load is worse, producing twice the maximum bending stress compared to the same total weight spread evenly across the span.
Is white oak stronger than red oak?
Slightly, in bending. The USDA Wood Handbook lists white oak at about 15,200 psi MOR and northern red oak at about 14,300 psi at 12% moisture content, with similar stiffness of about 1.78 and 1.82 million psi.
Is the safe working load on this calculator safe for a deck, stair or loft?
No. It is an estimate for clear wood and does not include grade, knots, sustained load, deflection or connections. Check your local building code and have a licensed engineer confirm any deck, stair, floor or loft.
Sources and Methodology
Modulus of Rupture and modulus of elasticity values are average clear-wood properties at 12% moisture content from the USDA Forest Products Laboratory Wood Handbook (General Technical Report FPL-GTR-190, chapter 5, Table 5-3b): northern red oak 14,300 psi, white oak 15,200 psi, red maple 13,400 psi, coast Douglas-fir 12,400 psi, loblolly pine 12,800 psi, Sitka spruce 10,200 psi, eastern white pine 8,600 psi, black walnut 14,600 psi. Design values and the span-table example come from the American Wood Council, Design Values for Joists and Rafters (2024) and Span Tables for Joists and Rafters (2021). Beam bending formulas (point load and uniform distributed load) are standard engineering mechanics. Last reviewed October 2026. This page is educational and is not engineering advice; verify with local code and a licensed engineer.
