Woodworking Calculators: Board Feet, Weight, Screws & More
Woodworking calculators take the guesswork out of a build — from how much weight a board can hold to how much lumber will cost and what screw length you need. This guide explains the key calculations every woodworker uses, how to read them, and links to the tools for each.
Quick Answer
The most-used woodworking calculators work out load/weight capacity, board feet and linear feet, lumber cost, and screw length. Enter your dimensions and wood type, and the tool returns the figure — so you buy the right amount and build strong, safe joints.
Load & weight capacity calculators
Before you build a shelf or bench, check it will hold the load. See how much weight wood can hold, the wood weight/load calculator, and plywood load capacity. Capacity depends on the wood species, board size, and how it is supported.
Lumber quantity & cost calculators
Buy the right amount and know the price up front. Use the lumber price calculator and the linear-foot lumber calculator. Lumber is sold by the board foot (volume) or linear foot (length), so knowing both prevents over- or under-buying.
Fastener calculators

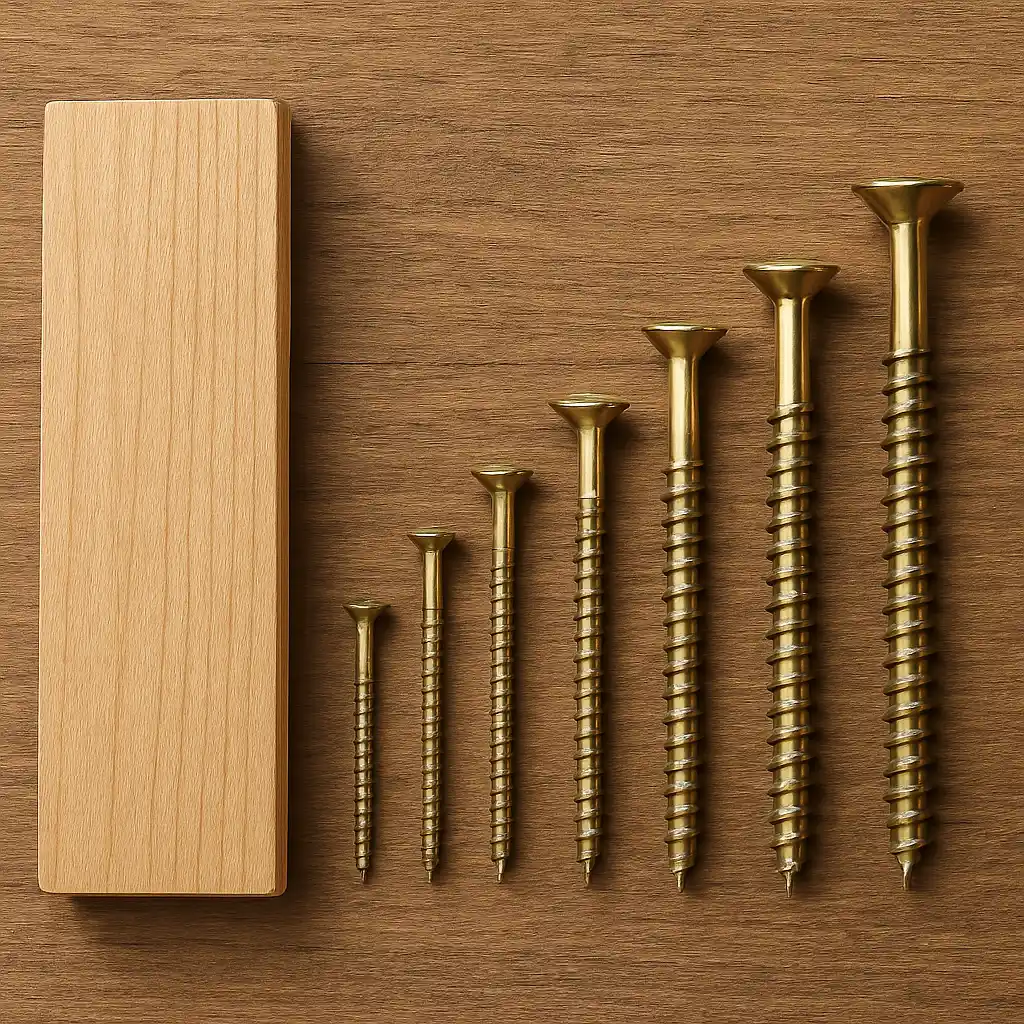

The right screw makes a strong joint. Work out the correct wood screw length (a common rule is the screw should reach about two-thirds into the base piece) and the screw weight limit for hanging loads.
Working with wood and metal
Many projects mix wood and metal — fences, frames, and brackets. Learn how to attach metal to wood, build a wood fence using metal posts, and use steel wool on wood for finishing.
Key measurement terms
Board foot is a volume unit of lumber equal to 144 cubic inches (12in x 12in x 1in); the standard way hardwood is priced.
Linear foot is a measure of length only (one foot of a board at its given width and thickness), used for trim and dimensional lumber.
Load capacity is the maximum weight a board or shelf can safely hold, set by the wood species, dimensions, and support spacing.
Nominal vs actual size is nominal is the name (a 2×4); actual size is smaller after milling and drying (a 2×4 is really 1.5in x 3.5in).
Deflection is how much a loaded board bends; too much deflection means the span is too long or the board too thin.
How to calculate board feet
A board foot is 144 cubic inches of lumber. The formula is: (thickness in. × width in. × length in.) ÷ 144. Example: a board 1 in thick, 6 in wide, and 96 in (8 ft) long = (1 × 6 × 96) ÷ 144 = 4 board feet. If lumber is priced at $5/bd ft, that board costs $20. Always calculate in the wood’s rough (nominal) thickness, since that is how it is sold.
How to estimate weight capacity
A board’s safe load depends on the species (stiffness), its dimensions, and the span between supports. As a rough guide, doubling a board’s thickness roughly quadruples its stiffness, while doubling the span between supports cuts capacity sharply. For anything structural — a loft, a heavy shelf, stair treads — use a load calculator or span table rather than guessing, and add a safety margin.
Nominal vs actual lumber sizes
Softwood lumber is sold by nominal size (its name), but the actual milled size is smaller. Always build to the actual dimensions:
| Nominal size | Actual size |
|---|---|
| 1 x 2 | 3/4 x 1-1/2 in |
| 1 x 4 | 3/4 x 3-1/2 in |
| 1 x 6 | 3/4 x 5-1/2 in |
| 2 x 2 | 1-1/2 x 1-1/2 in |
| 2 x 4 | 1-1/2 x 3-1/2 in |
| 2 x 6 | 1-1/2 x 5-1/2 in |
| 2 x 8 | 1-1/2 x 7-1/4 in |
| 4 x 4 | 3-1/2 x 3-1/2 in |
How to calculate coverage & materials
For flooring, paint, or stain, work out the area first: length × width = square feet. Add a waste factor — about 10% for flooring (more for diagonal or patterned layouts), and check the coverage rate on finish cans (a quart of stain covers roughly 100-125 sq ft per coat). Buy a little extra so all your material comes from the same batch and matches.
Frequently asked questions
How much weight can a wooden shelf hold?
It depends on the wood, thickness, and support spacing. A 3/4-inch hardwood shelf on brackets 16-24 inches apart typically holds 25-50 lbs per foot; add more supports or a thicker board for heavier loads.
What is a board foot?
A board foot is a volume of lumber measuring 144 cubic inches — for example a board 12 inches wide, 1 inch thick, and 1 foot long. Hardwood is usually priced per board foot.
What screw length should I use for wood?
As a rule, the screw should pass through the top piece and reach about two-thirds into the base piece — long enough to hold firmly without poking through the other side.
What’s the difference between nominal and actual lumber size?
Nominal size is the name (a ‘2×4’); actual size is smaller after milling and drying. A 2×4 actually measures about 1.5 x 3.5 inches — always build to the actual size.
How do you calculate board feet of lumber?
Multiply thickness × width × length (all in inches) and divide by 144. For example, a 1 in × 6 in × 96 in board = (1×6×96) ÷ 144 = 4 board feet. Board feet is how hardwood is priced.
Why is a 2×4 not actually 2 by 4 inches?
Because ‘2×4’ is the nominal (rough-cut) size. After the mill planes and dries it, the actual finished size is about 1-1/2 × 3-1/2 inches. Always build to the actual dimensions.
How much extra flooring or finish should I buy?
Add about 10% extra flooring for cuts and waste (15-20% for diagonal or patterned layouts). For finishes, check the can’s coverage rate and buy a little extra so it all comes from one matching batch.
