Can A Wood Stove Be Vented Through The Wall? Safe Or Not?

Yes, a wood stove can be vented through the wall, but it requires special venting systems designed for this purpose. These systems must meet strict safety codes for clearances from combustible materials. Proper installation is crucial to prevent fire hazards. Always follow manufacturer instructions and local building codes.

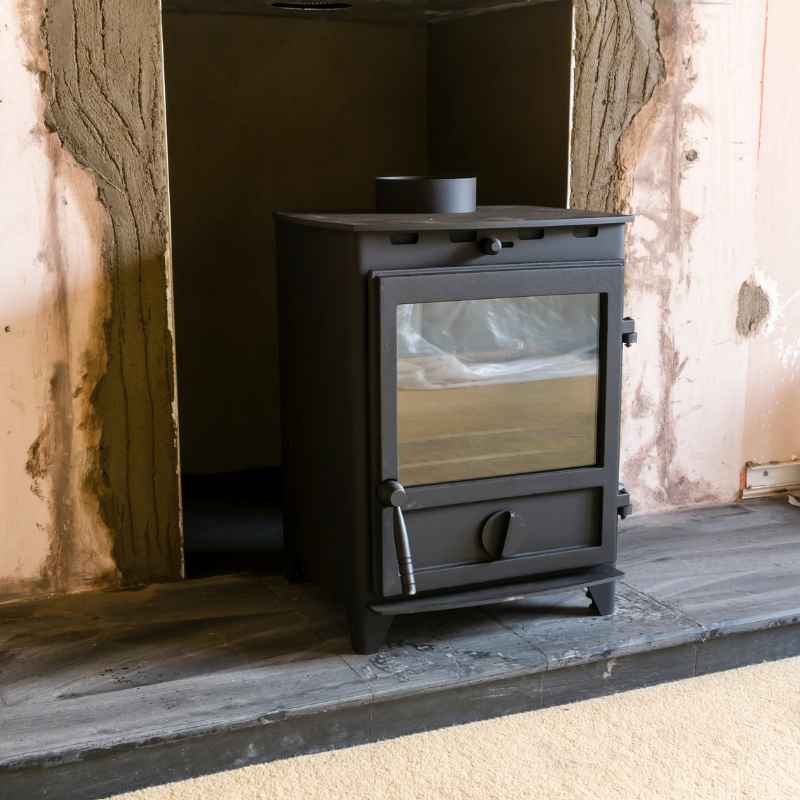

Understanding Through-the-Wall Venting for Wood Stoves

Venting a wood stove through a wall is a real option. But it’s not as simple as just poking a pipe out. There are specific types of vent pipes you must use.

These aren’t your standard single-wall stove pipes. They are called double-wall or triple-wall insulated vent pipes. These are built to keep the heat inside the pipe.

They also protect the walls from getting too hot. Think of them like a thermos for your smoke. They keep the hot stuff contained.

This is super important for fire safety.

The main goal is to get the smoke and harmful gases out of your house. This is called exhaust or flue gas. These gases are very hot.

They can also contain sparks. If these hot gases touch wood or other flammable things, they can start a fire. So, the vent pipe needs to be designed to handle this heat safely.

It must keep the outside of the pipe cooler. This is where the special vent pipes come in. They have air gaps or insulation between layers of metal.

The standard stove pipe you might see connecting your stove to a wall thimble is usually single-wall. This pipe is meant for short runs and only within a room. It can get glowing hot.

You can’t use that kind for going through walls or ceilings. Building codes are very clear about this. They list the approved types of vent systems.

You’ll see terms like “Class A chimney” or “Type B vent” for some appliances. For wood stoves, it’s often a specific type of insulated double-wall pipe designed for solid fuel appliances. These are sometimes called “solid fuel venting systems.”

The challenge with venting through a wall is the proximity to the house structure. Your house is made of wood, insulation, and drywall. These materials can burn.

The vent pipe must maintain a safe distance, or “clearance,” from all of them. This distance is not small. It’s often many inches.

This clearance is the air space that prevents heat transfer. It stops the hot vent pipe from igniting your wall’s framing or insulation. So, even with the special pipe, you still need space.

Manufacturers of wood stoves and vent systems provide detailed instructions. These are not suggestions; they are vital safety guides. They will tell you exactly which vent pipes to use.

They will also specify the required clearances for different wall materials. Following these instructions to the letter is your first line of defense. Ignoring them is a direct invitation to disaster.

Hungry for more knowledge on Wood Burning Solutions? You’ll find this link insightful. Can A Wood Stove Pipe Be Horizontal? Safety Rules Explained

My “Oh No!” Moment with a Vent Pipe

I remember helping a friend install a beautiful cast-iron wood stove in his garage a few years back. He was so excited. He had this perfect corner picked out.

The flue pipe would go straight out the side wall. It seemed so straightforward. He bought what he thought was the right pipe from a big box store.

It looked like heavy-duty metal pipe, so he figured it was good for a stove.

We got the stove set up. We started connecting the pipe. He cut a hole in the wall and planned to use a standard wall thimble, the kind you’d use for a dryer vent, just bigger.

As we were putting it together, something felt off. The pipe seemed to get hot very quickly. I asked him, “Is this the right kind of pipe for a wood stove going through a wall?” He just shrugged.

“It’s metal pipe, right? And it’s double-walled.”

That’s when I started feeling a knot in my stomach. We hadn’t installed any kind of specialized wall pass-through. We hadn’t checked the clearances properly.

I grabbed the stove manufacturer’s manual and the vent pipe box. My heart sank. The manual clearly stated to use only their specific Class A insulated chimney system.

The pipe he bought was designed for something else, maybe a furnace or a different type of gas appliance. It was not rated for the high temperatures and potential sparks from a wood fire.

The clearance requirements were also way off. The pipe he had needed maybe 2 inches from combustibles. The manual called for 6 or 18 inches, depending on the specific product.

We were in a tight spot. Literally. The pipe was inches from wooden studs and the wall sheathing.

I explained to him, “We absolutely cannot connect this like this. It’s a major fire risk.” He looked crestfallen. I felt that familiar feeling of needing to deliver bad news, but knowing it was the right thing to do.

We had to take it all apart and get the correct venting system. It cost him more time and money, but it was the only safe way to go. It was a stark reminder that when it comes to chimneys and stoves, you must use the right parts and follow the rules.

Dive deeper into Wood Burning Solutions by checking out this article. Can A Wood Stove Heat A Whole House? The Surprising Answer

Clearances: The Unsung Heroes of Venting Safety

Let’s talk more about clearances. This is probably the most critical part of venting a wood stove through a wall. The air space between your hot vent pipe and anything that can burn is your safety buffer.

It’s what prevents a small ember from turning into a big house fire.

The required clearances are not random. They are determined by rigorous testing. Engineers figure out how hot the outside of the vent pipe gets.

Then they figure out how much space is needed to keep the surrounding materials below their ignition temperature. This ignition temperature is the point where something will catch fire. For wood, this is much lower than you might think.

It doesn’t need a direct flame. Prolonged exposure to high heat can cause it to smolder and eventually ignite.

When you vent through a wall, you’re bringing this heat source right up next to your house’s structure. This structure is often wood studs, insulation (which can be flammable), and drywall. Each of these materials has different properties and ignition points.

The vent pipe manufacturer will provide a chart or diagram. This chart shows the minimum required clearance to “combustibles.” Combustibles include wood, drywall, and even some types of insulation. You must maintain this exact clearance all the way from where the vent pipe enters the wall thimble to wherever it exits the exterior of your house.

A wall thimble is a special metal component. It’s installed in the wall opening. It provides a safe passage for the vent pipe.

It also ensures the correct clearance is maintained where the pipe passes through the wall. These thimbles are designed with air gaps or heat shields to keep the wall structure cool.

Sometimes, you might think you can get away with a bit less clearance. Maybe you’re trying to squeeze the pipe through a tight spot. This is where people often make dangerous mistakes.

There is no “close enough” when it comes to clearances. The temperature difference of just an inch or two can be the difference between safety and a catastrophic fire. If the manufacturer says 6 inches, you need 6 inches.

If they say 18 inches, you need 18 inches. No exceptions.

You also need to consider what’s inside the wall. Is there extra insulation? Are there electrical wires?

Are there other building components that could be affected by heat? While the vent pipe itself is designed to be safe, extreme heat can damage other things. Always err on the side of caution.

This is why professional installation is often recommended, especially for through-the-wall venting. Installers are trained on these codes and clearances. They have the experience to know when something looks unsafe.

They also know how to properly seal and support the vent system.

Hungry for more knowledge on Wood Burning Solutions? You’ll find this link insightful. Can A Wood Stove Get Too Hot? Dangers And How To Prevent It

Real-World Context: When is Through-the-Wall Venting a Good Idea?

So, why would someone choose to vent through the wall instead of the roof? There are several practical reasons. These often come down to the layout and structure of a home.

Limited Roof Access or Complex Rooflines: Some houses have very steep roofs. Others have multiple levels, skylights, or dormers. Running a chimney straight up through these can be extremely difficult and expensive.

A through-the-wall installation might be the only practical option.

Single-Story Structures: For garages, workshops, or small cabins that are single-story, venting through the wall can be much simpler. There’s no need to penetrate multiple ceiling levels or deal with a high roof. The exit point is close to the appliance.

Aesthetic Preferences: While less common, some people might prefer not to have a chimney visible on their roofline. Venting through the wall keeps the roof clear.

Existing Obstructions: Sometimes, the direct path through the roof is blocked by beams, plumbing, or other structural elements that are hard to reroute. Venting through a wall might bypass these obstructions.

Cost Considerations: In many cases, a properly installed through-the-wall system can be less expensive than a complex roof penetration. This is especially true if it involves fewer feet of venting pipe and simpler roof flashing.

However, it’s important to note that even when venting through a wall, you still need to extend the vent pipe a certain distance above any openings. This includes windows, doors, and air intakes. This is to prevent smoke and carbon monoxide from re-entering the house.

Local codes will specify these distances. Typically, it’s a few feet above and to the side of any openings.

The location of the wall exit is also important. You want to avoid areas where people frequently sit or walk, like directly under a window where someone might open it. The vent terminal needs to be protected from physical damage and the elements.

Common Pitfalls and What to Watch Out For

When people try to vent wood stoves through walls, several common mistakes pop up. These are often made out of a lack of knowledge or a desire to cut corners. Recognizing them can help you avoid them.

Using the Wrong Vent Pipe: This is number one. Thinking any metal pipe will do. Single-wall pipe is not safe for wall penetrations.

Even some double-wall pipes are not rated for solid fuels. Always verify it’s listed for wood stoves.

Insufficient Clearances: Not respecting the manufacturer’s specified distances from combustible materials. This is incredibly dangerous. It’s the most common reason for fires related to stove installations.

Improper Wall Thimble Installation: The thimble is the gateway. If it’s not installed correctly, with the right support and sealing, it can create gaps or allow heat to transfer. It must extend fully through the wall and provide the required air space.

Long, Horizontal Runs: While through-the-wall venting is an option, long horizontal runs of vent pipe are generally discouraged. Smoke needs to travel upwards due to convection (hot air rising). Long horizontal sections can cause creosote buildup and poor draft.

Codes often limit the length of horizontal runs and require a specific slope upwards.

Not Extending Far Enough Outside: The vent must exit the house and extend upwards and outwards sufficiently. If it exits too close to a window or door that might be opened, smoke and carbon monoxide can be drawn back into the house. It also needs to be high enough to get above immediate obstructions.

Not Sealing Properly: Where the vent pipe connects to the stove, where sections connect, and where it passes through the thimble, all connections must be sealed. This is usually done with high-temperature sealant. This prevents smoke leaks and helps maintain the draft.

Ignoring Local Codes: Every town, city, or county has building codes. These codes are based on national standards but can have local amendments. Your local fire department or building inspector’s office is the best source for this information.

They often have specific requirements for wood stove installations, including through-the-wall venting.

Lack of Support: Vent pipes need to be properly supported. They shouldn’t sag. They need to be secured to the wall structure.

This prevents strain on the connections and ensures the proper upward slope.

Not Considering Clearance to Other Utilities: You need to ensure the hot vent pipe is also clear of electrical wiring, plumbing pipes, and ductwork. Heat can damage these, leading to other problems.

What This Means for Your Home

Deciding to vent your wood stove through the wall is a significant decision. It’s not just about convenience; it’s about safety and compliance. For homeowners, this means understanding that through-the-wall venting isn’t a “DIY shortcut” in many cases.

It requires specific components and a meticulous approach to installation.

When it’s Normal: Through-the-wall venting is perfectly normal and safe when done correctly. It’s a common solution for garages, workshops, and homes with challenging roof structures. The key is using the right materials and following all safety guidelines meticulously.

When to Worry: You should worry if any of the following are true:

• You’re using standard single-wall stove pipe.
• You’re not sure about the clearances or think you can get by with less.
• You’re using generic components not specifically listed for wood stoves and through-wall venting.
• You haven’t checked your local building codes.
• You notice any discoloration, heat marks, or strange smells around the vent pipe.
• You have any doubt whatsoever about the installation.

Simple Checks You Can Do: Even if you had the system installed by a professional, it’s good to be aware. Periodically, check the vent pipe from the stove to the exterior wall. Look for any signs of damage, corrosion, or loose connections.

Gently touch the wall around the thimble after the stove has been off and cooled down completely for several hours. It should feel cool to the touch. If it’s even slightly warm, there might be a clearance issue.

Also, check the exterior vent terminal. Ensure it’s clear of debris and that the rain cap is in place. Listen for any unusual noises coming from the vent when the stove is in use, like excessive rattling or whistling, which could indicate a problem with airflow or support.

The best check is to have your system inspected by a certified chimney sweep annually. They are trained to spot potential hazards that the average homeowner might miss. They can ensure your system is up to code and operating safely.

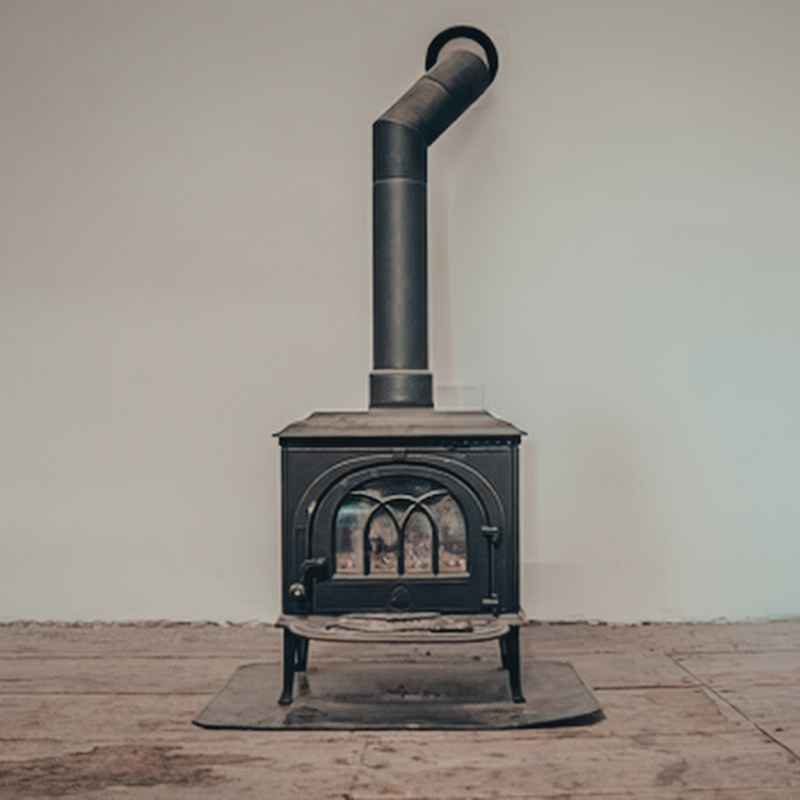

Quick Fixes and Best Practices

While “fixes” in the sense of patching up an unsafe situation aren’t recommended, there are best practices and preventative measures. These ensure your through-the-wall venting system remains safe and effective.

• Annual Inspections: Schedule a professional chimney inspection at least once a year. This is crucial for identifying any issues before they become dangerous. A certified chimney sweep has the tools and knowledge to assess the entire system.
• Creosote Management: Creosote is a flammable tar-like substance that builds up in chimneys from burning wood. Regular chimney cleaning is essential to remove creosote. This reduces the risk of chimney fires. Through-wall systems can be prone to buildup if not sloped correctly or if burning wet wood.
• Burn Dry Wood: Always burn seasoned, dry hardwood. Wet or green wood produces more smoke and creosote. It also burns less efficiently, leading to a colder fire and potentially more problems with your venting. Aim for wood with a moisture content of 15-20%.
• Operate the Stove Correctly: Follow the stove manufacturer’s instructions for starting fires, adding wood, and controlling the airflow. Over-firing or under-firing can create issues for your venting system.
• Maintain Clearances: Never place objects too close to the vent pipe, especially on the exterior where it exits the wall. Ensure the required clearances are always maintained.
• Use the Correct Accessories: Only use accessories specifically designed and approved for your venting system. This includes storm collars, flashing, and insulation blankets if required.
• Seal Joints Properly: If you ever need to disconnect and reconnect sections of the vent pipe, ensure you use the proper high-temperature sealant. This is vital for preventing leaks.
• Vent Terminal Protection: Ensure the exterior vent terminal has a cap to prevent rain, snow, and animals from entering. Check this regularly.

Frequently Asked Questions

Can I use a standard dryer vent pipe for my wood stove?

No, absolutely not. A standard dryer vent pipe is typically made of thin metal or foil and is not designed to withstand the high temperatures or potential sparks from a wood stove. Using it would be extremely dangerous and could lead to a fire.

What are the typical clearances for through-the-wall wood stove venting?

Clearances vary greatly depending on the specific vent pipe system and the stove. However, for insulated double-wall pipe designed for solid fuels, clearances to combustible materials can range from 3 inches up to 18 inches or more. Always consult the vent pipe manufacturer’s installation manual for exact requirements.

How do I know if my vent pipe is the right type?

Look for markings on the pipe itself. It should clearly state that it is for solid fuel appliances and is typically a “Class A” insulated chimney system or a specifically approved solid fuel vent. The packaging and manual will also detail its intended use.

Can I vent my wood stove through a window opening?

No, you cannot vent directly through a standard window opening. You must use a proper wall thimble designed for solid fuel appliances. This thimble ensures the correct clearances and safe passage through the wall structure.

The window itself is not a suitable opening for a vent pipe.

What is “creosote” and why is it a problem?

Creosote is a highly flammable byproduct of burning wood. It forms a sticky, tar-like residue that coats the inside of your chimney or vent pipe. If it ignites, it can cause a dangerous chimney fire that can spread to your house.

Regular cleaning removes this dangerous buildup.

How high does the vent pipe need to extend outside the wall?

This depends on local building codes and the proximity of the vent terminal to windows, doors, and air intakes. Generally, the vent must extend a certain distance above any openings to prevent smoke and carbon monoxide from re-entering the house. Codes often specify distances like 10-15 feet horizontally from openings and 3-5 feet vertically above them.

Is it okay to have a horizontal run in my through-the-wall vent system?

While some horizontal run is often necessary with through-the-wall venting, it should be minimized. Codes usually limit the length of horizontal runs and require them to have an upward slope of at least 1/4 inch per foot. Long horizontal sections can lead to poor draft and creosote buildup.

Conclusion

Venting a wood stove through the wall is absolutely possible and safe when done correctly. It requires the right specialized vent pipe, strict adherence to clearance requirements, and proper installation techniques. Always prioritize safety and consult local codes and manufacturer instructions.

A well-installed system brings warmth and charm, but an improperly installed one is a serious risk. Take your time, use the right parts, and when in doubt, call a professional.
