Wood Movement Calculator for Joint Clearance Planning

Use a wood movement calculator before you cut cross-grain parts: hardwood panels can move by a modest amount across seasons, so I size the joint for that swing and check the species and moisture change. Skip that step and tabletops split, doors bind, panels crack, and finish lines show gaps. This guide shows how to read the calculator, turn the numbers into clearances, and choose floating panels, elongated holes, breadboard ends, and movement-friendly details.

Press Calculate to see the math with your numbers.

What a wood movement calculator tells you

A wood movement calculator estimates how much lumber may change size as the project environment changes. Wood movement is dimensional change caused by relative humidity and temperature, and the result is best used as a planning number rather than an exact promise.

Use that number to decide where parts need room to move, where grain direction is safer, and where a rigid joint is likely to fail. The output matters most when one part of a build wants to grow across the grain while the attached part does not.

Wood movement in plain terms

Wood is a natural composite of cellulose fibers and lignin. It is structural tissue or material found as xylem, and it is formed in trees by secondary growth. New woody layers form growth rings, so the outside of a board is not stable in the way metal is stable.

That is why the calculator asks for board width. Width is usually the main dimension in the problem, because wider boards move more than narrow ones across the seasons.

Why the number matters before you cut joinery

The number tells you how much room to leave in a groove, frame, slot, or mounting hole. If the part is trapped, the wood will move anyway, and the stress shows up as split panels, cracked glue lines, stuck doors, or bowed tops.

That is the practical value of the tool. It turns a rough moisture estimate into a joint decision.

How humidity and temperature change lumber

Relative humidity is a major driver of wood movement, and temperature is another environmental factor the calculator may use. As the project location changes through the year, the wood changes moisture content and the dimensions follow.

Location matters because the same species can behave differently in a dry inland shop than in a damp coastal home. The calculator is only as good as the climate you feed it.

Relative humidity as the main driver

Relative humidity is the moisture level in the surrounding air. When the air is damper, wood takes on moisture and swells; when the air dries out, wood gives up moisture and shrinks.

That means a project built in a humid shop may not fit the same way after a dry winter in the client’s home. Seasonal change is the real enemy, not a single point reading.

Where temperature fits in the picture

Temperature affects the environment around the wood and is paired with humidity in tool copy for a reason. It changes how air holds moisture, and it changes how conditions shift from storage to installation.

Temperature is usually the supporting factor. Relative humidity still does the heavy lifting.

Why location or climate matters

The calculator asks users to select the project location, and it includes worldwide location selection. That choice gives the tool a climate basis before species and grain are entered.

If the work will live in a different climate from the shop, the safer move is to size for the installation site, not the bench area. Shop-to-home acclimation can narrow the gap, but it does not erase seasonal movement.

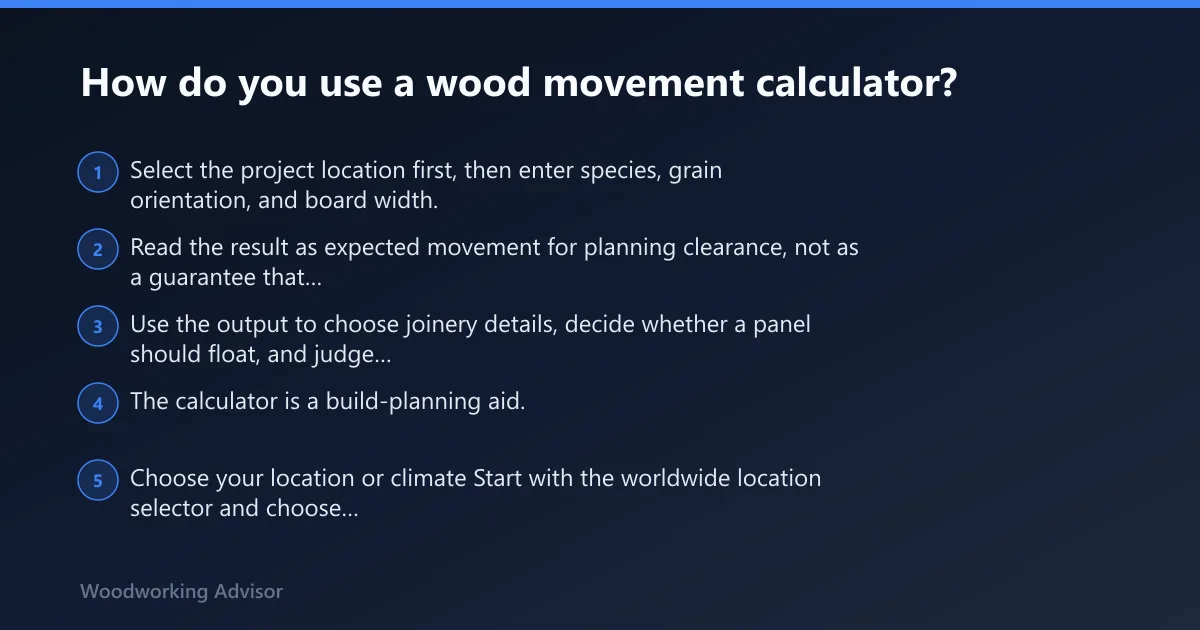

How do you use a wood movement calculator?

Select the project location first, then enter species, grain orientation, and board width. Read the result as expected movement for planning clearance, not as a guarantee that every board in the build will move exactly the same amount.

Use the output to choose joinery details, decide whether a panel should float, and judge whether a joint needs extra room. The calculator is a build-planning aid.

Choose your location or climate

Start with the worldwide location selector and choose the project residence or usage climate. That is the environment the finished piece needs to survive.

If storage, delivery, or installation will happen in a second climate, plan for the harsher one. A case built in a dry shop and moved to a damp house needs different clearance than the same case staying in the shop.

Enter species, grain orientation, and board width

Species is an input in the tool, and that matters because movement differs by wood choice. The calculator also asks for long grain orientation, with flat sawn labeled horizontal grain, rift sawn labeled vertical grain, and an indeterminate orientation option.

Width is entered in inches or centimeters. For movement planning, width is the number that changes the most at the joint.

Read the result as planned movement, not a guarantee

Use the output as a clearance target. If the calculator says a panel can move a certain amount, the joint should allow at least that much space, and a little more when the failure cost is high.

Round up when the part is trapped by trim, fixed hardware, or a glued face frame. Leave the raw number alone only when the part has a generous floating path and the finish schedule will not lock the edges in place.

Which species and grain direction move most?

Some species move more than others, and hardwood and softwood selection changes the predicted movement. Grain direction matters too, because flat sawn stock usually needs more allowance than rift sawn stock, and an unknown orientation should be treated conservatively.

When stability matters more than appearance, choose the orientation and species that cut risk at the joint. That is usually safer than chasing the prettiest face.

Hardwood versus softwood behavior

Hardwood and softwood do not behave the same across the same width. Species-specific movement differences are why the calculator asks for species instead of using one generic lumber number.

In practice, the safer assumption is simple: the less predictable the species or stock, the more clearance should be built into the joint. Mixed species in one assembly deserve special caution.

Flat sawn, rift sawn, and unknown orientation

Flat sawn is labeled horizontal grain, and it often needs the most movement allowance. Rift sawn is labeled vertical grain, and it usually gives a more stable result. Indeterminate orientation means the board should be treated as uncertain.

Unknown orientation is common in offcuts, narrow parts, and old stock. If the grain cannot be sorted confidently, plan as if movement will be on the high side.

When stability matters more than appearance

Use the calmer grain choice where the part is wide, fixed on both edges, or tied to hardware. Cabinet doors, wide tops, and long case sides can all punish a rigid detail.

If appearance pushes the build toward flat sawn stock, make the joinery more forgiving. The face can be attractive and still move freely if the frame or groove is designed correctly.

How much will a 12-inch board move seasonally?

A 12-inch board can move enough that the joinery may need to account for the change, especially across the grain. The exact number depends on location, species, and grain orientation, so the calculator output should be treated as a sizing guide for clearance rather than a fixed promise.

For planning, the useful question is not “Will it move?” but “Where can that movement go?” If the board has nowhere to move, the stress moves into the joint.

What the number means in practice

On a 12-inch panel, a modest seasonal change can be enough to shift a door reveal, pinch a floating panel, or split a fixed top. That is why the calculator belongs in the layout stage, before edge banding or hinge placement.

Use the number to choose slot length, groove depth, and fastener spacing. The biggest mistake is leaving the calculation in the browser and cutting the joint as if the board were dimensionally fixed.

When to round up for joinery clearance

Round up when the part is wide, glued on one edge, trapped by trim, or mixed with another material that does not move with it. A cabinet door panel, for example, deserves more freedom than a loose shelf insert.

Round up again when the part will live in a more humid or more variable room than the shop. Dining rooms, kitchens, and exterior-adjacent spaces usually deserve a wider safety margin.

Why wider boards need more allowance

Width is the main dimension entering the calculator because movement scales with width. A narrow rail can often tolerate a tighter detail than a broad tabletop or case side.

That is why a 12-inch board deserves more attention than a 3-inch stile. The joinery has to absorb the difference somewhere.

Movement-friendly details for common parts

Use the calculator output to decide whether a part should float, slide, or be fixed only at one point. The safest joinery often gives wood one direction to move and another part a way to ignore that movement.

Mixed materials need the most thought. Wood against plywood, wood against metal, or wood against stone almost always needs a deliberate clearance strategy.

Cabinet doors

Cabinet doors need room for seasonal change at the panel and at the hinge side. If the door has a solid panel, let the panel float and avoid locking both edges hard against the frame.

Long grain in the rails and stiles should guide the joinery, while the panel itself gets clearance. For painted doors, movement can still crack the finish if the panel is trapped too tightly.

Solid-panel tops

Solid-panel tops are the parts most likely to fail when movement is ignored. Breadboard ends, figure-eight fasteners, slotted screw holes, and figure-friendly attachment points all help keep the top flat while allowing cross-grain change.

A rigid glue-up across the width is the wrong move. Let the top move, or expect split joints and telegraphed seams.

Frame-and-panel case sides

Frame-and-panel case sides usually stay happier when the panel floats in a groove and the frame carries the structure. If the side is wide, the panel must have room to change width without forcing the frame apart.

This is where indeterminate orientation should be treated cautiously. If the side is built from mixed stock, leave more room than the calculator minimum and avoid pinning the panel at every edge.

Build-planning checklist and allowance table

Use this checklist before glue-up. It turns the calculator result into a build sequence, so the clearance is decided while the parts are still on the bench.

1. Pick the project location where the piece will live.
2. Enter the wood species.
3. Choose flat sawn, rift sawn, or indeterminate orientation.
4. Measure the board width in inches or centimeters.
5. Check whether the part is trapped, floating, or attached to another material.
6. Round the movement allowance up if the joint has no spare room.
7. Plan acclimation time between shop and final location.
8. Leave extra room for panels, tops, and wide case parts.

Where to leave space and where to fix parts

Leave space at panels, top fasteners, and any joint crossing the grain. Fix parts where the grain runs with the joint and the structure needs a firm reference point, such as a rail-to-stile connection.

Do not fix every point just because it feels stronger. Wood movement needs at least one controlled path.

Frequently asked questions

How do I use a wood movement calculator?

Select the project location first, then enter the species, grain orientation, and board width. Read the result as planned seasonal movement, then translate that number into groove depth, fastener slots, panel float, or another allowance that lets the part move without breaking the joinery.

How much will a 12-inch board move seasonally?

A 12-inch board can move enough across seasons to affect fit, finish, and joinery. The exact amount depends on the climate, species, and grain direction, so the calculator result should be treated as the clearance target rather than a fixed promise for every shop and home.

What species move the most in wood movement?

Species choice changes predicted movement, and hardwood and softwood do not behave identically. The most movement-prone choice is usually the one with the least stable grain orientation or the least suitable species for the project environment, which is why the calculator asks for a species input.

Should I choose flat sawn or rift sawn for stability?

Rift sawn is usually the safer choice when stability matters more than appearance, and flat sawn often needs more movement allowance. Flat sawn is labeled horizontal grain, rift sawn is labeled vertical grain, and unknown orientation should be treated with extra caution.

How does humidity affect wood movement?

Relative humidity is the main driver of wood movement. As humidity rises, wood tends to swell; as it falls, wood tends to shrink. Temperature is part of the environment too, but the clearance decision usually follows the humidity swing the part will live through.

Do I need a wood movement calculator for cabinets?

Yes, especially for cabinet doors, solid panels, and wide case parts. Cabinets often mix fixed carcasses with moving wood parts, so the calculator helps decide where to float a panel, where to slot a screw hole, and where to avoid a rigid glue joint.
