What Does Peak HP Mean on a Shop Vac? (Real HP Runs Lower)

Peak HP on a shop vac is a lab-measured motor spec captured for an instant during startup, not the power the vacuum actually delivers while you’re cleaning. A 2019 class-action settlement found real horsepower often runs 30-52% below the number printed on the box, which is why comparing peak HP between models can be misleading. This guide covers how peak HP is calculated, why running HP is the number that matters, and which specs (CFM, sealed pressure, and amps) actually predict suction.

What Does Peak HP Actually Mean on a Shop Vac?

Peak HP is a laboratory measurement of the highest momentary power a shop vac’s motor produces, typically captured for a fraction of a second right at startup or under a stalled-rotor load. It is not the power the motor delivers while you are actually vacuuming. Manufacturers report peak HP because it produces a bigger number than running HP does — a shop vac rated at “6.5 Peak HP” usually settles closer to 2–3 horsepower once the motor reaches a steady spin.

The rating exists mainly for shelf comparison, not performance prediction. Two vacuums with identical peak HP numbers can have noticeably different real-world suction if their fan design, hose diameter, or filter restriction differ.

How Is Peak HP Calculated?

Peak HP is derived from the motor’s locked-rotor amperage — the current spike the motor draws for an instant when it’s held from spinning — multiplied by the line voltage. The rough formula manufacturers use is Peak HP = (Amps × Volts) ÷ 746, based on that initial startup spike rather than the steady running current. A motor briefly pulling 20 amps at 120 volts works out to about 3.2 peak horsepower, a number no shop vac holds once it’s actually running and moving air.

Running HP (also called rated or actual HP) uses the motor’s continuous amp draw instead of that startup spike, which is why it always reads lower — and why it’s the more honest number of the two.

Peak HP vs. Running HP: What’s the Real Difference?

Peak HP is the momentary ceiling; running HP is the number the motor actually holds while you’re cleaning. A shop vac motor typically settles to 40–70% of its peak HP rating once it reaches full speed, so a “5.0 Peak HP” vacuum realistically runs at roughly 2.0–3.5 running HP during normal use.

Neither number by itself predicts how well a vacuum will clean. A lower peak-HP unit with a well-sealed lid gasket and a wide-diameter fan can out-suction a higher peak-HP unit with a leaky seal or an undersized hose.

Why Peak HP Numbers Are Often Inflated

In July 2019, a class-action lawsuit accused Shop-Vac of overstating peak horsepower on its wet/dry vacuum packaging. Independent lab testing cited in the case found that vacuums advertised at 6.5 Peak HP actually produced about 1.93 actual horsepower, and units labeled 2.5 Peak HP measured closer to 1.29 actual horsepower — roughly 30–52% of the advertised figure. Shop-Vac and retailer Lowe’s settled the claims without admitting wrongdoing.

📊 A 2019 class-action settlement found Shop-Vac units advertised at 6.5 Peak HP produced about 1.93 actual horsepower — roughly 30% of the claimed number. — Source: Top Class Actions, 2019

This isn’t unique to one brand. Wet/dry vacuum makers broadly use peak HP as a shelf-comparison figure precisely because it produces a larger number than running HP or amp draw would. A similar class-action claim has targeted vacuum horsepower labeling at another major tool brand. Treat any peak-HP number on a box as a marketing figure, not a performance spec — and check the sections below for the numbers that actually matter.

Better Specs to Check Than Peak HP

Because peak HP doesn’t reflect real airflow or suction, three other specs — printed on the same box or in the manual — actually predict how a shop vac performs.

CFM (Cubic Feet per Minute)

CFM measures how much air the motor moves through the hose. Higher CFM clears bulk debris — wood chips, gravel, leaves — faster. Most benchtop-size shop vacs move 50–100 CFM; larger contractor models move 150–200+ CFM.

Sealed Pressure (Water Lift)

Sealed pressure, measured in inches of water lift, shows how much suction force the motor generates against a blocked hose — the spec that matters most for pulling fine dust or wet spills through a narrow crevice tool. It’s measured at zero airflow, so a vacuum can post high sealed pressure with modest CFM, or the reverse.

Amps

Amp draw is the one number on the box that reflects continuous, real-world motor input rather than a lab-only peak. Most shop vac motors run 8–12 amps on a standard 15-amp household circuit; a motor pulling close to 15 amps risks tripping the breaker when paired with another tool on the same circuit.

Spec	What It Measures	Why It Beats Peak HP
CFM	Volume of air moved per minute	Predicts how fast it clears bulk debris
Sealed pressure	Suction force at zero airflow (inches of water lift)	Predicts fine-dust and wet pickup through narrow tools
Amps	Continuous electrical current draw	Reflects steady motor power, not a lab-only spike

“After running a few different wet/dry vacs through daily shop cleanup, the ones with a steady CFM and sealed-pressure rating listed on the label have held their suction longer than the ones sold mainly on a big peak-HP number on the box.”

Common Misconceptions About Peak HP

Many buyers assume peak HP describes constant power. It doesn’t — it’s a momentary lab number, and advertisers use it because it makes vacuums sound stronger than they perform in daily use. This can lead buyers to overpay for a high peak-HP rating while overlooking a leaky seal, an undersized hose, or a low CFM rating that actually limits the vacuum’s real-world suction.

The reverse mistake also happens: assuming a lower peak-HP number automatically means weaker performance. A well-sealed vacuum with a smaller motor but good sealed-pressure and CFM numbers can outperform a leaky, higher peak-HP unit. Compare CFM, sealed pressure, and amps side by side instead of shopping on the peak-HP figure alone.

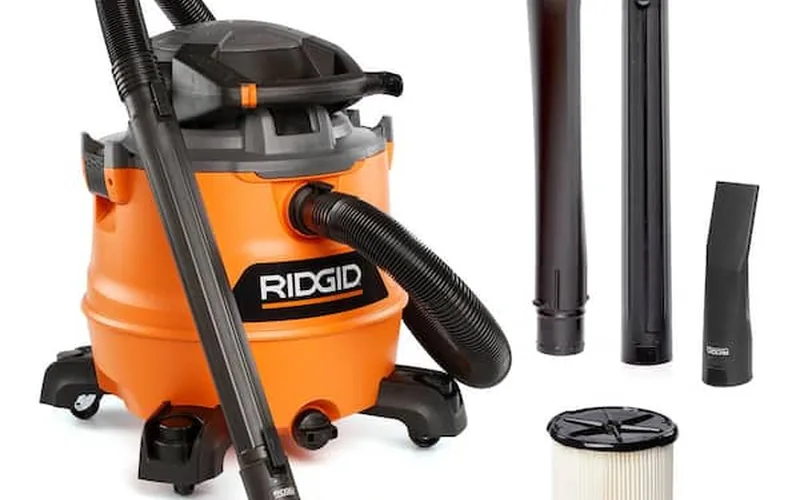

Maintaining Suction Power Over Time

Keep a shop vac running at its rated suction with a few simple habits. Empty the tank often — a full tank restricts airflow and drops suction fast. Clean or replace the filter regularly, since a clogged filter is the single most common cause of a shop vac that “lost power” overnight. Check hoses and attachments for blockages or cracks that let air leak in before it reaches the nozzle.

If suction drops suddenly, inspect the power cord for damage, check the switch, and verify the tank isn’t full. A worn or torn gasket around the tank lid is an easy-to-miss leak point that quietly cuts sealed pressure even when the filter and hose are both clean.

Frequently Asked Questions

What Does Peak HP Mean on a Shop Vac?

Peak HP is a lab-measured spec showing the highest momentary power a shop vac’s motor can produce, usually captured for a fraction of a second at startup. It is not the power the vacuum delivers during normal use, and real running HP typically lands at 40–70% of the peak-HP number printed on the box.

How Is Peak HP Calculated?

Manufacturers calculate peak HP from the motor’s momentary locked-rotor amp draw multiplied by line voltage, then divided by 746 watts per horsepower. Because it uses the initial startup current spike rather than steady running current, the resulting number is always higher than the vacuum’s actual running horsepower.

Is Peak HP the Same as Running HP?

No. Peak HP is a momentary lab spike; running HP (or rated HP) is the power the motor holds continuously while operating. A 2019 class-action settlement found some vacuums advertised at 6.5 Peak HP produced only about 1.93 actual horsepower once running.

Is Higher Peak Hp Better for a Shop Vac?

Not necessarily. A higher peak-HP number doesn’t guarantee stronger real-world suction if the vacuum has a leaky seal, an undersized hose, or low CFM. Compare CFM, sealed pressure, and amps across models instead of relying on the peak-HP figure alone.

Does Peak Hp Affect Shop Vac Performance?

Peak HP itself doesn’t directly determine cleaning performance since it’s a momentary, lab-only number. The specs that actually affect performance are CFM (airflow volume), sealed pressure (suction force), and how well the tank, hose, and filter are sealed against air leaks.

What Is a Good Peak HP for a Shop Vac?

For light garage or workshop cleanup, 2.5–4.0 Peak HP with 50–100 CFM is usually enough. For heavier jobs like clearing sawdust from a planer or picking up standing water, look for 5.0–6.5 Peak HP paired with 150+ CFM and a sealed pressure rating above 50 inches of water lift, rather than judging by peak HP alone.

Conclusion

Peak HP on a shop vac is a lab-only number captured for an instant at startup, not a reliable measure of how the vacuum performs while you’re cleaning. A 2019 class-action settlement over inflated peak-HP claims is a reminder to shop by CFM, sealed pressure, and amps instead. For general shop and garage cleanup, matching those three specs to your workload — not the biggest peak-HP number on the box — is what actually predicts how well a shop vac will perform.
