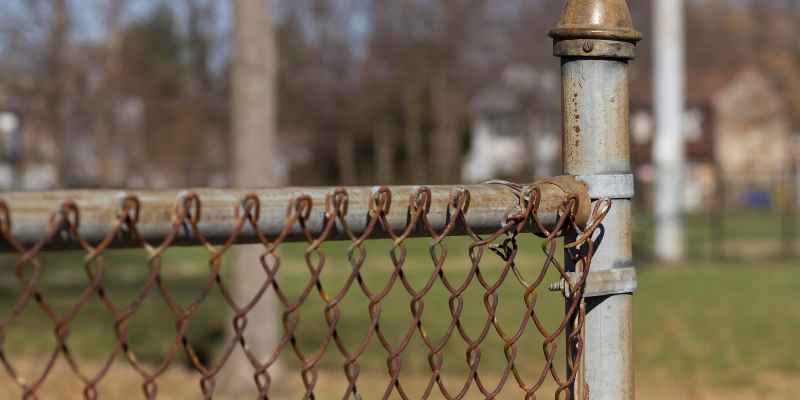

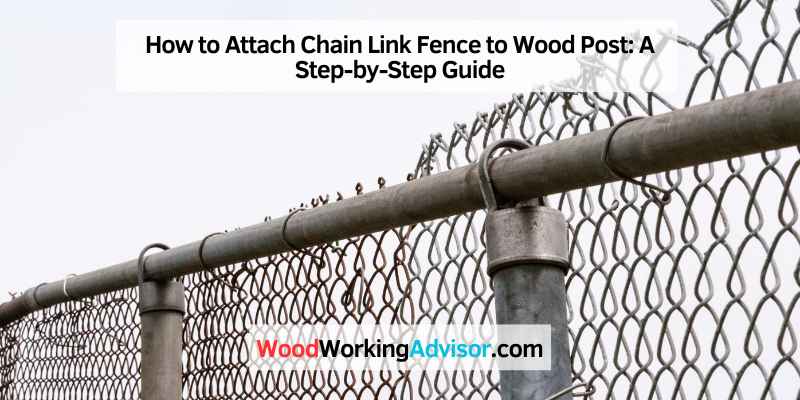

How to Attach Chain Link Fence to Wood Post: A Step-by-Step Guide

To attach a chain link fence to a wood post, use fence ties or hog rings at regular intervals to secure the chain link fabric to the posts. Adjust the tension of the fabric using a fence stretcher or come-along to ensure it is taut and free from sagging.

Installing a chain link fence with wood posts can be a great DIY project for homeowners looking to add privacy and security to their property. However, it’s important to know how to properly attach the chain link fabric to the posts to ensure the fence is sturdy and secure.

By using fence ties or hog rings and adjusting the tension of the fabric, you can effectively attach a chain link fence to a wood post. We will provide step-by-step instructions for installing a chain link fence using wood posts, as well as helpful tips for ensuring a successful installation.

Tools and Materials You Will Need

• Post hole digger or power auger
• Level and tape measure
• Fence stretcher or come-along
• Drill with pilot bits (to pre-drill wood posts)
• Galvanized lag bolts and carriage bolts
• Rail end cups, brace bands, and tension bar
• Fast-setting concrete (for corner and end posts)
• Wire ties or hog rings

How to Attach Chain Link Fence to Wood Post: Step-by-Step

Follow these five steps in order — each one builds on the last, and skipping ahead is the most common cause of a sagging fence line.

1. Set the wood post: Set the wood end or corner post in concrete at least 2 feet deep. Allow 24-48 hours to cure.
2. Attach rail end cups: Secure a rail end cup to the wood post with galvanized lag bolts. Pre-drill to prevent splitting.
3. Install brace bands: Attach brace bands to the post at the top and bottom for the tension bar.
4. Slide rails into end cups: Insert the fence top rail into the rail end cup, which locks the rail to the post.
5. Attach tension bar and fabric: Weave a tension bar through the end links of the chain link fabric. Attach to brace bands with carriage bolts and tighten until taut.

Once the fabric is tensioned at both ends, work along the line posts: attach wire ties to the top rail every 24 inches and to the posts every 12 inches. This keeps the fabric from bowing between posts under wind load.

Need to understand more about Woodworking Projects? This post might help you. Woodworking Projects & Tips: Skills, Materials & Fixes

Frequently Asked Questions For How To Attach Chain Link Fence To Wood Post

How Do You Secure Chainlink To Wood?

To secure chainlink to wood, use fence ties or hog rings to attach the chain link fabric to the top and bottom rail, and line posts at regular intervals. Adjust the tension of the fabric using a come-along or fence stretcher to ensure it’s taut and free from sagging.

Additionally, wooden fence to steel post adapters can be used to attach wood to metal fence posts.

How Do You Fasten A Chain Link Fence To Post?

To fasten a chain link fence to a post, use fence ties or hog rings to secure the fabric to the top rail, bottom rail, and line posts. Adjust the tension using a come-along to ensure it is taut and free from sagging.

Use tension bands and bars to secure the fabric to the post and make sure it is properly aligned. A wooden fence to steel post adapter can be used to attach wood to a metal fence post.

How Do You Attach Wood To A Metal Fence Post?

To attach wood to a metal fence post, use a special adapter called the wooden fence to steel post adapter. These adapters are made from galvanized pressed steel and come in corner, end, line, and universal types. They are long-lasting and able to withstand weather events.

How Do You Hang A Chain Link Gate On A Wooden Post?

To hang a chain link gate on a wooden post, you can use fence ties or hog rings to secure the chain link fabric to the top rail, bottom rail, and line posts at regular intervals. Adjust the tension of the chain link fabric using a come-along or fence stretcher, ensuring it is taut and free from sagging.

Use tension bands and tension bars to secure a chain link fence to a post.

Best Hardware for Chain Link to Wood Post

Chain Link Fence Hardware Kit (Rail Ends, Tension Bands, Brace Bands)

Complete galvanized hardware set including rail end cups, tension bands, brace bands, and carriage bolts. Everything needed to attach chain link fence rails and fabric to wood corner and end posts.

• Best for: Attaching chain link fence to wood end posts and corner posts
• Why we picked it: Complete kit eliminates guesswork on hardware sizing; galvanized steel resists outdoor rust
• Main drawback: Hardware sizes must match your specific fence height and rail diameter

View Our Pick on Amazon

More tools for this project

Option 1 Manual Post Hole Digger Best for: Digging holes for wood fence end posts Why: No power needed; precise hole depth control Drawback: Labor-intensive for rocky or hard soil Amazon

Option 2 Fence Stretcher Bar and Come-Along Best for: Tensioning chain link fabric before securing to posts Why: Prevents sagging; essential for long fence runs Drawback: Overkill for small gate or repair sections Amazon

Option 3 Galvanized Lag Bolts (5/16 x 3 in.) Best for: Securing brace bands and rail end cups to wood posts Why: Stronger than screws; resists outdoor rust Drawback: Must pre-drill to avoid splitting the post Amazon

As an Amazon Associate we earn from qualifying purchases.

Want more in-depth information on Woodworking Projects? Don’t miss this article. Bracket Ideas For Shelves That Are Stylish And Functional

Conclusion

Attaching a chain link fence to a wood post can be accomplished following a simple process using commonly available materials. Whether it’s for residential or commercial purposes, the use of fence ties or hog rings to secure the chain link fabric to the top rail, bottom rail, and line posts is recommended.

Adjusting the tension of the chain link fabric using a come-along or fence stretcher is also necessary, ensuring it is taut and free from sagging. With the right tools and a bit of patience, you can easily attach a chain link fence to a wood post.
