Hyundai Santa Cruz Plywood: Real Bed Size (52.1 x 42.7 In)

A standard 4×8 plywood sheet does not fit flat inside a Hyundai Santa Cruz bed – the floor is only 52.1 inches long and 42.7 inches wide between the wheel wells, well short of the sheet’s 96-inch length. Lower the tailgate to its 20-degree “plywood position” and the usable length grows to 74.8 inches, letting the sheet rest level with the wheel wells instead of tipping. This guide covers the exact bed dimensions, the payload math for hauling multiple sheets, and the securement rules for the roughly 21-inch overhang that results.

Hyundai Santa Cruz Bed Size Explained

Let’s talk about the cargo bed of your Hyundai Santa Cruz. It’s a bit different from a traditional truck. It’s designed for versatility.

This means it’s not as deep as some other trucks. But it’s still very capable for many tasks.

The official cargo bed dimensions are important. They tell you what’s possible. The length of the bed is about 4.3 feet.

The width between the wheel wells is about 3.6 feet (42.7 inches) – not 4 feet, which is the number that trips up most first-time haulers. The bed height is about 1.7 feet (19.2 inches). This gives you a sense of the space you have.

📊 Official spec: 52.1 in bed floor length, 53.9 in max width, 42.7 in between the wheel wells, 19.2 in bed height (74.8 in with the tailgate down). Source: Hyundai Product Specifications, 2023

The Tailgate “Plywood Position” Most Owners Never Use

Hyundai built a dedicated tailgate detent for exactly this job. The owner’s manual calls it the “plywood position” – a stop about 20 degrees up from fully open that raises the tailgate level with the top of the wheel wells instead of letting it hang flat. With the tailgate in that position, a 4×8 sheet lies level across the wheel wells rather than tipping toward the bumper, and the bed’s usable length stretches to 74.8 inches.

Most reviews and owner threads never mention this detent by name, so drivers either drop the tailgate all the way (more sag, more overhang stress on the hinges) or skip hauling sheet goods altogether. Check your tailgate support cables – some owners raise the cable to the top mounting lug specifically to hold this angle steady under a loaded sheet.

When you think about Hyundai Santa Cruz plywood capacity, you’re often thinking about those standard 4×8 foot sheets. This is a common size for building projects. You’ll find that these sheets can fit in the bed.

However, fitting them perfectly requires some thought. The width between the wheel wells is key. It’s a bit less than 4 feet.

This means the plywood won’t sit flat across the whole width without some support or compromise.

Most people find that they can lay the 4×8 sheets inside the bed. The tailgate can then be lowered. This extends the usable length.

It’s a common practice for hauling these materials.

Real-World Experience: Hauling Plywood for the First Time

I remember the first time I tried to haul plywood in my Santa Cruz. I had a small DIY deck project planned. I’d just bought the truck and was excited to use it for its intended purpose.

I headed to the lumber yard, feeling pretty confident.

I picked out two sheets of half-inch plywood, standard 4×8. The guy at the yard asked how I was planning to haul them. I shrugged, thinking, “It’s a truck bed, right?” He just smiled and said, “Tailgate down works fine.”

Getting them into the bed was easy enough. They slid right in. But then I noticed the issue.

The sheets sat on top of the wheel wells. They didn’t lie completely flat. This made me a little nervous about them shifting.

I lowered the tailgate. The sheets extended past the end of the bed by about a foot and a half. It looked a bit precarious.

I made sure to tie them down securely. I used ratchet straps, wrapping them around the plywood and the tie-down points in the bed.

Driving home, I took it slow. I avoided sudden stops or sharp turns. I kept checking them in the rearview mirror.

It wasn’t the most elegant load, but it worked. It felt good to know the Santa Cruz could handle it, even if it required a little planning and care.

What Exactly Fits Inside the Hyundai Santa Cruz Bed?

When we talk about hauling Hyundai Santa Cruz plywood, it’s good to understand the limits. Standard 4×8 sheets are the most common concern. But what else might you need to carry?

Let’s break down what fits based on common dimensions:

Common Building Materials

• Plywood (4×8 sheets): As discussed, these fit with the tailgate down. They will rest on the wheel wells.
• OSB (Oriented Strand Board): Similar to plywood, these 4×8 sheets will fit the same way.
• Drywall (4×8 sheets): These are lighter but can be more fragile. They fit like plywood, but extra care is needed to prevent breakage.
• Lumber (2x4s, 2x6s, etc.): Standard lengths like 8, 10, or 12 feet can fit. Shorter pieces will sit entirely within the bed. Longer pieces will extend past the tailgate.
• Garden Supplies: Bags of mulch, soil, or compost will fit comfortably.
• Small Appliances: Refrigerators, washing machines, or furniture pieces might fit if they are not too tall.

What Might Be a Tight Squeeze?

• Larger Appliances: A large side-by-side refrigerator or a very tall freezer might be too high to fit under a tonneau cover if you have one.
• Longer Lumber (14+ feet): These will likely require an extended load sign and careful securing.
• Sheet Metal: Very large, thin sheets can be tricky due to their size and potential for damage.
• Furniture: Couches or large dining tables may not fit lengthwise or widthwise without careful arrangement or partial disassembly.

The key is often the width between the wheel wells. This is your biggest constraint for flat items.

Optimizing Cargo Space for Sheet Goods

So, you know Hyundai Santa Cruz plywood can fit. But how can you make it easier and safer? There are a few smart ways to optimize the bed space.

One of the biggest helps is using the truck’s features. The multi-function tailgate is a game-changer. You can open it like a traditional tailgate, or you can swing it open like barn doors.

This can sometimes give you better access or angles for loading.

When loading 4×8 sheets, they will likely sit at an angle, supported by the floor and the edge of the tailgate. This is where securing them becomes super important.

Consider using tie-down straps. These are essential. Wrap them around the plywood and secure them to the D-rings in the bed.

Make sure they are tight. This stops the sheets from sliding or shifting while you drive.

What about preventing damage? Plywood edges can chip. The bed can get scratched.

Some people use old blankets or cardboard on the bed floor. This adds a bit of cushioning.

If you haul sheet goods often, you might look into accessories. A bed extender can be very useful. This is a bar that attaches to your tailgate.

It extends the usable length of the cargo area. This can make carrying longer items much more stable.

How Many Sheets Can the Santa Cruz Actually Carry?

The Santa Cruz has a payload rating of 1,411 lbs, which covers passengers, cargo, and tongue weight combined. A 1/2-inch CDX plywood sheet weighs roughly 40-50 lbs; a 3/4-inch sheet runs closer to 60-70 lbs. Do the math and payload alone would allow well over a dozen sheets – so weight is rarely what limits a load. The real ceiling is bed space and load stability: past 2-3 sheets, the stack gets tall enough on top of the wheel wells that it shifts under braking, which is the actual safety limit, not the payload sticker.

Plywood Thickness	Weight per 4×8 Sheet	Sheets Within 1,411 lb Payload
1/2 in CDX	~40-50 lbs	~28-35 (space limits you to 2-3 first)
3/4 in CDX	~60-70 lbs	~20-23 (space limits you to 2-3 first)

When is Plywood Transport NOT Recommended in a Santa Cruz?

While the Hyundai Santa Cruz is capable, there are times when hauling plywood might not be the best idea.

First, consider the quantity. If you need to haul more than 2-3 sheets of standard 4×8 plywood, it might become unsafe. The weight can add up.

More importantly, the load could become unstable. Too much weight can also affect your braking and handling.

Second, think about the weather. Driving with an extended load in heavy rain or strong winds can be dangerous. The plywood acts like a sail.

If it’s unsecured or poorly secured, it could shift or even fly off. Always check the weather forecast.

Third, if you have a bed cover installed, like a retractable or folding cover, you generally cannot haul plywood. These covers restrict the height and length of what you can carry. You would need to remove the cover first.

Finally, consider the complexity of your load. If you have a mix of items, some long, some heavy, and some fragile, it might be better to make multiple trips or use a larger vehicle if possible. A chaotic load is a dangerous load.

Legal and Safety Considerations for Hauling

When you’re hauling anything, especially items that extend beyond your vehicle, safety and legality are paramount. For Hyundai Santa Cruz plywood, this means understanding a few rules.

Overhang Laws: Most states have laws about how far a load can extend past the rear of your vehicle. Typically, it’s around 3 to 4 feet. You MUST check your local laws.

If your plywood extends significantly, you will likely need to use an overhanging load sign. This is usually a red or orange flag during the day and a red light at night.

Securement: This is non-negotiable. Unsecured loads are a major hazard. They can shift, fall out, and cause accidents.

Use proper tie-downs like ratchet straps or heavy-duty rope. Ensure they are tied to strong points on the vehicle.

Visibility: Make sure your brake lights and turn signals are not blocked by your load. If they are, you may need to add temporary lighting or remove the obstruction.

Speed and Driving Habits: When hauling an extended load, you need to drive differently. Avoid high speeds. Take turns slowly and smoothly.

Accelerate and brake gently. Be aware that your vehicle’s handling characteristics will change.

Weight Limits: While a few sheets of plywood won’t usually exceed the Santa Cruz’s payload capacity, it’s always good to be aware of it. Overloading can damage your suspension and affect safety.

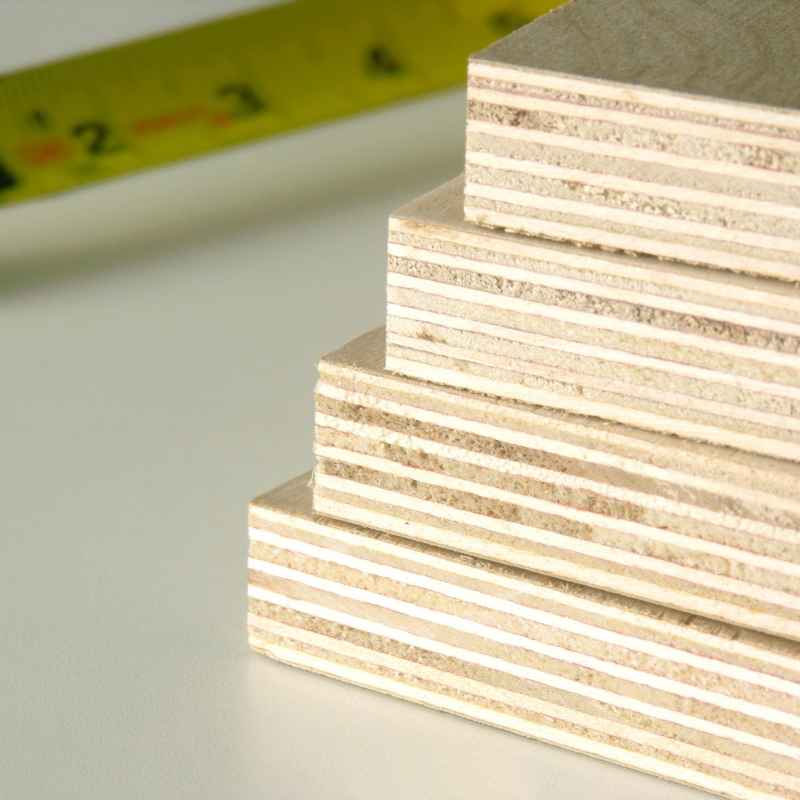

What If Plywood Doesn’t Quite Fit? Alternatives

Sometimes, even with the tailgate down, you might find that your cargo is just a bit too long or bulky for comfort. Or maybe you want to avoid the overhang altogether.

One option is to have the lumberyard cut your materials for you. Many places that sell plywood will cut it down to smaller, more manageable sizes. You might be able to get them to cut a 4×8 sheet into two 4×4 pieces, or even 4×2 pieces.

These will fit much more easily inside the Santa Cruz bed without any overhang.

Another option is to consider renting a trailer. If you need to haul large quantities or very long items regularly, a small utility trailer can be a good investment or rental. This gives you significantly more cargo space and avoids putting stress on your Santa Cruz’s bed.

For very specific projects, you might also consider alternative materials. For example, if you need panels for a small project, you could buy smaller pre-cut panels if they are available and suitable. This avoids the need to transport full 4×8 sheets.

Frequently Asked Questions about Hyundai Santa Cruz Cargo

Conclusion

The Hyundai Santa Cruz offers a unique blend of car-like comfort and truck-like utility. When it comes to hauling Hyundai Santa Cruz plywood, you can absolutely do it. Standard 4×8 sheets fit with the tailgate down.

It requires careful loading, securement, and mindful driving. Pay attention to overhangs and local laws. For frequent or large hauls, consider alternatives like cutting services or a trailer.

With a little planning, your Santa Cruz can be a great partner for your DIY projects.
