Shiplap vs Wainscoting: Cost, Look and Install Compared

Shiplap and wainscoting both put wood on your walls, but they are different jobs. Shiplap is horizontal boards, usually covering the whole wall. Wainscoting is paneling that covers the lower third or so and stops at a cap rail.

Most comparisons stop at “shiplap is rustic, wainscoting is formal” and “shiplap is cheaper.” That second point is only half true. Below you will find the differences that matter when you actually build: cost per square foot, what that means for a real room, how high to run each one, and where each one fails.

If you are also weighing beadboard, see our separate shiplap vs beadboard comparison.

Shiplap vs Wainscoting at a Glance

Here is the short version before the detail.

	Shiplap	Wainscoting
What it is	Horizontal boards that overlap or interlock	Paneling on the lower part of the wall, capped with a rail
Typical coverage	Often the full wall, sometimes a lower section	Usually the lower third (about 32 to 36 inches)
Installed cost per sq ft (published guides)	About $3 to $11	About $10 to $40
Styles	One basic look, changed by board width and paint	Raised panel, flat panel, beadboard, board and batten
DIY difficulty	Lower: straight cuts and nailing	Flat panel is easier; raised panel is harder
Best fit	Casual rooms, bedrooms, living rooms, accent walls	Dining rooms, hallways, stairways, entries

Cost ranges are from published cost guides (HomeGuide and Angi, 2026 figures) and vary by region, material and installer.

What Each One Actually Is

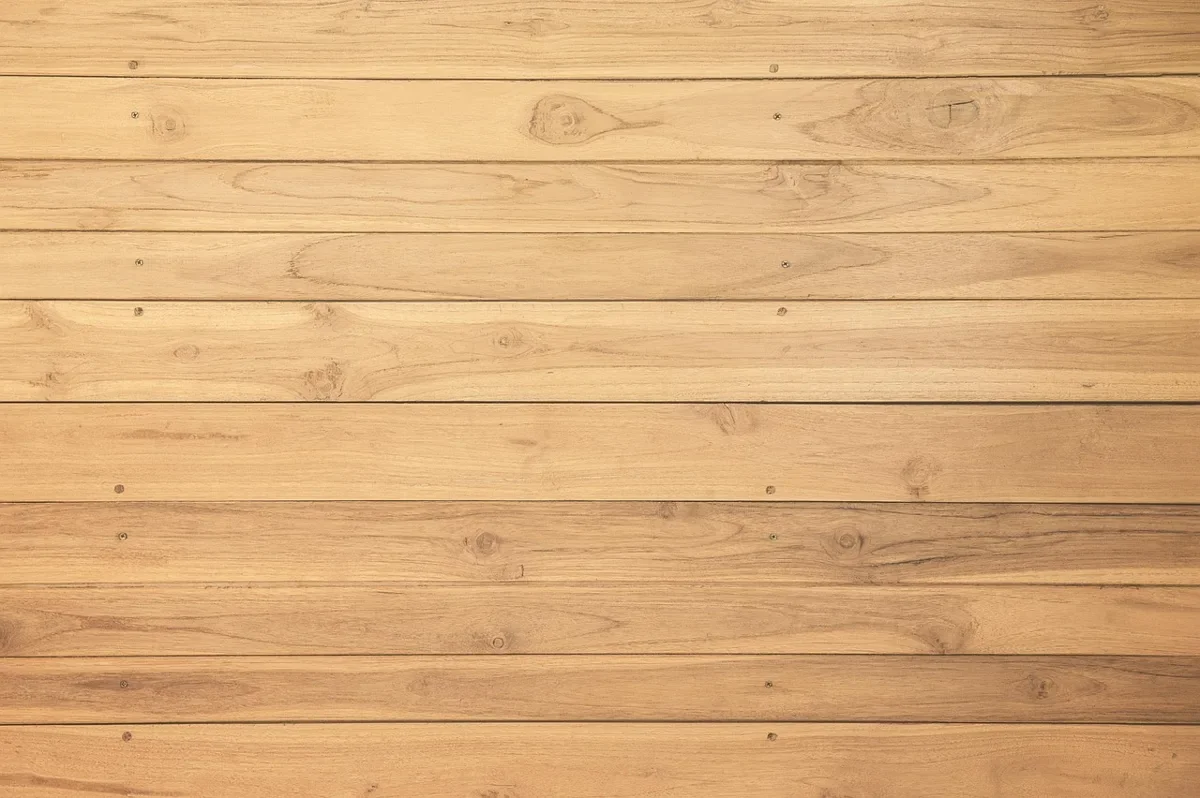

Shiplap

Shiplap is a board profile made to sit tight against the next board, traditionally with a stepped edge (a rabbet) so neighbors overlap. On interior walls the word is used loosely: plenty of “shiplap” sold today is tongue-and-groove pine, plywood strips or pre-primed MDF boards. Our guide on installing prefinished shiplap covers the nailing pattern, and staggering the joints helps the seams look natural.

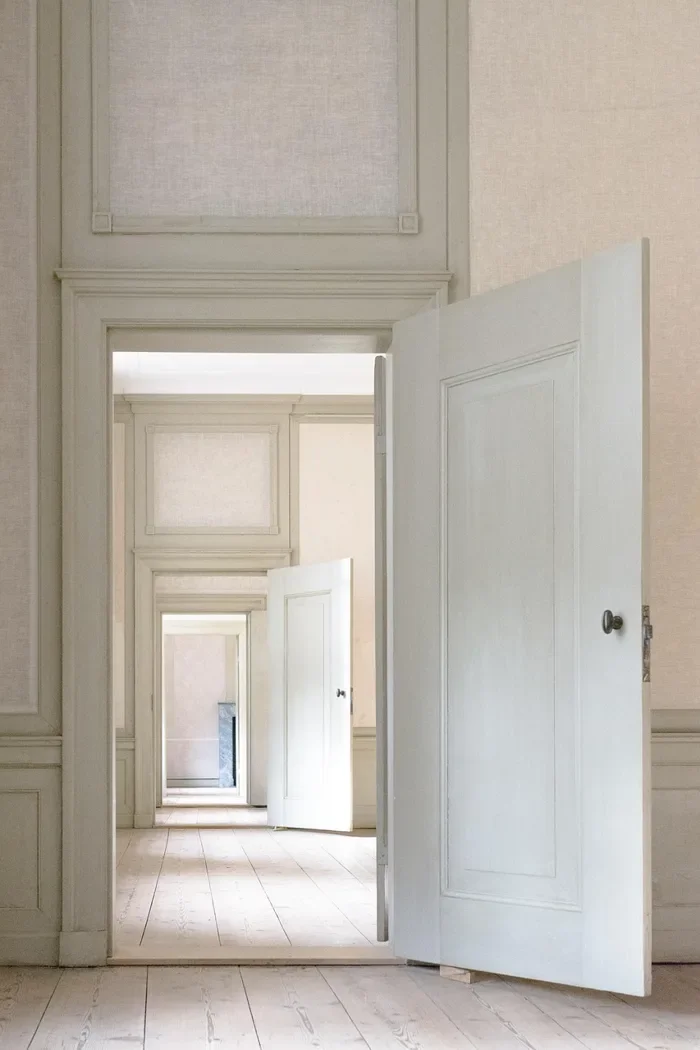

Wainscoting

Wainscoting is a wall treatment, not a single material. The main styles are raised panel (beveled center panels, the classic Colonial look and the most expensive), flat or shaker panel (a flat center that sits level with the trim frame, easiest to DIY), beadboard, and board and batten. You can even build wainscoting out of shiplap. That is why the two are not strict opposites. If you plan to cut your own, read how to cut wainscoting first.

Cost: Why Per-Square-Foot Numbers Mislead

Published guides put installed shiplap at roughly $3 to $11 per square foot, with materials around $2 to $7 and labor around $1 to $4. Wainscoting is listed at roughly $10 to $40 per square foot installed, with basic beadboard panels running about $1.50 to $4 per square foot in materials before trim, paint and labor. Shiplap used as wainscoting is listed around $10 to $20 per square foot.

Here is what most articles skip: those numbers apply to different amounts of wall. Shiplap usually goes floor to ceiling, while wainscoting covers about a third. The worked example below uses the ranges above for a 10 by 12 foot room with 8-foot walls. It is our own arithmetic, not a quote, and it ignores doors, windows and paint.

Option	Wall area covered	Low estimate	High estimate
Shiplap, full walls (8 ft)	About 352 sq ft	About $1,060	About $3,870
Wainscoting, 32 in high	About 117 sq ft	About $1,170	About $4,690
Shiplap wainscoting, 32 in high	About 117 sq ft	About $1,170	About $2,350

The takeaway: covering the whole room in shiplap can cost about the same as wainscoting the lower third. The cheaper-per-foot option is not automatically the cheaper project. Real prices depend on your material, your region and whether you hire it out, so get local quotes before you commit.

Height and Layout Rules

For wainscoting, the common rule is one-third of the wall height, including the cap. That works out to about 32 inches on an 8-foot wall and 36 inches on a 9-foot wall. Going noticeably taller or shorter than a third tends to look off, and the cap rail should line up with the room rather than land at a window sill by accident.

Shiplap has no height rule because it can run to the ceiling. When you stop it partway up, finish the top edge with a cap or rail so it reads as a deliberate wainscot.

Installing Each One

• Prep: Locate studs, mark them, and check that the wall is flat. Both styles follow the wall, so bumps show through.
• Shiplap: Start from a level line, nail through the boards into studs, and keep the reveal consistent using a spacer.
• Wainscoting: Mark the cap height, fasten the base and panels or frames, then add the top rail and fill and paint the joints. More pieces means more cuts and more caulking than shiplap.
• Fasteners: An 18-gauge brad nailer handles thin boards, panels and trim; the pick in the box above accepts 18-gauge nails from 5/8 to 2 inches according to its listing.

If you want a hands-on project, our wood panel wall guide walks through building a wall from raw boards.

Moisture, Durability and Where Each One Fails

Both treatments are painted, so the real durability question is the material underneath. Solid wood and MDF do not like standing water, and unsealed cut edges of MDF are the usual place trouble starts. PVC boards handle damp rooms better. Shiplap grooves collect dust, and wainscoting rails and panel corners do too, so plan on a soft brush and a damp cloth for both.

Wainscoting also has a practical job that shiplap does not have to do: the lower wall in a hallway or dining room takes scuffs from chairs and bags, and paneling with a hard painted finish is easier to wipe than plain drywall.

Three Myths Worth Dropping

• “Shiplap is always cheaper.” Only per square foot. It usually covers three times as much wall, so the project total can match wainscoting (see the worked example above).
• “Wainscoting means fancy raised panels.” Flat panel, beadboard and board and batten all count as wainscoting, and flat panel is among the easiest styles to DIY.
• “They are competing styles.” They are not exclusive. Shiplap can be the wainscoting, or you can use wainscoting in the dining room and shiplap in a bedroom without clashing, as long as the trim color stays consistent.

If you are still stuck, sketch the room with a line at one-third height. Whatever you would put below that line is wainscoting territory; whatever you would run to the ceiling is shiplap territory.

Which Should You Choose?

• Choose shiplap for a casual bedroom, living room or accent wall, or when you want a simple DIY job with straight cuts.
• Choose wainscoting for a dining room, entry or stairway where you want a formal look and a wall that resists scuffs.
• Choose shiplap wainscoting if you like the plank look but want the classic proportions of a lower wall panel.
• Check your total, not the per-foot price, because coverage differs.

Frequently Asked Questions

Can you use shiplap as wainscoting?

Yes. Shiplap boards can be run on the lower third of a wall and finished with a cap rail, which is often called shiplap wainscoting. One cost guide we read puts shiplap used this way at roughly $10 to $20 per square foot installed, which is above plain full-wall shiplap because of the extra trim.

Which is cheaper, shiplap or wainscoting?

Per square foot, shiplap usually costs less: published guides list about $3 to $11 installed for shiplap and $10 to $40 for wainscoting. But wainscoting only covers the lower third of a wall, so for a real room the totals can overlap. Price your actual square footage before deciding.

How high should wainscoting be?

The common rule is one-third of the wall height, measured including the cap. That is about 32 inches for an 8-foot wall and 36 inches for a 9-foot wall.

Is shiplap or wainscoting better for a bathroom?

Neither is automatically better; the material matters more than the style. Bare wood and MDF can swell in a wet room, so PVC boards or well-sealed and painted material suit bathrooms better, and both styles can be built from them.

Which is easier for a beginner to install?

Shiplap is generally easier because you cut and nail straight boards. Of the wainscoting styles, flat-panel is described as among the easiest to DIY because it needs no beveling, while raised-panel work is harder.

What nailer works for installing shiplap or wainscoting?

An 18-gauge brad nailer handles thin boards, panels and trim. For thicker stock or a firmer hold on heavy cap rails, many installers step up to a heavier finish nailer or add construction adhesive.

Conclusion

Shiplap and wainscoting are not just two looks; they cover different amounts of wall and cost differently as projects. Decide the room and the coverage first, price your own square footage, then pick the style. For either one, a decent brad nailer and a level line matter more than any trend.
