Shiplap vs Beadboard: Cost, Moisture and Which to Pick

Shiplap is horizontal boards with overlapping edges that leave a thin shadow line, while beadboard is narrow vertical boards with a rounded bead every couple of inches. Beadboard is the classic pick for lower walls, kitchens, and ceilings, and shiplap is the flat, board-by-board farmhouse look. This guide compares the profiles, real cost ranges, moisture limits, and installation steps for each.

Shiplap vs Beadboard at a Glance

	Shiplap	Beadboard
Profile	Flat face with rabbeted edges that overlap	Vertical grooves (beads) spaced every few inches
Typical direction	Horizontal, sometimes vertical or on ceilings	Vertical, almost always
Typical form	Solid boards, commonly 1×6 or 1×8 pine or cedar	4×8 sheets (plywood, MDF, hardboard) or tongue and groove planks
Style	Modern farmhouse, coastal, rustic	Cottage, traditional, country
Best spots	Accent walls, ceilings, living rooms	Wainscoting, kitchens, mudrooms, ceilings
Installed cost (Angi averages)	About $2.50 to $7 per sq ft	About $7 to $20 per sq ft for wood paneling

The cost row comes from Angi cost guides and covers installed prices, so local labor moves the numbers. Material-only prices are lower for both.

What Each One Actually Is

Shiplap

Real shiplap has a half-depth rabbet cut into the top and bottom edges of each board. Each board laps over the one below it, so the seam sheds water and leaves a small, uniform gap. That gap is why designers talk about a “nickel gap,” a spacing roughly the thickness of a US nickel. Boards are usually solid wood, though MDF and PVC versions exist.

Watch the label. A lot of “shiplap” sold for interior walls is tongue and groove with a shallow reveal, or a square-edge board you space yourself. The look is nearly identical once painted, but the joints behave differently when boards swell and shrink.

Beadboard

Beadboard is a pattern, not a single material. The bead is a small rounded ridge milled next to a groove, and the pattern repeats across the panel. It comes two ways. Sheets are thin panels, typically 4×8 feet, with the bead pattern printed or milled into the face. Planks are individual tongue and groove boards, each with one bead, which cost more and install more slowly.

For the sheet version, the bead spacing is fixed by the manufacturer and typically falls in the range of about two to three inches, so measure the sample before you buy if you are matching existing paneling. If you need to trim sheets to size, our guide on how to cut beadboard paneling covers blade choice and tear-out.

The Moisture Myth: Beadboard Is Not Automatically Better in Bathrooms

A common rule says beadboard belongs in bathrooms and shiplap belongs in living rooms. The real driver is the material underneath. Sheet beadboard made from MDF or hardboard is a wood-fiber product, and once water gets into a cut edge or an unsealed back it swells and does not shrink back. Solid wood shiplap moves with humidity but recovers when it dries, provided every face is primed and painted.

• Steamy or splash zones: PVC or vinyl beadboard planks are waterproof and are the safest option for a full bathroom.
• Powder rooms and half baths: primed and painted solid wood shiplap or beadboard works if you seal cut edges and caulk the seams.
• Kitchens: behind a sink, use a moisture-resistant panel or stop the paneling above the backsplash.
• Basements: avoid MDF against masonry walls unless there is a vapor barrier and an air gap.

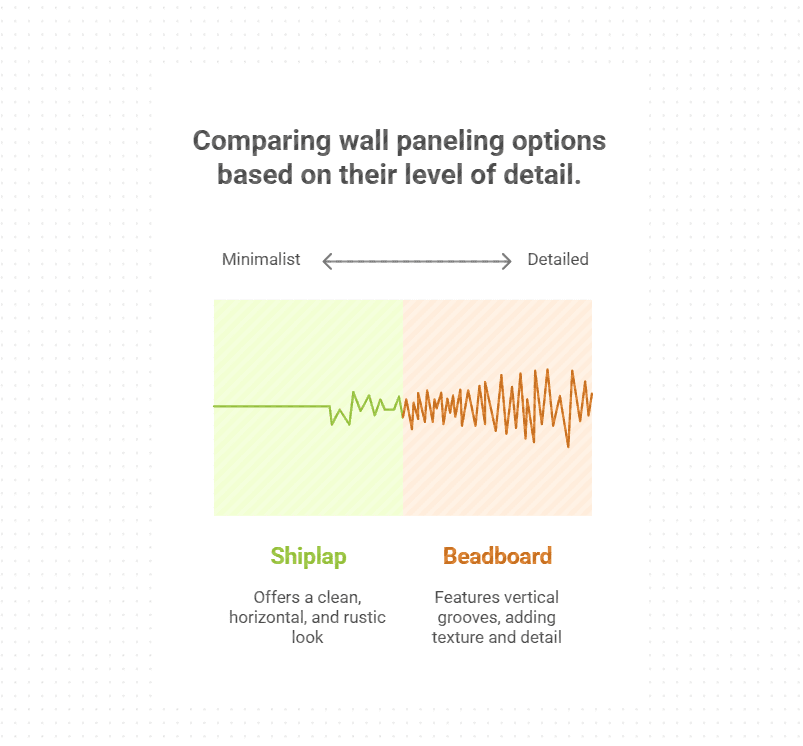

Look and Feel

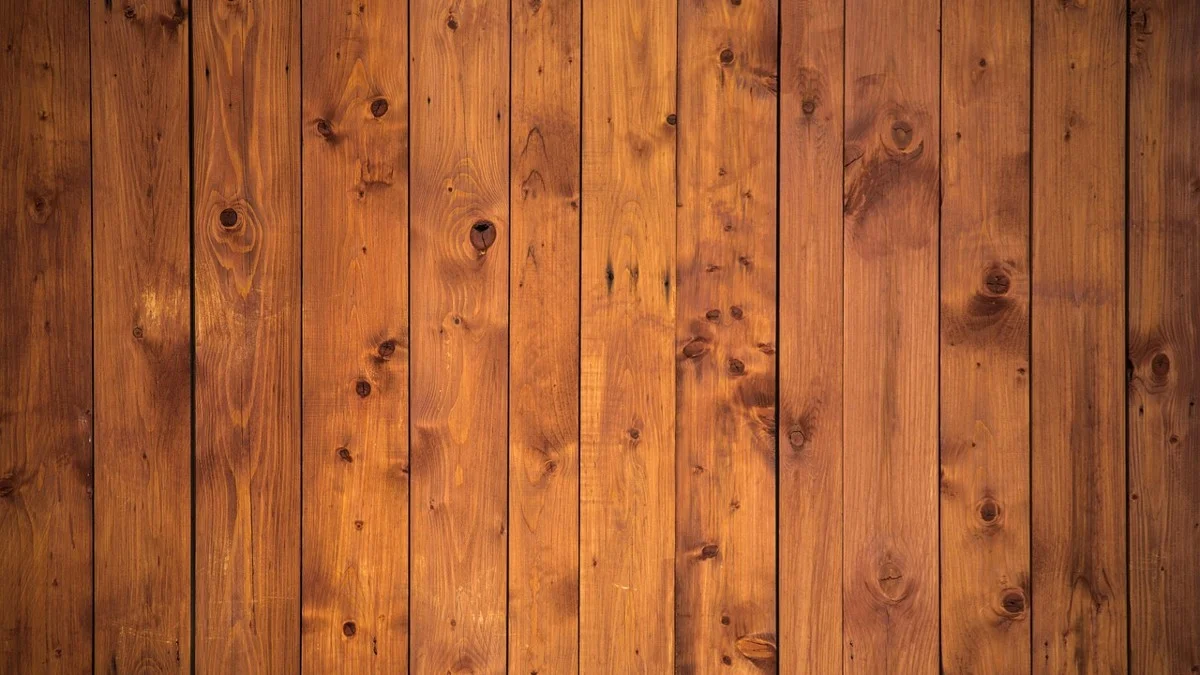

Shiplap reads as a wall of boards. Every seam is a clean horizontal line, so it tends to make a room feel wider, and the flat face takes paint evenly. It suits a modern farmhouse or coastal style, and it is easy to keep consistent because there is no pattern to match.

Beadboard adds vertical rhythm. The lines draw the eye up, which is why it works so well as wainscoting and on porch ceilings. The grooves catch dust and paint, so it looks more traditional and a little more detailed. White or a soft color is the usual choice, and a cap rail on top finishes the edge.

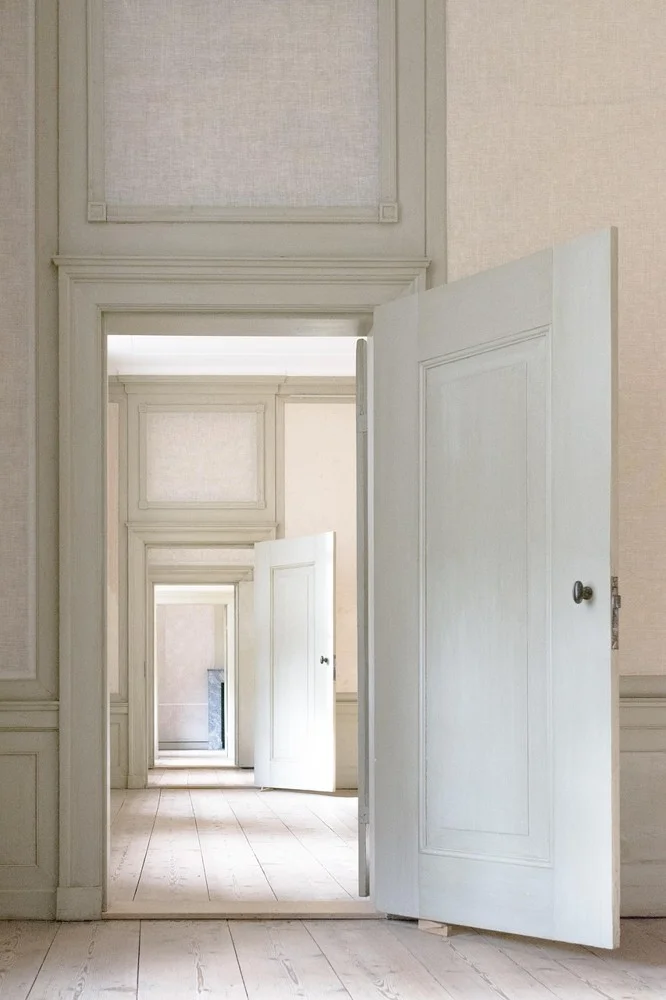

If you are also weighing wainscoting styles such as raised panel and board and batten, we compare those in shiplap vs wainscoting. Beadboard is one of the types of wainscoting, so the two questions overlap only slightly.

Cost: Sheets vs Boards

Per square foot, beadboard sheets are usually the cheapest way to cover a wall, because one 4×8 sheet covers 32 square feet and hangs in minutes. Solid shiplap boards are priced per board or per linear foot, and every board is cut, nailed, and spaced individually. That is why labor pushes shiplap installs up when you hire a pro.

A quick way to budget: measure wall width times height, add 10 percent for cuts and waste, then price it both ways at your local lumber yard. Add trim, caulk, primer, paint, and nails. The paneling itself is often less than half the total on a paint-grade job. For a board-length and coverage look at one popular shiplap size, see 8-foot pine shiplap plank sizing and coverage.

Installing Each One

Shiplap over studs or drywall

1. Find and mark the studs, typically 16 inches on center, with a stud finder and a level line.
2. Let the boards sit in the room for a few days so they acclimate to the humidity.
3. Start at the bottom or top with a level first course, since every board after it follows the first.
4. Space each board with a nickel or a spacer for an even gap.
5. Nail into studs with 18-gauge brads, keeping nails away from the very edge so the board does not split.
6. Fill the nail holes, caulk the top and bottom edges, prime, and paint.

If you want a staggered plank layout instead, see how to stagger wood planks on a wall.

Beadboard sheets

1. Set the sheet against the wall for a day so it acclimates, especially if the room is humid.
2. Trim outlet cutouts by measuring from the sheet edge rather than eyeballing them.
3. Run a bead of panel adhesive on the back, press the sheet on, and pin it with brads into the studs.
4. Set the top edge with a cap rail and the bottom with baseboard to hide the cut edges.
5. Caulk the corners and edges, then prime and paint.

Both jobs go much faster and neater with a brad nailer instead of a hammer, since the small head leaves a hole that fills and paints out cleanly.

Which Should You Choose?

• Choose shiplap for an accent wall, a ceiling, or a room where you want a modern farmhouse look.
• Choose beadboard sheets for a budget wainscot, a mudroom, or a quick lower-wall cover-up.
• Choose PVC beadboard for a full bathroom or any wall that will get wet.
• Combine them if you like both: beadboard low, painted shiplap or plain drywall above.

For more layouts and ideas, browse our wood accent wall ideas.

Frequently Asked Questions

Which is better for a bathroom, shiplap or beadboard?

Neither wins on its own. What matters is the material. Solid wood shiplap that is sealed on every face holds up in a bathroom, while MDF beadboard swells when water reaches the edges. PVC or vinyl beadboard is the safest choice for a shower-adjacent wall. Keep either style above the splash zone and seal the seams with paintable caulk.

Is beadboard cheaper than shiplap?

Usually the material is cheaper, because beadboard often comes as 4×8 sheets that cover a lot of wall fast. Solid wood beadboard planks and shiplap cost about the same per board. Total installed cost depends on labor, trim, and paint, so price your actual wall square footage before deciding.

Can you put shiplap and beadboard in the same room?

Yes, and it is a common pairing. A typical layout is beadboard wainscoting on the lower third of the wall with a cap rail, then paint or shiplap above it. Keep the paint color the same and let the two textures do the contrast.

Can you install beadboard or shiplap over drywall?

Yes. Locate the studs, then nail through the paneling into the studs. Beadboard sheets can also be glued to the drywall with panel adhesive, but nails into studs are what hold it long term. Remove outlet covers and cut the panel to fit around the boxes.

Is shiplap the same as tongue and groove?

No. Shiplap boards have rabbeted edges that overlap each other, leaving a small shadow line. Tongue and groove boards have a projecting tongue that slots into a groove on the neighboring board. Many products sold as shiplap are actually tongue and groove, so check the edge profile before you buy.

Conclusion

Shiplap and beadboard are both easy DIY wall treatments, and both look best painted. Pick shiplap for flat horizontal lines on an accent wall or ceiling, and beadboard for lower walls and traditional rooms. Choose the material before the style if moisture is a factor, because that is where wall paneling fails.
