Grizzly 17-Inch Bandsaw Review (G0513X2BF): Specs, Price & Verdict
The Grizzly G0513X2BF is a 17-inch, 2 HP bandsaw priced at $2,575 that resaws up to 12 inches deep on a 16-1/4-inch throat — the current Extreme-Series replacement for Grizzly’s original G0513, which Amazon no longer carries. Its cast-iron trunnion and foot brake add real safety margin over the base G0513X2, but at nearly $2,600 it only makes sense for serious resaw work, not casual curve-cutting. This review covers specs, real-world fit, accessories, and cheaper alternatives.
Grizzly G0513X2BF Specs at a Glance
| Spec | Grizzly G0513X2BF |
|---|---|
| Motor | 2 HP, 220V single-phase, 10 amps, 1725 RPM |
| Cutting capacity / throat | 12″ max height, 16-1/4″ left of blade |
| Blade speeds | 1700 & 3500 FPM (2-speed) |
| Blade size | 131-1/2″ long |
| Table | 23-5/8″ x 17-1/4″ cast iron, tilts 5° left / 45° right |
| Overall size | 73″ H x 32″ W x 32″ D |
| Street price | $2,575 (Amazon, Sept. 2026) |
Best 17-Inch Resaw Bandsaw Pick
 |

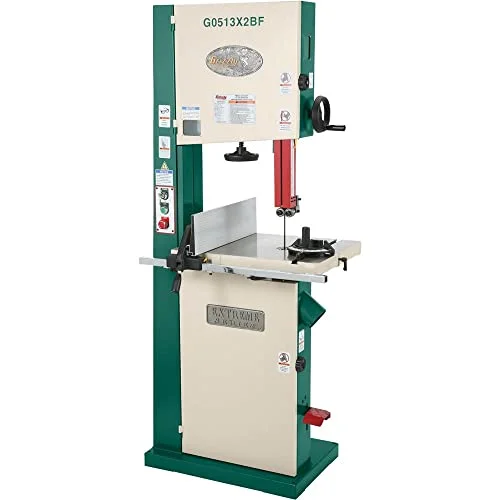

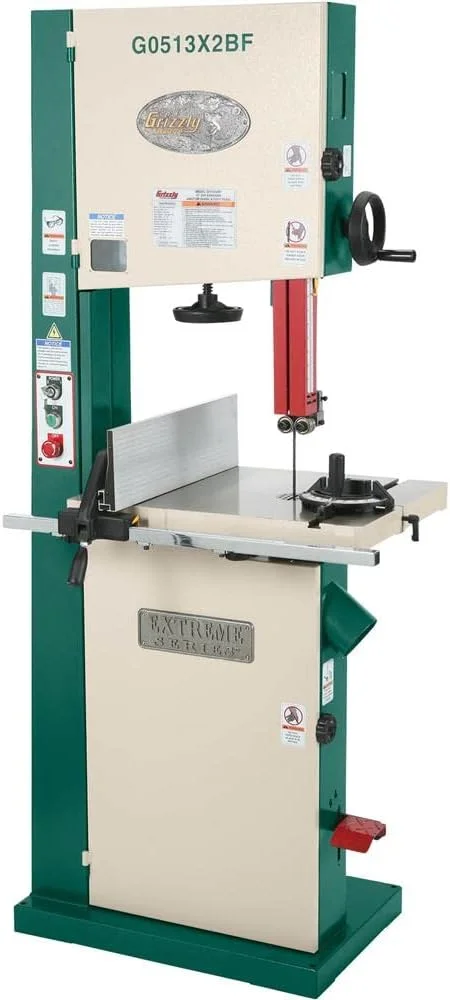

Grizzly G0513X2BF 17" 2 HP Extreme-Series Bandsaw – $2,575.00 The current Extreme-Series version of the 17" Grizzly bandsaw reviewed above — 12" resaw height, cast-iron trunnion, and a foot brake for fast emergency stops.
|
Who the Grizzly 17" Bandsaw Is Actually For
A 12-inch resaw height and 16-1/4-inch throat put this saw in a different class than the 6-8″ benchtop bandsaws most hobbyists start with — it’s built for slicing thick slabs into bookmatched panels, resawing veneer, and cutting curves in stock too thick for a smaller saw. At 428 lbs on the closely-related G0513X2BF frame, it needs a dedicated floor spot, not a bench. If your work is mostly thin stock, scroll-style curves, or you’re on a tighter budget, the specs below don’t justify the price — see our full saw-type buying guide or the alternatives section near the bottom.
Foot Brake and Cast-Iron Trunnion: What the X2BF Adds
The “BF” in G0513X2BF stands for foot brake — a mechanical brake pedal that stops the blade fast in an emergency, on top of the automatic motor brake that already halts the blade within about two seconds of shutdown. The cast-iron trunnion (versus a stamped-steel trunnion on cheaper saws) holds table-tilt calibration more reliably over years of use, which matters more on a 12″ resaw saw than on a small hobby saw because resaw cuts amplify any table-to-blade misalignment across the full cut height.
Maintenance: Replacing the Stock Bandsaw Tires

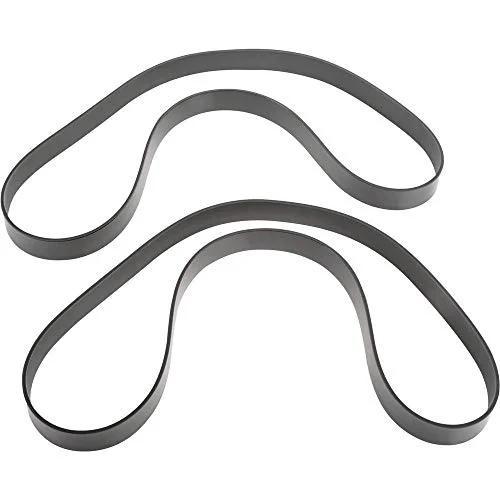

Like any bandsaw, the wheels’ rubber/urethane tires eventually crack or lose tracking accuracy and need replacing. For the G0513 family (G0513, G0513X2, G0513X2B, G0513X2F, and this G0513X2BF), the 17″ urethane tire pair (T23071) is a direct-fit, no-adhesive replacement — it stretches on without glue and can be reheated in hot water to reseat or remove. Budget for this as a wear item within the first few years of heavy use, not a defect if it happens.
“The spec that actually separates a 17" resaw bandsaw from a hobby saw isn’t horsepower, it’s the resaw height — a 12" cut lets you bookmatch a slab in one pass instead of flipping and re-registering the stock.”
Alternatives If 17" Is Overkill
Two Grizzly-class alternatives cover most of what pushes buyers toward a 17″ saw, at a lower price and footprint:

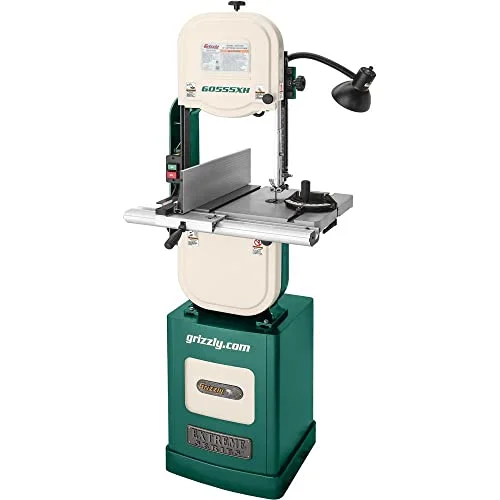

- Grizzly G0555XH (14″, 1-3/4 HP): A 12″ resaw capacity on a smaller frame, with a cast-iron frame, included resaw fence, and CSA certification — the practical step-down if 17″ of throat isn’t necessary for your stock width.
- JET Black 14″ Woodworking Band Saw (1.75 HP): A 13″ deep-cut resaw capacity, cast-iron table, and JET’s 5-year warranty, at a lower price point than the G0513X2BF — a reasonable pick if you want deep resaw without the 17″-class price or floor space.
Both trade a few inches of throat width for a meaningfully smaller footprint and lower cost, which is the right trade for most shops that don’t regularly resaw stock wider than about 12-13″.
If you are also weighing a different brand, our Harvey bandsaw review covers a comparable resaw-class machine from a different manufacturer.
Frequently Asked Questions
What are the dimensions of the Grizzly G0513X2BF 17″ bandsaw?
The Grizzly G0513X2BF measures 73″ H x 32″ W x 32″ D, with a 23-5/8″ x 17-1/4″ cast-iron table.
Does the Grizzly G0513X2BF have a foot brake?
Yes. The G0513X2BF includes both an automatic motor brake that stops the blade within about two seconds of shutdown and a mechanical foot brake pedal for a faster emergency stop.
How many tires come in the T23071 replacement set?
The T23071 urethane tire replacement comes as a pair (two tires), one for each wheel, and fits the full G0513 family including the G0513X2BF.
Is the Grizzly G0513X2BF worth $2,575?
It’s worth it if you regularly resaw stock up to 12 inches thick and want a cast-iron trunnion plus foot brake for added safety margin. For lighter-duty curve-cutting or thinner stock, a smaller 14″ saw like the Grizzly G0555XH or JET Black 14″ covers most of the same resaw capability for less money and floor space.
Conclusion
The Grizzly G0513X2BF earns its $2,575 price for shops doing regular resaw work: a 12″ resaw height, cast-iron trunnion, and foot brake are real, usable upgrades, not marketing extras. If your stock rarely exceeds 12-13″ thick or your budget is tighter, the Grizzly G0555XH or JET Black 14″ deliver most of the same capability in a smaller, cheaper package.
