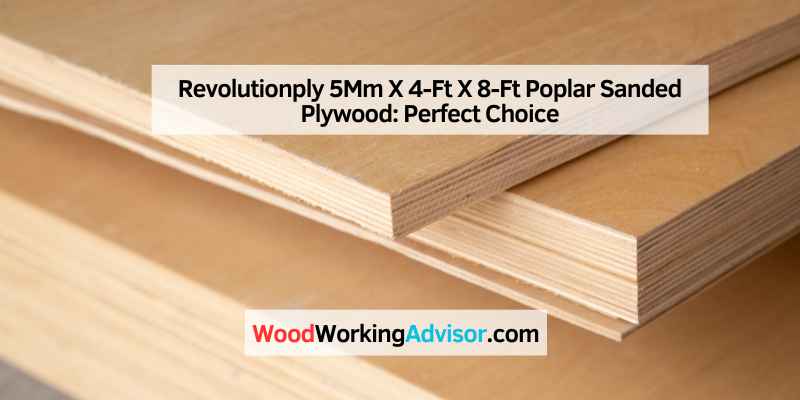

RevolutionPly 5mm Poplar Sanded Plywood: Specs & Price (2026)
RevolutionPly 5mm x 4-ft x 8-ft Poplar Sanded Plywood is a 5-ply, A-grade underlayment panel from Patriot Timber — built for interior flooring, wall paneling, and millwork, not exterior use. Skip the maker’s install rules (screws only, never glue, a 1/8″ wall gap) and floors crack or buckle. This guide covers the real specs, the current Lowe’s price, and what buyers report before you install a sheet.
Quick Answer
RevolutionPly 5mm x 4-ft x 8-ft Poplar Sanded Plywood is a 5-ply, A-grade underlayment panel (Lowe’s Item #50121135, Model #518477) that runs about $28 a sheet. It’s rated for interior flooring, wall paneling, and millwork — not exterior use — and the maker requires screws only, never glue, under the panel.
What Is RevolutionPly Plywood?
RevolutionPly is a 5-ply plywood panel made by Patriot Timber Products from 100% plantation-grown poplar veneer, with no tropical hardwood species. Every panel carries an A-grade or better face veneer over a machine-dried core, and the face is factory-sanded smooth for paint or stain.
It’s marketed as a sustainable alternative to Lauan and Meranti plywood, the tropical-hardwood sheets it’s designed to replace in flooring and paneling work.
Real Specs & Certifications
The numbers below come from Patriot Timber’s own RevolutionPly spec sheet, not the vague “strong and durable” marketing copy most retailer listings repeat.
| Spec | Detail |
|---|---|
| Nominal thickness | 5mm (5.2mm as manufactured; 5.2mm is the thickness approved for underlayment) |
| Panel size | 4-ft x 8-ft (3-ft x 7-ft and other sizes also made) |
| Construction | 5-ply, machine-dried core, A-grade or better poplar face veneer |
| Weight | ≈17 lbs per panel |
| Rated use | Interior only — flooring underlayment, wall paneling, millwork |
| Certifications | ICC-700 NGBS Green Certified; EPA TSCA Title VI compliant; 100% plantation-grown veneer, no tropical species |
| Item / Model # | Lowe’s Item #50121135 / Model #518477 |
Price & Where to Buy
RevolutionPly 5mm x 4-ft x 8-ft Poplar Sanded Plywood sells for about $28.48 a sheet at Lowe’s (Item #50121135, Model #518477), with a bulk discount around $25.63 each on orders of 65 or more panels. Pricing on lumber items changes often, so treat this as a starting point and confirm the current price in-store or at Lowes.com.
A 4×8 sheet this size is a freight-class item, which is why you won’t find RevolutionPly itself sold on Amazon — it ships by the pallet to home centers and lumber yards, not by the single sheet. What you can buy on Amazon is the accessory that actually determines how clean your cuts come out: the right blade for a thin, sanded panel.
Best Blade Pick for This Plywood
FOXBC 7-1/4″ 140-Tooth Fine Finish Blade – $19.99
This guide’s buyer feedback below notes RevolutionPly’s face veneer can chip on a standard framing blade — this 140-tooth blade is built specifically for clean cuts in plywood, OSB, and veneer.
- Best for: Cross-cutting a 4×8 sheet without splintering the face veneer
- Why we picked it: 140 teeth and a diamond-knockout arbor made specifically for thin plywood and veneer, matching this panel’s 5mm face
- Main drawback: Slower feed rate than a coarse framing blade — not meant for fast rip cuts
Compare more plywood-cutting blades
 Option 1 Diablo 40-Tooth Finish Blade – $17.49
|
 Option 2 DEWALT 140-Tooth Plywood Blade – $12.06
|
 Option 3 WORKPRO 60-Tooth Fine Finish Blade – $12.99
|
As an Amazon Associate we earn from qualifying purchases.
What Is RevolutionPly Actually Used For?
Patriot Timber lists RevolutionPly’s intended uses as flooring underlayment, wall paneling, millwork, and general woodworking projects — interior applications only. Underlayment is the primary use case the panel is engineered and tested for, not furniture-grade casework.
That said, the smooth A-grade face makes it a reasonable DIY choice for shelving, wall paneling, and paint-grade furniture backs where a hardwood-veneer sheet would be overkill. Its 5mm thickness is too thin for load-bearing furniture parts like cabinet sides or shelves that span more than a foot or two without support.
How to Install RevolutionPly Underlayment (Manufacturer Steps)
These steps come directly from Patriot Timber’s published installation guide for RevolutionPly underlayment — skipping any of them is the most common reason installers see squeaks, cracked flooring, or a panel that won’t lie flat.
- Let the panels acclimate: Store RevolutionPly flat in the room where it will be installed for 24 to 48 hours at roughly 70°F before fastening it down, per the manufacturer’s install guide.
- Orient the panel correctly: Place the panel with its printed label facing down toward the structural subfloor, sanded face up.
- Leave an expansion gap: Position each panel 1/8″ to 1/4″ away from the walls so the sheet has room to expand.
- Fasten with screws only, never adhesive: Never glue or adhere the panel to the subfloor. Drive coated flathead wood screws (minimum 3/16″ head) every 4 inches in the panel field and every 2 inches along the perimeter edges.
- Handle seams without forcing a filler: Butt panels lightly together, or leave a small expansion joint; seam filler is optional and generally unnecessary under carpet, engineered, or wood flooring.
Self-leveling compound can be used with RevolutionPly, but it goes down on the structural subfloor before the panel is installed — never on top of it.
Durability, Finish & What to Check Before You Buy
The sanded poplar face takes paint and stain cleanly and resists warping better than raw poplar boards once it’s sealed. That’s the upside real buyers consistently report.
The complaint that shows up most in buyer feedback is the flip side of a thin, budget-grade panel: an occasional sheet with a creased, paper-thin, or flaking face veneer, and rough edges that need extra sanding. None of that makes the product defective — it’s a commodity underlayment panel, not a furniture-grade hardwood sheet — but it means you should unstack and inspect the actual panel you’re buying in the store rather than trusting the one on top of the pallet.
“Thin, sanded panels like this one chip fastest when someone reaches for a coarse 24-tooth framing blade out of habit. Switch to an 80-to-140-tooth fine-finish blade and the same cut comes off the saw with almost no tear-out — no extra sanding needed.”
📊 RevolutionPly is certified toward the ICC-700 National Green Building Standard (NGBS) and is protected under three U.S. patents (8,414,996; 9,242,391; 12,312,501). — Source: Patriot Timber Products, RevolutionPly spec sheet
Maintenance and Care
Wipe the finished surface with a soft cloth and warm, soapy water; avoid harsh chemical cleaners that can strip a paint or stain finish. Dry with a soft towel to prevent standing moisture from swelling the edges.
If the surface gets scratched, fill it with wood filler, sand lightly, then apply a matching stain — see our full guide on how to stain veneer plywood for the step-by-step process.
Frequently Asked Questions
What Is RevolutionPly Plywood?
RevolutionPly is a 5-ply plywood underlayment made by Patriot Timber from 100% plantation-grown poplar veneer, with an A-grade or better sanded face. It’s built as a Lauan/Meranti alternative for flooring, wall paneling, and millwork, and is certified toward the ICC-700 National Green Building Standard.
Can You Stain RevolutionPly Plywood?
Yes. The A-grade sanded face takes stain and paint well once it’s clean and free of the factory label residue. Test a scrap corner first, since poplar’s color streaks can absorb stain unevenly compared to a single-species hardwood face.
Can You Use RevolutionPly Sanded Plywood for Underlayment?
Yes — underlayment is its primary designed use. The 5.2mm nominal thickness is manufacturer-approved under sheet vinyl, VCT, LVT, LVP, carpet, engineered floors, and wood floors, provided it’s screwed (never glued) to the subfloor.
Do They Make Poplar Plywood?
Yes, poplar plywood is a common commodity product sold at most home centers and lumber yards. It’s lighter and less expensive than birch or maple plywood, with a paint-friendly face, though it’s softer and dents more easily than hardwood-veneer sheets.
Should You Glue RevolutionPly to the Subfloor?
No. Patriot Timber’s own installation instructions say never to glue or adhere RevolutionPly to the subfloor — it causes crackling floors and prevents future replacement. Fasten it with coated flathead wood screws instead, spaced every 4 inches in the field and every 2 inches along the perimeter.
Can RevolutionPly Be Used Outdoors?
No. Patriot Timber specifies RevolutionPly for interior applications only; it is not rated for direct exterior exposure. For an outdoor project, use an exterior-rated or marine-grade plywood instead.
Conclusion
RevolutionPly 5mm x 4-ft x 8-ft Poplar Sanded Plywood is a solid, certified underlayment panel for the price — not a furniture-grade hardwood sheet, and not rated for outdoor use. Follow the manufacturer’s screw-only, no-glue installation rules, inspect the individual sheet for veneer damage before you buy, and pair it with a fine-tooth blade to keep the cut edge clean.
