Best Waterproof Wood Glue for Marine Projects: research shows

For exposed marine joints, I use a Type I waterproof adhesive on dry-fit, sealed joints; for permanent, gap-prone, or always-wet parts, I use epoxy thickened to suit the joint. Weak glue lets joints creep, open, and rot fast under salt and movement. This guide ranks adhesives by exposure zone and failure risk so you can choose the right one for decks, trim, cleats, and hull repairs.

Quick comparison

Zone matters more than marketing copy. In my experience, above the waterline a waterproof PVA can be enough for tight, well-sealed trim joints; in wetter areas, marine epoxy is often the safer default.

How we chose

The comparison below focuses on four things: exposure to standing water, salt spray, and UV; how much joint movement the part sees; how much prep the adhesive tolerates; and how expensive a failure would be to fix.

Cleanup, reworkability, and repair cost matter too. A glue that sands clean helps on trim, while one that bridges small voids fits tired plywood edges and repair joints better.

Marine epoxy: best for below-waterline and high-risk repairs

Marine epoxy is the safest choice when the joint may see standing water, wet end grain, salt spray, or movement that could open a thin glue line. A two-part resin and hardener system gives a waterproof bond and far better gap-filling strength than PVA.

It is my first pick for below-waterline patches, structural repairs, damaged plywood edges, and fillets that need both bonding and sealing. Thickened epoxy is usually the better form for joints that are not perfect, because it can bridge small voids without starving the bond line.

Where epoxy beats other adhesives

Epoxy handles imperfect fit, porous end grain, and repair work where old wood has been cleaned back to sound material. It also works as a sealer on trim ends, plywood edges, and scarfs before final assembly.

For high-risk repairs, that extra margin matters more than convenience. It costs more and takes longer, but it is the adhesive most likely to survive heat cycling, wet-dry swings, and repeated loading.

When thickened epoxy is the safer choice

Use thickened epoxy on non-perfect joints, inside corners, plywood repairs, and any location where a thin glue line would be hard to maintain. A syrupy mix is good for coating and wetting wood, while a peanut-butter mix is better for gap filling and filleting.

The safer approach is to precoat thirsty end grain, then apply the thickened mix. That helps prevent a starved joint, which is one of the easiest ways to lose strength on marine wood.

Main limits: cost, cure time, and sanding

Epoxy is slower than PVA or polyurethane, and temperature changes the schedule. Cooler air extends the cure window; warmth speeds it up. Load the joint too soon and the bond can creep or print through finishes.

It also sands differently from wood. Once fully cured, it is workable, but cured squeeze-out is tougher than PVA residue and more annoying to clean from visible edges.

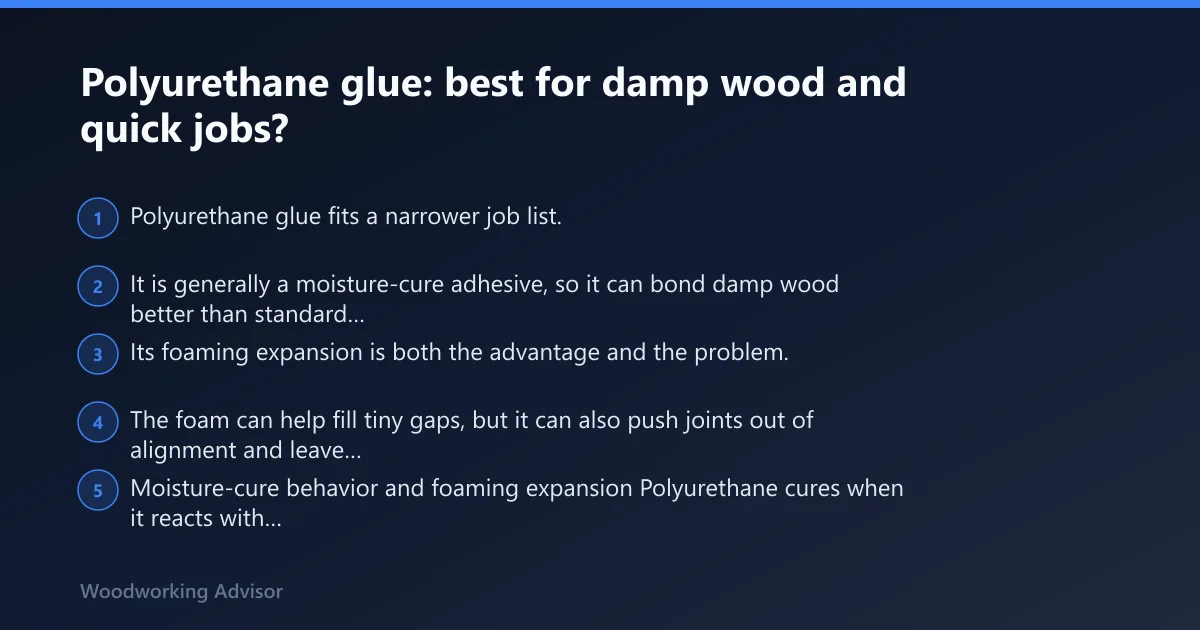

Polyurethane glue: best for damp wood and quick jobs?

Polyurethane glue fits a narrower job list. It is generally a moisture-cure adhesive, so it can bond damp wood better than standard wood glues, and it can be useful for fast exterior repairs where the parts fit closely and the clamp schedule is short.

Its foaming expansion is both the advantage and the problem. The foam can help fill tiny gaps, but it can also push joints out of alignment and leave weak, ragged squeeze-out if the parts are not clamped well.

Moisture-cure behavior and foaming expansion

Polyurethane cures when it reacts with moisture in the wood and air. That makes it useful when lumber is not perfectly dry, but it also means humidity affects working time and final foaming.

The foam is not the bond line. It is mostly void filler. The real strength comes from wood-to-wood contact, so the joint still needs even pressure.

Gap-filling limits and clamp pressure needs

Despite the marketing, polyurethane is not a cure for bad fit. It needs firm clamping pressure and well-prepared surfaces or the foamed areas can become weak spots.

Use it when the joint is reasonably tight, the stock is only slightly damp, and you want moisture resistance with faster handling than epoxy. Avoid it where movement is high or where a neat repair edge matters.

Best uses and where it fails hard

Polyurethane can work for exterior trim, boat interior framing above the waterline, and mixed-material repairs where wood meets metal or composite. It is less forgiving on oily species, heavily weathered surfaces, and anything that may sit wet for long periods.

It also leaves messy squeeze-out. Once cured, that foam is harder to clean off than fresh PVA and usually needs scraping rather than wiping.

Type I waterproof PVA: best for above-waterline trim?

Type I waterproof PVA can be a practical choice for dry-fit, tight-joint work above the waterline. It is still a PVA wood glue, so cleanup is with water before cure, but the Type I rating means a higher water resistance level than common interior glue.

For trim, light joinery, and interior pieces that may see humidity or occasional splash, it is often the easiest adhesive to live with. The tradeoff is simple: it is not the right choice for standing water or for joints that are likely to open over time.

Water resistance, open time, and cleanup

One reason people like Type I PVA is the workable open time. That matters on awkward trim runs where parts need to be aligned carefully before clamping.

Cleanup is straightforward while the glue is fresh. Water removes squeeze-out cleanly, and that makes it a practical choice for visible work, provided the joint is not in a severe exposure zone.

Why it works for some exterior joinery

Type I PVA works when the joint is tight, the surfaces are clean, and the part will live above the waterline. Think cabin trim, interior shelves, and protected trim pieces with good paint or varnish maintenance.

It is also useful where rework may be needed. PVA is easier to disassemble with heat and moisture than epoxy, which can save time on small, serviceable assemblies.

Why it is a poor choice for standing water

Standing water, repeated wet-dry cycling, and salt exposure are hard on any glue line, but PVA is especially vulnerable when the joint can flex. If the part will stay wet, move, or live near a deck edge, epoxy is the safer call.

Use PVA for general woodworking in the boat shed. Do not treat it as a cure-all for marine repairs.

Zone-based decision table for marine woodwork

Marine zone or task	Safest adhesive	Prep and joint notes	Clamp time	Full cure / load risk	Main failure risk
Above-waterline trim and interior joinery	Type I waterproof PVA	Sand to 120-150 grit, dry-fit first, wipe clean	30-60 minutes	About 24 hours; do not finish-load early	Joint creep if the fit is loose or humidity stays high
Splash-zone repairs and deck edges	Thickened marine epoxy	Abrade to 80-120 grit, degrease, mask squeeze-out	Varies by system; hold until stable	Often 12-24 hours to handle, longer before sanding	Edge failure from end-grain soak and UV wear on the finish
Below-waterline patches and structural joints	Marine epoxy	Fresh-sand, dry stock, bond to sound wood only	Clamp or brace until green cure passes	Usually 24-72 hours, depending on temperature	Premature loading, moisture trapped in the repair, poor mix ratio
Teak trim and oily hardwood repairs	Epoxy after solvent wipe; polyurethane only for tight, dry-ish fits	Fresh-sand immediately before bonding; wipe with solvent	Follow adhesive system; even pressure matters	Give the full cure, especially after solvent wipe-down	Bond failure from oil contamination or old oxidized surface
Plywood edges and end-grain repair joints	Thickened epoxy	Seal porous edges first; use cauls on thin panels	Brace until set; avoid starving the line	Do not sand or machine until fully cured	End-grain absorption and a weak, dry glue line
Spars, cleats, and high-load assemblies	Epoxy plus mechanical fasteners where design allows	Use dry stock, good fit, and a measured glue line	Long enough for the system and temperature	Full cure before service loading	Failure from joint movement, flex, or shock loading

What is the best waterproof wood glue for marine projects?

For the widest safety margin, marine epoxy is the best waterproof wood glue for marine projects. It handles below-waterline repairs, end grain, and uneven joints better than PVA or polyurethane, and it is the best choice when failure would mean rot, leakage, or a hard-to-repair structural problem.

That said, the “best” glue depends on the zone. Type I waterproof PVA is fine for protected trim. Polyurethane is useful for damp stock and quick exterior jobs. Epoxy wins when exposure or failure risk is high.

Best pick by exposure zone

Below the waterline, choose epoxy. In the splash zone, choose epoxy unless the joint is small, well sealed, and not structural. Above the waterline, a Type I waterproof PVA can be the most practical buy for tight trim work.

That zone-first approach keeps you from paying epoxy prices where simpler glue is enough, and it keeps you from using an easy glue where the joint cannot tolerate failure.

What glue works best on teak and oily hardwoods?

Teak and other oily hardwoods bond poorly unless the surface is freshly prepared. The best results come from fresh sanding, a solvent wipe-down, and epoxy as the first choice for critical joints. Polyurethane can work on some repairs, but it is less forgiving if the oil content is high.

Old, oxidized teak is a common failure case. The glue may stick at first, then let go after heat, sun, and salt cycle through the joint.

Surface degreasing and fresh-sanding steps

Start by sanding the surface immediately before bonding, usually in the 80-120 grit range. Do not sand it the night before; teak oils can migrate back to the surface.

After sanding, wipe with a solvent that is appropriate for the finish system and follow safety guidance for ventilation and ignition control. Then let the solvent flash off fully before applying adhesive.

Best adhesive types for oily species

Marine epoxy is usually the safest option on teak, iroko, and similar oily woods. It handles imperfect grain and gives a better chance of long-term adhesion when the species resists glue.

Polyurethane can be used on some tight, lightly loaded bonds, but it is not the first pick for critical teak repairs. Type I PVA is the weakest choice here and should be limited to low-risk, well-sealed work.

Failure risks from poor prep and old stock

If the wood is dusty, greasy, or weathered, the glue can fail at the wood surface rather than in the adhesive itself. That kind of failure is common on teak trim that has been exposed for years without a fresh sand.

Failure is also more likely where the joint line is thin and the pieces are flexed often. On oily woods, prep is part of the adhesive system, not an optional step.

Should I use polyurethane glue or epoxy on marine wood?

Use epoxy when the joint may be wet for long periods, needs gap filling, or must stay reliable under movement. Use polyurethane when the stock is slightly damp, the fit is reasonably tight, and you want faster handling on a moderate-risk exterior job.

Epoxy is the better structural choice. Polyurethane is the convenience choice. They are not interchangeable.

Cost, cleanup, reworkability, and repairability

Polyurethane usually costs less per job and is faster to get out of clamps, but it is messier to clean and can leave foamed squeeze-out that looks rough. Epoxy costs more and takes longer, yet it repairs better and can be shaped or sealed after cure.

For small repairs, the extra epoxy cost is often minor compared with the labor saved when the joint lasts. For larger assemblies, the schedule and cleanup burden become more important, and that is where polyurethane can look attractive if the exposure is modest.

What surface prep is needed before gluing wood on a boat?

Surface prep is the difference between a lasting marine joint and a repair that fails early. The usual sequence is dry-fit, fresh abrasion, solvent degreasing if the species needs it, dust removal, adhesive application, and even clamping pressure across the entire bond line.

Skip any of those steps and the joint becomes less predictable, especially on wet, oily, or end-grain-heavy parts.

Practical prep steps

1. Dry-fit the parts and mark the registration.
2. Abrade the bond faces with 80-120 grit, or finer only for final fitting on trim.
3. Vacuum or brush off dust, then wipe oily woods with solvent and let them flash dry.
4. Mask nearby finish lines or use cauls to control squeeze-out.
5. Spread the adhesive evenly with a brush, spreader, or notched stick as needed.
6. Clamp firmly without starving the joint.

Cauls help on wide panels and thin trim. They spread pressure better than bare clamp pads and reduce the chance of squeezing out too much adhesive.

How long should marine wood glue cure before sanding or loading?

Do not sand or load marine wood glue until it has reached full cure, not just grab strength. Clamp time is only the period needed to hold the parts in place; cure time is the period needed before the joint can be machined, stressed, or exposed to service conditions.

Temperature and humidity change the schedule. Warm, dry air usually speeds cure; cool, damp conditions slow it down.

Clamping and cure schedule basics

Type I PVA often needs about 30-60 minutes of clamping for light trim work and around 24 hours before serious loading, though the label should set the real schedule. Polyurethane may release sooner, but full cure still takes time and should not be rushed.

Marine epoxy often needs longer. Some systems can be handled in 12-24 hours, but full cure commonly takes one to three days depending on temperature and mix ratio.

Load-before-cure risk

Loading too early can crack the bond, squeeze it out of alignment, or create a hidden weak line that fails later. That is especially dangerous on spars, cleats, and repair joints that see shock or flex.

When in doubt, wait. A few extra hours now is far cheaper than pulling apart a failed repair later.

How waterproof is Titebond III for outdoor or marine use?

Titebond III is a Type I waterproof PVA and is strong for outdoor woodworking above the waterline, but it is not the right answer for every marine job. It handles moisture better than common interior glue, yet it should not be used where joints may sit in standing water or see repeated wet movement.

For boat trim, cabinet parts, and other protected exterior work, it can be a practical choice. For submerged or structural marine repairs, epoxy is safer.

What it is good at

The extended open time helps on complex glue-ups, and cleanup with water is easy before cure. That makes it useful where fit is good and the part is protected by varnish, paint, or cabin shelter.

It is common woodworking glue, just with a stronger water-resistance profile than standard formulas.

What it should not be asked to do

Do not ask it to solve a wet, moving, or poorly fitting joint. In those conditions, the glue line can creep and open, and saltwater will find the weak spot fast.

If the repair zone is uncertain, step up to epoxy rather than hoping the label rating is enough.

Can wood glue hold below the waterline?

General wood glue should not be trusted below the waterline. Even Type I waterproof PVA is a poor choice for joints that may stay wet, see pressure, or move under load. Below-waterline repairs call for marine epoxy, and in some cases epoxy plus mechanical fastening or a proper patch structure.

Below the waterline, the failure risk is too high to gamble on a glue that was meant for easier conditions.

When adhesive should be replaced by sealant or fasteners

Use a sealant when the goal is watertight bedding rather than structural bonding. Use mechanical fasteners when the joint needs holding power while the adhesive cures or when the design requires serviceability.

Use epoxy when you need both bond strength and sealing. On repair joints that carry real load, adhesive alone may not be enough.

What glue should I use for plywood, spars, or trim on a boat?

Marine plywood and trim need different choices depending on where they live. For sealed trim above the waterline, Type I waterproof PVA is often fine. For plywood edges, end grain, spars, cleats, and repaired joints, marine epoxy is usually the better buy because it seals porous wood and tolerates small gaps.

The more the part depends on edge sealing and structural reliability, the more epoxy earns its keep.

Marine-grade plywood and trim details

Plywood edges absorb adhesive fast. If the bond line is thin and unsealed, the wood can pull resin out of the joint and leave a weak line. Precoat the edge with epoxy when the design includes exposed end grain.

Trim is more forgiving, but it still needs clean surfaces and the right moisture level. A maintenance cycle matters too: paint, varnish, or clear coat keeps water from reaching the glue line.

Spars and high-load assemblies

Spars and other loaded members should generally be epoxied, and fasteners may still be needed depending on the structure. Movement is the enemy here. A glue that works on trim can fail on a spar if the part flexes repeatedly.

For these jobs, choose the adhesive that matches the worst load case, not the easiest one.

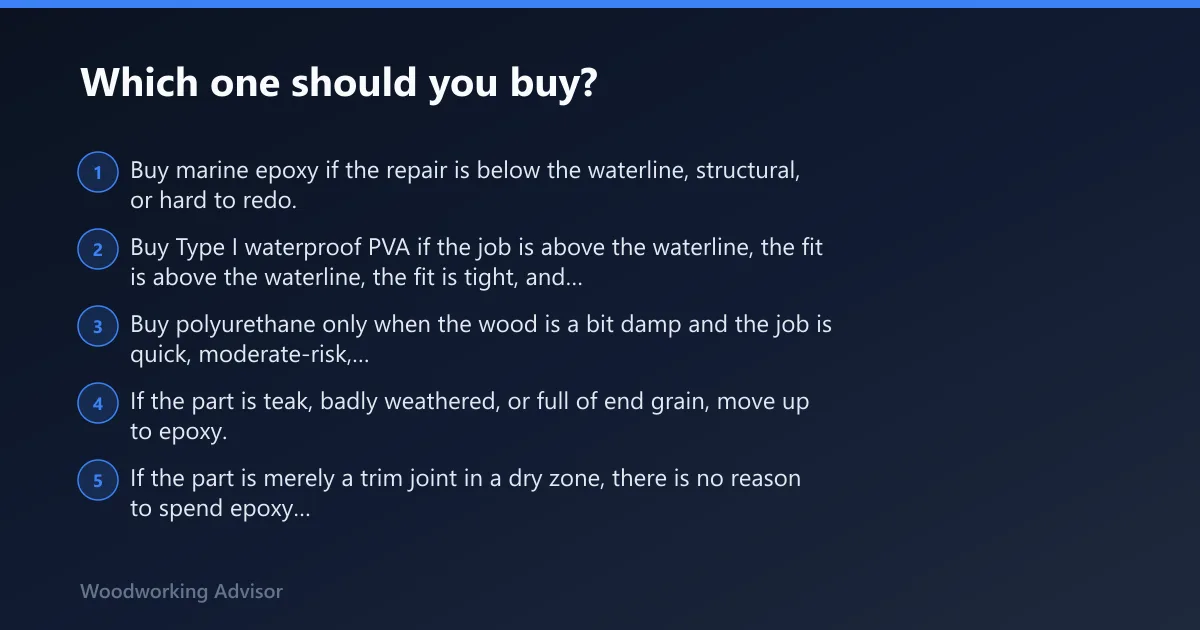

Which one should you buy?

Buy marine epoxy if the repair is below the waterline, structural, or hard to redo. Buy Type I waterproof PVA if the job is above the waterline, the fit is tight, and cleanup matters. Buy polyurethane only when the wood is a bit damp and the job is quick, moderate-risk, and well-clamped.

If the part is teak, badly weathered, or full of end grain, move up to epoxy. If the part is merely a trim joint in a dry zone, there is no reason to spend epoxy money on a simple PVA job.

Best pick by budget

For the lowest-cost small repair, Type I waterproof PVA is usually the cheapest acceptable choice above the waterline. Titebond III Ultimate Wood Glue is the clearest example in this group, and its extended open time helps on small trim assemblies.

For moderate budgets and faster handling, a polyurethane like Kraken Bond D4 Fast Drying Wood Glue or Akfix PA360 can make sense, but only when the fit is good and the wood is not soaking wet. The drawback is messy squeeze-out and less forgiveness on poor joints.

Best pick by repair type

For below-waterline or structural repairs, choose marine epoxy. If the issue is rot voids rather than a simple glue seam, a filler like System Three SculpWood Putty Epoxy Wood Filler is useful for rebuilding shape before final sealing.

For protected trim and general shop work, Titebond III is the easiest to live with. For damp exterior pieces and mixed-material bonds, polyurethane is the middle ground.

Best pick when cure time matters

If you need the fastest path to handling, polyurethane often gets the parts moving sooner than epoxy. That said, fast handling is not the same as full cure, and early stress can still damage the bond.

When the schedule is tight, choose the glue that still matches the exposure zone. A fast wrong adhesive is still wrong.

When to stop choosing glue and switch to fasteners or sealant

Stop treating glue as the only answer when the joint must remain serviceable, sees movement, or needs watertight bedding rather than structural bond. In those cases, use mechanical fasteners for holding and a marine sealant for bedding, or use epoxy as part of a broader repair system.

That decision avoids the common failure case where a “waterproof” glue is asked to do a job that belongs to fasteners, sealant, or both.

Frequently asked questions

What is the best waterproof wood glue for marine projects?

Marine epoxy is the best overall choice for marine projects because it handles standing water, end grain, and imperfect fit better than PVA or polyurethane. For protected trim above the waterline, a Type I waterproof PVA can still be the better practical buy.

Is PVA glue good enough for boat repairs?

PVA glue is good enough for some above-waterline repairs, especially tight trim joints and interior parts that stay dry. It is not a good choice for submerged, moving, or poorly fitted joints, where epoxy gives a much safer bond.

Should I use polyurethane glue or epoxy on marine wood?

Use epoxy for structural repairs, below-waterline work, and gap-prone joints. Use polyurethane for quick jobs on slightly damp wood when the fit is good and the exposure is moderate. Polyurethane is not a substitute for epoxy on critical repairs.

What glue works best on teak and other oily woods?

Epoxy is usually the best choice for teak and other oily hardwoods after fresh sanding and solvent wiping. Polyurethane can work on some lighter-duty jobs, but oily species often defeat weaker prep or thin glue lines. Old, weathered teak is especially hard to bond well.

How long should marine wood glue cure before sanding or loading?

Wait for full cure, not just clamp release. Many PVA joints need about 24 hours, while epoxy often needs 24-72 hours depending on temperature. Cooler, wetter conditions slow the schedule, and early loading can weaken or distort the joint.

What surface prep is needed before gluing wood on a boat?

Dry-fit the parts, sand the bond faces with the right grit, remove dust, degrease oily woods, and use masking tape or cauls to manage squeeze-out. A clean, well-fitted joint gives any marine adhesive a much better chance of lasting.
