CDX Plywood vs Sanded Plywood: Which Do You Need?

Choose CDX plywood for hidden sheathing, subfloors, temporary panels, and other moisture-tolerant work where the face will be covered. Choose sanded plywood for visible parts that need a cleaner finish; if the panel will be painted or finished and left exposed, sanded plywood usually costs less overall because it needs less patching, sanding, and edge repair. Picking the wrong grade can leave visible voids, telegraphed seams, wasted finish, or a sheathing job that looks rough enough to replace. This guide compares CDX and sanded plywood by appearance, finish quality, moisture exposure, and structural use, then shows where each one saves money.

Table of Contents show

Plywood Grades, Voids, and Prep Work

Decision factor	CDX Plywood	Sanded Plywood	Winner
Visibility	Rough, knotty face with C/D grades	Smoother factory-sanded face veneer	Sanded Plywood
Finish work	More filling, edge repair, and sanding	Less prep for paint or clear finish	Sanded Plywood
Structural cover status	Strong choice for hidden sheathing and subflooring	Fine for structural use when appearance matters too	CDX Plywood for hidden work
Moisture exposure	Exterior-type glue resists moisture, not long-term exposure	Also available with exterior bonding, but face quality drives cost	Tie
Overall value on visible panels	Cheap at purchase, often costlier after prep and failure risk	Higher sheet cost, usually lower labor and rework	Sanded Plywood

What the grade letters mean on AC, BC, and CDX panels

Plywood face grades run from A through D. A-grade surfaces are smooth, sanded, and free of major flaws; C-grade surfaces show knots and patches but remain structurally sound; D-grade faces include larger defects and more frequent repairs. The X designation refers to exterior-grade adhesive.

That letter system matters because the face grade tells you how much work the panel will need before it looks finished. It also tells you how much patching or void correction you should expect at edges and cutouts.

How face quality and internal voids change prep time and failure risk

Fewer internal voids improve stability. More voids raise the risk of warping, swelling, and telegraphing through paint. A panel can be structurally acceptable and still be a poor finish choice if the face is heavily patched or the core has open spaces that show at the edge.

For visible work, that means you are not paying only for a sheet. You are also paying for filler, edge treatment, primer, extra sanding, and the chance that a defect shows after paint or stain.

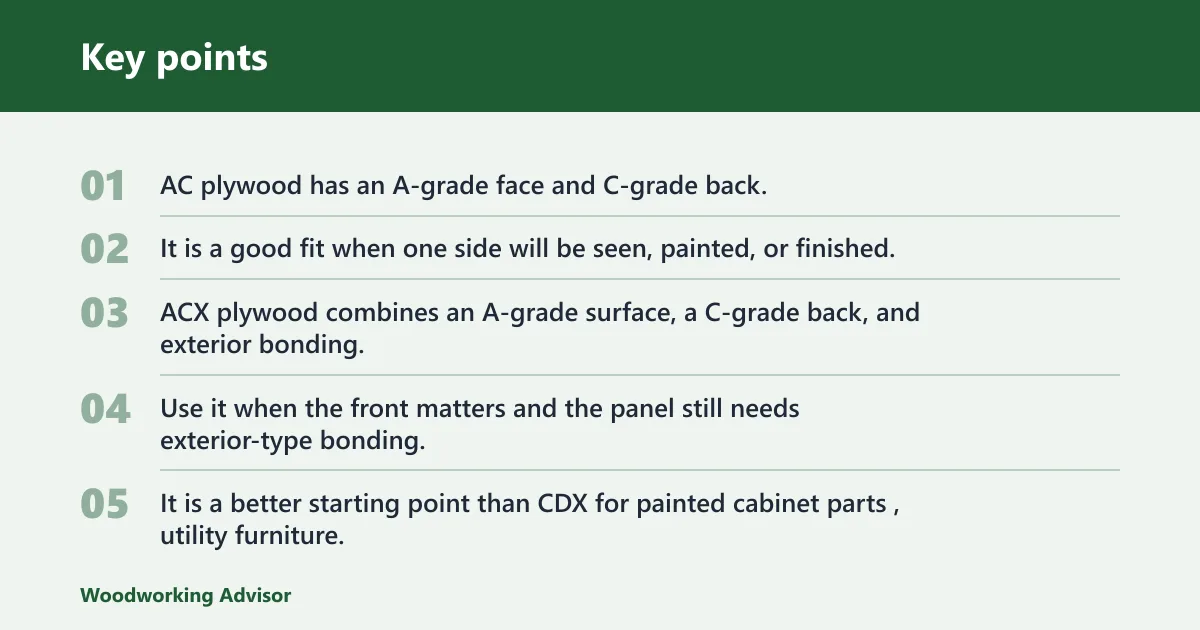

What does sanded plywood mean?

Sanded plywood means a factory-sanded face veneer that gives you a smoother, more paintable surface. In common retail terms, that usually points to AC or BC panels, where the face is cleaner than CDX and meant for visible work.

AC plywood: smooth face, paintable surface, and where it fits

AC plywood has an A-grade face and C-grade back. It is a good fit when one side will be seen, painted, or finished, and the back side can be less perfect. ACX plywood combines an A-grade surface, a C-grade back, and exterior bonding, and it is described as a premium exterior plywood.

Use it when the front matters and the panel still needs exterior-type bonding. It is a better starting point than CDX for painted cabinet parts, utility furniture, or any panel that will be looked at from close range.

BC plywood: cleaner than CDX, less perfect than AC

BC plywood has a B-grade face and C-grade back. It is sanded and paintable, but the face is not as perfect as A-grade stock. That makes it a middle ground when you want better appearance than CDX without paying for the cleanest face available.

BC often makes sense for utility cabinets, garage storage, and painted panels that are visible but not fine furniture. It can still need filling at knots and edges, just less than CDX usually does.

Why sanded faces still need filling, sealing, or edge treatment

Sanded does not mean finished. Even A- or B-face plywood usually still needs edge sealing, spot filling, and primer if you want a smooth painted result. Cut edges can expose core layers or small voids, and those edges absorb finish faster than the face.

A common first-timer mistake is buying a better face grade and skipping edge work. The panel may look fine flat, then show rough, thirsty edges after the first coat.

What is CDX plywood, and when does it make sense?

CDX plywood is generally used as a structural sheathing type with C/D faces and exterior-type glue. It has a rough, knotty appearance and is one of the most widely used structural plywood types in North America. CDX is often used for roof decking, wall sheathing, and subflooring.

C/D faces, exterior-type glue, and common structural uses

CDX is built for cover, not close viewing. The C-grade side can show knots and patches, while the D-grade side includes larger defects and more frequent repairs. The X designation refers to exterior-grade adhesive, which resists moisture but is not waterproof.

That combination makes CDX well suited to hidden structural layers, temporary panels, and other jobs where a later covering hides the surface. It is not a long-term exposed exterior finish material.

Where CDX saves money on subfloors, roof decking, wall sheathing, and temporary panels

CDX saves money when the panel is being covered by flooring, roofing, siding, or another finish layer. If the face will never be seen, the rougher surface is not a penalty. In those cases, paying for a sanded face often buys little or nothing.

Suppose you are closing in a shed wall that will get housewrap and siding. CDX is the sensible buy if the sheathing stays concealed and the assembly details handle moisture correctly.

Why CDX is a poor choice for visible finish work

CDX can be painted, but the prep usually eats the savings. Knots, patches, and voids can show through finish, especially on broad painted faces or at cut edges. If the panel will be looked at, the rougher starting point often means more labor than the lower sheet price saves.

For stained work, CDX is usually worse. Visible repairs and mixed grain make stain sit unevenly, and any open voids at edges or patches will stand out after the first coat.

How do AC, BC, and CDX grades compare?

AC, BC, and CDX differ mainly in face quality and expected use. AC gives you the cleanest face of the three, BC sits in the middle, and CDX is the roughest but often the best structural bargain when the panel will be hidden. Exterior bonding appears in ACX and CDX, but glue alone does not decide finish quality.

Grade	Face quality	Typical use	Best for
AC	A-grade front, C-grade back	Visible panels, painted surfaces, some exterior applications with exterior bonding	Finish work where the front will be seen
BC	B-grade front, C-grade back	Utility cabinets, painted interiors, cleaner visible surfaces	Good appearance without top-tier face perfection
CDX	C/D faces with exterior-type glue	Roof decking, wall sheathing, subflooring, temporary structural panels	Hidden structure and covered work

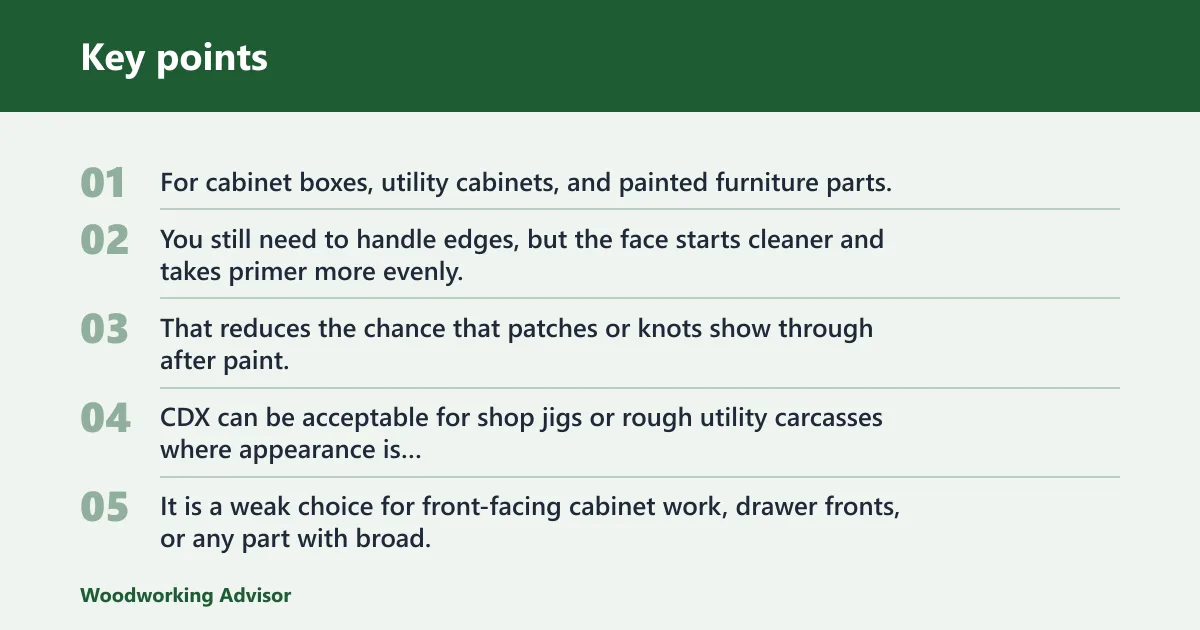

Which plywood is better for visible surfaces?

Sanded plywood is the better choice for visible surfaces because the factory-sanded face starts smoother and takes paint more cleanly. CDX can be used where visibility is low, but it usually needs more filling, sanding, and edge treatment to look acceptable. For anything that will be seen daily, sanded plywood is the safer finish choice.

Cabinet boxes, utility cabinets, and painted furniture parts

For cabinet boxes, utility cabinets, and painted furniture parts, sanded plywood usually pays off. You still need to handle edges, but the face starts cleaner and takes primer more evenly. That reduces the chance that patches or knots show through after paint.

CDX can be acceptable for shop jigs or rough utility carcasses where appearance is secondary. It is a weak choice for front-facing cabinet work, drawer fronts, or any part with broad, uninterrupted panels.

Paint vs stain: what each grade can handle

Paint hides more than stain, so sanded plywood is the better base for painted work. Stain makes face quality and patch pattern more obvious, which is why a rough C/D face is usually a poor candidate. If you want stain, choose a cleaner face grade with fewer repairs and fewer voids.

Picture a 24-inch-wide garage shelf side panel that will sit near eye level. A painted BC panel can look neat after light prep; a CDX panel often still reads as construction material, even after finish.

When sanded plywood costs less overall than CDX

Sanded plywood can cost less overall when you count prep time, extra filler, edge banding, and the risk of a do-over. The sheet price is only one part of the total. If CDX needs multiple rounds of patching to hide knots and voids, the cheaper panel can become the more expensive one.

That is the false-economy case: low upfront cost, higher labor, and a weaker final surface. The more visible the panel, the more often sanded plywood wins on total cost.

Can CDX plywood be painted or stained?

CDX can be painted, but it usually needs more prep than sanded plywood, and it is rarely the best choice for staining. Knots, patches, and face defects can telegraph through a finish, and voids at edges can show after sanding or after the first coat of primer. If the piece will be seen, choose CDX only when the finish standard is low.

What prep CDX needs before paint

Fill knots, patches, gaps, and edge voids with a suitable filler.
Sand the surface enough to knock down rough fibers and ridges.
Seal the face and edges before priming.
Use a primer that blocks stain bleed and evens absorption.
Topcoat only after the surface is fully dry and smooth to the touch.

That workflow is why CDX is often a poor value for painted furniture or cabinets. The labor cost can outrun the savings from the lower sheet price.

When to reject CDX for finish work

Reject CDX for finish work when the panel has obvious open voids, large repairs on the show face, or edge damage that will stay exposed. Reject it also when the finish needs to look clean at close range. If the defects will still be visible after primer, start with sanded plywood instead.

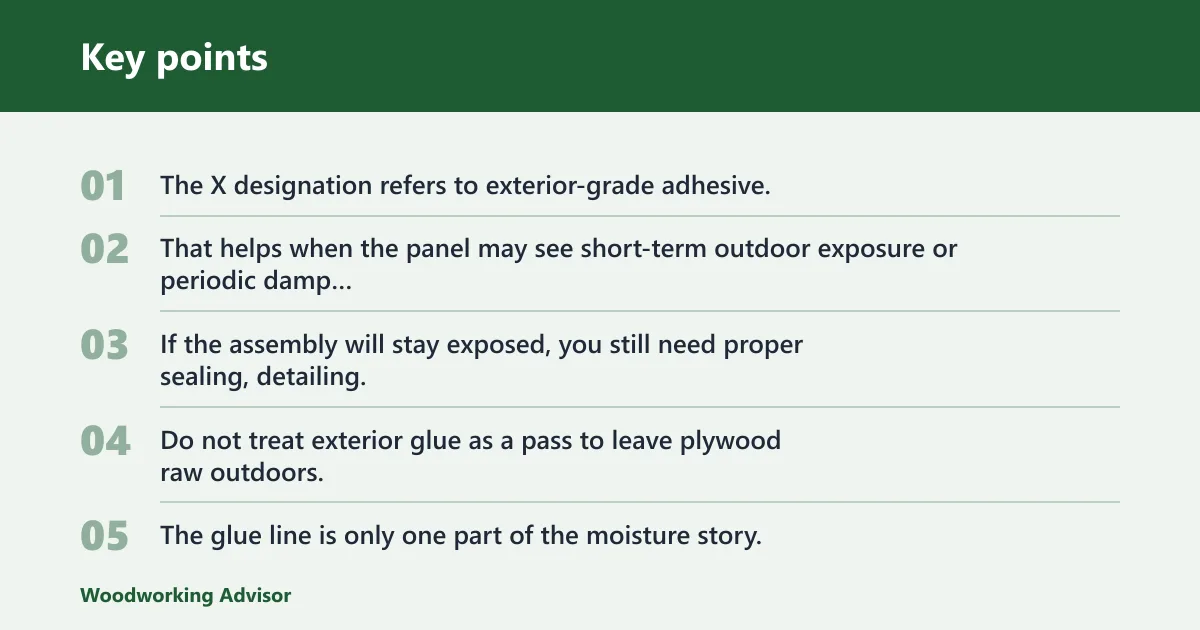

How do moisture, voids, and load affect the choice?

Exterior adhesive resists moisture, but it is not waterproof and it does not make a panel suitable for long-term exposed exterior use. Internal voids matter because they weaken edges, increase swelling risk, and can telegraph through paint. Load, cover, and exposure should guide the choice as much as face appearance does.

What exterior adhesive does and does not do

The X designation refers to exterior-grade adhesive. That helps when the panel may see short-term outdoor exposure or periodic damp conditions, but it does not make the wood immune to water. If the assembly will stay exposed, you still need proper sealing, detailing, and protection.

Do not treat exterior glue as a pass to leave plywood raw outdoors. The glue line is only one part of the moisture story.

How internal voids affect swelling, edge failure, and flatness

Fewer voids usually mean a more stable panel. More voids can create soft spots at edges, poor screw holding near cutouts, and a higher chance that moisture enters a cavity and swells the panel unevenly. Those hidden flaws are one reason CDX can look fine at purchase and still disappoint after finishing.

When a panel will be painted, voids become a visual problem too. They show up as shallow dips, edge cracks, or repaired spots that stay visible under light.

Covered vs exposed use cases

Covered use favors CDX. Exposed or finish-facing use favors sanded plywood. If the panel will be hidden behind trim, siding, flooring, or another layer, the rougher face is usually acceptable. If the face will remain open to view, choose the cleaner sheet.

Project scenario	Visibility	Finish level	Moisture exposure	Load or cover status	Recommended grade	Prep steps	Avoid list
Subfloor	Hidden	None	Moderate during construction	Structural, later covered	CDX plywood	Check panel flatness; fasten to spec; keep edges protected from prolonged wetting	Visible finish grade unless the subfloor will stay exposed
Garage shelves	Partly visible	Low to moderate, often painted	Variable	Loaded, often open to view	BC plywood or sanded plywood	Seal edges; fill knots; prime before paint	CDX if the shelves sit at eye level or will be painted smooth
Painted utility panel	Visible	Painted	Low to moderate	Covered only by paint, not another panel	AC plywood	Fill fasteners; seal edges; sand between coats	CDX for broad flat faces
Temporary sheathing	Low	None	Short-term outdoor exposure	Structural, later removed or covered	CDX plywood	Protect cut edges; install promptly; keep off standing water	Premium sanded grades if the panel is not staying visible
Cabinet box	Visible at interior openings	Painted or clear finished	Low	Structural but seen	AC plywood or BC plywood	Edge banding; filler at defects; prime or seal all faces	CDX unless the cabinet is truly rough utility work

Choose CDX plywood if… / Choose sanded plywood if…

Choose CDX plywood if the panel is hidden, structural, or only temporarily exposed, and you want the lower sheet price for sheathing or subflooring. Choose sanded plywood if the panel will be visible, painted, or handled like furniture, because the cleaner face usually cuts down on labor and rework enough to offset the higher cost.

Choose CDX plywood if…

The panel will be covered by flooring, siding, roofing, or trim.
You need a sheathing grade for roof decking, wall sheathing, or subflooring.
The finish will not matter and small face defects will stay hidden.
Short-term moisture exposure is possible, but the panel will not stay exposed long term.

Choose sanded plywood if…

The panel will stay visible after installation.
You plan to paint, and you want less filling and sanding.
Edge quality matters because cut edges may remain exposed.
You are building cabinet boxes, utility furniture, or other parts people will see up close.

Frequently asked questions

What is the difference between CDX plywood and sanded plywood?

CDX plywood is a structural sheathing grade with C/D faces and exterior-type glue, so it is rougher and better for hidden work. Sanded plywood usually means AC or BC panels with a smoother factory-sanded face that is better for visible, painted, or lightly finished surfaces.

Is CDX plywood okay for cabinets or furniture?

It is okay only for rough utility pieces where appearance matters little. For most cabinets or furniture, CDX is a poor choice because knots, patches, and voids can show through finish and make the piece look unfinished even after extra prep.

Which plywood is better for subflooring, CDX or sanded plywood?

CDX is usually the better subflooring choice because it is a structural sheathing grade commonly used for that purpose. Sanded plywood can work too, but it is often not the best value when the subfloor will be covered and the face will never be seen.

Is exterior glue enough for outdoor use?

No. The X designation means exterior-grade adhesive that resists moisture, but it does not make plywood waterproof or suitable for long-term exposed exterior use. For outdoor projects, you still need proper detailing, sealing, and protection from standing water and weather.
