Large Wooden Gnome Pattern Free

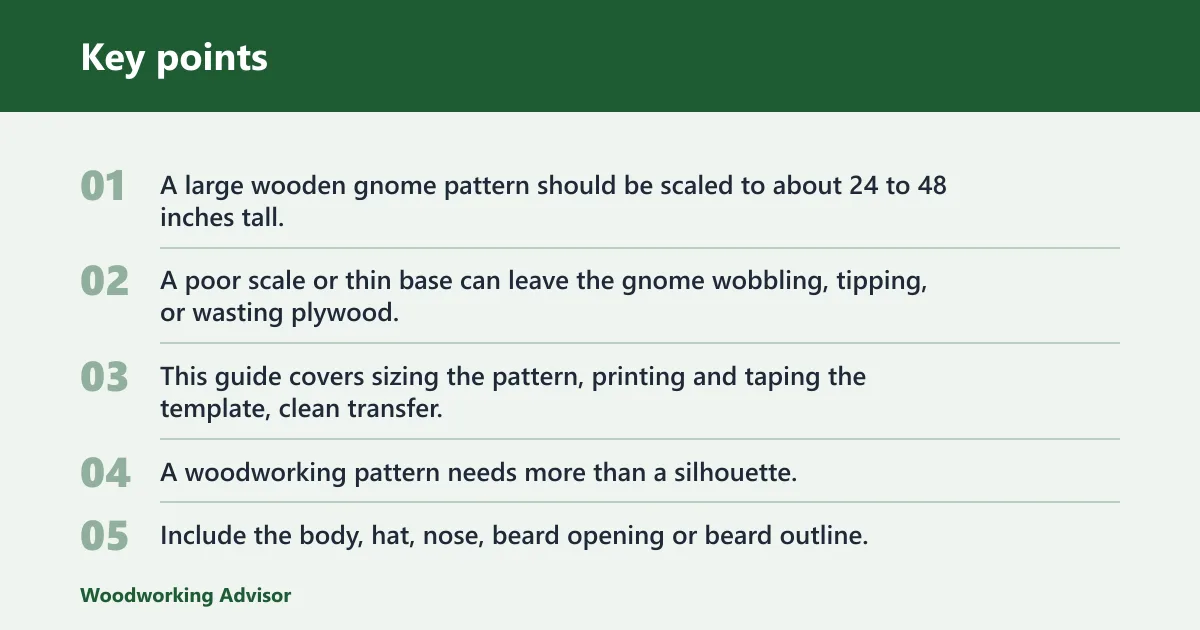

A large wooden gnome pattern should be scaled to about 24 to 48 inches tall, then transferred to 1/2-inch or 3/4-inch plywood for a printable, cut-ready template. A poor scale or thin base can leave the gnome wobbling, tipping, or wasting plywood. This guide covers sizing the pattern, printing and taping the template, clean transfer, safe cutting, and adding a stable base.
A woodworking pattern needs more than a silhouette. Include the body, hat, nose, beard opening or beard outline, and base line so the cutout reads clearly after sanding and paint. Keep the hat slightly narrower than the body at the shoulders; that keeps the profile readable without making the top too heavy.
Base and display options for large wooden gnomes
For indoor display, a freestanding cutout can sit on a simple plywood foot or hidden stand. For porch use, plan for a wider footprint, better sealing, and a thicker sheet. Plywood works well for large signs and cutouts because it stays flatter than solid lumber across broad shapes.

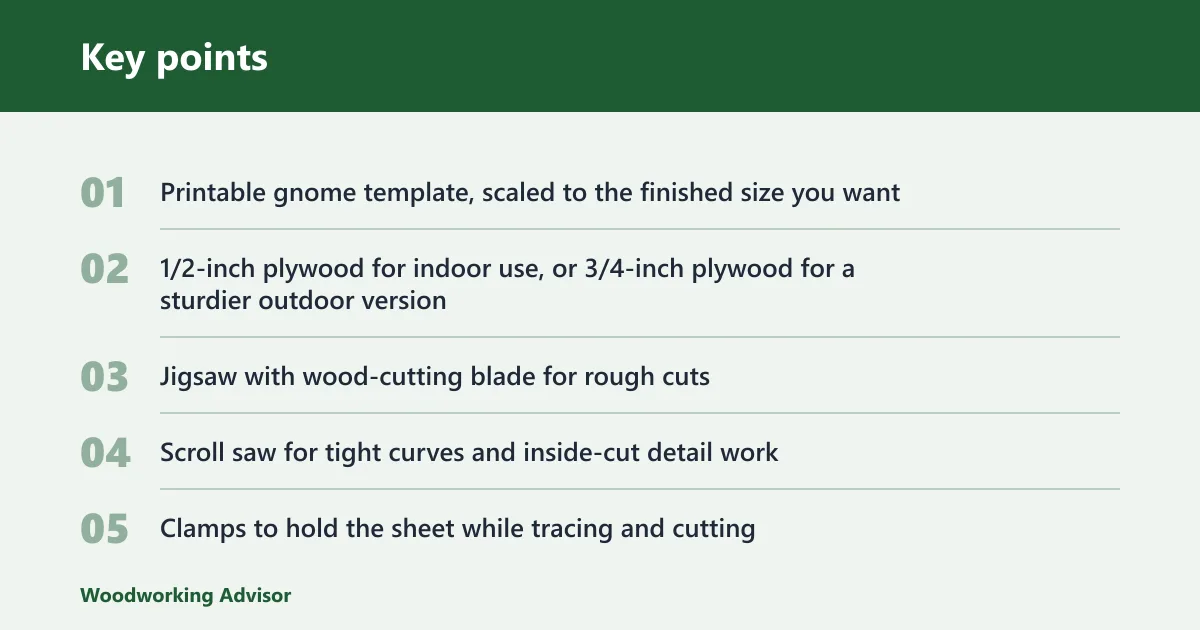

What you’ll need
- Printable gnome template, scaled to the finished size you want
- 1/2-inch plywood for indoor use, or 3/4-inch plywood for a sturdier outdoor version
- Jigsaw with wood-cutting blade for rough cuts
- Scroll saw for tight curves and inside-cut detail work
- Clamps to hold the sheet while tracing and cutting
- Pencil, ruler, and tape for layout
- Carbon paper or removable spray adhesive for transfer
- Sandpaper in 120- and 180-grit
- Primer, paint or stain, and exterior sealant if the gnome will stay outside
- Optional base board or hidden stand for extra stability
Plywood and backing options
Use 1/2-inch plywood when the gnome will live indoors and you want easier cutting. Step up to 3/4-inch plywood when the shape is larger, the base is narrow, or the piece will stand outside. Baltic birch or another smooth plywood grades best for clean edges and easier paint work.
Edge sanding matters. Large plywood profiles leave end grain and layer lines exposed, so the edges need smoothing before primer. If you plan a stained finish, choose a grade with fewer voids and test the stain on a scrap from the same sheet.
Tools for transfer and cutting
A scroll saw is best for inside cuts, beard openings, and tight curves. Its small blade tracks detail better than a jigsaw. A jigsaw is better for rough-cutting the overall outline from a larger sheet, especially when the pattern starts bigger than the saw throat.
For transfer, tape-and-trace is the simplest choice. Carbon paper gives a cleaner line on pale plywood. Temporary spray adhesive can hold the paper to the sheet while you cut, but use it lightly so cleanup stays simple.
Paint, primer, and sealant
Primer helps both paint and many stains behave more predictably on plywood edges. Use an exterior-grade primer and topcoat for porch pieces. Clear sealant is the last step if you want weather protection under a painted finish; it should cover the face, edges, and base.
For outdoor use, avoid leaving raw end grain exposed. The edge layers on plywood drink finish faster than the face veneer. A second coat on the edges usually matters more than an extra coat on the front.
How big should a wooden gnome be?
A practical large wooden gnome is often around 24 to 48 inches tall, but the right size depends on where it will stand. A 24-inch piece works for an entryway or fireplace wall. A 36-inch or 48-inch version needs a wider base and more careful cutting to stay upright.
Shape matters as much as height. Keep the hat and body in proportion so the head does not look top-heavy. A tall pointed hat should not be so wide that it pulls the visual center upward without a matching base below.
Set the hat and body proportions
Start with the body taking roughly the lower half of the silhouette and the hat taking the upper portion, then shift slightly toward the body if the gnome will stand free. A narrower body can still work if the base widens behind it or extends under the feet.
If you draw your own pattern, sketch the base line first. That line controls how the gnome sits on the floor, shelf, or porch. The nose and beard area should stay inside the center mass so the front does not become visually and physically front-heavy.
Match base width to the display location
Indoor tabletop versions can use a smaller foot because they are supported by a wall or shelf edge. Freestanding floor pieces need a larger footprint. A wider base also makes setup easier when the plywood is not perfectly flat.
Picture a 36-inch porch gnome with a tall hat and a narrow boot stance. If the feet are the only contact point, a gust or bump can tip it. Add a base board that extends beyond the feet and the same cutout becomes much more forgiving.
Can you scale a gnome pattern up?
Yes. A large wooden gnome pattern free can be scaled up or down before printing, as long as you keep the body, hat, nose, and base proportioned together. The safest method is to choose the finished height first, then scale the print to match that target before tracing.
Use the worksheet below to convert finished height into print scale, plywood thickness, and base width. If the printed page size changes, check that the scale bar or key measurement matches before you cut anything.
| Finished size | Print scale | Recommended plywood | Minimum base width | Tip-resistance check |
|---|---|---|---|---|
| 24 inches | 100% | 1/2 inch | 8 inches | Stands without rocking on a flat floor when lightly tapped at the hat |
| 36 inches | 150% | 1/2 inch or 3/4 inch | 12 inches | Should not tip when the top is nudged with one hand |
| 48 inches | 200% | 3/4 inch | 16 inches | Needs a weighted base or back support and must stay upright after a gentle push |
Use the worksheet percentages
The percentages above give you a working starting point for a pattern that begins at 24 inches tall. If your source pattern starts at another size, adjust the percentage to reach the finished height you want. Keep the nose and hat points in the same ratio as the body so the profile does not distort.
Print and check the page size
Print one page first and measure the key height on paper. If the head-to-foot measurement is short by 1/4 inch, correct the print settings before outputting the full template. That small error compounds fast on a 48-inch cutout.
Suppose the pattern prints at 98% instead of 100% on a 24-inch gnome. The finished piece will lose nearly half an inch in height, and the hat point can shift enough to change the balance of the stand. Fix the print setting, then reprint the full pattern.
Confirm the cut size before you trace
Lay a tape measure across the printed outline and compare the body height, hat height, and base width to the worksheet. Check the widest point of the hat if the top is decorative. If the print is off, rescale before tape-and-trace starts; correcting it on plywood wastes material.
How do you transfer the pattern?
Transfer the pattern by keeping the paper flat, the sheet secure, and the lines visible. Tape-and-trace works well for large cutouts, carbon paper gives sharper edges on smooth plywood, and temporary adhesive helps when the paper wants to shift during tracing or cutting.
Tape and trace method
- Trim the paper pattern close to the outline.
- Position it on the plywood so the grain runs lengthwise under the body.
- Tape the corners and a few midpoints to prevent drift.
- Trace the outline with a sharp pencil, then mark the base line and any inside cutouts.
Carbon paper method
- Place carbon paper between the template and plywood.
- Secure all layers with tape so they do not creep.
- Trace the full outline with firm pressure, especially at the hat tip and beard curve.
- Lift one corner to confirm the lines transferred before removing the paper.
Temporary adhesive method
- Spray the back of the paper lightly with temporary adhesive.
- Set the template onto the plywood and smooth it from center outward.
- Let the adhesive tack up long enough that the paper stops sliding.
- Cut through the paper only if the adhesive remains removable after the job.
A common first-timer mistake is stretching the paper around a curve and then tracing a wider hat or beard than the original pattern intended. Keep the paper relaxed. A clean, flat transfer keeps both sides symmetrical and reduces rework at the saw.
How do you cut and finish it?
Use a jigsaw for the rough outline and a scroll saw for detail where the blade can reach. Sand the edges before primer so splintered plywood layers do not telegraph through the finish. Paint sticks well to primed plywood, and stain works best on a cleaner, higher-grade sheet.
Rough-cut with a jigsaw
- Clamp the sheet to a stable bench with the cut line hanging free.
- Use a wood-cutting blade sized for curves, not a demolition blade.
- Stay just outside the line on the first pass, especially around the hat point.
- Stop if the blade binds and back out instead of forcing the curve.
Use a scroll saw for detail work
- Switch to the scroll saw only after the blank is close to shape.
- Drill starter holes for any inside cuts, such as beard openings or decorative cutouts.
- Follow the line slowly through tight curves.
- Choose a blade that leaves a clean edge without tearing the plywood face veneer.
Sand, prime, and paint or stain
- Sand the perimeter with 120-grit, then 180-grit on visible edges.
- Dust off the plywood and seal raw edges first.
- Apply primer if you plan to paint; use stain only on plywood that accepts an even color.
- Add the topcoat, then a sealant if the gnome will stay outside.
Do not skip edge sanding. Plywood layers can split out at the hat tip or beard curve, and a rough edge will hold less finish. If the cut face feels fuzzy, another pass with 180-grit is faster than sanding through a paint ridge later.
How do you keep it from tipping?
Keep a large wooden gnome from tipping by widening the base, lowering the weight, and testing the finished piece before display. A free-standing gnome should have a footprint that supports its height, especially if the hat is tall or the body is slim. Outdoor versions need the most margin.
Build a wider base or stand
Add a plywood foot that extends beyond the lowest edge of the body, or attach the gnome to a hidden base board. For larger pieces, a back support can help if the design allows it. The goal is simple: make the support area larger than the visual footprint of the cutout.
Add weight low on the body
Place added weight as low as possible, inside the base or near the feet, not near the hat. A thin strip of steel, a tucked stone, or another hidden low weight can help, but the base still needs enough width to resist a sideways bump. Weight alone will not fix a narrow stance.
Check the finished tip resistance
Set the gnome on a flat floor and tap the hat with one finger. Then nudge the upper body with the palm of your hand. If it rocks or slides, add 1 inch of base width and test again. Repeat that adjustment before finishing the back edge or painting over the base.
Say your 48-inch porch gnome leans forward because the hat is large and the beard cutout removes too much front mass. The fix is not more paint. Add a wider base first, then retest. Finish only after the piece stays upright during the tap check.
Common mistakes
Most failures come from scale, support, or cutting method. Keep the hat proportioned to the body, sand the plywood edges before finishing, and use the saw that matches the job. The pattern can still be free and simple while the build remains stable and clean.
- Overscaling the hat without widening the base: the top grows faster than the support area, so the piece becomes front-heavy.
- Skipping edge sanding before finish: plywood layers can splinter, and paint or stain will telegraph the rough edge.
- Using a jigsaw for every detail: tight interior cuts are cleaner on a scroll saw.
- Leaving the template loose during transfer: a shifted pattern changes the body symmetry and the base line.
- Choosing thin plywood for a tall porch piece: a 48-inch cutout needs more stiffness than a small shelf gnome.
Frequently asked questions
How big are gnomes?
For woodworking cutouts, a practical range is 24 to 48 inches tall. Smaller versions fit shelves and tabletops, while larger ones need a wider base and thicker plywood. The right size depends on where you want it to stand and whether it needs to be moved often.
What size should a large wooden gnome pattern be?
A large pattern usually starts at 24 inches and scales up to 36 or 48 inches for floor display. Keep the base wide enough to match the height, and do a quick tap test after assembly. If the piece rocks, the scale is too ambitious for the current support.
Can I scale a gnome pattern up for plywood?
Yes. Print the pattern at 100%, 150%, or 200% for the worksheet sizes here, then confirm the key height with a ruler before you trace. Use 1/2-inch plywood for most indoor pieces and 3/4-inch plywood for larger outdoor versions.
What tools do I need to cut a wooden gnome shape?
A jigsaw handles the rough outline, and a scroll saw is better for detail work or inside cuts. Add clamps, a pencil, sandpaper, and a dust brush. For finish work, keep primer, paint or stain, and sealant on hand before you start cutting.
How do I keep a large wooden gnome from tipping over?
Widen the base first, then add low weight if needed. For a cutout around 48 inches tall, use 3/4-inch plywood and a base about 16 inches wide, then tap the hat and nudge the upper body. If it still rocks, add more support before painting.
What wood is best for an outdoor wooden gnome?
Exterior-grade plywood or a smooth, void-free plywood panel works best because it stays flatter and accepts paint more evenly. Seal the edges, front, and back. For outdoor use, use primer and a weather-rated topcoat so the finish lasts longer in rain and sun.
Do I need a printable pattern or can I draw the shape myself?
You can do either. A printable pattern helps keep the body, hat, nose, and base proportioned, while a hand-drawn outline works if you can keep the curves symmetrical. If you draw it yourself, mark the finished height first and measure the base before cutting.
How do I transfer a gnome pattern to wood?
Use tape-and-trace for the fastest setup, carbon paper for sharper lines, or temporary spray adhesive if the paper keeps shifting. Whichever method you choose, secure the sheet before tracing and verify the base line before you move to the saw.
