Where to Place Table Legs for Stability (Chart + Tipping Math)

Set table legs as far out as knee room allows: roughly 1.5 to 3 inches in from the sides and a 12 to 16 inch overhang at each end of a dining table. Pull them further inward and the support rectangle shrinks, so a load near the edge can tip the table. Below is the tipping math with stated assumptions, a placement chart by table type, and a wobble checklist.

Where to Place Table Legs for Stability: The Short Rule

Furniture makers commonly inset legs about 1.5 to 3 inches from the edge of the top, and dining-table guides usually leave 12 to 16 inches of end overhang so a person at the head of the table can fit their knees (see the TableCo overhang guide). Those numbers are conventions, not engineering limits. The real limit is how much load the table can take at its edge before it tips, and that depends on how far the legs sit from the edge.

Three different problems get called “an unstable table,” and each has a different fix:

• Wobble: the table rocks on a diagonal pair of legs. Cause: uneven legs or an uneven floor. Fix: shim or level.
• Racking: the table sways side to side or twists. Cause: loose leg-to-apron joints or no bracing. Fix: tighten, glue, or brace the corners.
• Tipping: the table lifts on one side when weight lands near an edge. Cause: legs too far inward for the load. Fix: move the legs outward, widen the base, or add weight low.

Leg placement controls only the third problem, which is why it deserves a calculation rather than a rule of thumb.

The Tipping Math: How Far In Can the Legs Go?

A table tips when a downward load lands far enough outside the line between two legs that its turning effect beats the table’s own weight. Treat the legs as pivots and take moments about the line through the two end legs.

• Assumptions: rigid table, flat floor, table weight W acting at the center, one load P pressed straight down at the very edge of the top.
• Setup: legs sit a distance a in from the edge, so the support span is s = L – 2a, and the load is a distance a outside the leg line.
• Balance point: P x a = W x (s / 2), so the tipping load is P = W x (L – 2a) / (2a).

Worked example: a 72 x 36 inch table that weighs 80 lb (the weight is an assumption, so substitute your own). Along the length, L = 72:

End inset a (in)	Support span s (in)	Load at the end edge that tips it (lb)
4	64	80 x 64 / 8 = 640
8	56	80 x 56 / 16 = 280
12	48	80 x 48 / 24 = 160
14	44	80 x 44 / 28 = 126
16	40	80 x 40 / 32 = 100
20	32	80 x 32 / 40 = 64

The same formula works across the width, with the width of 36 inches in place of L (t = 36 – 2b, load at the side edge):

Side inset b (in)	Leg spacing t (in)	Load at the side edge that tips it (lb)
2	32	80 x 32 / 4 = 640
3	30	80 x 30 / 6 = 400
4	28	80 x 28 / 8 = 280
6	24	80 x 24 / 12 = 160
9	18	80 x 18 / 18 = 80

Two things stand out. First, the tipping load falls fast as the legs move inward: going from a 3 inch to a 9 inch side inset cuts the margin from 400 lb to 80 lb. Second, an older “legs no more than 25% in from any edge” rule would allow a 9 inch inset on a 36 inch top, which in this example tips under the weight of one person leaning hard on the edge. For a typical dining table, an end overhang of 12 to 16 inches gives a tipping load of 100 to 126 lb at the very end of the top. That is fine for plates and elbows and not fine for someone sitting on the end, which is the trade-off behind the knee-room convention.

This is simplified statics, not a structural rating. Real tables also have joint stiffness, uneven floors, and loads that are rarely at the exact edge midpoint. Use it to compare layouts, not to certify one.

Table Leg Placement Chart by Table Type

Table type	Common placement	What decides it
Rectangular dining table	Legs 1.5 to 3 in from the sides; 12 to 16 in end overhang	Knee room at the ends versus end tipping load (math above)
Desk, side table, coffee table	Legs about 2 to 4 in from the edges (commonly cited for desks)	Small overhang everywhere, so tipping is rarely the issue

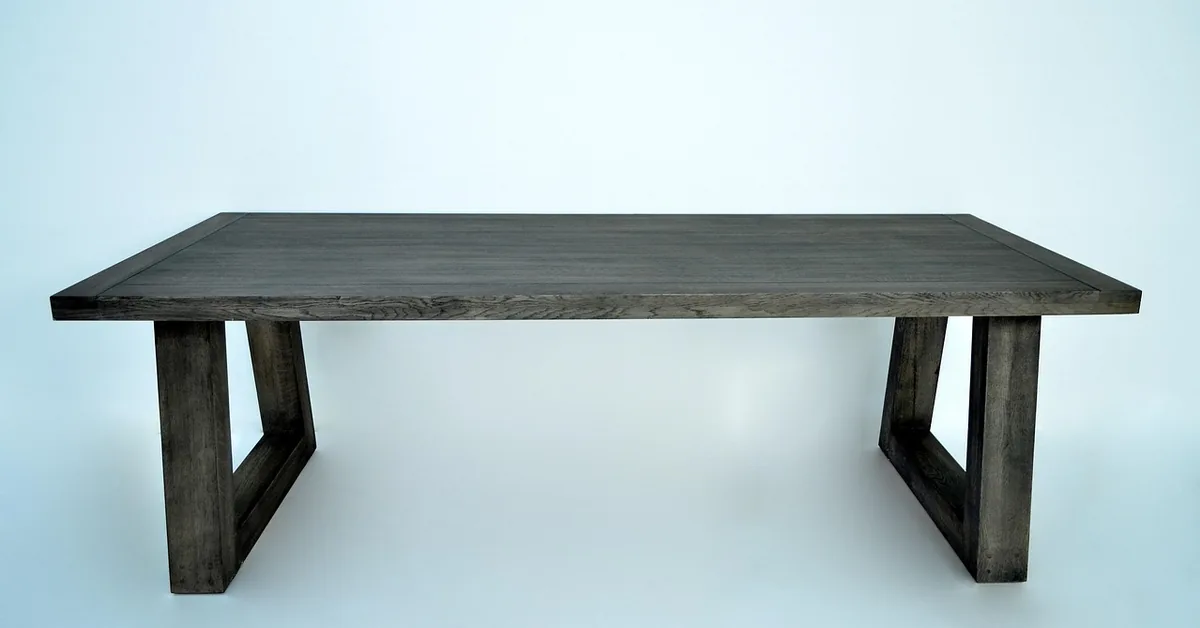

Table with trestle or two-leg ends	Trestle feet set in from each end; widen the foot for narrow tops	Foot length across the width sets side-to-side tipping margin
Round table, three legs	Legs 120 degrees apart, about halfway to the edge	Support triangle is small, so check the numbers below
Round table with pedestal	Base radius at least 60% of the top radius	P = W x b / (R – b), see the round table section
Long slab (8 ft or more)	Legs near the ends, plus a center support or stiff apron	Sag between legs, not only tipping

If you are fitting legs to a live-edge slab, our live edge table legs guide covers leg styles and weight capacity, and the tabletop thickness guide covers how thick the top needs to be before long spans stop flexing.

Round Tables: Three Legs vs Four Legs

Round tops make leg placement easier to describe and harder to get right. The support area is the triangle (three legs) or square (four legs) formed by the leg centers, and tipping happens across its sides. For legs placed on a circle of radius r, the nearest side of the support shape sits r / 2 from the center with three legs, and r / 1.414 from the center with four.

Example: a 48 inch round top (radius R = 24 in) weighing 60 lb, with a load at the edge pointing at the middle of a support side. Tipping load = W x d / (R – d), where d is the distance from the center to the nearest side.

Leg circle radius r (in)	3 legs: tipping load (lb)	4 legs: tipping load (lb)
12	20	33
18	36	68
21	47	97

Three legs never wobble, since three points always touch the floor, but they tip at roughly half the load of four legs on the same circle. If you choose three legs, push them out as far as the design allows. To lay out three legs evenly, step a compass (set to the circle radius) around the circle: it lands on six points, and every second point is a leg, 120 degrees apart. The straight-line distance between two legs is then r x 1.732, so legs on an 18 inch circle are 31.2 inches apart.

For a pedestal, the base acts as one wide foot. With base radius b, the same formula gives P = W x b / (R – b). On the 48 inch top above, a 12 inch base radius (half of R) tips at exactly the table weight, 60 lb, while a 14.4 inch radius (60% of R) tips at 90 lb. That is where the “base at least 60% of the top radius” guideline in the chart comes from: it is a design target derived from this formula, not an industry standard.

Long Tables and Heavy Slabs: Span and Center Support

On long tables the limit stops being tipping and becomes sag. For the same total load, the midspan deflection of a top grows roughly with the cube of the span between supports, so stretching a table from 6 to 8 feet between legs makes it far more flexible, not one third more. Thicker or stiffer wood, an apron or stretcher, or a center support all attack the same problem.

• Moving the legs inward slightly trims midspan sag, because the overhangs lift the middle, but it also moves the tipping lever the wrong way. Treat it as a trade, not a free fix.
• Two heavy trestle ends with a stretcher keep the legs well out toward the ends while the beam carries the span.
• For a long slab on four legs, add a center support (a stretcher with an extra leg or a cleated cross-brace) rather than hoping the top stays flat.

There is no span limit given here: it depends on species, thickness, grain direction, and what sits on the table, and an invented number would be worse than none.

How to Stabilize Wobbly Table Legs

Most “unstable” tables are wobble or racking problems, not tipping problems. Work through the checklist in this order.

1. Find the rocking pair. Press each corner. Four leg ends sit flat only if all four lie in one plane, so a table with one short leg rocks on the diagonal.

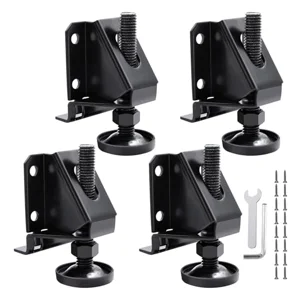

2. Rule out the floor. Move the table to a flat spot. If the wobble moves with the table, the legs are uneven; if it disappears, the floor is the problem. Fix a floor problem with levelers or felt shims.
3. Check the leg joints. Grab the top and try to twist it relative to the floor. Movement at the leg-to-apron joint means a loose bolt or a failed glue joint.
4. Tighten or re-glue. Snug hanger bolts and bracket screws first. A loose mortise or dowel joint needs clean glue, not more screws; see how to glue a broken chair leg back together and how to glue loose chair rungs.
5. Add bracing last. If the legs are straight and tight but the table still sways, add corner braces or an apron. A cracked top is a separate repair: see how to glue a split table top.

Attaching Legs So the Placement Holds

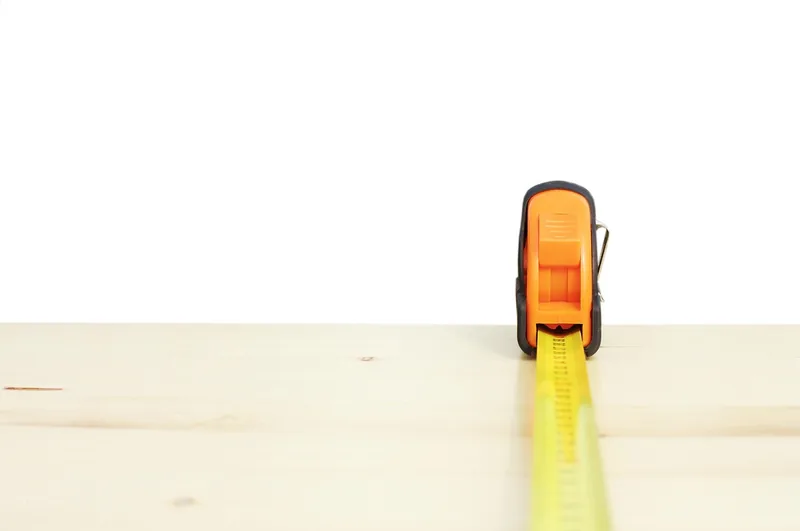

Good placement fails if the legs shift. Corner brackets with hanger bolts let you remove legs and re-tighten them, while a mortise-and-tenon or doweled leg-to-apron joint resists racking better for a permanent table. Whichever you use, mark the inset with a tape and a square on the underside before drilling, and measure from the edge of the top, not from an overhanging lip or apron. The video below walks through four mounting methods.

Keep reading

• Simple DIY Table Legs: Build, Attach, and Style Options
• How to Make a Wood Swivel Base (Plate Sizes + Weight Ratings)
• How to Attach Legs to a Table Without an Apron: 4 Methods

Frequently Asked Questions

How far should table legs be from the edge?

Most tables inset legs 1.5 to 3 inches from the sides of the top. The closer to the edge, the harder the table is to tip: on a 72 x 36 inch table weighing 80 lb, a 3 inch side inset tips at about 400 lb at the edge, while a 9 inch inset tips at about 80 lb.

Where do you place legs on a 72 inch dining table?

Leave 12 to 16 inches of overhang at each end, which puts the legs 40 to 48 inches apart along the length, and inset them 1.5 to 3 inches from the sides. With an assumed 80 lb table weight, that overhang range tips at roughly 100 to 126 lb of load at the very end of the top.

How do you place three legs on a round table?

Space them 120 degrees apart on a circle about halfway to the table edge. Step a compass set to the circle radius around the circle to get six points and use every second point. The legs end up 1.732 times the radius apart.

How do you make a heavy table top stable?

Check the three failure modes in turn: level the legs for wobble, tighten or re-glue joints for racking, and widen or move the legs outward for tipping. For long spans, add an apron, stretcher, or center support so the top does not sag between legs.

Why does my table wobble even with four legs?

Four legs only sit flat if all four ends lie in one plane. One slightly short leg, or a floor dip under one leg, makes the table rock on the opposite diagonal. Moving the table to a flat spot tells you whether the floor or the legs are to blame.

Bottom Line

Put legs as far toward the edges as your knee-room needs allow, check the tipping load with the formula P = W x (L – 2a) / (2a), and fix wobble and racking separately, because moving the legs does not cure either one.
