Can You Glue Wood in Humid Weather? Cure-Time Changes
Humid air can slow water leaving PVA and hide glue, so clamp and cure time may need to be longer; if the wood is damp too, wait until it is near shop equilibrium first. Ignore that and joints can creep, starve, or fail before full strength. This guide breaks down evaporation-based, moisture-reactive, and non-evaporative glues, plus prep, clamping, and cure checks for wet shops and jobsite work.
This guide is part of our Wood glue essentials: types, uses, and cure times series.
Can you glue wood in humid weather?
Yes, if the wood is dry enough and the adhesive fits the conditions. Humid air mainly causes trouble when the glue must lose water to set, or when the wood surface already carries moisture that keeps the bond line from closing and curing well.
When humid air is a nuisance versus a dealbreaker
Humid air is a nuisance when it slows evaporation and stretches clamp time. It becomes a dealbreaker when the stock is visibly damp, the surface feels cool and clammy, or condensation is forming on the wood or clamps. In those cases, the glue line is fighting the environment before pressure even starts.
The tropical zone is described as humid and warm, with precipitation influenced by trade winds and seasonal shifts. Average temperature in the tropical zone is above 20 to 30°C, and maximal temperature in the tropical zone can reach up to 40°C. That mix makes glue choice and timing matter more, not less.
The short answer for shop and jobsite use
Use dry wood, clean faces, and the right adhesive. A humid shop does not automatically ruin a glue-up, but it does change the clock. Open time, clamp time, and full cure do not move the same way, and treating them as one number causes trouble.
According to Tropical zone – meteoblue — Wet savannah is defined there as 9½ to 7 humid months.
What humidity changes during cure
Relative humidity can affect how fast water leaves the glue line, how long a joint stays workable, and how long it takes to reach safe handling strength. It does not affect every adhesive the same way, which is why glue chemistry matters more than general weather advice.
Relative humidity and evaporation rate
With water-based glues, high relative humidity slows evaporation because the air already holds more moisture. That can lengthen the time before the glue grabs, and it can also keep the surface wet enough to shift parts longer than expected.
Shop temperature interacts with that process. Warm air speeds cure by helping moisture move out of the glue line, while low temperature slows cure even if the shop is dry. A cold, damp shop is worse than a warm, damp one for most water-based systems.
How humidity affects open time and skinning
Open time is the assembly window. In humid conditions, open time can lengthen for some water-based glues because the glue stays wet longer, but the opposite can happen on exposed beads and thin spread lines that skin over on the surface while the inside is still soft.
That skinning is a real failure mode. The parts look ready, but the joint never gets full wetting at the interface. Large glue-ups, long assemblies, and spread glue left sitting on a board edge are the usual places it shows up.
Why clamp time and full cure are not the same
Clamp time is the minimum hold period before the joint can resist movement. Full cure is when the adhesive reaches its final strength. Humid air can extend both, but not evenly. A joint may feel safe to unclamp while still being too weak for machining, stressing, or cold seasonal movement.
Which glue type is most tolerant in humid conditions?
Epoxy is usually the most forgiving when evaporation is the problem, polyurethane tolerates slightly damp wood but still needs good fit, PVA works well only on dry stock, and hide glue is the most sensitive to warm, damp conditions. The best choice depends on the glue path, not the weather alone.
PVA wood glue in humid air
PVA is water-based chemistry. In humid air, the water leaves more slowly, so clamp time often needs to be longer. It also performs poorly on damp wood because the added moisture can weaken the bond line and slow the move from wet glue to handling strength.
Dense woods and end grain make this worse. Dense species leave less path for excess moisture to move, while end grain can drink glue so fast that the joint starves. On porous stock, too much absorption can leave too little adhesive at the surface.
Polyurethane glue on damp stock
Polyurethane glue is moisture-reactive, so it can sometimes cure where a little surface moisture is present. That does not mean soaked wood is acceptable. It foams as it cures, and the foam is not a substitute for a sound bond line or correct pressure.
Its gap-filling reputation is overstated. Small voids are one thing. Bad fit is another. Excess foam can push parts apart, leave weak cells in the joint, and create cleanup problems that hide whether the bond is actually sound.
Epoxy when evaporation is not the curing path
Epoxy does not depend on evaporation to cure. That makes it useful when humidity is high and water-based glues are slow to dry. The mix ratio must be accurate, though, because a poorly proportioned batch can stay gummy, brittle, or weak even in perfect weather.
Working time still matters. In humid weather, epoxy may not be slowed by the air itself, but shop temperature still changes how fast it sets. Warm conditions shorten working time, while cooler conditions stretch it and may delay handling strength.
Hide glue in warm, damp shops
Hide glue is temperature sensitive and humidity sensitive. Warm, damp air can keep it workable longer, but it can also delay set and make a joint more vulnerable while the surface cools or skins. Its reversibility is useful in repair work, but that same sensitivity makes timing less forgiving.
How wood moisture content changes the bond
Wood moisture content matters a lot, along with air humidity. Wood tends toward an equilibrium moisture content, meaning the level it moves toward as it matches the surrounding air. If the stock is above that level, glue trouble begins before any adhesive is spread.
Surface moisture versus internal moisture
Surface moisture is the immediate problem because it blocks wetting and dilutes the glue line. Internal moisture matters too, because it moves outward during cure and can keep the bond line unstable. A board can feel dry on the outside and still be too wet inside for a reliable glue-up.
Dense woods, porous woods, and end grain
Dense woods usually need more careful surface prep because they do not absorb or spread glue the same way as porous woods. Porous woods can pull binder into the surface, which starves the joint if too little adhesive remains at the interface. End grain is the most demanding area of all.
On end grain, many adhesives disappear into the fibers instead of forming a strong film. That means the glue line may look normal while the actual joint is weak. A precoat or a sized first coat can help with some systems, but only if the adhesive type allows it.
How hot and humid is too hot and humid?
Too hot and humid is any condition where the adhesive cannot stay within its usable temperature range, the wood is above acceptable moisture content, or visible moisture is present on the surface. Low temperature can be a bigger problem than humidity alone because it slows cure across nearly every glue system.
Working temperature range for common adhesives
Water-based glues usually want a moderate shop temperature for normal cure. Hide glue needs warmth to stay fluid. Epoxy tolerates a broader range, but its working time shifts with temperature. Polyurethane will cure with moisture present, yet cold wood and cold air slow the process and can leave foaming and grab inconsistent.
When the shop is warm, humidity may be the main nuisance. When the shop is cold, the cure problem often comes from temperature first. That is why a damp morning shop can be less risky than a cold slab-floor storage area, even if the air feels equally wet.
No-go conditions for visible moisture and soaked stock
Do not glue wood that is visibly wet or soaked. Do not glue if condensation is forming on the wood. Do not trust a joint just because the surface looks matte. If the stock has been stored near a slab floor or in a wet trailer, let it come closer to shop equilibrium before assembly.
| Humidity level | Wood moisture content | Glue type | Expected risk | Clamp-time adjustment | No-go threshold |
|---|---|---|---|---|---|
| Below 50% RH | Near shop equilibrium | PVA | Low risk if surfaces are clean | Baseline clamp time | Visible moisture on wood |
| 50% to 70% RH | Near shop equilibrium | Hide glue | Moderate risk from slower set | Add 25% to clamp time | Cool, damp stock |
| 50% to 80% RH | Near shop equilibrium | Epoxy | Low to moderate risk if mixed correctly | Hold until handling strength is reached | Incorrect mix ratio |
| 70% to 85% RH | Near shop equilibrium | Polyurethane | Foam push, fit sensitivity, cleanup issues | Add 25% to 50% clamp time | Soaked wood or poor fit |
| Any level with condensation | Above shop equilibrium | Any water-based glue | High risk of weak bond or creep | Do not glue yet | Condensation or visible dampness |
How to prep and clamp in humid weather
Prep matters more in humid weather because the glue has less margin for error. Clean faces, fresh machining, and stable stock help every adhesive. The goal is to keep the bond line thin, even, and fully contacted before the glue starts to skin or lose tack.
Surface prep before spread
Joint or plane fresh surfaces when possible. Remove mill glaze, dust, oil, and any damp surface film. For dense species, the cleaner the cut, the better the wetting. For porous woods, reduce spread starvation by applying enough glue to leave a continuous film after assembly.

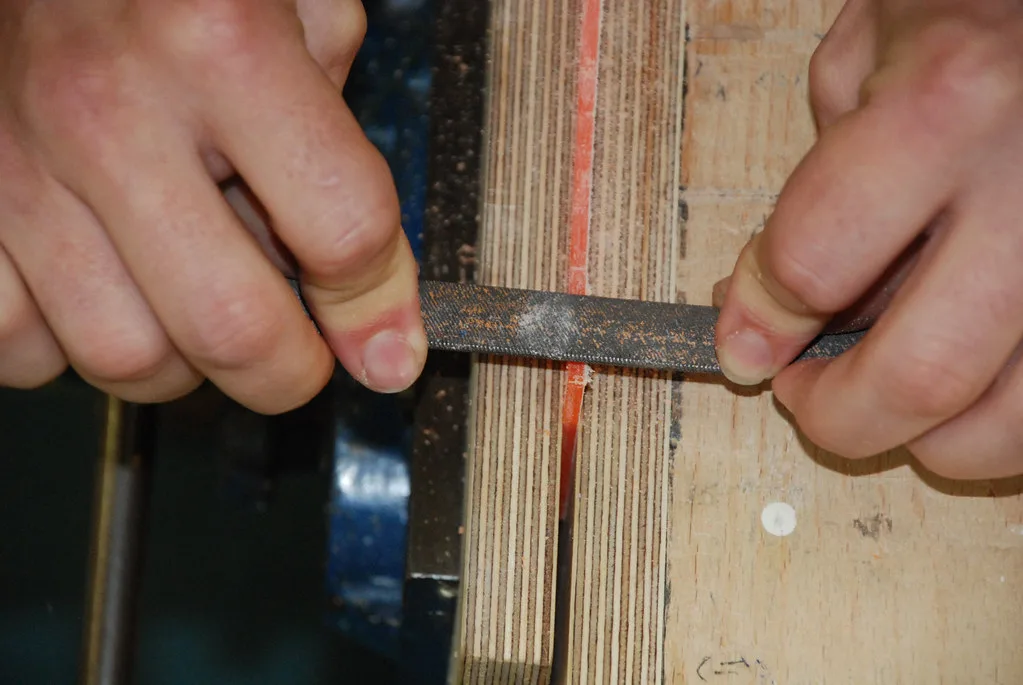

Clamp pressure and squeeze-out
Use enough pressure to bring the faces together without starving the joint. Too much pressure can squeeze out too much adhesive, especially on end grain or soft stock. A thin, even bead of squeeze-out is useful evidence that the joint closed; a dry seam often is not.
- Check that the wood is near shop equilibrium, not visibly damp.
- Dry-fit the assembly and confirm flatness and alignment.
- Spread the glue evenly and move quickly on large assemblies.
- Clamp with steady pressure, not brute force.
- Leave the clamps on longer if the shop is humid or cool.
- Wait for handling strength before stress, trimming, or machining.
Keeping assemblies flat while cure slows
When cure slows, parts can creep under clamp load or seasonal movement. Use cauls, staggered clamps, and a flat reference surface on wide panels. On job sites, protect the assembly from overnight cooling and morning condensation, which can undo a careful glue-up.
Frequently asked questions
How does humidity affect wood glue curing?
Humidity slows evaporation-based curing, so PVA and hide glue often need more clamp time and more patience before handling. It does not affect every glue the same way. Polyurethane reacts with moisture, and epoxy cures without relying on air drying.
Will wood glue dry slower in high humidity?
Usually yes for water-based glues. High humidity slows the moisture leaving the glue line, which can extend clamp time and delay full cure. It can also create surface skinning on exposed glue, especially during wide or slow glue-ups.
What humidity is too high for gluing wood?
There is no single cutoff, but conditions become risky when the wood is damp to the touch, condensation is present, or the stock has not reached shop equilibrium. At that point, the problem is no longer just humidity. The bond line itself is compromised.
Should you clamp wood longer when it’s humid?
Yes, especially with PVA and hide glue. Humid air can slow the move from wet glue to handling strength, so a longer clamp period is often wise. Epoxy may not need longer clamps for evaporation reasons, but temperature still affects its set.
What kind of wood glue works best in humid weather?
Epoxy is usually the most tolerant when evaporation is the issue. Polyurethane can work on slightly damp wood, but it is not a cure for poor fit or wet stock. PVA remains a good choice only when the wood is dry and the clamp time is long enough.
Sponsored / affiliate links. As an Amazon Associate I earn from qualifying purchases. I may earn additional commission from eligible campaigns.
